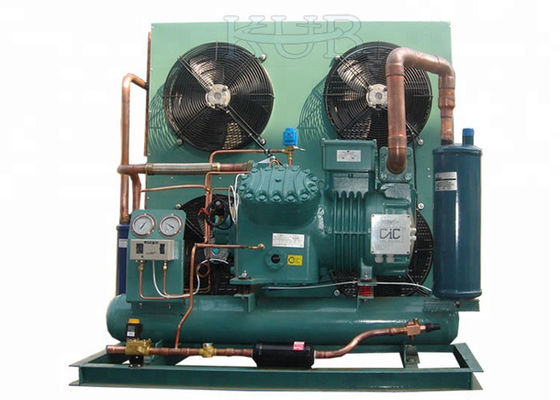

420v R404A Cold Room Compressor Condensing Unit 4HE18Y

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number 4HE18Y R404A
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 50 units per month
Product Details
Type Condensing Unit, Air Cooled Unit Refrigerant R404A
Application Commercial Cold Room Compressor Semi-hermetic
Voltage 380v-420v /3 Ph / 50Hz
High Light

Cold Room Compressor Condensing Unit

,

4HE18Y

,

420v Semi Hermetic Condensing Unit

Leave a Message
Product Description

cold room compressor unit commercial Condensing Unit 4HE18Y R404A low temperature 15HP condensing unit

The most important design features:
Short gas canals Generously sized suction connection
Minimum heat exchange
Solid valve plate design
Valve reeds of impact resistant spring steel

Minimal space requirements
Very compact dimensions
Quiet and low vibration
4 and 6-cylinder design with optimised mass balance giving especially quiet running



Optional components:

2GES-2                       2GES-2Y
2HES-2                       2HES-2Y
2FES-3                       2FES-3Y
2EES-3                       2EES-3Y
2DES-3                       2DES-3Y
2CES-4                       2CES-4Y
4FES-5                       4FES-5Y
4EES-6                       4EES-6Y
4DES-7                       4DES-7Y
4CES-9                       4CES-9Y
4VES-10                     4VES-10Y
4TES-12                     4TES-12Y
4PES-15                     4PES-15Y
4NES-20                     4NES-20Y
4HE-25                       4HE-25Y
4GE-30                       4GE-30Y
6HE-35                       6HE-35Y
6GE-40                       6GE-40Y
6FE-50                        6FE-50Y


2FES-2                        2FES-2Y
2EES-2                        2EES-2Y
2DES-2                        2DES-2Y
2CES-3                        2CES-3Y
4FES-3                        4FES-3Y
4EES-4                        4EES-4Y
4DES-5                        4DES-5Y
4CES-6                        4CES-6Y
4VES-7                        4VES-7Y
4TES-9                        4TES-9Y
4PES-12                      4PES-12Y
4NES-14                      4NES-14Y
4HE-18                        4HE-18Y
4GE-23                        4GE-23Y
6HE-28                        6HE-28Y
6GE-34                        6GE-34Y
6FE-44                         6FE-44Y

Condensing unit Compressor Cooling capacity (w) Condenser Connector Dimension
Model Model Input (kw) Evap Temp: -10'C Qty fan Dia. (Φmm) Air flow (m3/h) Fan power (w) inlet (mm) outlet (mm) L W H
2HES-2Y 2HES-2Y 1.47 3320 1 400 3490 1*200 16 10 620 650 560
2DES-3Y 2DES-3Y 2.92 7310 2 350 2350*2 2*150 22 12 960 680 510
2CES-4Y 2CES-4Y 3.59 9030 2 400 3490*2 2*200 22 12 1060 680 720
4FES-5Y 4FES-5Y 3.89 9740 2 400 3490*2 2*200 22 12 1300 750 670
4EES-6Y 4EES-6Y 4.9 12210 2 400 3490*2 2*200 28 12 1300 750 770
4DES-7Y 4DES-7Y 5.85 14730 2 450 4900*2 2*250 28 16 1300 750 870
4CES-9Y 4CES-9Y 7.14 17800 2 450 4900*2 2*250 28 16 1280 710 910
4VES-10Y 4VES-10Y 7.15 18600 2 450 4900*2 2*250 28 16 1280 710 910
4PES-15Y 4PES-15Y 9.82 25610 4 400 3490*2 4*200 35 22 1280 750 1460
4NES-20Y 4NES-20Y 11.64 30600 4 400 3490*2 4*200 42 22 1350 800 1410
Product name Compressor  Cooling capacity Size
Air cooled condensing unit 4HE18Y 21100w 1050*800*1280mm

420v R404A Cold Room Compressor Condensing Unit 4HE18Y 0







-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A.  Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B.  Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.



420v R404A Cold Room Compressor Condensing Unit 4HE18Y 2





Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
