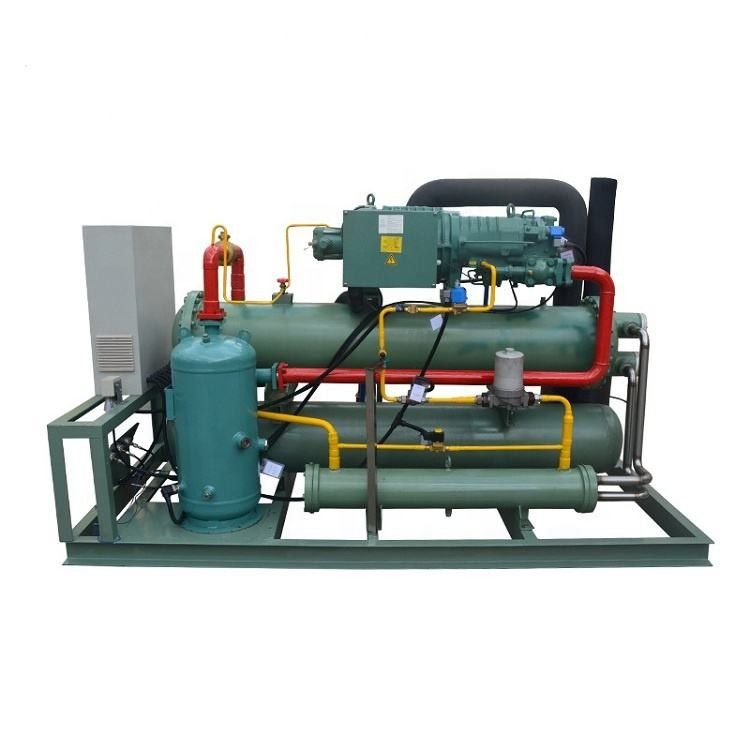

HSN7451-60 refrigeration screw compressor condensing unit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cold Room Condensing Unit | Refrigerant | R404A |
|---|---|---|---|
| Weight (KG) | 3000 | Compressor | Screw Compressor |
| Voltage | 380V 3PH 50hz 440V 3PH 60HZ |
Product Description
KBD1-60 Compressor model HSN7451-60 screw compressor condensing unit refrigeration screw compressor unit
The HSN7451-60 screw compressor condensing unit is a refrigeration system that is designed for use in commercial and industrial settings. It is manufactured by an industry-leading company, and is known for its high efficiency and reliability.
The unit is equipped with a high-performance screw compressor, which is designed to provide consistent and reliable operation, even in demanding environments. The compressor is capable of delivering a high volumetric flow rate, and is highly efficient in terms of energy consumption, helping to reduce operating costs.
The HSN7451-60 condensing unit also features a high-quality condenser, which is designed to provide efficient heat transfer and cooling performance. The condenser is constructed using high-grade materials, and is designed to resist corrosion and other types of damage, ensuring a long service life.
In addition to its high-performance components, the HSN7451-60 condensing unit also features advanced controls and monitoring systems, which allow operators to easily monitor and adjust system parameters. The unit is also designed to be easy to install and maintain, with convenient access to components and service points.
Overall, the HSN7451-60 screw compressor condensing unit is a reliable and efficient refrigeration system that is well-suited for use in a wide range of commercial and industrial applications.
Condensing Unit configuration list
| Name | Specification model or image | Technical description (code) | Quantity |
| Compressor system: | |||
| semi hermetic screw compressor | HSN7451-60 | 1 | |
| Exhaust valve | 2-1/8 | Compressor comes with | 1 |
| Dual pressure control | KP15 | 060-1264 | 1 |
| CEOjoint valve | Compressor comes with | 1 | |
| suction valve | DN65 | Compressor comes with | 1 |
Exhaust pipe system: |
|||
| exhaust header | DN50 | 1 | |
| High pressure meter | 0-3.6Mpa | 1 | |
| Steel angle valve | F-T1 | 1 | |
| Steel seat | 1/4 | NPT (female thread) | 1 |
| safety valve | 3/8 NPT | 1 | |
| safety valve ball valve | 3/8 NPT | 1 | |
| hand valve | 1/4 | 2 | |
| High voltage sensor | Control box comes with | 1 | |
| Exhaust stop check valve | DN50 | 1 | |
| Condensation system: | |||
Liquid supply pipe system: |
|||
| Horizontal reservoir | 100L | 1 | |
Liquid supply pipe |
28 | 1 | |
| Dry filter barrel | 9611G steel interface | 1 | |
| Liquid supply solenoid valve | 1-3/8 with coil | 1 | |
| filter drier filter element | D48 | 2 | |
| Economizer | main in and out 1-1/8,branch in and out 7/8 | B3-050B-18D | 1 |
| Economizer Ball Valve | 5/8 | 1 | |
| Economizer filter | KUB165S 5/8 | 1 | |
| Economizer Solenoid Valve | SV78-5 5/8 with coil | 1 | |
| Economizer Expansion Valve | TGES4(5/8 X7/8) | 1 | |
| Liquid line stop valve | 35 Ball valve | 2 | |
| Evaporator system: | |||
| Return trachea system: | |||
| Return trachea | DN65 | 1 | |
| Suction Gas-liquid separator | DN65 Gas-liquid separator | 1 | |
| Suction filter barrel | 10021G steel interface | 1 | |
| Suction filter element | FRE-100 | 1 | |
| Suction filter element 1 | FRE-100W | 1 | |
| Low pressure pressure sensor | PP11 | 1 | |
| Steel angle valve | F-T1 | 1 | |
| Steel seat | 1/4 | NPT (female thread) | 1 |
| Low pressure meter | 0-1.6Mpa | 1 | |
| Shut-off valve | DN65 | 1 | |
| Oil system: | |||
| oil tubing | 7/8 | 1 | |
| External oil separator | CYF90 | 1 | |
| Coarse oil filtration | 487 copper interface | 1 | |
| filter element | OLX-48W | 1 | |
| oil flow switch | Compressor comes with | 1 | |
| Air-cooled oil-cooled | FNH22 | 1 | |
| Bypass Solenoid Valve | 7/8 with coil | 1 | |
| oil sight glass | Compressor comes with | 1 | |
| oil valve | XFP-27207 7/8 | 2 | |
| 7/8 | Ball valve | 1 | |
| Auxiliary materials | 1 | ||
| frame | 1 | ||
| Electric control box | Chint air switch, Schneider contactor, PLC, Kunlun on-state touch screen | 1 | |
| Unit model | compressor model | compressor quantity | Condensing temperature (℃) |
Evaporation temperature(℃) | |||||||
| -45 | -40 | -35 | -30 | ||||||||
| Cooling capacity/input power(KW) | |||||||||||
| KBD1-50 | HSN6461-50 | 1 | 35 | 26.7 | 27.3 | 34.6 | 28.5 | 43.7 | 29.6 | 54.1 | 30.8 |
| 40 | 25.5 | 30.2 | 33.3 | 31.5 | 42.3 | 32.8 | 52.5 | 34 | |||
| 45 | 24 | 33.4 | 31.7 | 34.9 | 40.5 | 36.3 | 50.6 | 37.6 | |||
| KBD1-60 | HSN7451-60 | 1 | 35 | 31.4 | 33.6 | 41.2 | 34.8 | 52.7 | 36 | 65.9 | 37.3 |
| 40 | 29.8 | 37.8 | 39.5 | 39 | 50.7 | 40.3 | 63.6 | 41.7 | |||
| 45 | 27.9 | 42 | 37.4 | 43.5 | 48.4 | 45 | 61 | 46.6 | |||
| KBD1-75 | HSN7471-75 | 1 | 35 | 40.1 | 39.8 | 51.8 | 41.5 | 65.3 | 43.1 | 80.8 | 44.8 |
| 40 | 38.3 | 44.1 | 49.8 | 45.9 | 63.1 | 47.6 | 78.3 | 49.4 | |||
| 45 | 36.1 | 48.8 | 47.4 | 50.8 | 60.4 | 52.7 | 75.3 | 54.5 | |||
| KBD1-125 | HSN8571-125 | 1 | 35 | 69.3 | 61.4 | 88.5 | 64.7 | 110.7 | 67.9 | 136.3 | 71.1 |
| 40 | 65.7 | 66.9 | 84.7 | 70.9 | 106.6 | 74.6 | 131.9 | 78.3 | |||
| 45 | 61.4 | 72.9 | 80.2 | 77.8 | 101.8 | 82.3 | 126.6 | 86.5 | |||
| KBD-160 | HSN8591-160 | 1 | 35 | 86.4 | 84.1 | 111 | 88.1 | 139 | 91.7 | 172.3 | 95.3 |
| 40 | 82.7 | 92.7 | 106.9 | 97.3 | 134.8 | 101.5 | 167.5 | 105.4 | |||
| 45 | 78.2 | 101.9 | 102 | 107.4 | 129.5 | 112.3 | 161.2 | 116.8 | |||
| Unit model | Reservoir(L) | Liquid supply pipe interface |
Suction pipe interface |
exhaust pipe interface |
Liquid return pipe interface |
Dimensions(mm) |
| KBD1-50 | 80 | Φ28 | Φ54 | Φ42 | Φ28 | 1750×1250×1640 |
| KBD1-60 | 100 | Φ35 | Φ76 | Φ54 | Φ35 | 1750×1250×1640 |
| KBD1-75 | 120 | Φ35 | Φ76 | Φ54 | Φ35 | 1750×1250×1640 |
| KBD1-125 | 200 | Φ42 | Φ108 | Φ76 | Φ42 | 2150×1400×1870 |
| KBD1-160 | 250 | Φ42 | Φ108 | Φ76 | Φ42 | 2150×1400×1870 |
