Commercial Condensing Unit Semi Hermetic Reciprocating Refrigeration Compressor Compact Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Condensing Unit, Air Cooled Unit | Refrigerant | R404A |
|---|---|---|---|
| Application | Commercial Cold Room | Compressor | Semi-hermetic |
| Voltage | 380v-420v /3 Ph / 50Hz | Cooling Capacity | 27700w |
| Highlight | Semi Hermetic Commercial Condensing Unit,Reciprocating Semi Hermetic Condensing Unit,Refrigeration Semi Hermetic Condensing Unit |
||
Product Description

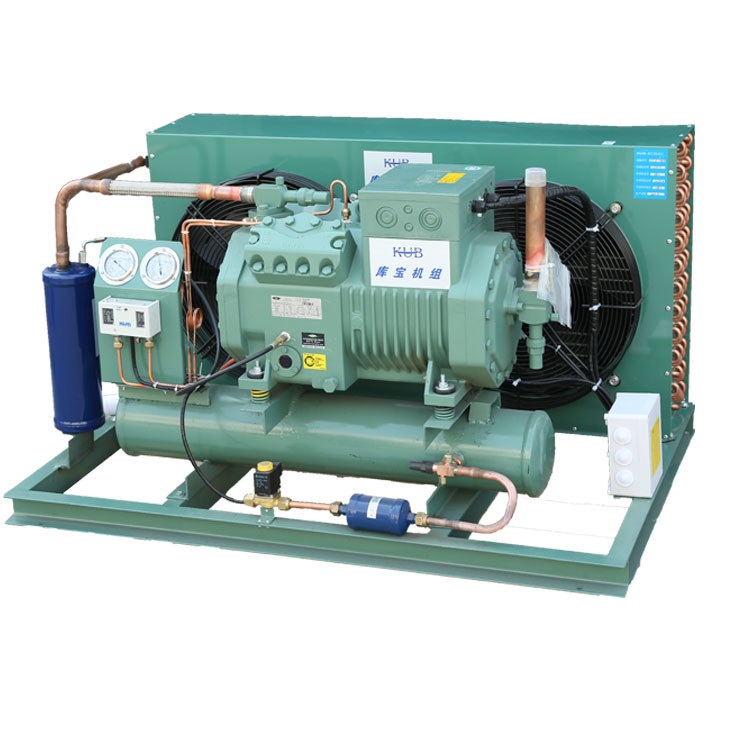

KUB FH130 4PES-15Y cold room condensing unit
The most important design features:
Short gas canals Generously sized suction connection
Minimum heat exchange
Solid valve plate design
Valve reeds of impact resistant spring steel
Minimal space requirements
Very compact dimensions
Quiet and low vibration
4 and 6-cylinder design with optimised mass balance giving especially quiet running
Optional components:
2GES-2 2GES-2Y
2HES-2 2HES-2Y
2FES-3 2FES-3Y
2EES-3 2EES-3Y
2DES-3 2DES-3Y
2CES-4 2CES-4Y
4FES-5 4FES-5Y
4EES-6 4EES-6Y
4DES-7 4DES-7Y
4CES-9 4CES-9Y
4VES-10 4VES-10Y
4TES-12 4TES-12Y
4PES-15 4PES-15Y
4NES-20 4NES-20Y
4HE-25 4HE-25Y
4GE-30 4GE-30Y
6HE-35 6HE-35Y
6GE-40 6GE-40Y
6FE-50 6FE-50Y
2FES-2 2FES-2Y
2EES-2 2EES-2Y
2DES-2 2DES-2Y
2CES-3 2CES-3Y
4FES-3 4FES-3Y
4EES-4 4EES-4Y
4DES-5 4DES-5Y
4CES-6 4CES-6Y
4VES-7 4VES-7Y
4TES-9 4TES-9Y
4PES-12 4PES-12Y
4NES-14 4NES-14Y
4HE-18 4HE-18Y
4GE-23 4GE-23Y
6HE-28 6HE-28Y
6GE-34 6GE-34Y
6FE-44 6FE-44Y
| Condensing unit | Compressor | Cooling capacity (w) | Condenser | Connector | Dimension | |||||||
| Model | Model | Input (kw) | Evap Temp: -10'C | Qty fan | Dia. (Φmm) | Air flow (m3/h) | Fan power (w) | inlet (mm) | outlet (mm) | L | W | H |
| 2HES-2Y | 2HES-2Y | 1.47 | 3320 | 1 | 400 | 3490 | 1*200 | 16 | 10 | 620 | 650 | 560 |
| 2DES-3Y | 2DES-3Y | 2.92 | 7310 | 2 | 350 | 2350*2 | 2*150 | 22 | 12 | 960 | 680 | 510 |
| 2CES-4Y | 2CES-4Y | 3.59 | 9030 | 2 | 400 | 3490*2 | 2*200 | 22 | 12 | 1060 | 680 | 720 |
| 4FES-5Y | 4FES-5Y | 3.89 | 9740 | 2 | 400 | 3490*2 | 2*200 | 22 | 12 | 1300 | 750 | 670 |
| 4EES-6Y | 4EES-6Y | 4.9 | 12210 | 2 | 400 | 3490*2 | 2*200 | 28 | 12 | 1300 | 750 | 770 |
| 4DES-7Y | 4DES-7Y | 5.85 | 14730 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1300 | 750 | 870 |
| 4CES-9Y | 4CES-9Y | 7.14 | 17800 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1280 | 710 | 910 |
| 4VES-10Y | 4VES-10Y | 7.15 | 18600 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1280 | 710 | 910 |
| 4PES-15Y | 4PES-15Y | 9.82 | 25610 | 4 | 400 | 3490*2 | 4*200 | 35 | 22 | 1280 | 750 | 1460 |
| 4NES-20Y | 4NES-20Y | 11.64 | 30600 | 4 | 400 | 3490*2 | 4*200 | 42 | 22 | 1350 | 800 | 1410 |
| Product name | Compressor | Cooling capacity | Size |
| Air cooled condensing unit | 4PES-15Y | 27700w | 1050*800*1280mm |
