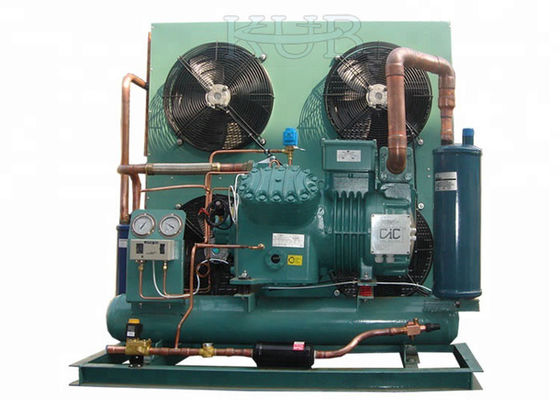

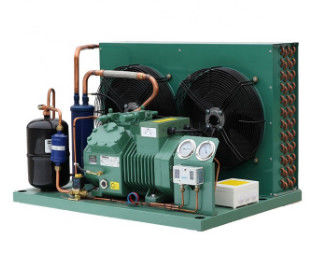

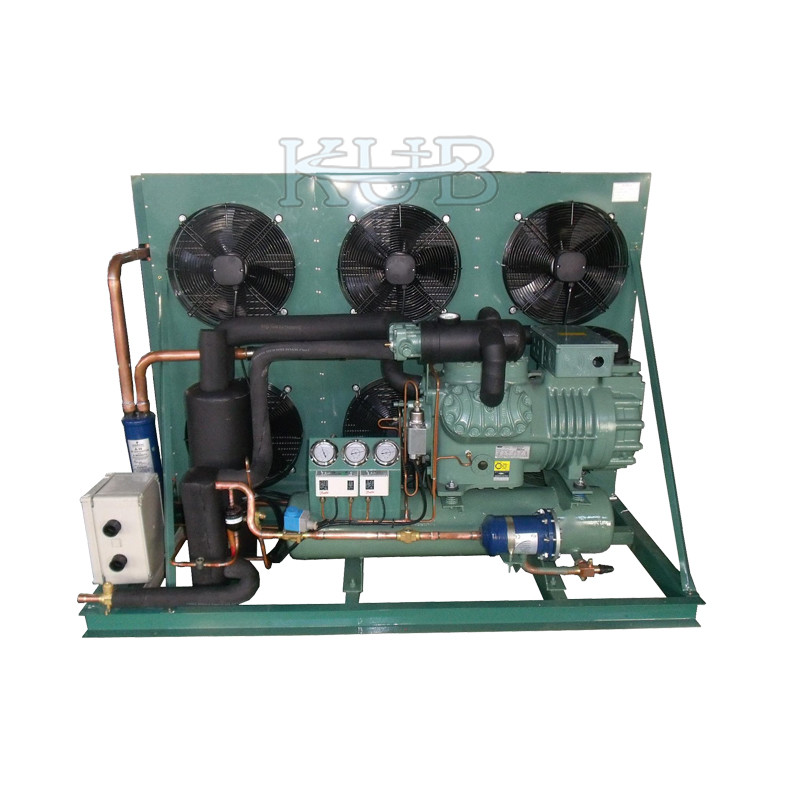

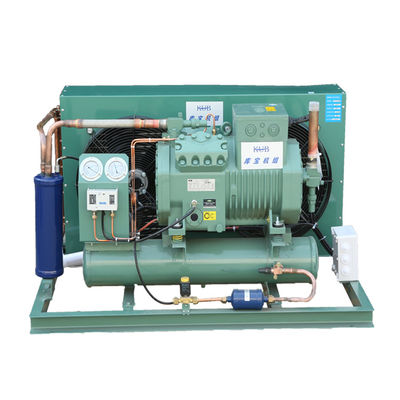

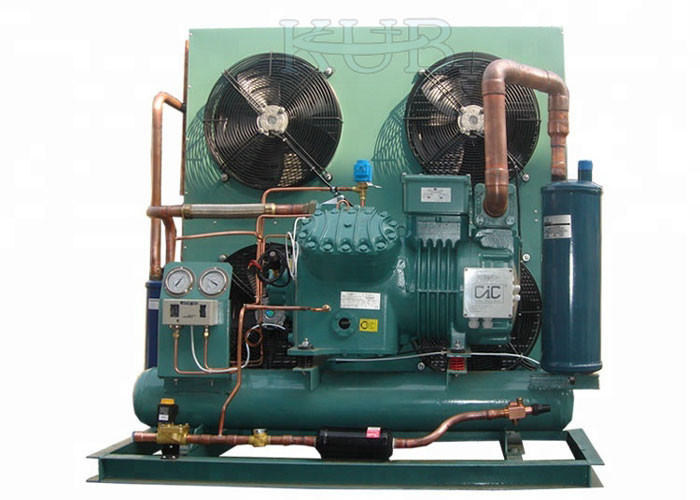

Low Temperature Cold Storage Compressor Cold Room Freezer Refrigeration Condensing Unit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Piston | Configuration | Stationary |
|---|---|---|---|
| Power Source | AC Power | Lubrication Style | Oil-less |
| Voltage | 380V | Warranty | One Year |
| Product Name | Silent Air Compressor | Cooling Method | Air Motor |
| Keywords | Semi-hermetic Compressor | Noise | Low |
| Highlight | cool room refrigeration compressor,screw type compressor |
||
Product Description
4FES-3 4EES-4 4DES-5 4CES-6 3hp 4hp 5hp 6hp Low temperature 4 cylinder compressor cold room freezer Low Temperature Cold Storage Compressor Cold Room Freezer Refrigeration Condensing Unit
1. Capacity: This refers to the amount of refrigeration that the unit can provide, typically measured in tons or kilowatts.
2. Compressor Type: Bitzer offers various types of compressors including reciprocating, scroll, and screw compressors.
3. Refrigerant Type: The refrigerant is the substance used to transfer heat in the refrigeration cycle. Bitzer units can be designed to work with a variety of refrigerants, such as R404A, R134a, and R22.
4. Evaporating Temperature: This is the temperature at which the refrigerant evaporates to absorb heat from the surrounding environment. Bitzer units can be designed to operate at different evaporating temperatures depending on the application.
5. Condensing Temperature: This is the temperature at which the refrigerant condenses to release heat to the surrounding environment. Bitzer units can be designed to operate at different condensing temperatures depending on the application.
6. Power Supply: Bitzer Refrigeration Condensing Unit can be designed to operate on various power supplies, such as 220V/50Hz, 380V/50Hz, or 440V/60Hz.
7. Control System: Bitzer Refrigeration Condensing Units may include a control system to monitor and regulate the operation of the unit, including temperature and pressure sensors, as well as control valves and switches.
8. Application: Bitzer Refrigeration Condensing Unit can be designed for different applications, such as air conditioning, refrigeration, or industrial processes. The application will determine the specific parameters required for the unit, such as cooling capacity and operating temperatures.
9. Noise Level: The noise level of a Bitzer Refrigeration Condensing Unit can also be a parameter of interest, as it may be important in certain applications, such as residential or commercial settings.
10. Efficiency: Bitzer Refrigeration Condensing Unit can be designed to operate at different levels of efficiency, which can affect energy consumption and operating costs. Factors that can impact efficiency include the type of compressor, refrigerant, and control system used in the unit.
compressor features
1. Energy effificient
high cooling capacity and minimum
energy requirement:
highly effificient working valves
minimum clearance volume
effificient, large-volume motor
reduced flflow losses at low
condensing temperatures
2. Quiet with low vibration
optimized mass balance
low discharge gas pulsations due
to special cylinder head design
3. Minimum space requirement
very compact design
4. Effificient capacity control
cylinder shut-off or VSD capacity
control possible
cylinder shut-off possible from
18 m3/h displacement (50 Hz) on
– 4 cylinder compressor: 50%
– 6 cylinder compressor: 66% / 33%
– 8 cylinder compressor: 75% / 50%
Specification
| HP | Compressor | Condenser Surface M2 |
Voltage | Cooling capacity(W) | Axial Fans | ||||
| (V-Ph-Hz) | Evaporating temperature(°C) | ||||||||
| -35 | -30 | -25 | -20 | -15 | N°x Diameter | ||||
| 2 | 2FES-2Y | 16 | 380-3-50 | 1000 | 1420 | 1910 | 2480 | 3140 | 1 x 350 |
| 2 | 2EES-2Y | 16 | 380-3-50 | 1280 | 1820 | 2450 | 3190 | 4050 | 1 x 400 |
| 2 | 2DES-2Y | 16 | 380-3-50 | 1600 | 2240 | 2990 | 3870 | 4890 | 1 x 400 |
| 3 | 2CES-3Y | 24 | 380-3-50 | 2110 | 2890 | 3810 | 4880 | 6120 | 2 x 350 |
| 3 | 4FES-3Y | 24 | 380-3-50 | 2380 | 3170 | 4120 | 5250 | 6580 | 2 x 350 |
| 4 | 4EES-4Y | 32 | 380-3-50 | 3010 | 4020 | 5240 | 6690 | 8390 | 2 x 400 |
| 5 | 4DES-5Y | 42 | 380-3-50 | 3600 | 4800 | 6260 | 8000 | 10040 | 2 x 400 |
| 6 | 4CES-6Y | 48 | 380-3-50 | 4220 | 5690 | 7480 | 9610 | 12120 | 2 x 400 |
| 8 | 4TES-9Y | 64 | 380-3-50 | 4840 | 6740 | 9030 | 11780 | 15040 | 2 x 450 |
| 10 | 4PES-12Y | 80 | 380-3-50 | 5040 | 7200 | 9830 | 13010 | 16790 | 2 x 450 |
| 12 | 4NES-14Y | 96 | 380-3-50 | 6580 | 9140 | 12240 | 15950 | 20350 | 4 x 400 |
| 15 | 4HE-18Y | 120 | 380-3-50 | 10070 | 13570 | 17720 | 22600 | 28350 | 4 x 400 |
| 20 | 4GE-23Y | 160 | 380-3-50 | 12320 | 16290 | 21000 | 26550 | 33050 | 4 x 400 |
| 25 | 6HE-28Y | 200 | 380-3-50 | 14800 | 19970 | 26100 | 33300 | 41750 | 4 x 400 |
| 30 | 6GE-34Y | 240 | 380-3-50 | 18920 | 24850 | 31800 | 39950 | 49400 | 2 x 600 |
| 40 | 6FE-44Y | 320 | 380-3-50 | 21900 | 29250 | 37750 | 47650 | 59100 | 2 x 600 |
| Product name | condensing unit |
| Compressor brand | compressor |
| Refrigerant | R404A |
| Power | 3hp |
| Condenser | air cooled condenser |
| Compressor type | semi-hermetic compressor |
| Number of fan motor | 2fan motor |
| Fan motor diameter | 400mm |
| Application | Cold Storage Room Freezer Room |
| Brand | KUB |
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.

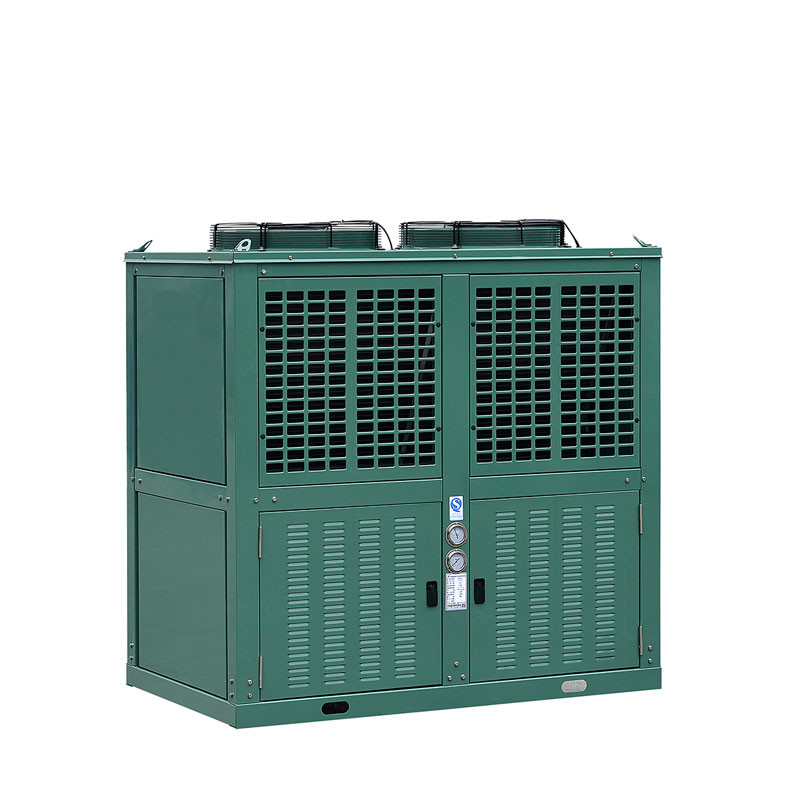

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
