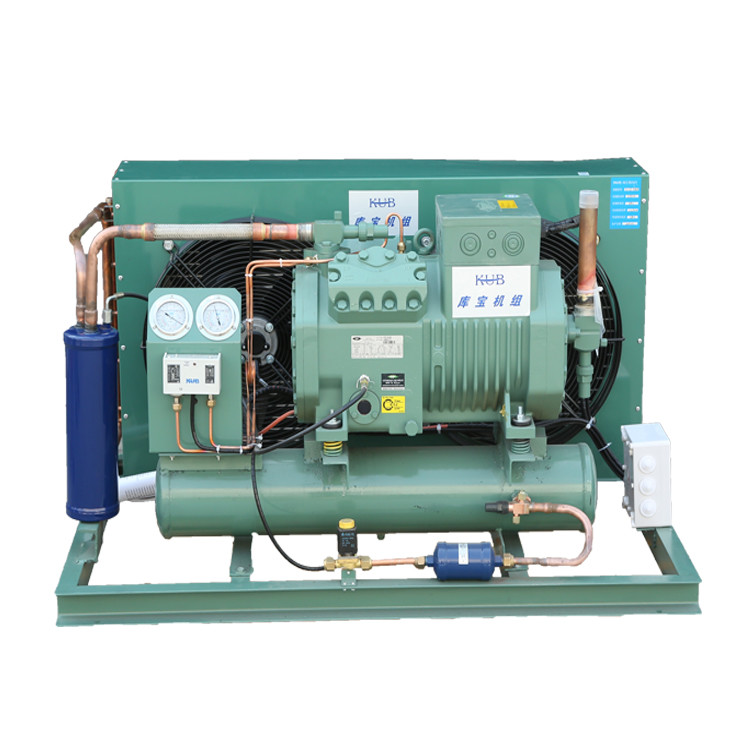

2HP R404a Semi Hermetic Condensing Unit Cold Room Compressor Condensing Unit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Condensing Unit | Refrigerant | R404A |
|---|---|---|---|
| Compressor | Compressor | Voltage | 380V/3Ph/50Hz |
| Application | Cold Storage Room Freezer Room | Cooling Capacity | 2.25Kw |
| Size | 700*650*580mm | After-sales Service Provided | Online Support |
| Product Name | Condensing Unit | ||
| High Light | 2HP Semi Hermetic Condensing Unit,Cold Room Compressor Condensing Unit,R404a Compressor Condensing Unit |
||
Product Description
Original 2HES-2Y Compressor Condensing Unit 2HP r404a air cooled condensing units for cold room
More compressor units for your reference
2GES-2, 2FES-3, 2EES-3, 2DES-3, 2CES-4, 4FES-5, 4EES-6, 4DES-7, 4CES-9, 4VES-10, 4TES-12, 4PES-15, 4NES-20, 4J-22.2, 4HE-25, 4GE-30, 6HE-35
Piston Compressor
1.All models on sale
2.Competitive Price
3.Continuous Supply Capacity
refrigeration compressor features:
A closely graduated product range for modern refrigeration,A/C,and heat pump systems
With the ECOLINE series offers highly efficient all-purpose compressors,which meet the challenging demands of modern refrigeration systems:
Extended application range
R134a up to tc=85℃
R404 and R507 up to tc=62℃
Energy efficient
High cooling capacity minimum energy requirement:
Highly efficient working valves
Minimum clearance volume
Efficient,large-volume motor
Reduced flow losses at low condensing temperatures
Wear resistant drive gear
Surface hardened eccentric shaft and crankshaft
Low friction bearings and aluminium pistons
Hard chrome plated piston rings
Quiet with low vibration
Optimized mass balance
Low discharge gas pulsations due to special cylinder hear design
Minimum space requirement
Very compact design
Robust
Solid valve plate design
Valves made of impact resistant spring steel
Wear resistant drive gear
Efficient capacity control
Cylinder shut-off or VSD capacity control possible
Cylinder shut-off possible from 18 displacement (50HZ) on
-4 cylinder compressor:50%
-6 cylinder compressor:66%/33%
-8 cylinder compressor:75%/50%
Fast cycling cylinder shut-off,e.g.
4 cylinder compressor on both cylinder heads:100% to approx.10%
Tandem compressors from 22,7m3/h to 303m3/h(50hz)
Approved parallel operation
VSD capacity control from 25 to 70HZ.Explanations see pages 7 and 8
ECOLINE compressors for frequency inverter operation up to 70 HZ
Specification
| HP | Compressor |
Condenser |
Voltage | Cooling capacity(W) | Axial Fans | ||||
| (V-Ph-Hz) | Evaporating temperature(°C) | ||||||||
| -35 | -30 | -25 | -20 | -15 | N°x Diameter | ||||
| 2 | 2FES-2Y | 16 | 380-3-50 | 1000 | 1420 | 1910 | 2480 | 3140 | 1 x 350 |
| 2 | 2EES-2Y | 16 | 380-3-50 | 1280 | 1820 | 2450 | 3190 | 4050 | 1 x 400 |
| 2 | 2DES-2Y | 16 | 380-3-50 | 1600 | 2240 | 2990 | 3870 | 4890 | 1 x 400 |
| 3 | 2CES-3Y | 24 | 380-3-50 | 2110 | 2890 | 3810 | 4880 | 6120 | 2 x 350 |
| 3 | 4FES-3Y | 24 | 380-3-50 | 2380 | 3170 | 4120 | 5250 | 6580 | 2 x 350 |
| 4 | 4EES-4Y | 32 | 380-3-50 | 3010 | 4020 | 5240 | 6690 | 8390 | 2 x 400 |
| 5 | 4DES-5Y | 42 | 380-3-50 | 3600 | 4800 | 6260 | 8000 | 10040 | 2 x 400 |
| 6 | 4CES-6Y | 48 | 380-3-50 | 4220 | 5690 | 7480 | 9610 | 12120 | 2 x 400 |
| 8 | 4TES-9Y | 64 | 380-3-50 | 4840 | 6740 | 9030 | 11780 | 15040 | 2 x 450 |
| 10 | 4PES-12Y | 80 | 380-3-50 | 5040 | 7200 | 9830 | 13010 | 16790 | 2 x 450 |
| 12 | 4NES-14Y | 96 | 380-3-50 | 6580 | 9140 | 12240 | 15950 | 20350 | 4 x 400 |
| 15 | 4HE-18Y | 120 | 380-3-50 | 10070 | 13570 | 17720 | 22600 | 28350 | 4 x 400 |
| 20 | 4GE-23Y | 160 | 380-3-50 | 12320 | 16290 | 21000 | 26550 | 33050 | 4 x 400 |
| 25 | 6HE-28Y | 200 | 380-3-50 | 14800 | 19970 | 26100 | 33300 | 41750 | 4 x 400 |
| 30 | 6GE-34Y | 240 | 380-3-50 | 18920 | 24850 | 31800 | 39950 | 49400 | 2 x 600 |
| 40 | 6FE-44Y | 320 | 380-3-50 | 21900 | 29250 | 37750 | 47650 | 59100 | 2 x 600 |
| Product name | condensing unit |
| Compressor brand | compressor |
| Refrigerant | R404A |
| Power | 3hp |
| Condenser | air cooled condenser |
| Compressor type | semi-hermetic compressor |
| Number of fan motor | 1fan motor |
| Fan motor diameter | 400mm |
| Application | Cold Storage Room Freezer Room |
| Brand | KUB |
Optional components:
Piston Open type
U type unit
V type unit
casade refrigeration unit
CSH Screw Rack unit
HSN Screw Rack unit
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
