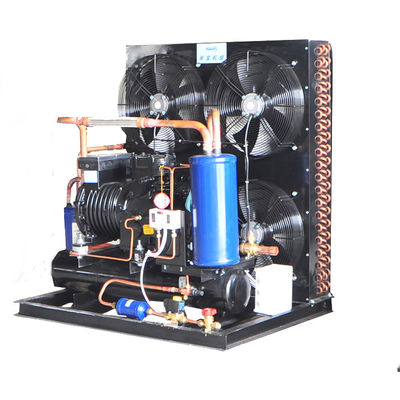

10HP S1052Y Italy Frascold Condensing Units Automatic Remote Monitoring For Freezer Cold Room

10HP S1052Y Italy Frascold Condensing Units Automatic Remote Monitoring For Freezer Cold Room

10HP S1052Y Italy Frascold Condensing Units Automatic Remote Monitoring For Freezer Cold Room

Product Details:

Place of Origin: Shanghai China
Brand Name: KUB
Certification: CE
Model Number: S1052Y

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Plywood pallet+Plywood
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Compressor: Semi-hermetic Compressor Application: Cold Storage Room Freezer Room
Voltage: 380V/3PH/50hz
High Light:

water cooling unit

,

water condensing unit

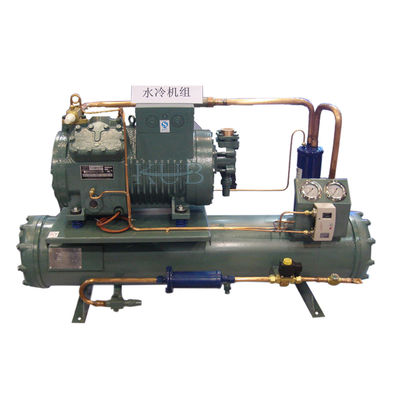

S1052Y Italy frascold compressor 10HP Water Cooled Condensing Unit for freezer cold room water cooling system unit



Product Features

1) High Reliability

Components are world- famous brand products such as frascold compressor, Controller, SIEMENS electrical members;

2) Safety

The unit is with complete self protection system for high pressure, low pressure, oil level, oil temperature, oil flow, against overloading, overheat etc;

3) Automatic and remote monitoring

With control cabinet and unit can perform automatically without watching or connected with remote monitor;

4) Energy Saving

Capacity can be increased 35% and efficiency can be increased 20% than single compressor unit;

5) High efficiency

Multi-connected compressors save 20% to 50% electricity than single compressor unit;

6) Convenient Installation

Most of refrigeration parts and electrical parts are factory-connected and only simple on-site installation is need;

7) Compact structure

The unit occupies only 1/6 space of Ammonia unit;



Model Condenser Overall dimensions Installing Connecting tube Weight
Water Model   A B C E F Air inlet Liquid
m³/h inch(in) mm mm mm mm mm φ(mm) φ(mm) Kg
Q5-28.1Y/D5 2.6 SLKD-005/B1 1-1/2" 827 330 660 500 280 22 12 146
S8 42Y 3.9 SLKD-008/B1 1-1/2" 927 330 715 600 280 28 16 154
S1052Y 7.6 SLKD-015/B1 2" 1250 380 760 900 330 28 16 218
S1556Y 8.9 SLKD-020/B1 2" 1250 380 760 900 330 42 22 264
V2084Y 8.9 SLKD-020/B1 2" 1250 380 760 900 330 42 22 271
Z25 106Y 12.2 SLKD-030/B1 2" 1650 380 810 1100 330 54 28 350
Z30 126Y 14.7 SLKD-035/B1 2-1/2" 1621 380 810 1100 330 54 28 370
Z40 126Y 20.7 SLKD-050/B1 2-1/2" 1850 430 860 1300 380 54 35 455
Z50-154Y 27 SLKD-060/B1 2-1/2" 1850 430 860 1300 380 54 35 474



10HP S1052Y Italy Frascold Condensing Units Automatic Remote Monitoring For Freezer Cold Room



10HP S1052Y Italy Frascold Condensing Units Automatic Remote Monitoring For Freezer Cold Room
