BBF2-20MB Water Cooled Condensing Units 3 Compressor Racks Unique Gas Liquid Separation Design
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Unit, Air Conditioner Parts | After-sales Service Provided | Overseas Third-party Support Available |
|---|---|---|---|
| Refrigerant | R404A/R134A | Product Name | Compressor Condensing Unit |
| Application | Cold Storage Room Freezer Room | ||
| High Light | water cooling unit,water cooled refrigeration condenser |
||
Product Description

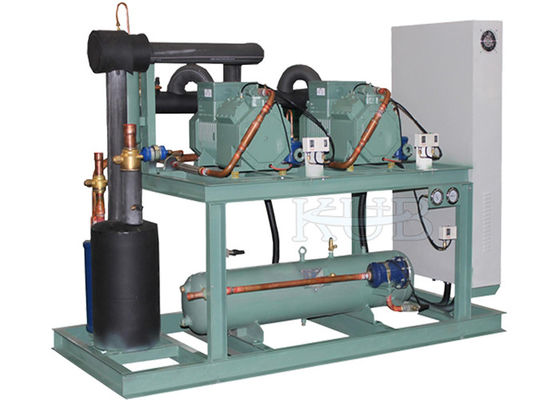

BBF2-20MB 4VES10*2 New Water cooled 3 compressor racks semi-hermetic freezer cold room condensing unit
Effective energy-saving
• Energy saving can be achieved by controlling adjust the number of compressors,multi-capacity regulation,variable frequency etc. To match the actual energy requirement automatically,ensure system run efficiently,achieve energy saving.
• Precise pipeline design to minimize the temperature loss,improve the efficiency.
Reliable operation
• With high quality condenser,excellent and long life design to ensure equipment running safely.
• Unique gas-liquid separation design,prevent liquid strike effectively.
• Minimize the downtime,more reliable.
Intelligent control
• Adopt PLC programmable control,automatic operation,which can realize the unattended operation,lower management cost.Optional remote management programs,feedback the running information to realize the remote service.
• All this series products have a complete set protection devices for compressor wrong direction,over heating,over loading,over discharging temperature,low oil level,over high/low pressure of oil flow etc.
Easy installation and maintenance
• Multiple compressors sharing oil separator,gas-liquid separator, condenser,liquid receiver,control system & rack.
• Provide the “modular” installation,reduce copper consumption, shorten the construction period.
• Fault display system with failure which is useful to determinate and remove the trouble in time.
| Model | KUB | |||||||||
| 20MB | 30MB | 40MB | 50MB | 60MB | 70MB | 80MB | 100MB | |||
| Temperature( ℃) | -5℃~5℃ | |||||||||
| Refrigerant | R404A | |||||||||
| Power supply | 380V/50HZ | |||||||||
| Comp. | Type | Semi-hermetic | ||||||||
| Comp. Model | 4VES-10Y | 4PES-15Y | 4NES-20Y | 4HE-25Y | 4GE -30Y | 6HE-35Y | 6GE -40Y | 6FE-50Y | ||
| Qty | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Cap & Watt |
Te -5℃ |
Cap (W) | 41600 | 57600 | 68000 | 90800 | 105200 | 136000 | 156200 | 188200 |
| Input (KW) | 14.42 | 20.1 | 23.62 | 31.72 | 36.56 | 47.8 | 54.8 | 66.6 | ||
|
Te -10℃ |
Cap (W) | 33300 | 46000 | 54400 | 72800 | 84800 | 109400 | 125400 | 151400 | |
| Input (KW) | 13.3 | 18.46 | 21.76 | 29.32 | 33.86 | 44.2 | 50.6 | 61.8 | ||
|
Te -15℃ |
Cap (W) | 26160 | 35980 | 42800 | 57600 | 67200 | 86400 | 99200 | 120000 | |
| Input (KW) | 12.04 | 16.64 | 19.72 | 26.66 | 30.88 | 40.0 | 46.2 | 56.4 | ||
| Connect0r | Gas In(mm) | φ42 | φ54 | φ54 | φ66 | φ66 | φ76 | φ76 | φ76 | |
| Liquid outlet Connect(mm) | φ22 | φ22 | φ28 | φ28 | φ28 | φ35 | φ35 | φ35 | ||
| Gas Connect(mm) | φ35 | φ35 | φ35 | φ42 | φ42 | φ54 | φ54 | φ54 | ||
| Liquid inlet Connect (mm) | φ28 | φ28 | φ28 | φ35 | φ35 | φ42 | φ42 | φ42 | ||
|
Overall Size |
L(mm) | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | |
| W(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | ||
| H(mm) | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | ||
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
