8HP-40HP Cold room low temperature cascade unit Water-cooled refrigeration unit
| Place of Origin | shanghai, China (Mainland) |
|---|---|
| Brand Name | KUB |
| Model Number | 8HP-40HP |
| Minimum Order Quantity | 1Piece/Pieces |
| Price | US $6100 / Pieces | 10 Piece/Pieces (Min. Order) |
| Packaging Details | plywood package |
| Delivery Time | 30-35days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Refrigerant | R404A+R23 | Compressor Type | Semi Hermetic Compressor |
|---|---|---|---|
| Temperature | -80°C To -60°C | Voltage | 380V 3PH 50HZ/440V 3ph 60hz |
| High Light | electronic expansion valve,digital temperature controller |
||
Product Description

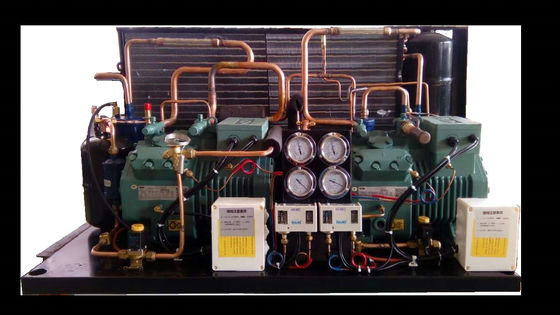

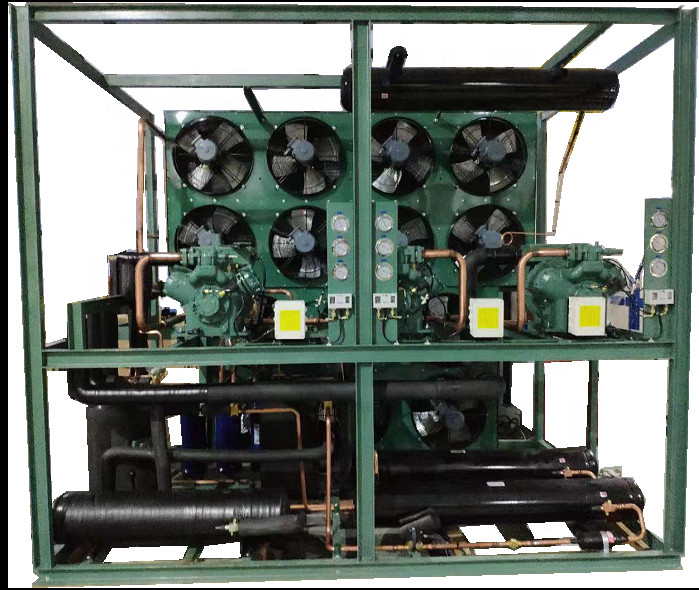

8HP-40HP Cold room low temperature cascade unit Water-cooled refrigeration unit
refrigeration unit
Customized products, if you need more parameters, please contact the factory.
For specific configuration list, please contact us.
| Compressor Horsepower | First stage R404A | Second stage R23 | “-70℃ refrigeration capacity KW |
| 8HP | 4PES12Y | 4TES9Y | 4.5 |
| 10HP | 4NES14Y | 4PES12Y | 5 |
| 12HP | 4HE18Y | 4NES14Y | 6.1 |
| 15HP | 4GE23Y | 4HE18Y | 9.2 |
| 20HP | 4GE23Y | 4GE23Y | 10.5 |
| 25HP | 6HE28Y | 6HE28Y | 13.4 |
| 30HP | 6GE34Y | 6GE34Y | 15 |
| 40HP | 6FE44Y | 6FE44Y | 17.5 |
Remarks:
The standard configuration of the unit: compressor, condenser, motor, oil separator, pressure control, pressure gauge, filter, accumulator, with solenoid valve, plate heat exchanger (condensing evaporator), first-stage expansion valve R404A, energy regulating valve
Level 2: Compressor, water-cooled condenser, dual oil separator, pressure control, pressure gauge, filter, accumulator, solenoid valve, expansion tank, unloading valve
Does not contain the second-stage expansion valve, does not contain R404A, R23 refrigerant
View of our factory:
