price for 30HP to 250HP Screw compressor water-cooled chiller

Place of Origin SHANGHAI, China (Mainland)
Brand Name KUB
Model Number LSLG-30WH
Minimum Order Quantity 1Piece/Pieces
Price US $7700 / Pieces | 10 Piece/Pieces (Min. Order)
Packaging Details plywood package
Delivery Time 30-45days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition NEW Type Chiller
Voltage 380V/3Ph/50Hz Compressor Screw Compressor
Size 2400*900*1350 Cooling Capacity 105KW
High Light

hydraulic solenoid valve

,

digital temperature controller

Leave a Message
Product Description

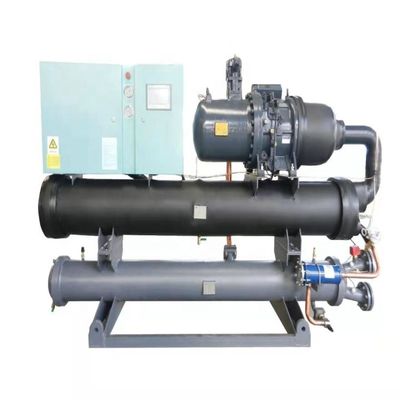

price for 30HP to 250HP Screw compressor water-cooled chiller



KUB screw water cooling unit
The following calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, cooling water inlet temperature 30°C;
Model LSLG-
30WH 40WH 50WH 60WH 70WH 80WH 90WH
Cooling Capacity KW 105 140 174 232 267 326 349
Power supply 3way380V50Hz
Compressor Input power KW 24.4 32.1 40.3 53.7 58.5 70.5 76.3
Operating current A 41 54 68 90 98 119 128
Capacity control - 0-66-100%(33%is start up) 0-50-75-100%(25%is start up)
Start method Y-Δstart up
Refrigerant R22
Evaporator Water pipe connection mm DN50Flg DN65Flg DN80Flg DN100Flg
Water flow m³/h 18 24 30 40 46 56 60
Water pressure drop kPa 37 37 39 42 42 45 45
Condensor Water pipe connection mm DN50Flg DN65Flg DN80Flg DN100Flg
Water flow m³/h 22 30 37 49 56 68 73
Water pressure drop kPa 38 38 39 43 44 46 46
Dimension L mm 2400 2400 2600 2850 3000 3000 3050
W mm 900 900 900 900 1100 1100 1100
H mm 1350 1350 1450 1450 1550 1670 1770
The following calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, cooling water inlet temperature 30°C;
Model LSLG-
100WH 110WH 120WH 130WH 140WH 160WH 180WH
Cooling Capacity KW 384 419 488 523 570 663 732
Power supply 3P-380V-50Hz
Compressor Input power KW 83.3 92.6 107.5 113.5 123 141.5 157.4
Operating current A 140 156 181 191 207 238 265
Capacity control - 0-50-75-100%(25%is start up)
Start method Y-Δstart up
Refrigerant R22
Evaporator Water pipe connection mm DN100Flg DN125Flg DN150Flg
Water flow m³/h 66 72 84 90 98 114 126
Water pressure drop kPa 46 48 48 49 49 52 55
Condensor Water pipe connection mm DN100Flg DN125Flg DN150Flg
Water flow m³/h 80 88 102 109 119 138 153
Water pressure drop kPa 47 49 49 51 51 55 57
Dimension L mm 3105 3105 3105 3200 3200 3300 3300
W mm 1100 1100 1100 1100 1100 1100 1100
H mm 1770 1770 1770 1780 1780 1780 2050
KUB also provides you with 200WH, 220WH, 250WH and other models of this series of products




Sta tements
1. For detailed specification of all types of compressors, please refer to sample data of each compressor brand.
2. For condensing unit, the components listed are for the standard product, the customer may increase or decrease it
according to their requirement.
3. Our company can develop and manufacture all kinds of non -standard equipments on customer’s requirements. For
detailed specification requirements contact the sales or technical departments.
4. The company reserves the right of any specification changes in this document without pri or notice; confirm it before putting
your order.
5. For more issues, consult our technical department.

price for 30HP to 250HP Screw compressor water-cooled chiller 0

price for 30HP to 250HP Screw compressor water-cooled chiller 1

price for 30HP to 250HP Screw compressor water-cooled chiller 2



View of our factory:
