06nw2300s5ea Cold Storage Compressor , R134a Cool Room Refrigeration Compressor Carrier Chiller Carlyle

Place of Origin Shanghai China
Brand Name carlyle
Model Number 06NW2300S5EA
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 50 units per month
Product Details
Condition Full New Refrigerant R134a, R22
Applications Water-Cooled Condensing Type Screw
Brand Name Carrier Carlyle Dimension(L*W*H) 600x600x800mm
High Light

refrigeration compressor for cold room

,

screw type compressor

Leave a Message
Product Description
06NW2300S5EA R134a China manufacturer Carrier chiller carlyle screw compressor


Carrier Carlyle 06N Semi-Hermetic Twin Screw Compressor



06NW2300S5EC Water-Cooled R134a, 104mm Twin Screw, 300CFM@60Hz, 400-3-50Hz, Economized



06NW2300S5NC Water-Cooled R134a, 104mm Twin Screw, 300CFM@60Hz, 400-3-50Hz, Non-Economized



The Carlyle 06N GTS104 family of Geared Twin Screw compressors utilize a common platform, 104mm diameter drive rotor. The family includes six displacements from 123 cfm to 300 cfm at a 60Hz drive frequency. Nominal capacities range from 33 to 70 tons with R134a at flooded chiller operating conditions. Optimized models are available for air cooled and water cooled condensers, as well as for economized and non-economized applications.



Carlyle 06N Model Significance Chart

Nominal Capacity of 06N Screw Compressor in R134a System
60Hz cfm Gear Ratio 06NA, Air-Cooled 06NW, Water-Cooled
Non-Economized Economized Non-Economized Economized
tons @50Hz tons @60Hz tons @50Hz tons @60Hz tons @50Hz tons @60Hz tons @50Hz tons @60Hz
123 1.214 N/A 33 N/A 38 N/A 35 N/A 40
146 1.466 33 40 38 46 35 42 40 48
174 1.782 40 49 46 56 42 51 48 59
209 2.145 49 57 56 66 51 60 59 69
250 2.557 57 70 66 81 60 74 69 85
300 3.094 70 N/A 81 N/A 74 N/A 85 N/A





Model 06NW2146S5NA 06NW2174S5NA 06NW2209S5NA 06NW2250S5NA 06NW2300S5NA
Type Semi-closed single-stage water-cooled twin-screw without economizer

Motor speed 2900
Displacement 206 245 294 352 510
Cooling capacity control 100,70,45
Injection Return air economizer cooling motors,fuel injection cooling rotor
  Type 3-Phase,2-pole,squirrel-cage
  Rated input 34 37 45 56 63
Motor Starting Y--
  Rated voltage 380,400(50HZ)
  Insudation class F
Refrigerant R134a
Compressor oil PP 47-32
Weight 360 365 375 380 390
Protector Coils thermal sensor,built-in safety valve,3µ filter





Model 06NW2146S5EA 06NW2174S5EA 06NW2209S5EA 06NW2250S5EA 06NW2300S5EA
Type Semi-closed single-stage water-cooled twin-screw with economizer

Motor speed 2900
Displacement 206 245 294 352 510
Cooling capacity control 100,70,45
Injection Return air econonmizer cooling motors,fuel injection cooling rotor
  Type 3-phase,2-pole,squirrel-cage
  Rated input 37 45 56 63 67
Motor Starting Y--
  Rated voltage 380,400(50HZ)
  Insudation class F
Refrigerant R134a
Compressor oil PP 47-32
Weight 365 375 380 390 400
Protector Coils thermal sensor,built-in safety valve,3µfilter

Regular Models of Carlyle 06N Semi-Hermetic Screw Compressor



06NW Water-Cooled Condensing 06NA Air-Cooled Condensing

06NW2300S5EA 06NW2300S5EA-A00 06NA2300S5EA 06NA2300S5EA-A00
06NW2300S5NA 06NW2300S5NA-A00 06NA2300S5NA 06NA2300S5NA-A00
06NW2250S7NA 06NW2250S7NA-A00 06NA2250S7NA 06NA2250S7NA-A00
06NW2250S7EA 06NW2250S7EA-A00 06NA2250S7EA 06NA2250S7EA-A00
06NW2209S7NA 06NW2209S7NA-A00 06NA2209S7NA 06NA2209S7NA-A00
06NW2209S7EA 06NW2209S7EA-A00 06NA2209S7EA 06NA2209S7EA-A00
06NW5300S5EA 06NW5300S5EA-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW5300S5NA 06NW5300S5NA-A00 06NA2174S7NA 06NA2174S7NA-A00
06NW2174S7NA 06NW2174S7NA-A00 06NA2174S7EA 06NA2174S7EA-A00
06NW2174S7EA 06NW2174S7EA-A00 06NA2146S7NA 06NA2146S7NA-A00
06NW2146S7NA 06NW2146S7NA-A00 06NA2146S7EA 06NA2146S7EA-A00
06NW2146S7EA 06NW2146S7EA-A00 06NA2123S6NA 06NA2123S6NA-A00
06NW2123S6NA 06NW2123S6NA-A00 06NA2123S6EA 06NA2123S6EA-A00
06NW2300S5EC 06NW2300S5EC-A00 06NA2300S5EC 06NA2300S5EC-A00
06NW2300S5NC 06NW2300S5NC-A00 06NA2300S5NC 06NA2300S5NC-A00
06NW2250S7NC 06NW2250S7NC-A00 06NA2250S7NC 06NA2250S7NC-A00
06NW2250S7EC 06NW2250S7EC-A00 06NA2250S7EC 06NA2250S7EC-A00
06NW2209S7NC 06NW2209S7NC-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW2209S7EC 06NW2209S7EC-A00 06NA2209S7EC 06NA2209S7EC-A00
06NW5300S5EC 06NW5300S5EC-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW5300S5NC 06NW5300S5NC-A00 06NA2174S7NC 06NA2174S7NC-A00
06NW2174S7NC 06NW2174S7NC-A00 06NA2174S7EC 06NA2174S7EC-A00
06NW2174S7EC 06NW2174S7EC-A00 06NA2146S7NA 06NA2146S7NA-A00
06NW2146S7NC 06NW2146S7NC-A00 06NA2146S7EA 06NA2146S7EA-A00
06NW2146S7EC 06NW2146S7EA-A00 06NA2123S6NC 06NA2123S6NC-A00
06NW2123S6NC 06NW2123S6NC-A00 06NA2123S6EC 06NA2123S6EC-A00

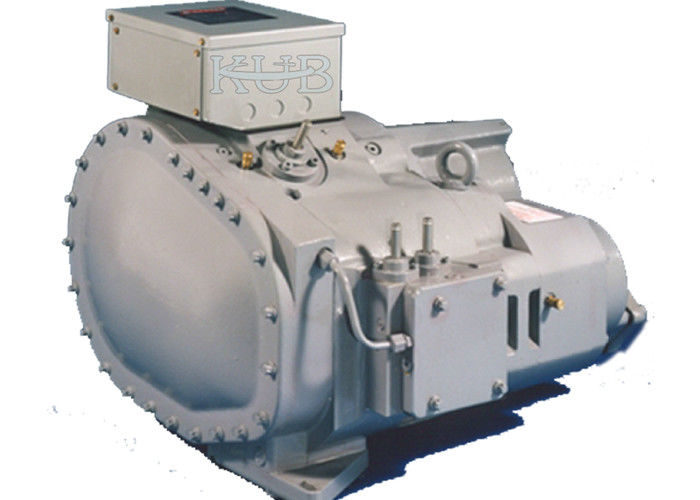

06nw2300s5ea Cold Storage Compressor ,  R134a Cool Room Refrigeration Compressor Carrier Chiller Carlyle 1

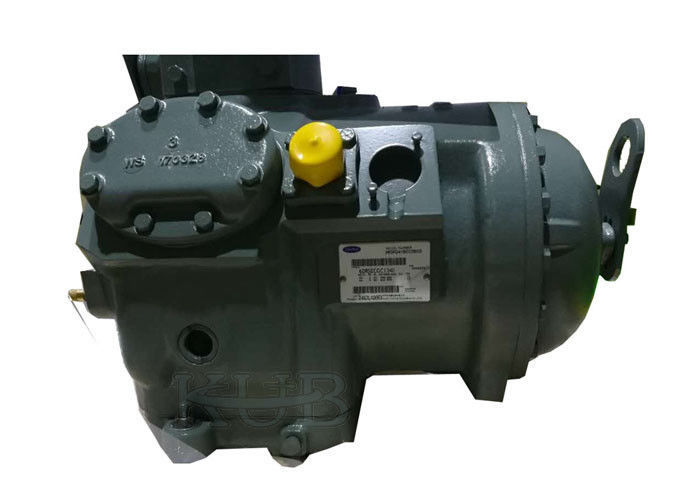

06nw2300s5ea Cold Storage Compressor ,  R134a Cool Room Refrigeration Compressor Carrier Chiller Carlyle 2

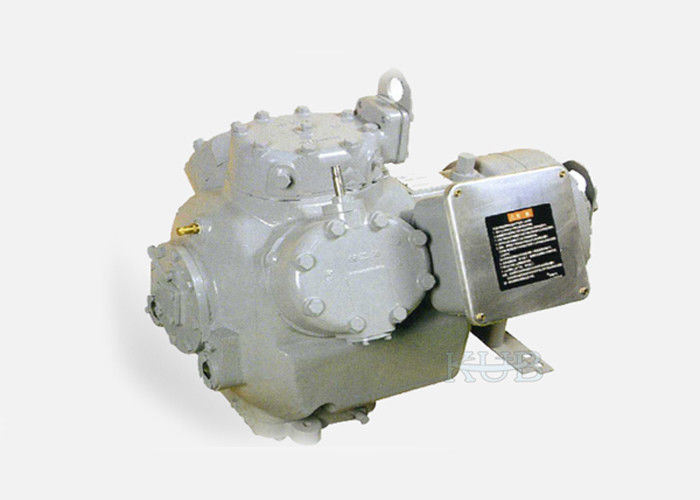

06nw2300s5ea Cold Storage Compressor ,  R134a Cool Room Refrigeration Compressor Carrier Chiller Carlyle 3
