xProduct Details
| Voltage | 220-240V, 50HZ | Refrigerant | R404a |
|---|---|---|---|
| Oil Capacity | 350ml | Weight | 14kg |
| Highlight | R404a Refrigeration Compressor,1/2HP Refrigeration Compressor,Refrigeration Compressor NEK2150GK |
||
Product Description

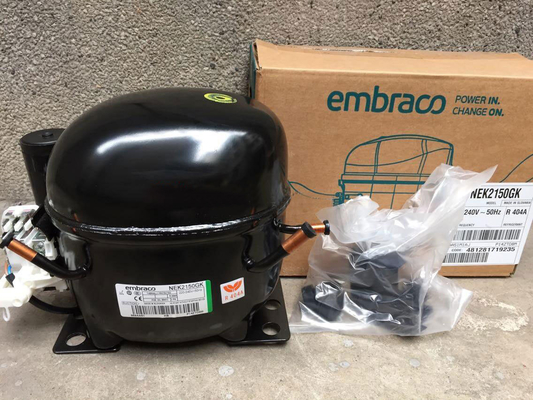

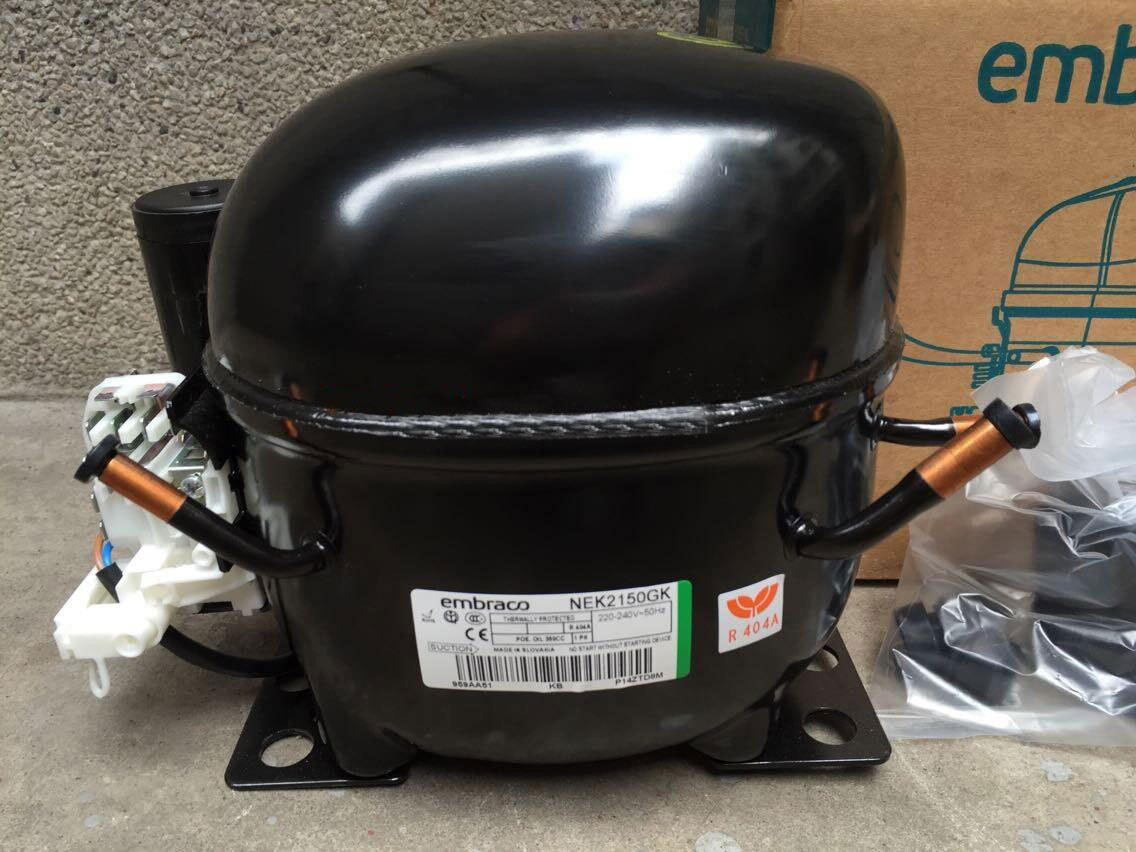

1/2HP R404a Refrigeration Compressor NEK2150GK 464W Cooling
Product Specifications
| Attribute | Value |
|---|---|
| Voltage | 220-240V, 50HZ |
| Refrigerant | R404a |
| Oil Capacity | 350ml |
| Weight | 14kg |
Performance Data
Rated Points
| Condensing Temp | Evaporating Temp | Cooling Capacity | Power Consumption | Gas Flow Rate | Efficiency |
|---|---|---|---|---|---|
| 48.90°C | -23.30°C | 464 W | 492 W | 16.51 kg/h | 0.94 W/W |
Test Condition: ARILBP, Fan/NotControled/220, Return Gas 4.4°C, Evaporation -23.30°C, Condensing 48.90°C, Ambient 35°C, Liquid 48.9°C, Subcooling 0K. Data are an indication of performance based simulation.
Performance Curve Data
Condensing Temperature 35°C
| Evaporating Temp (°C) | Cooling Capacity (W) | Power (W) | Gas Flow Rate (kg/h) | Efficiency (W/W) |
|---|---|---|---|---|
| -40 | 272 | 302 | 7.63 | 0.9 |
| -35 | 355 | 347 | 10.04 | 1.02 |
| -30 | 460 | 391 | 13.06 | 1.18 |
| -25 | 586 | 435 | 16.75 | 1.35 |
| -20 | 735 | 479 | 21.19 | 1.53 |
| -15 | 908 | 525 | 26.45 | 1.73 |
| -10 | 1105 | 573 | 32.60 | 1.93 |
Test Condition: ARILBP, Fan/NotControled/220, Return Gas 4.4°C, Ambient 35°C, Subcooling 0K. Data are an indication of performance based simulation.
Condensing Temperature 45°C
| Evaporating Temp (°C) | Cooling Capacity (W) | Power (W) | Gas Flow Rate (kg/h) | Efficiency (W/W) |
|---|---|---|---|---|
| -35 | 287 | 355 | 9.33 | 0.81 |
| -30 | 374 | 407 | 12.23 | 0.92 |
| -25 | 479 | 460 | 15.79 | 1.04 |
| -20 | 603 | 516 | 20.07 | 1.17 |
| -15 | 746 | 575 | 25.15 | 1.3 |
| -10 | 910 | 637 | 31.09 | 1.43 |
Test Condition: ARILBP, Fan/NotControled/220, Return Gas 4.4°C, Ambient 35°C, Subcooling 0K. Data are an indication of performance based simulation.
Condensing Temperature 55°C
| Evaporating Temp (°C) | Cooling Capacity (W) | Power (W) | Gas Flow Rate (kg/h) | Efficiency (W/W) |
|---|---|---|---|---|
| -30 | 284 | 421 | 11.12 | 0.68 |
| -25 | 367 | 481 | 14.53 | 0.76 |
| -20 | 465 | 545 | 18.64 | 0.85 |
| -15 | 579 | 613 | 23.53 | 0.94 |
| -10 | 708 | 686 | 29.26 | 1.03 |
Test Condition: ARILBP, Fan/NotControled/220, Return Gas 4.4°C, Ambient 35°C, Subcooling 0K. Data are an indication of performance based simulation.
External Dimensions
