06EA299600 40HP Carrier CARLYLE China Chest Semi Hermetic COMPRESSOR FOR HVAC SYSTEM Chiller and Cold Storage

Place of Origin Shanghai China
Brand Name Carlyle
Certification CE
Model Number 06EA299600
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 50 units per month
Product Details
Condition New Type Piston
Voltage 380V-440V,440V-460V Warranty One Year
Dimension 89X65X80 Cm Weight 255KG
High Light

cool room refrigeration compressor

,

refrigeration compressor for cold room

Leave a Message
Product Description

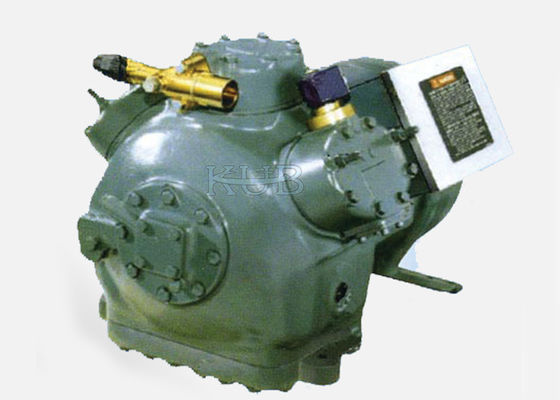

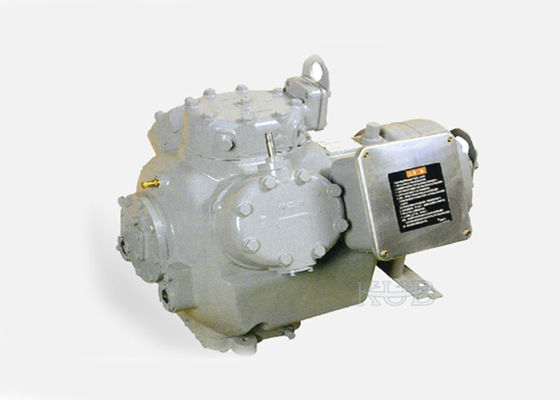

06EA299600 40HP Carrier Carlyle Piston Semi-hermetic compressor cold room Cold storage compressor

Carrier Semi Hermetic CARLYLE COMPRESSOR FOR HVAC SYSTEM 06EA299600 Central air conditioning Chiller



Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cool- ing, and environmental chambers. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, R-407C and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502). The compressors may be operated at 50 or 60 hertz and are UL, CE, CSA, and ISO 9002 approved. Many of the prominent features of the 06D/E compressors are listed below.





model

condensing temperature





Capacity

(kw)



Evaporating temperature/



Power

(kw)

-17.5 -15 -10 -5 0 5 10 12.5



06EA275

30 Q 39.18 44.34 55.91 69.31 84.73 102.34 122.32 133.26
P 14.65 15.34 16.53 17.40 17.90 17.96 17.54 17.12
35 Q 16.01 40.98 52.11 65.01 79.86 96.83 116.12 126.68
P 15.14 15.98 17.49 18.71 19.58 20.04 20.03 19.84
40 Q 32.81 37.57 48.25 60.63 74.90 91.22 109.79 119.97
P 15.47 16.47 18.31 19.88 21.12 21.98 22.40 22.42
45 Q 29.57 34.12 44.34 56.19 69.86 85.52 13.36 113.15
P 15.62 16.78 18.95 20.88 22.50 23.76 24.60 24.85
50 Q 26.32 30.66 40.40 51.71 64.76 79.74 96.84 106.24
P 15.58 16.90 19.41 21.70 23.71 25.37 26.64 27.11
55 Q         59.63 73.92 90.26 99.25
  P         24.72 26.80 28.50 29.20
06EA299 30 Q 52.59 59.02 73.66 90.94 111.14 134.53 161.41 176.24
  P 20.11 21.08 22.87 24.37 25.49 26.10 26.12 25.88
35 Q 49.11 55.20 69.10 85.52 104.73 127.03 152.70 166.88
  P 20.84 21.95 24.08 25.97 27.54 28.67 29.26 29.33
40 Q 45.70 51.47 64.62 80.18 98.42 119.62 144.08 157.61
  P 21.45 22.70 25.14 27.41 29.41 31.03 32.18 32.54
45 Q 42.37 47.81 60.22 74.92 92.19 112.30 135.55 148.44
  P 21.96 23.34 26.07 28.69 31.10 33.19 34.87 35.53
50 Q 31.92 44.23 55.90 69.74 86.04 105.07 127.11 139.35
  P 22.37 23.86 26.86 29.81 32.61 35.16 37.35 38.28
55 Q         79.97 97.92 118.76 130.36
  P         33.96 36.94 39.62

40.82



Carlyle Compressors
Single-stage compressor
Compressor model Displacement 1450 rev/min Nominal Power HP Number of cylinders Pets can adjust% Interface size Electrical parameters Fuel injection L Weight KG
Suction interfaces mm Exhaust interfaces mm 400-3-50,460-3-60
*RLA(A) LRA(A)XL/PW first coil
06DA825 35.4 7.5 6 66or33 35 28 19.9 77 4.5 143
06DA328 39.6 10 6 66or33 35 28 22.1 86 4.5 143
06DA537 52.4 15 6 66or33 42 28 28.6 120 4.5 147
06EA-50 71.4 20 4 50 42 28 44 173/104 8 195
06EA-65 91.8 25 6 66or33 42 35 56 223/134 9 218
06EA-75 106.8 30 6 66or33 54 35 68 253/162 9 222
06EA-99 140.4 40 6 66or33 54 42 95 345/207 9 236
06EM-50 71.4 15 4 50 54 28 36 142/85 8 195
06EM-75 106.8 25 6 66 54 35 56 223/134 9 222
06EM-99 140.4 35 6 66 54 42 77 305/183 9 229
06DR725 35.4 6.5 6 66 35 22 15.7 62 4.5 141
06DR228 39.6 7.5 6 66 42 22 19.8 77 4.5 143
06DR337 52.4 10 6 66 42 28 22.1 86 4.5 147
06DR541 58.1 15 6 66 42 28 25.6 120 4.5 147
06ER-50 71.4 15 4 50 54 28 36 142/85 8 195
06ER-65 91.8 20 6 66 54 35 44 173/104 9 218
06ER-75 106.8 25 6 66 54 35 44 173/104 9 222
06ER-99 140.4 30 6 66 54 35 68 253/152 9 227
Two-stage compressor
Compressor model Displacement 1450 rev/min Number of cylinders Pets can adjust% Interface size Electrical parameters Fuel injection L Weight KG
Low pressure stage High pressure stage Suction interfaces mm Exhaust interfaces mm 400-3-50,460-3-60
*RLA(A) LRA(A)XL/PW first coil
06CC550 47.6 23.8 6 - 42 35 26 142/85 9 239
06CC665 61.2 30.6 6 - 42 35 40 173/104 9 243
06CC675 71.2 35.6 6 - 42 35 40 173/104 9 243
06CC899 93.6 46.8 6 - 42 35 58 253/152   255
Description:
RLA=rated current;LRA=Locked rotor current;XL=direct start,PW=sub coli start;values PW second winding=1/2 LRA XL value
