DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room

Aluminum Fin Air Cooler Evaporator

DD12 Hydrophilic Air Cooler Evaporator

Cold Room Air Cooler Evaporator

Place of Origin:

China

Brand Name:

KUB

Certification:

CE

Model Number:

DD12

Contact Us
Request A Quote
DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room
DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room
Product Details
Highlight:

Aluminum Fin Air Cooler Evaporator

,

DD12 Hydrophilic Air Cooler Evaporator

,

Cold Room Air Cooler Evaporator

Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
1 - 19 pieces $240.00 >= 20 pieces $230.00
Packaging Details
wooden
Delivery Time
5-7works
Payment Terms
L/C, D/A, T/T
Supply Ability
1000 Set/Sets per Year
RELATED PRODUCTS
Good price DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room online Video

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room

Get Best Price
Good price DD series CE certificate refrigeration unit cooler 5HP evaporator for cold room online Video

DD series CE certificate refrigeration unit cooler 5HP evaporator for cold room

Get Best Price
Good price DL series DL22 unit cooler CE certification customized air cooler 3HP cold storage evaporator ceiling evaporator, suitable for warehouse refrigeration, cold storage chamber，vegetables cold storage online Video

DL series DL22 unit cooler CE certification customized air cooler 3HP cold storage evaporator ceiling evaporator, suitable for warehouse refrigeration, cold storage chamber，vegetables cold storage

Get Best Price
Good price DJ series DJ100 single unit cooler CE certified cold storage dedicated air cooler evaporator ceiling evaporator refrigeration equipment manufacturer,refrigeration factory, refrigerated cold storage online Video

DJ series DJ100 single unit cooler CE certified cold storage dedicated air cooler evaporator ceiling evaporator refrigeration equipment manufacturer,refrigeration factory, refrigerated cold storage

Get Best Price
CONTACT US
13588563336
kub02@shkubao.com
86-021-53750132
Contact Now
Product Description

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 0DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 1DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 2DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 3

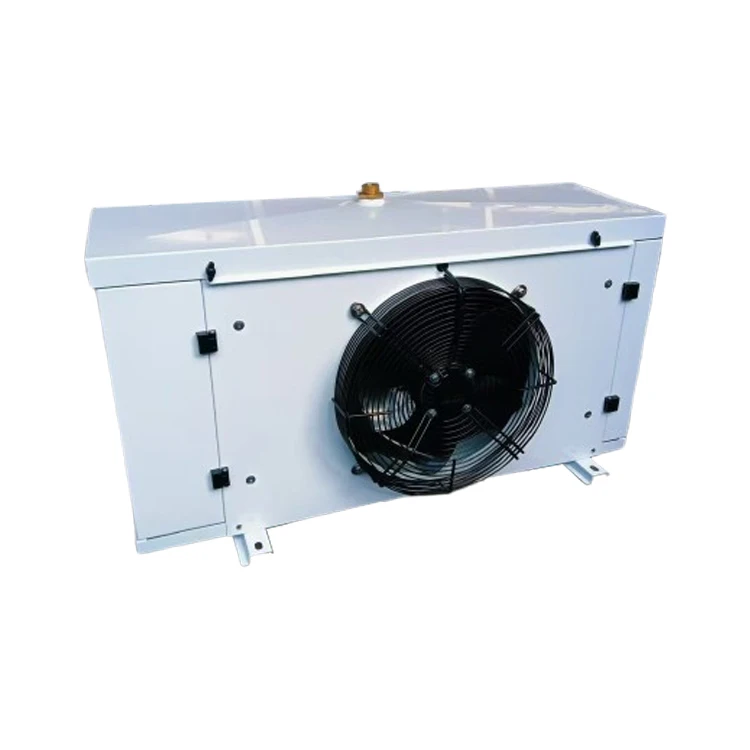

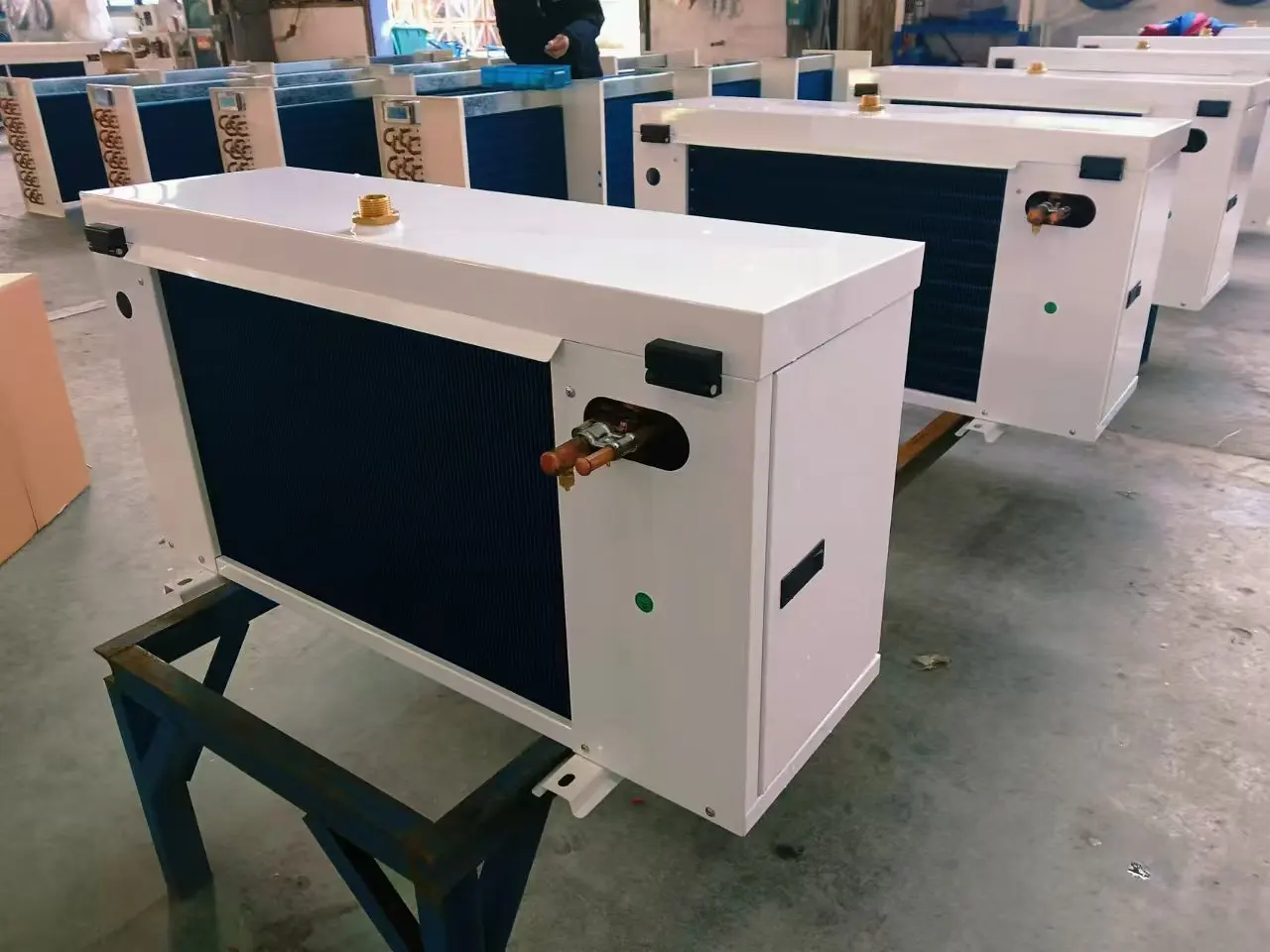

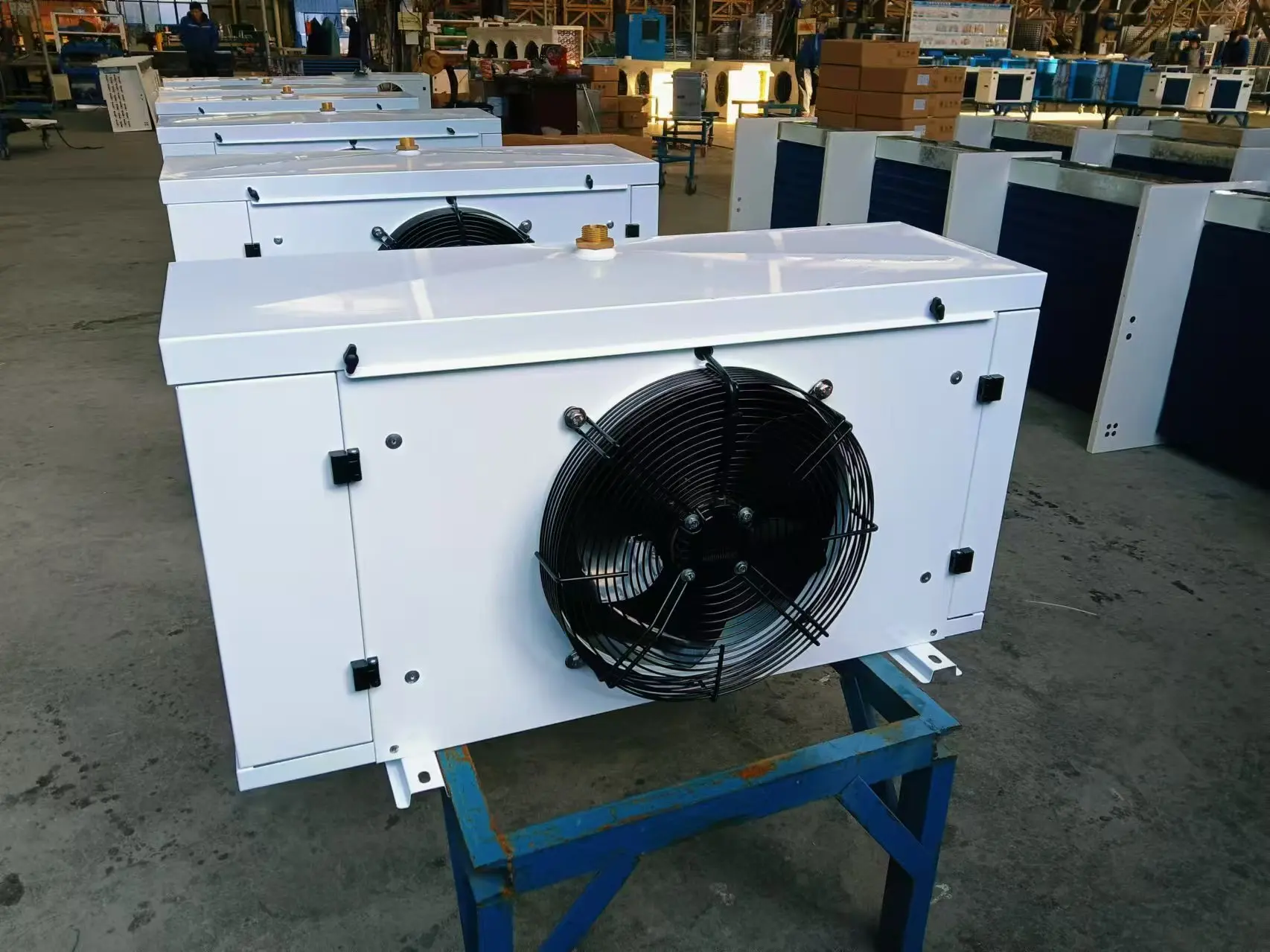

DD12 Hydrophilic aluminum fin air cooler evaporator coil with hinges Evaporator with expansion valve evaporator for cold room

Model Cooling capacity Fan quantity Fan motor Defrosting method
DD12 2400w 1 1*350mm Electric defrosting



DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 4
DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 5

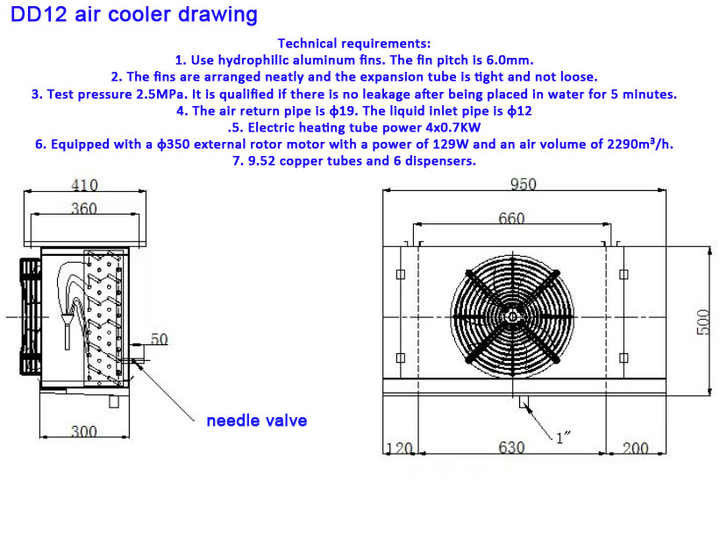

Technical requirements:
1. Use hydrophilic aluminum fins. The fin pitch is 6.0mm.
2. The fins are arranged neatly and the expansion tube is tight and not loose.
3. Test pressure 2.5MPa. It is qualified if there is no leakage after being placed in water for 5 minutes.
4. The air return pipe is φ19. The liquid inlet pipe is φ12.
5. Electric heating tube power 4x0.7KW
6. Equipped with a φ350 external rotor motor with a power of 129W and an air volume of 2290m³/h.
7. 9.52 copper tubes and 6 dispensers.

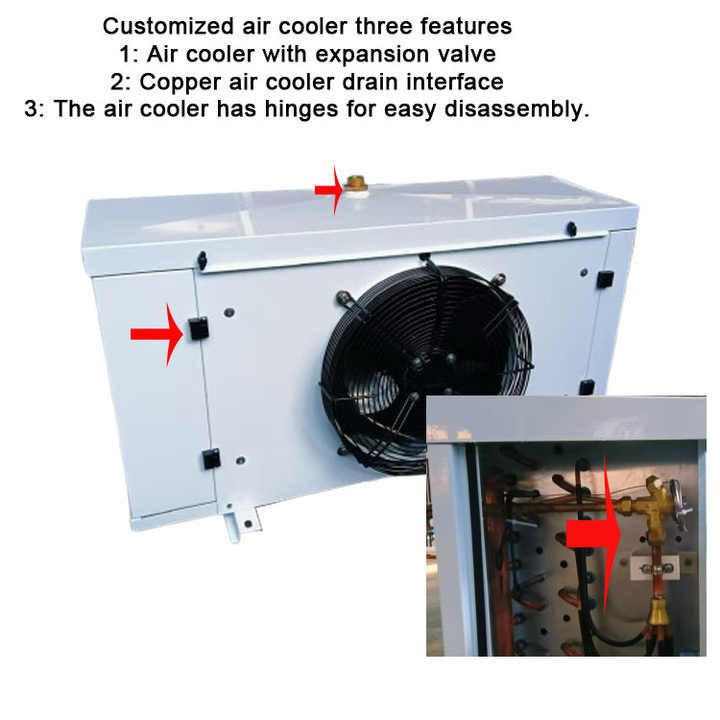

Customized air cooler three features

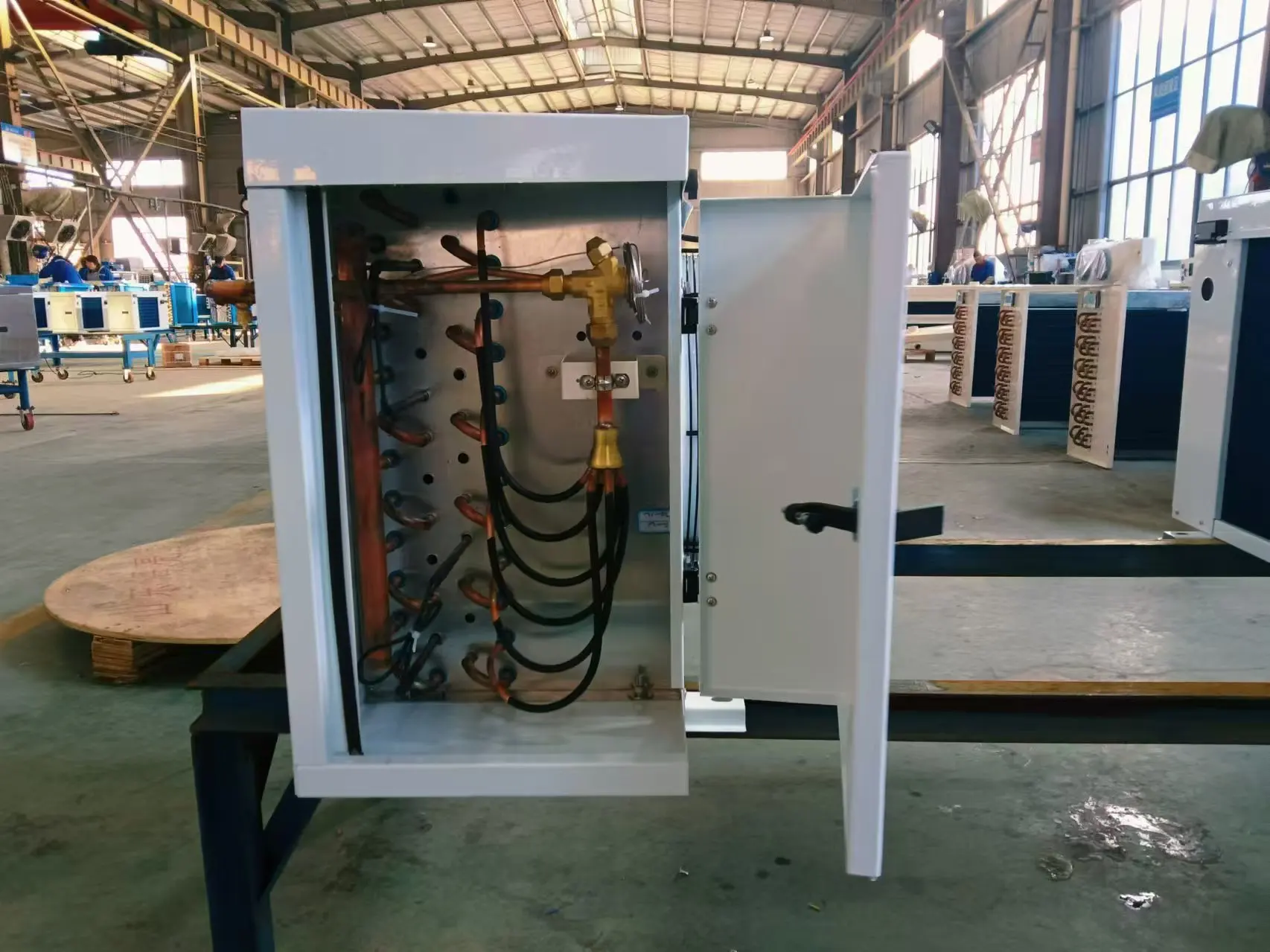

1: Air cooler with expansion valve
2: Copper air cooler drain interface
3: The air cooler has hinges for easy disassembly.

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 6DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 7DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 8DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 9

Company Information

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 10

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 11

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 12

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 13

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 14DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 15

DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 16DD12 Hydrophilic Aluminum Fin Air Cooler Evaporator Coil With Hinges Evaporator With Expansion Valve Evaporator For Cold Room 17
