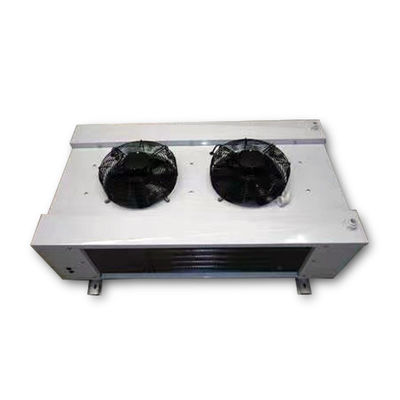

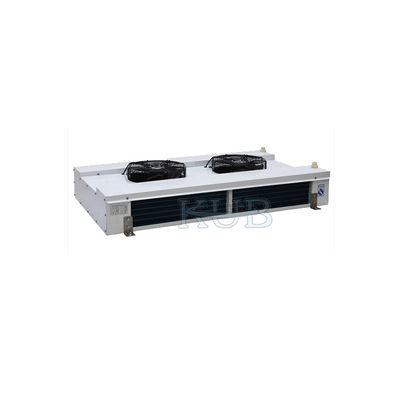

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer

cold room evaporator

Made in China Ceiling air cooler

Double side ceiling evaporator

Place of Origin:

China

Brand Name:

KUB

Certification:

CE

Model Number:

DSD-40

Contact Us
Request A Quote
Product Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG):
150
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Place Of Origin:
Shanghai, China
Warranty:
1 Year
Condition:
New
Type:
Evaporator
Brand Name:
KUB
OEM:
Yes
Product Name:
Evaporator
Application:
Cold Room
Refrigerant:
R404a/R134a/R507a/R22
MOQ:
1
Voltage:
380v
Cooling Capacity:
7000w
Original:
Made In China
Packing:
Wooden Case
Highlight:

cold room evaporator

,

Made in China Ceiling air cooler

,

Double side ceiling evaporator

Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
1 - 9 pieces $500.00 10 - 19 pieces $480.00 >= 20 pieces $460.00
Packaging Details
The wooden case
Delivery Time
5-7works
Payment Terms
L/C, D/A, D/P
Supply Ability
1000 Set/Sets per Year
Product Description

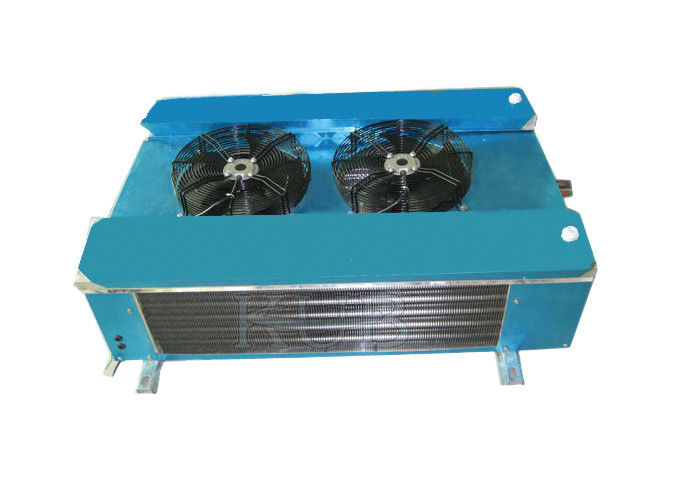

DSD-40 CE certificate Made in China Ceiling air cooler Double side ceiling evaporator price cold room evaporator manufacturer

Model Cooling capacity Fan quantity and diameter cooling area Defrosting method
DSD-40 7000 2*400mm 40m² Electric defrosting



DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 0



Skills requirement:
1. The radiator used has two 3x8 holes, the Fin spacing is 6.0m, and the inner diameter is 1100mm.
2. The heat sink is a 0.15mm light box and the copper tube is 0.32mm.
3. Equipped with 2 φ400 hair dryer motors, air volume 2*3400m³/h, power 2*180W.
4. The sheet metal is made of 1.0mm galvanized sheet, and the outer shell is sprayed white. 5. The air return pipe is φ22-25-22 and the liquid inlet pipe is φ19. Distributor 8-way-φ6-φ19.
6. 6 electric frost tubes (length 1260mm), single tube power 1.2KW.
7. Double water tray.



Product Description
DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 1





Company Information

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 2

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 3



DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 4

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 5

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 6



DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 7DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 8DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 9

FAQ

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 10



Q1: Are you a manufacturer or trading company?

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.



Q2: What about the shipping methods?

A2: By express/By air/By sea.



Q3: What about the payment methods &payment terms

A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.



Q4: What's your delivery time?Where is the loading port?

A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.



Q5:Can I have a sample first ?

A5:You have to pay sample cost.



Q6: How do you ship the goods and how long does it take arrive?

A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.

The delivery time is according to the way of shipping.

Packaging & Shipping

DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 11



A. Individuation & Customization

Refrigeration industry, cold storage engineering;

Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period.

If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



DSD-40 CE Certificate Made In China Ceiling Air Cooler Double Side Ceiling Evaporator Price Cold Room Evaporator Manufacturer 12
