Name: SPBE022D condenser for cold storage evaporator for cold room
Brand: Shanghai KUB Refrigeration Equipment Co., Ltd.
SKU: SPBE022D
Price: 6.00 USD
Availability: InStock

Home > Products > Cool Room Evaporators >

SPBE022D condenser for cold storage evaporator for cold room

cold room cooler

cold room freezer units

Place of Origin:

CHINA

Brand Name:

KUB

Certification:

Model Number:

SPBE022D

Request A Quote

Product Details

Condition:

New

Place Of Origin:

Shanghai, China

Brand Name:

KUB

Model Number:

SPBE022D

Operating Voltage:

380/400 VAC

Power:

3.5HP

Temperature:

-18℃

Name:

Industrial Air Cooler

Product:

Air Cooler

Brand:

KUB Industrial Air Cooler

Material:

High Quality Aluminum Coating

Highlight:

cold room cooler

cold room freezer units

Payment & Shipping Terms

Minimum Order Quantity

10 (pieces)

Price

Minimum order quantity: 10 pieces $422.00 - $525.00 | 2 Piece/Pieces (Min. Order)

Packaging Details

the carton packaging evaporator for cold room

Delivery Time

5-7 work

Supply Ability

1000 Piece/Pieces per Week industrial air cooler

DD-7.0/40 DD40 Cold Room Condensing Unit 5HP Evaporator Coil Heater Defrost Evaporator Fan Cold Room Evaporator Price

Get Best Price

Video

Aluminum SPBE043D Cool Room Evaporators High Medium Low Temperature Types Window Mount

Get Best Price

Video

SPAE053D CE Certification Industrial Three Fan Evaporative Air Cooler For Cold Room

Get Best Price

Video

SPBE022D condenser for cold storage evaporator for cold room

Get Best Price

+8615317830025

lucy@shkubao.com

86-021-53750132

Contact Now

Product Description

Product descriptions from the supplier

Product Description

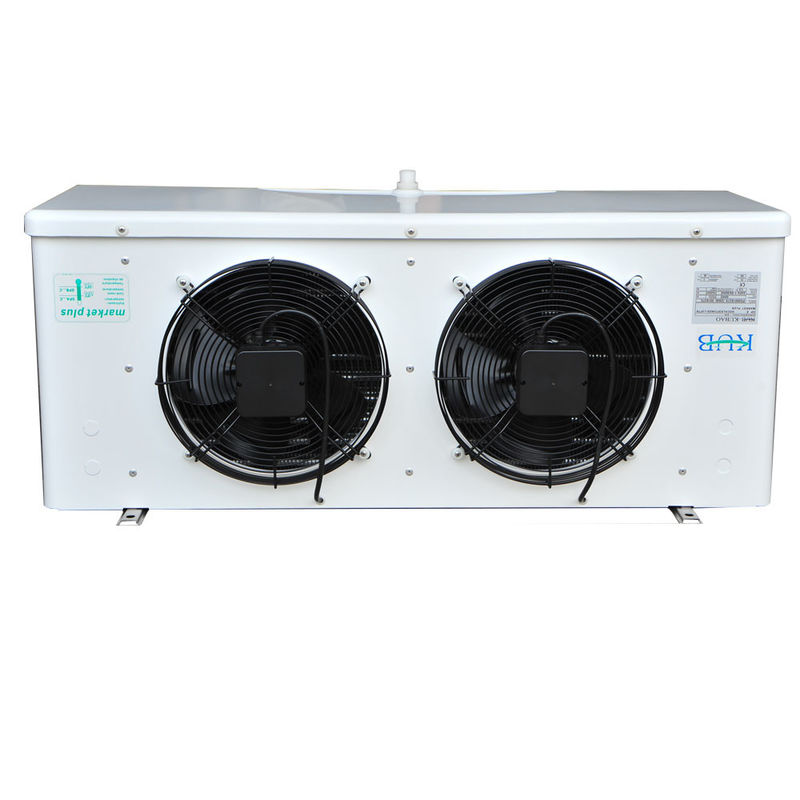

SPBE022D condenser for cold storage evaporator for cold room

KUB European type air cooler

air cooler

1.its crust is made up of ginning aluminum sheet;

2.its frost is well-distributed, and defrost with high-efficiency

Fin spacing 4mm,with hearer Rt≥0°C:

model	(R404A/R507A)(Kw)			Tube volume (dm³)	size (mm)			N.W (Kg)	Connection (Φmm)
model	te=-8 C DT1=8K	Te=-25 C DT1=7K		Tube volume (dm³)	L	W	H	N.W (Kg)	IN	OUT
SPAE021D SPAE031D SPAE022D SPAE032D SPAE051D SPAE043D SPAE044D SPAE062D(SPAE052D) SPAE063D	1.73 2.41 3.35 4.89 6.75 7.41 9.75 13.50 19.00	1.26 1.76 2.44 3.57 4.92 5.40 7.11 9.84 13.90	09 12 17 23 31 35 46 61 92	1.8 2.4 3.2 4.3 5.5 6.2 8.2 10.5 15.5	702 702 1094 1094 1094 1486 1878 1878 2662	430 430 430 430 460 430 430 460 460	385 495 385 495 635 495 495 635 635	14 19 25 32 41 46 60 82 122	12 12 12 12 12 12 15 15 15	16 19 19 22 22 22 28 28 35

Fin spacing 6 mm,with heater, Rt≥-18°C:

model	(R404A/R507A)(Kw)		Area	Tube volume (dm³)	size (mm)			N.W (Kg)	Connection (Φmm)
model	te=-8 C DT1=8K	Te=-25 C DT1=7K	Area	Tube volume (dm³)	L	W	H	N.W (Kg)	IN	OUT
SPBE021D SPBE031D SPBE022D SPBE032D SPBE051D SPBE043D SPBE044D SPBE062D(SPBE052D) SPBE063D	1.46 2.03 2.81 4.11 5.67 6.23 8.19 11.30 16.00	1.06 1.48 2.05 3.00 4.13 4.54 5.98 8.27 11.70	06 08 11 15 20 23 31 41 61	1.8 2.4 3.2 4.3 5.5 6.2 8.2 10.5 15.5	702 702 1094 1094 1094 1486 1878 1878 2662	430 430 430 430 460 430 430 460 460	385 495 385 495 635 495 495 635 635	13 18 23 30 38 43 56 75 115	12 12 12 12 12 12 15 15 15	16 19 19 22 22 22 28 28 35

Fin spacing 9 mm,with heater, Rt≥-25°C:

model	(R404A/R507A)(Kw)		Area	Tube volume (dm³)	SIZE (mm)			N.W (Kg)	Connection (Φmm)
model	te=-8 C DT1=8K	Te=-25 C DT1=7K	Area	Tube volume (dm³)	L	W	H	N.W (Kg)	IN	OUT
SPJE021D SPJE031D SPJE022D SPJE032D SPJE051D SPJE043D SPJE044D SPJE062D(SPJE052D) SPJE063D	1.23 1.71 2.37 3.46 4.77 5.24 6.89 9.50 13.45	0.90 1.25 1.73 2.53 3.48 3.82 5.03 6.95 9.84	04 06 08 10 14 16 21 28 41	1.8 2.4 3.2 4.3 5.5 6.2 8.2 10.5 15.5	702 702 1094 1094 1094 1486 1878 1878 2662	430 430 430 430 460 430 430 460 460	385 495 385 495 635 495 495 635 635	12 17 21 28 35 40 52 68 108	12 12 12 12 12 12 15 15 15	15 19 19 22 12 22 28 28 35

Electric data:

model 4D6D9D

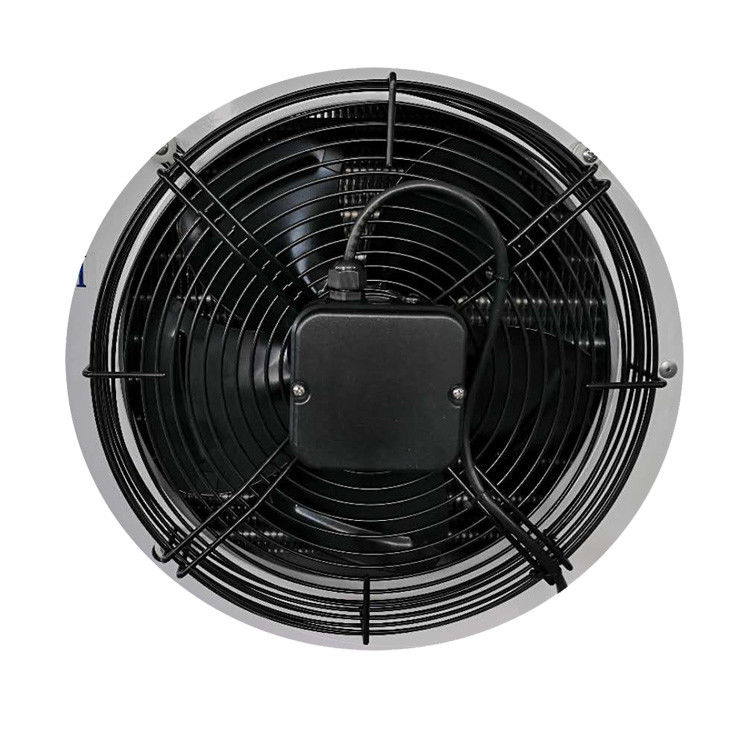

External rotor fan

Electric defrost

Diameter
Φ(mm)

Quantity
N

mains

V,50/60Hz

power(W)

Electric current A)

Airflow (m³/h)

Range (m)

fin (W)

Water tray W

power

(W)

SP021D
SP031D
SP022D
SP032D
SP051D
SP043D
SP044D
SP062D(SP052D)
SP063D

250
300
250
300
450
300
300
450
450

1
1
2
2
1
3
4
2
3

~220
~220
~220
~220
~220
~220
~220
3~380
3~380

55/57
90/96
55/57
90/96
380/480
90/96
90/96
380/470
380/470

0.24/0.24
0.43/0.44
0.24/0.24
0.43/0.44
1.70/2.10
0.43/0.44
0.43/0.44
0.82/0.84
0.82/0.84

1100
2050
2200
4100
5600
6150
8200
11200
16800

4
5
6
7
9
10
11
11
13

2*440

3*440

2*730

3*730

4*730

3*1030

4*1310

4*1890

440
440
730
730
730
1030
1310
1310
1890

1320
1760
2190
2920
3650
4120
5240
6550
9450

KUB European type air cooler

Our Services

1. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.

2. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.

-20~+45Ã¢â€žÆ’ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3

Our Services

A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.

B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.

Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.

SPBE022D condenser for cold storage evaporator for cold room 1

Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
