Water Defrost Cool Room Evaporators NW632A8T Rapid Freezing

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number NW632A8T
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Capacity ( Kw) 28.2 Air Flow(m³/h) 27600
Air Throw(m) 31 Surface(m²) 168
Connection(In-Out) 11/8"-21/8
High Light

Water Defrost Cool Room Evaporators

,

Rapid Freezing Cool Room Evaporators

,

Frost Resistant Cool Room Evaporators

Leave a Message
Product Description

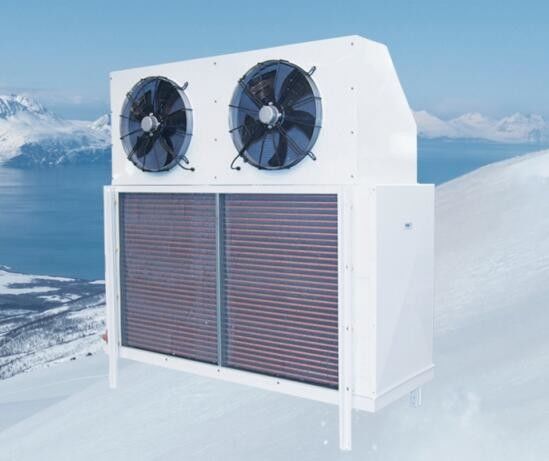

Water defrost, electric defrost, evaporator NW632A8T, rapid freezing

The NW, NQ and NF range has been developed in order to meet the food refrigeration sector's most demanding requirements in terms of effciency and effectiveness for all those applications where fast freezing is essential. The range is the ideal solutions for the most compact freezing rooms with a large refrigeration capacity demand. This range complies with the highest quality standards and it represents an excellent example of the accent our company's places on: design, development, research of materials and model performance. Application range: room temperature: -25*C~ -40°C. The NW, NQ and NF range is equipped with high eflciency/highly frost resistant coils made from special profile (38*38) aluminum fins and inner-grooved copper tube, suitable for new generation refrigerants. The unit coolers are floor-mounted, with three groups named as NQ (Installed away from room panel 800mm, water defrost, 16 standard models, 15.2~85.3kW),,NW (installed cling to room panel, electrical defrost, 5 standard models, 17.8~50.7kW) and NF (installed close to room panel, electrical defrost, 3 standard models, 33.2kW~ 102kW). This range employs 3 types of standard fan motors: Diameter 500mm/630mm/710mm,external rotor 80V/3/50Hz with IP45 protection grade, class F insulation, inner thermal contact protection, operating temp:-40*C~+40*C. On request the models can be equipped with non-standard coils, defrosting types and fan motors.



Models NW632A6T NW632A8T NW633A6T NW633A8T NW634A8T

Capacity ( kw)
21.5 28.2 32.2 42.3 50.7

Capacity ( kw)
17.8 23.3 26.6 34.9 41.9

(Fan Mot)n°xφmm
2x630 2x630 3x630 3x630 4x630

Air flow(m³/h)
27600 27600 41400 40100 53400

Air throw(m)
31 31 31 30 30

Surface(m²)
121 168 181 251 301

Circuit vol(dm³)
52 70 78 105 105

Fan Mot.(A/W)
6.4/3200 6.4/3200 9.6/4800 9.6/4800 9.6/4800

Defrost(A/W)
28.4/16200 28.4/16200 42.6/124300 42.6/124300 51.3/29250

Weight(kg)
530 612 750 875 980

Connection(In-Out)
1 1/8"-2 1/8" 11/8"-21/8 11/8"-2 1/8" 1 1/8"-23/8" 11/8"-23/8"

Drawing No
A39 A39 A40 A40 A41
