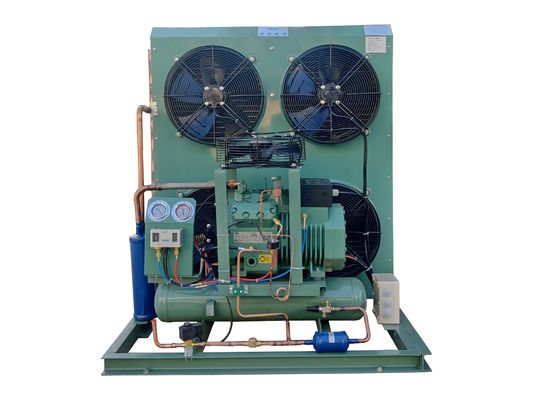

Semi Hermetic 2 Stage Refrigeration Condensing Unit Air Cooled

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Type Compressor After-sales Service Provided Engineers Available To Service Machinery Overseas
Refrigerant R404a Cooling Capacity From 1800W To 95600W
Voltage 380V/3Ph/50Hz Application Cold Storage Room Freezer Room
High Light

2 Stage Refrigeration Condensing Unit

,

Semi Hermetic Refrigeration Condensing Unit

,

2 Strage Air Cooled Condensing Units

Leave a Message
Product Description

1. Produc t de sc ription
◆ With Bitzer semi-hermetic, two stage compressor
◆ With world famous refrigerant components
◆ With mid stage design to greatly im prove EER value.
◆ With lower evaporative temp. Min. evaporate temp can be -50℃ when system with R22 refrigerant, Min. evaporate temp
can be -65℃ when system with R404A refrigerant..

Semi Hermetic 2 Stage Refrigeration Condensing Unit Air Cooled 0







4. Spe c ific a tions:
4.1 2-strage air cooled condensing units
4.1.1Refrigerant R22

Model SJZBF05J SJZBF08J SJZBF12J SJZBF16J SJZBF20J SJZBF25J SJZBF30J
Temp ( ℃) -25℃~-40℃
Power 380V/3Ph/50HZ
Compressor S4T5.2 S4N8.2 S4G12.2 S6J16.2 S6H20.2 S6G25.2 S6F30.2
Condenser Fan Qty 2 2 4 4 4 4 2
Fan Voltage(V) 380 380 380 380 380 380 380
Fan Watt(W) 180×2 180×2 180×4 180×4 180×4 180×4 800×2
Comp Cap. & Input Te.
-35℃
Cap (W) 5010 7240 10930 16320 18920 21700 26000
Input (KW) 3.75 5.6 8.46 11.97 13.87 15.92 19.05
Te.
-40℃
Cap (W) 3950 5680 8580 12920 14980 17200 20600
Input (KW) 3.41 5.08 7.68 10.58 12.26 14.07 16.84
Te.
-45℃
Cap (W) 3020 4310 6510 9810 11370 13060 15620
Input (KW) 3.04 4.56 6.89 9.17 10.63 12.2 14.6
Pipe Gas In (mm) φ28 φ28 φ35 φ42 φ42 φ42 φ42
Liquid dia. (mm) φ16 φ16 φ22 φ22 φ22 φ22 φ22
Overall sizes A(mm) 1085 1270 1270 1270 1340 1340 1250
B(mm) 930 930 1050 1050 1110 1130 730
C(mm) 660 810 1210 1460 1410 1410 930
Installation size(a×b mm) 800×885 800×885 1000×1005 1000×1005 1000×1065 1000×1085 910×685

Remark :1) Condensing Tem . is 45℃;
2) For 30Hp condensing units, condenser is separately installed. the size of condenser is not include in above sheet.



4.1.2 Refrigerant R404A

Model SJZBF05JY SJZBF08JY SJZBF12JY SJZBF16JY SJZBF20JY SJZBF25JY SJZBF30JY
Temp ( ℃) -25℃~-40℃
Power 380V/3Ph/50HZ
Compressor S4T5.2Y S4N8.2Y S4G12.2Y S6J16.2Y S6H20.2Y S6G25.2Y S6F30.2Y
Condenser Fan Qty 2 2 4 4 4 4 2
Fan Voltage(V) 380 380 380 380 380 380 380
Fan Watt(W) 180×2 180×2 180×4 180×4 180×4 180×4 800×2
Comp Cap. &Input Te.
-35℃
Cap (W) 5650 8010 12540 17480 20100 23000 27200
Input (KW) 4.59 6.56 9.9 13.96 16.17 18.56 22.2
Te.
-40℃
Cap (W) 4550 6460 10260 14380 16580 18920 22400
Input (KW) 4.17 5.95 8.96 12.56 14.55 16.7 19.98
Te.
-45℃
Cap (W) 3600 5130 8260 11640 13430 15340 18200
Input (KW) 3.73 5.33 8 11.21 12.99 14.92 17.85
Pipe Gas In (mm) φ28 φ28 φ35 φ42 φ42 φ42 φ42
Liquid dia. (mm) φ16 φ16 φ22 φ22 φ22 φ22 φ22
Overall sizes A(mm) 1085 1270 1270 1270 1340 1340 1250
B(mm) 930 930 1050 1050 1110 1130 730
C(mm) 660 810 1210 1460 1410 1410 927
Installation size(a×b mm) 800×885 800×885 1000×1005 1000×1005 1000×1065 1000×1085 910×685

Remark: For 30Hp condensing units, condenser is separately installed. the size of condenser is not include in above sheet.



4.2 2 -strage water cooled condensing units
4.2.1 Refrigerant R22

Model SJZBS05J SJZBS08J SJZBS12J SJZBS16J SJZBS20J SJZBS25J SJZBS30J
Temp ( ℃) -25℃~-40℃
Power 380V/50HZ
Compressor S4T-5.2 S4N-8.2 S4G -12.2 S6J-16.2 S6H-20.2 S6G -25.2 S6F-30.2
Condenser Type Shell Tube Type
Cooling Water
(m3/h)
2 3 4 5.6 6.6 7.5 10
Water Pipe 1-1/4″ 1-1/2″ 1-1/2″ 2-1/2" 2-1/2" 2-1/2" 2- 1/2″
Comp Cap. &Input Te.
-35℃
Cap (W) 5100 7380 11150 16490 19120 21900 26300
Input (KW) 3.55 5.3 8.0 11.35 13.2 15.1 18.1
Te.
-40℃
Cap (W) 4010 5810 8780 13090 15170 17420 20800
Input (KW) 3.23 4.81 7.26 10.1 11.67 13.4 16.0
Te.
-45℃
Cap (W) 3080 4440 6700 1000 11600 13310 15930
Input (KW) 2.88 4.33 6.54 8.8 10.2 11.7 14.0
Pipe Gas In (mm) φ28 φ28 φ35 φ42 φ42 φ42 φ42
Liquid dia. (mm) Φ16 Φ16 φ22 φ22 φ22 φ22 φ22
Overall sizes A(mm) 900 1050 1260 1300 1300 1300 1300
B(mm) 650 650 720 720 720 720 720
C(mm) 795 855 950 990 990 990 990
Installation size(a×b mm) 500×605 650×605 800×675 880×675 880×675 880×675 880×675

Condensin g Temp. is 45 ℃;



4.2.2 Refrigerant R404A/R507A

Model SJZBS05JY SJZBS08JY SJZBS12JY SJZBS16JY SJZBS20JY SJZBS25JY SJZBS30JY
Temp ( ℃) -25℃~-40℃
Power 380V/50HZ
Compressor S4T-5.2Y S4N-8.2Y S4G -12.2Y S6J-16.2Y S6H-20.2Y S6G -25.2Y S6F-30.2Y
Condenser Type High Efficient Pipe and Shell
Cooling Water
(m3/h)
2 3 4 5.6 6.6 7.5 10
Water Pipe 1-1/4″ 1-1/2″ 1-1/2″ 2-1/2" 2-1/2" 2-1/2" 2- 1/2″
Comp Cap. &Input Te.
-35℃
Cap (W) 5800 8220 12930 17990 20800 23700 28100
Input (KW) 4.36 6.22 9.37 13.21 15.32 17.59 21
Te.
-40℃
Cap (W) 4670 6640 10580 14810 17090 19520 23100
Input (KW) 3.96 5.65 8.49 11.9 13.79 15.85 18.96
Te.
-45℃
Cap (W) 3710 5290 8520 12000 13850 15830 18790
Input (KW) 3.55 5.07 7.6 10.63 12.32 14.16 16.95
Pipe Gas In (mm) φ28 φ28 φ35 φ42 φ42 φ42 φ42
Liquid dia. (mm) φ16 φ16 φ22 φ22 φ22 φ22 φ22
Overall sizes A(mm) 900 1050 1260 1300 1300 1300 1300
B(mm) 650 650 720 720 720 720 720
C(mm) 795 855 950 990 990 990 990
Installation size(a×b mm) 500×605 650×605 800×675 880×675 880×675 880×675 880×675

Condensing Temp. is 40 ℃;
