50HP Explosion-Proof Condensing Unit with Piston Compressor 380V

50HP Explosion-Proof Condensing Unit with Piston Compressor 380V

50HP explosion-proof condensing unit

piston compressor refrigeration unit

380V industrial condensing unit

Place of Origin:

Shanghai, China

Brand Name:

KUB

Certification:

CE

Contact Us
Request A Quote
Product Details
Weight:
1500 KG
Refrigerant:
R404A
Compressor Type:
Piston
Horse Power:
50HP
Voltage:
380V/3Ph/50Hz
Heat Exchange Area:
480 M²
Condenser Fan Quantity:
3 Pcs
Blade Diameter:
630 Mm
Air Volume:
3*12420 M³/h
Suction Pipe:
54 Mm
Outlet Pipe:
35 Mm
Length:
3850 Mm
Width:
1000 Mm
Height:
2000 Mm
Core Components:
Compressor
Highlight:

50HP explosion-proof condensing unit

,

piston compressor refrigeration unit

,

380V industrial condensing unit

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$19,000-20,000
Product Description
KUB-FV-50XXM 50HP Explosion-Proof Condensing Unit
Product Overview
The KUB-FV-50XXM is a reliable 50HP explosion-proof condensing unit featuring hot fluorine defrost refrigeration technology. Designed for demanding industrial applications, this unit combines robust construction with efficient performance.
Key Specifications
Attribute Value
Weight 1500 KG
Refrigerant R404A
Compressor 50HP piston compressor
Voltage 380V/3Ph/50Hz
Warranty 1 Year
After-sales Service Online support
Application Chemical warehouse
Origin Shanghai
Technical Specifications
Model Horsepower Voltage Heat Exchange Area (m²) Condenser Fan Qty Blade Diameter (mm) Air Volume (m³/h) Suction Pipe (mm) Outlet Pipe (mm) Dimensions L×W×H (mm)
KUB-FV-50XXM 50HP 380V-3PH-50HZ 480 3 630 3×12420 54 35 3850×1000×2000
Product Images

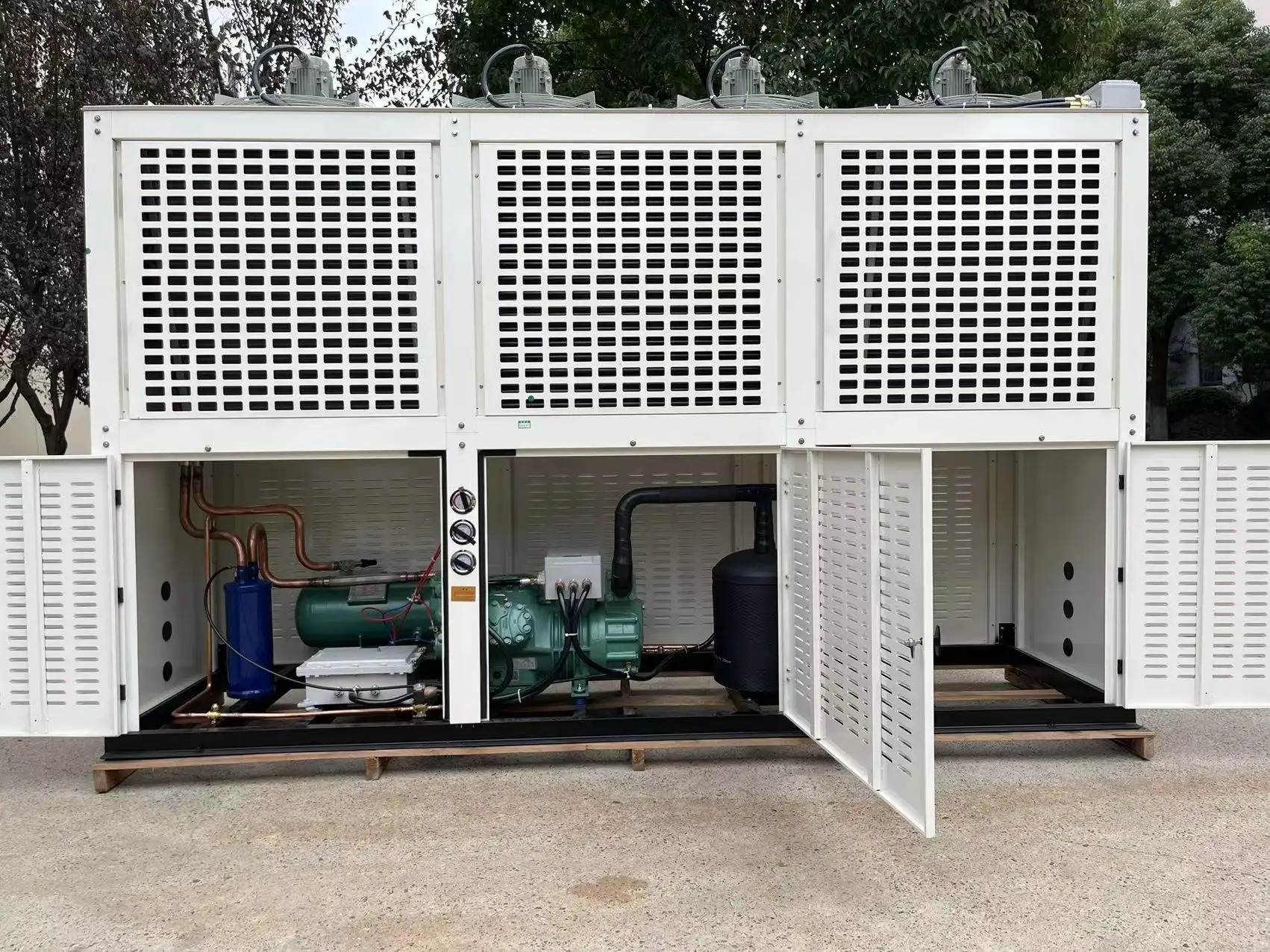

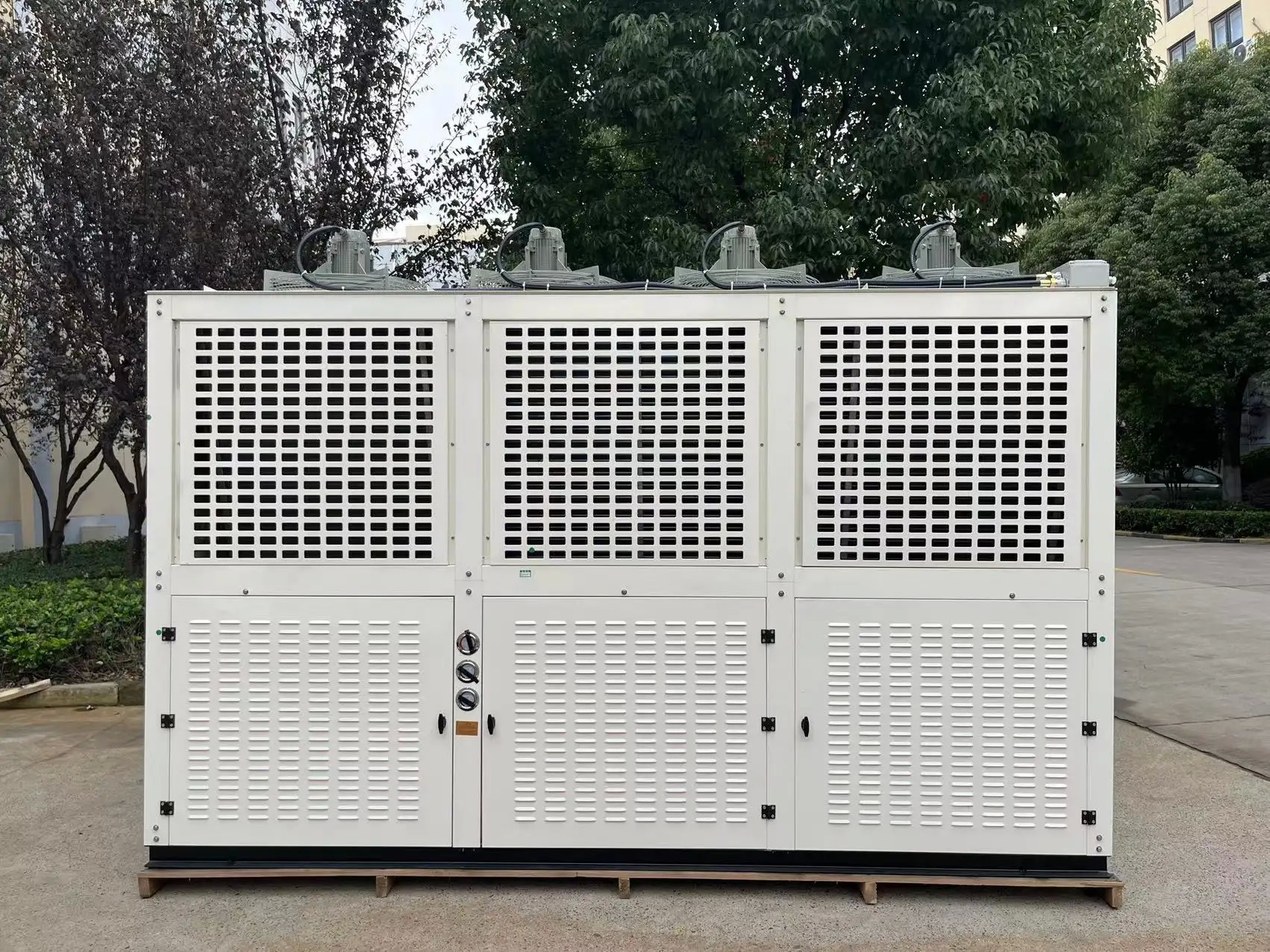

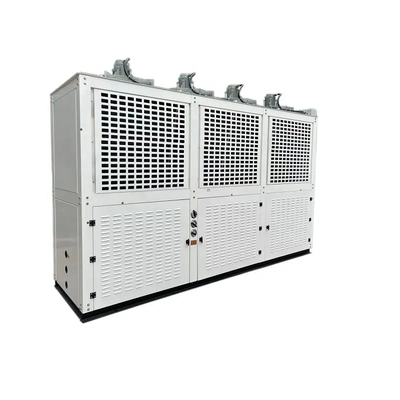

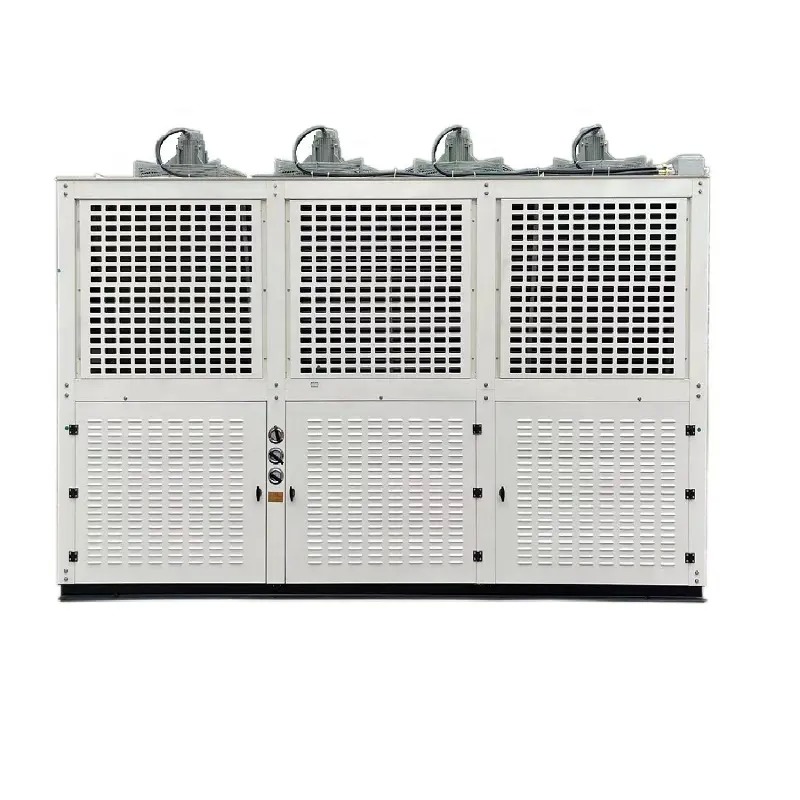

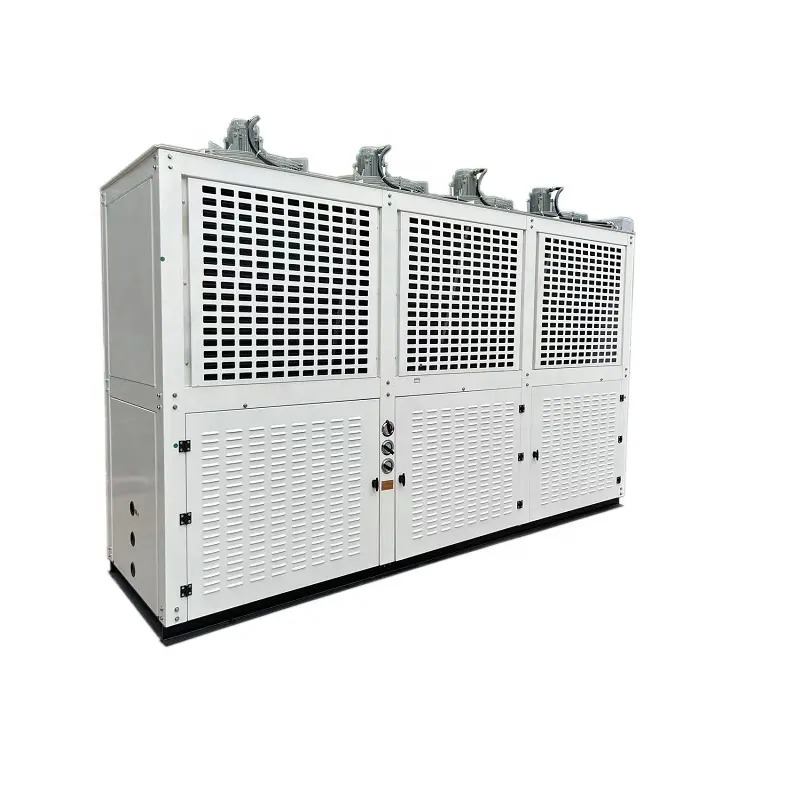

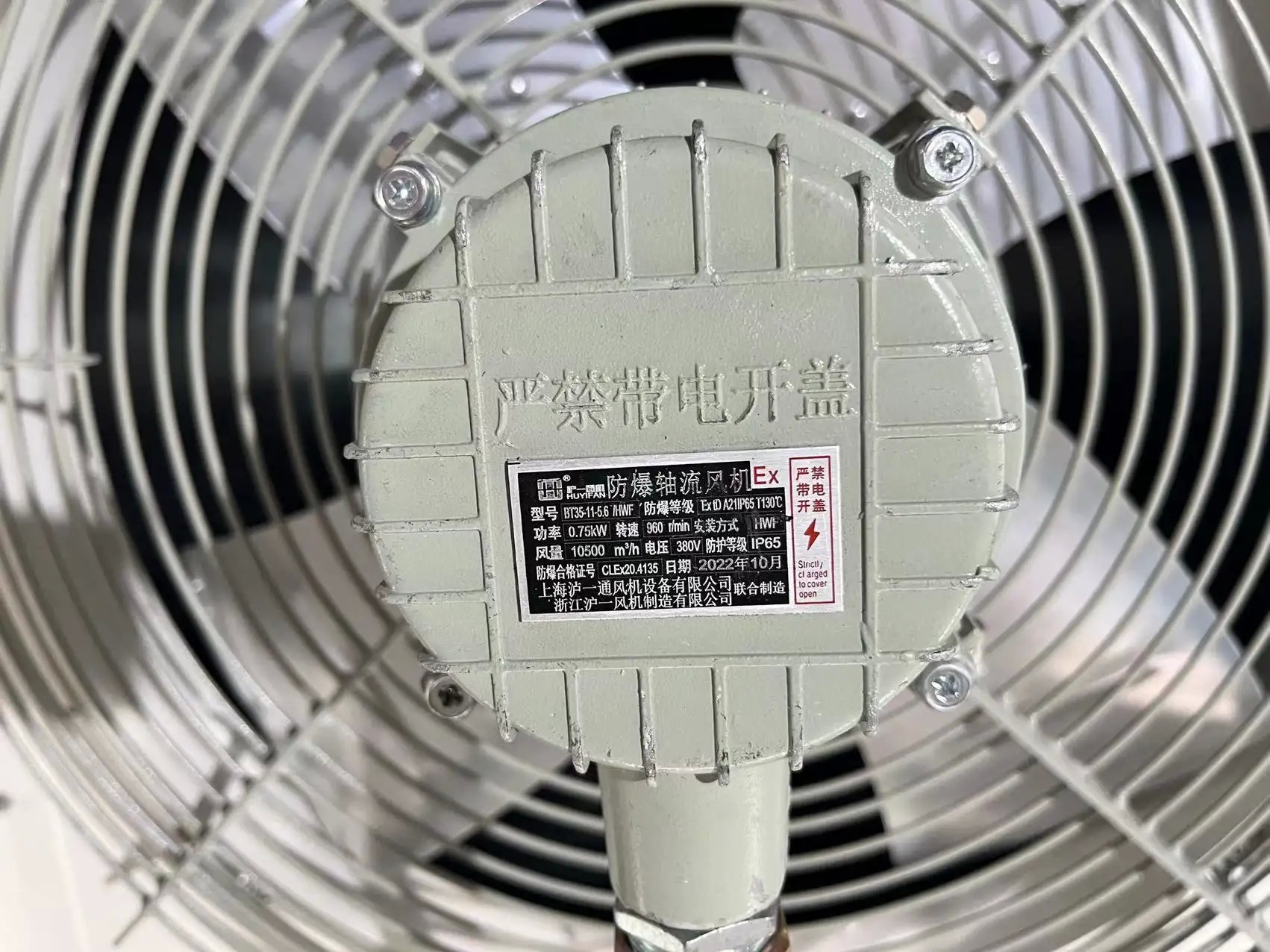

50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 0
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 1
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 2
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 3
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 4
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 5
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the factory that produces condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What are the payment methods & terms?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time and loading port?
A4: Typically 35-60 days after payment. Loading port is Shanghai, or other Chinese ports per your requirements.
Q5: Can I have a sample first?
A5: Samples are available at cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL/FCL sea freight (≈30 days), air freight (5-7 days), or express delivery.
Packaging & Warranty
Customization: We provide design services for refrigeration applications in agriculture, food service, chemical industries, and cold storage engineering.
Warranty: KUB offers a comprehensive 1-year warranty. We stand behind our product quality and provide excellent after-sales service.
