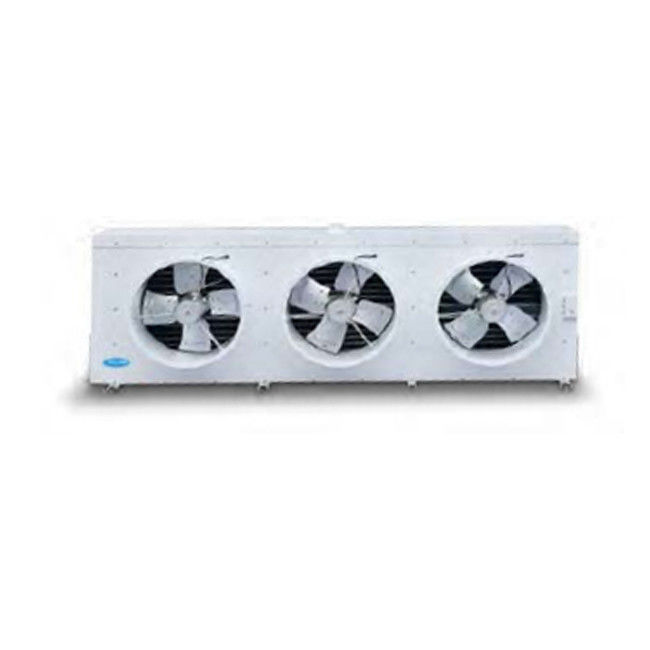

Cold Storage Evaporative Air Cooler 1350rpm With Water Defrosting Hot fluorine defrosting Explosion proof cooler

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number Describe
Minimum Order Quantity 10
Price consult
Packaging Details Pallet packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Evaporator,Air-Cooled Application Refrigeration Parts
Voltage 380v Warranty 1 Year
Refrigerant R404A/R22 Product Name Refrigeration Condenser
High Light

Evaporative Air Cooler 1350rpm

,

Water Defrosting D Type Evaporator

,

Cold Storage D Type Evaporator

Leave a Message
Product Description

D Type Air Coodler With Water Defrosting



Products Features

◆ Using the special integral casing iron alloy with high rigidity and resistance and anticorrosion
◆ the casing adopted rolled aluminum plate and paint epoxy plastic anti-erode ,nice shape
◆ special coil design ,high efficient heat exchange
◆ Maximum heat transfer with compact demensions



Application

◆ D Serial Air Cooler Apply To AlI Ranges Of Cold Storage For The Preservation Of Fresh Or Freezer Products,Food Processing,Biological Medicine Store,Dairy Products Processing,Edible Fungus Breeding Center .
◆ Application Temperature Range Is From 10C To -25°C With Special Requirement.







Model Rating Q at application
Temp
Fin space
Cooling
Surface
Air
flow
Air
throwr
connection Extermal Axial Fan Noise Water
Defrost
50 Hz.R404A       lnlet outlet Power Diameter Per Fan Lwa
w mm m³/h m φ(mm) φ(mm) w φ(mm) Rpm w A db[A] Ton

DL-16.7/80

16700 4.5 ≥0 80 2×6500 15 19 38 2×420 500 1350 420 0.95 69 1.8

DL-22/105

22000 4.5 ≥0 105 2×6500 15 19 38 2×420 500 1350 420 0.95 69 2.4
DL-25.8/125 25800 4.5 ≥0 125 3×6500 15 19 38 3×420 500 1350 420 0.95 69 3
DL-33.6/160 33000 4.5 ≥0 160 3×6500 15 19 38 3×420 500 1350 420 0.95 69 3.6
DL-38.7/185 38700 4.5 ≥0 185 4×6500 15 25 50 4×420 500 1350 420 0.95 69 4.2

DL-44/210

44000 4.5 ≥0 210 4×6500 15 25 50 4×420 500 1350 420 0.95 69 4.8
DL-52.9/260 52900 4.5 ≥0 260 2×9500 17 25 50 2×800 600 1350 800 1.5 73 6

DL-67/330

67200 4.5 ≥0 330 3×9500 17 25 50 3×800 600 1350 800 1.5 73 7.5
DL-85.6/450 85600 4.5 ≥0 450 3×9500 17 25 50 3×800 600 1350 800 1.5 73 9
DL-99.5/480 99500 4.5 ≥0 480 4×9500 17 25 50 4×800 600 1350 800 1.5 73 12

DD-12/60

12000 6 ≥-18 60 2×6500 15 19 38 2×420 500 1350 420 0.95 69 1.8

DD-16/80

16000 6 ≥-18 80 2×6500 15 19 38 2×420 500 1350 420 0.95 69 2.4

DD-20/100

20000 6 ≥-18 100 3×6500 15 19 38 3×420 500 1350 420 0.95 69

DD-24/120

24000 6 ≥-18 120 3×6500 15 19 38 3×420 500 1350 420 0.95 69 3.6
DD-28.2/140 28200 6 ≥-18 140 4×6500 15 25 50 4×420 500 1350 420 0.95 69 4.2

DD-32/160

32000 6 ≥-18 160 4×6000 15 25 50 4×420 500 1350 420 0.95 69 4.8

DD-40/200

40000 6 ≥-18 200 2×9500 17 25 50 2×800 600 1350 800 1.5 73 6

DD-50/200

50000 6 ≥-18 250 3×9500 17 25 50 3×800 600 1350 800 1.5 73 7.5

DD-60/300

60000 6 ≥-18 300 3×9500 17 25 50 3×800 600 1350 800 1.5 73

DD-72/350

72000 6 ≥-18 360 4×9500 17 25 50 4×800 600 1350 800 1.5 73 12

DJ-8/40

8000 9 ≥-25 40 2×6500 15 19 38 2×420 500 1350 420 0.95 69 1.8

DJ-11/55

11000 9 ≥-25 55 2×6500 1s 19 38 2×420 500 1350 420 0.95 69 2.4

DJ-14/70

14000 9 ≥-25 70 2×6500 15 19 38 3×420 500 1350 420 0.95 69

DJ-17/85

17000 9 ≥-25 85 3×6500 15 19 38 3×420 500 1350 420 0.95 69 3.6

DJ-20/100

20000 9 ≥-25 100 4×6500 15 25 50 4×420 500 1350 420 0.95 69 4.2

DJ-23/115

23000 9 ≥-25 115 4×6500 15 25 50 4×420 500 1350 420 0.95 69 4.8

DJ-28/140

28000 9 ≥-25 140 2×9500 17 25 50 2×300 600 1350 800 1.5 73 6

DJ-34/170

34000 9 ≥-25 170 3×9500 17 25 50 3×800 600 1350 800 1.5 73 7.5

DJ-42/210

42000 9 ≥-25 210 3×9500 17 25 50 3×800 600 1350 800 1.5 73

DJ-48/240

48000 9 ≥-25 240 4×9500 17 25 50 4×800 600 1350 800 1.5 73 12







Cold Storage Evaporative Air Cooler 1350rpm With Water Defrosting Hot fluorine defrosting Explosion proof cooler 0



Model Dimensions weights
(net)
weights
(gross)
Drain
D
H B T L E1 E2 F A w
mm mm mm mm mm mm mm mm mm kg kg inch
DL-16.7/80 760 1820 580 490 1550   95 90 300 162 167 2.5”
DL-22/105 760 1820 580 490 1550   95 90 300 182 187 2.5”
DL-25.8/125 760 2300 580 490 2030 660 95 90 300 225 230 2.5”
DL-33.6/160 760 2720 580 490 2450 800 95 90 300 255 260 2.5”
DL-38.7/185 760 3120 580 490 2850 1400 95 90 400 285 290 3”
DL-44/210 760 3520 580 490 3250 1600 95 90 400 305 310 3”
DL-52.9/260 960 2200 950 660 1950   95 90 300 335 340 3”
DL-67/330 960 2720 950 660 2450 800 95 90 300 375 380 3”
DL-85.6/450 960 3200 950 660 2930 960 95 90 300 425 430 3”
DL-99.5/480 1060 3320 950 660 3050 1500 95 90 400 475 480 3”
DD-12/60 760 1820 580 490 1550   95 90 300 162 167 2.5”
DD-16/80 760 1820 580 490 1550   95 90 300 182 187 2.5”
DD-20/100 760 2300 s80 490 2030 660 95 90 300 225 230 2.5”
DD-24/120 760 2720 580 490 2450 800 95 90 300 255 260 2.5
DD-28.2/140 760 3120 580 490 2850 1400 95 90 400 285 290 3”
DD-32/160 760 3520 580 490 3250 1600 95 90 400 305 310 3”
DD-40/200 960 2200 950 660 1950   95 90 300 335 340 3”
DD-50/250 960 2720 950 660 2450 800 95 90 300 375 380 3”
DD-60/300 960 3200 950 660 2930 960 95 90 300 425 430 3”
DD-72/350 1060 3320 950 660 3050 1500 95 90 400 475 480 3”
DJ-8/40 760 1820 580 490 1550   95 90 300 162 167 2.5”
DJ-11/15 760 1820 580 490 1550   9s 90 300 182 187 2.5”
DJ-14/70 760 2300 580 490 2030 660 95 90 300 225 230 2.5”
DJ-17/85 760 2720 580 490 2450 800 95 90 300 255 260 2.5”
DJ-20/100 760 3120 580 490 2850 1400 95 90 400 285 290 3”
DJ-23/115 760 3520 580 490 3250 1600 95 90 400 305 310 3”
DJ-28/140 960 2200 950 660 1950   95 90 300 335 340 3”
DJ-34/170 960 2720 950 660 2450 800 95 90 300 375 380 3”
DJ-42/210 960 3200 950 660 2930 960 95 90 300 425 430 3”
DJ-4B/240 1060 3320 950 660 3050 1500 95 90 400 475 480 3”
