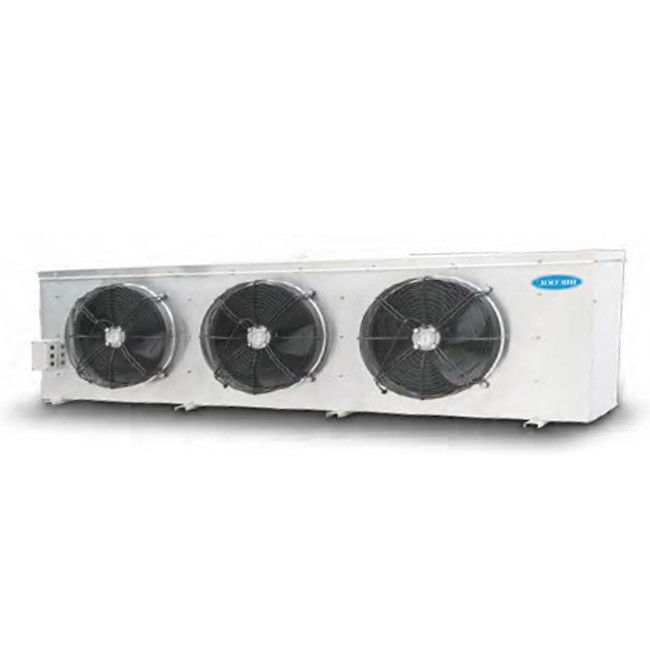

Electric Defrosting D Type Evaporator R404A Anti Erode Air Cooler 304 stainless steel Water frost Electrochemical cream

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number Describe
Minimum Order Quantity 10
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000
Product Details
Type Evaporator,Air-Cooled,Cooler Application Refrigeration Parts
Voltage 380v Warranty 1 Year
After-sales Service Provided Online Support Condition New
High Light

Electric Defrosting D Type Evaporator

,

Anti Erode Air Cooler

,

R404A D Type Evaporator

Leave a Message
Product Description

Products Features

◆ Using The Special Integral Casing Iron Alloy WithHigh Rigidity And Resistance And Anticorrosion
◆ The Casing Adopted Rolled Aluminum Plate AndPaint Epoxy Plastic Anti-Erode ,Nice Shape
◆ Special Coil Design ,High Efficient Heat Exchange
◆ Maximum Heat Transfer With Compact Demensions
◆ Optimized Tubular Heater Configurations EnsureDefrosting Quickly



Application
◆ D Serial Air Cooler Apply To All Ranges Of ColdStorage For The Preservation Of Vegetable,Fruit,Meat Fresh Or Freezer Products,
FoodProcessing,Dairy Products Processing,EdibleFungus Breeding Center .
◆ Application Temperature Range is From +10°CTo -25C With Special Requirement



Model Rating Qo at ApplicationTemp/Fin space Caoling Surface AlrFlow AirThrow Connection External Axial Fan Noise Electric Defrost
50Hz-R404A
SC2 Inlet ourtlet Power Dlameter Per Fan Lwa Coil Drip Pan
w mm m³/H m φ(mm) φ(mm) w skmm) Rpm w a db(A) Kw Kw
DL2.1/10 2100 4.5 ≥0 10 1*1650 7 12 19 90 300 1380 90 0.25 54 1*0.6 0.6
DL3.1/15 3100 4.5 ≥0 15 2*1650 7 12 19 2*90 300 1380 90 0.25 54 1*0.9 0.9
DL4.1/20 4100 4.5 ≥0 20 2*1650 7 12 19 2*90 300 1380 90 0.25 54 1*1.3 1.3
DL5.2/25 5200 4.5 ≥0 25 2*2670 7 12 22 2*135 350 1360 135 0.3 58 2*1.2 1.2
DL8.3/40 8300 4.5 ≥0 40 2*3500 9 16 25 2*190 400 1370 190 0.5 60 2*1.4 1.4
DL11.5/55 11500 4.5 ≥0 55 2*3500 9 16 25 2*190 400 1370 190 0.5 60 2*14 1.4
DL16.7/80 16700 4.5 ≥0 80 2*4500 9 19 38 2*250 450 1380 250 0.55 62 2*1.5 1.5
DL22/105 22000 4.5 ≥0 105 2*4500 9 19 38 2*250 450 1380 250 0.55 62 2*1.5 1.5
DL25.8/125 25800 4.5 ≥0 125 2*4500 9 19 38 3*250 450 1380 250 0.55 62 2*2.1 2.1
DL33.6/160 33600 4.5 ≥0 160 3*4500 9 19 38 3*250 450 1380 250 0.55 62 2*2.4 2.4
DL38.7/185 38700 4.5 ≥0 185 3*4500 9 25 50 4*250 450 1380 250 0.55 62 2*3 3
DL-44/210 44000 4.5 ≥0 210 4*4500 9 25 50 4*250 450 1380 250 0.55 62 2*3.2 3.2
DL52.9/260 52900 4.5 ≥0 260 4*9500 12 25 50 2*800 600 1350 800 1.5 73 5*2.7 2.7
DL-67/330 67200 4.5 ≥0 330 3*9500 12 25 50 3*800 600 1350 800 1.5 73 5*3.3 3.3
DL85.6/450 85600 4.5 ≥0 450 3*9500 12 25 50 3*800 600 1350 800 1.5 73 5*3.5 3.5

DD-1.4/7

1400 6 ≥-18 7 1*1650 7 12 19 90 300 1380 90 0.25 54 1*0.6 0.6
DD-2.4/12 2400 6 ≥-18 12 2*1650 7 12 19 90 300 1380 90 0.25 54 1*0.9 0.9

DD-3/15

3000 6 ≥-18 15 2*1650 7 12 19 2*90 300 1380 90 0.25 54 1*0.9 0.9
DD-4.4/22 4400 6 ≥-18 22 2*2670 7 16 22 2*135 350 1360 135 0.3 58 2*1.2 1.2

DD-6/30

6000 6 ≥-18 30 2*3500 9 16 25 2*190 400 1370 190 0.5 60 2*1.4 1.4

DD-8/40

8000 6 ≥-18 40 2*3500 9 16 25 2*190 400 1370 190 0.5 60 2*1.4 1.4
DD-12/60 12000 6 ≥-18 60 2*4500 9 19 38 2*250 450 1380 250 0.55 62 5*1.5 1.5
DD-16/80 16000 6 ≥-18 80 2*4500 9 19 38 2*250 450 1380 250 0.55 62 5*1.5 1.5
DD-20/100 20000 6 ≥-18 100 2*4500 9 19 38 3*250 450 1380 250 0.55 62 5*2.1 2.1
DD-24/120 24000 6 ≥-18 120 3*4500 9 19 38 3*250 450 1380 250 0.55 62 5*2.4 2.4
DD28.2/140 28000 6 ≥-18 140 3*4500 9 25 50 4*250 450 1380 250 0.55 62 5*3 3
DD-32/160 32000 6 ≥-18 160 4*4500 9 25 50 4*250 450 1380 250 0.55 62 5*3.2 3.2
DD-40/200 40000 6 ≥-18 200 4*9500 12 25 50 2*800 600 1350 800 1.5 73 8*2.7 2.7
DD-50/250 50000 6 ≥-18 250 2*9500 12 25 50 3*800 600 1350 800 1.5 73 8*3.3 3.3
DD-60/300 60000 6 ≥-18 300 3*9500 12 25 50 3*800 600 1350 800 1.5 73 8*3.5 3.5

DJ-0.8/5

800 9 ≥-25 5 1*1650 7 12 19 90 300 1380 90 0.25 54 1*0.6 0.6

DJ-1.3/8

1300 9 ≥-25 8 2*1650 7 12 19 2*90 300 1380 9o 0.25 54 1*0.9 0.9

DJ-1.8/10

1800 9 ≥-25 10 2*1650 7 12 19 2*90 300 1380 90 0.25 54 1*1.3 1.3
DJ-2.1/15 2100 9 ≥-25 15 2*2670 7 16 22 2*135 350 1360 135 0.3 58 2*1.2 1.2

DJ-4/20

4000 9 ≥-25 20 2*3500 9 16 25 2*190 400 1370 190 0.5 60 2*1.4 1.4

DJ-6/30

6000 9 ≥-25 30 2*3500 9 19 25 2*190 400 1370 190 0.5 60 2*1.4 1.4

DJ-8/40

8000 9 ≥-25 40 2*4800 9 19 38 2*250 450 1350 800 1.5 73 5*1.5 1.5

DJ-11/55

11000 9 ≥-25 55 2*4500 9 19 38 2*250 450 1380 250 0.55 62 2*1.4 1.4

DJ-14/70

14000 9 ≥-25 70 2*4500 9 19 38 3*250 450 1380 250 0.55 62 5*2.1 2.1

DJ-17/85

17000 9 ≥-25 85 3*4500 9 19 38 3*250 450 1380 250 0.55 62 5*2.4 2.4
DJ-20/100 20000 9 ≥-25 100 3*4500 9 25 50 4*250 450 1380 250 0.55 62 5*3 3
DJ-23/115 23000 9 ≥-25 115 4*4500 9 25 50 4*250 450 1380 250 0.55 62 5*3.2 3.2
DJ-28/140 28000 9 ≥-25 140 2*9500 12 25 5o 2*800 600 1350 800 1.5 73 8*2.7 2.7
DJ-34/170 34000 9 ≥-25 170 3*9500 12 25 50 3*800 600 1350 800 1.5 73 8*3.3 3.3
DJ-42/210 42000 9 ≥-25 210 3*9500 12 25 50 3*800 600 1350 800 1.5 73 8*3.5 3.5

DL Type For Cold Storage Temp=0°C ,To=-7°C ,Fin Space=4.5Mm

DD Type For Cold Storage Temp=-18°C ,To=-7C ,Fin Space=6.0Mm

DJ Type For Cold Storage Temp=-25°C ,To=-7°C ,Fin Space=9.0Mm





Electric Defrosting D Type Evaporator R404A Anti Erode Air Cooler 304 stainless steel Water frost Electrochemical cream 0



Model Dimensions Weights
(net)
Weights
(gross)
Drain
H B T L E1 E2 F A w D
mm mm mm mm mm mm mm mm mm kg kg inch
DL-2.1/10 440 720 310 260 530   85 90 300 21 26 3/4"
DL-3.1/15 440 970 310 260 780   85 90 300 28 33 3/4"
DL-4.1/20 440 1120 310 260 1080   85 90 300 43 48 3/4"
DL-5.2/25 440 1120 380 330 1080   85 90 300 48 53 3/4"
DL-8.1/40 560 1520 420 370 1250   95 90 300 60 65 3/4"
DL-11.5/55 560 1520 420 370 1250   95 90 300 80 85 3/4"
DL-16.7/80 660 1820 480 440 1550   95 90 300 142 147 1"
DL-22/105 660 1820 480 440 1550   95 90 300 162 167 1"
DL-25.8/125 660 2300 480 440 2030 660 95 90 300 205 210 1"
DL-33.6/160 660 2720 480 440 2450 800 95 90 300 235 240 1"
DL-38.7/185 660 3120 480 440 2850 1400 95 90 400 265 270 1"
DL-44/210 660 3520 480 440 3250 1600 95 90 400 285 290 1"
DL-52.9/260 860 2220 730 650 1950   95 90 300 315 320 2"
DL-67/330 860 2720 730 650 2450 800 95 90 300 355 360 2”
DL-85.6/450 860 3200 1000 650 2930 960 95 90 300 395 400 2"
DD-1.4/7 440 720 310 260 530   85 90 300 21 26 3/4"
DD-2.4/12 440 970 310 260 780   85 90 300 28 33 3/4"
DD-3/15 440 1120 310 260 1080   85 90 300 43 48 3/4"
DD-4.4/22 440 1120 380 330 1080   85 90 300 48 53 3/4"
DD-6/30 560 1520 420 370 1250   95 90 300 60 65 3/4"
DD-8/40 560 1520 420 370 1250   95 90 300 80 85 3/4"
DD-12/60 660 1820 480 440 1550   95 90 300 142 147 1"
DD-16/80 660 1820 480 440 1550   95 90 300 162 167 1"
DD-20/100 660 2300 480 440 2030 660 95 90 300 205 210 1"
DD-24/120 660 2720 480 440 2450 800 95 90 300 235 240 1"
DD-28.2/140 660 3120 480 440 2850 1400 95 90 400 265 270 1"
DD-32/160 660 3520 480 440 3250 1600 95 90 400 285 290 1"
DD-40/200 860 2220 730 650 1950   95 90 300 315 320 2"
DD-50/250 860 2720 730 650 2450 800 95 90 300 355 360 2"
DD-60/310 860 3200 1000 650 2930 960 95 90 300 395 400 2"
DJ-0.8/5 440 720 310 260 530   85 90 300 21 26 3/4"
DJ-1.3/8 440 970 310 260 780   85 90 300 28 33 3/4"
DJ-1.8/10 440 1120 310 260 1080   85 90 300 43 48 3/4"
DJ-2.1/15 440 1120 380 330 1080   85 90 300 48 53 3/4"
DJ-4/20 560 1520 420 370 1250   95 90 300 60 65 3/4"
DJ-6/30 560 1520 420 370 1250   95 90 300 80 85 3/4"
DJ-8/40 660 1820 480 440 1550   95 90 300 142 147 1"
DJ-11/55 660 1820 480 440 1550   95 90 300 162 167 1"
DJ-14/70 660 2300 480 440 2030 660 95 90 300 205 210 1"
DJ-17/85 660 2720 480 440 2450 800 95 90 300 235 240 1"
DJ-20/100 660 3120 480 440 2850 1400 95 90 400 265 270 1"
DJ-23/115 660 3520 480 440 3250 1600 95 90 400 285 290 1"
DJ-28/140 860 2220 730 650 1950   95 90 300 315 320 2"
DJ-34/170 860 2720 730 650 2450 800 95 90 300 355 360 2"
DJ-42/210 860 3200 1000 650 2930 960 95 90 300 395 400 2"
