Semi Closed Four Cylinder Cold Storage Compressor V20-84Y

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCompressor | V20-84Y | Exhaust Volume | 83.81 M³/h |
---|---|---|---|
Nominal Compressor Speed | 1450 Rpm | Motor Voltage | 400 V / 3 / 50 PWS |
Nominal Frequency | 50 Hz | Maximum Current (MRA) | 42.6 A |
Locked Rotor Current (LRA) | 106.6 A | Locked Rotor Current (LRA), Dol | 180.5 A |
Number Of Pistons | 4 | Net Weight | 180 Kg |
Lubricating Oil | FRASCOLD POE68 | Oil Charge | 4 L |
Highlight | Four Cylinder Cold Storage Compressor,Semi Closed Cold Storage Compressor,Cold Storage Compressor V20-84Y |

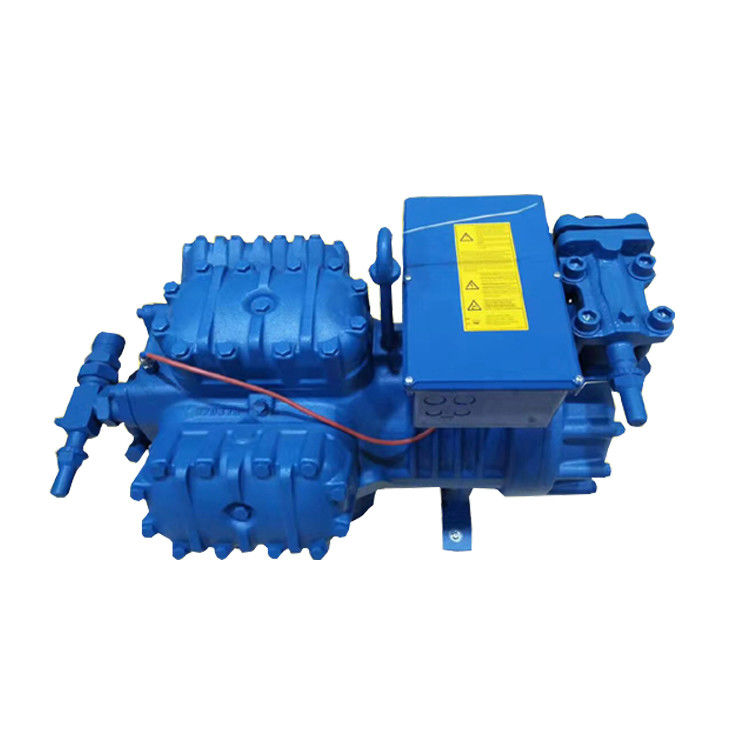

Frascold Compressor V20-84Y Semi Closed Original Quality Goods Four Cylinder Compressor
Italy frascold refrigeration compressor
Experience, quality, innovation.
These are the commercial and industrial characteristics of enterprises over the age of 70 who have enabled fracold to achieve and consolidate their leading position in the global market of air conditioning and refrigeration compressors.
experience
From years of compressor refrigeration and air conditioning global market activities to earn a lot of technical know-how.
quality
Through the extensive use of the best materials and their products, more, more reliable, more efficient and strict quality testing, we can achieve high-quality standards.
innovation
In the production of refrigeration compressors, innovative solutions meet the challenges of the market, and continuously promote the results of the use of world-class engineering and design tools in evolution.
Technical data
COMPRESSOR MODEL |
Cylinders | Displacement m3/h 50Hz |
Nominal power (HP) |
Motor version |
Max operating current 400V / 50 Hz (A) |
Locked rotor current 400V / 50 Hz (A) |
Oil charge (litri) |
Pipe connections (valves with solder conn.) |
Weight (kg) |
Sound pressure at 1m (dBA) |
||||
Suction line | Discharge line | |||||||||||||
mm | inch | mm | inch | -1 | -2 | |||||||||
V15-59E (ECOinside) | 4 | 58.48 | 15 | 3 | 17.5 | 59.5 | 4 | 42 | 1⅝ | 28.6 | 1⅛ | 170 | 65 | - |
V15-59Y | 15 | 2 | 31.1 | 74.8 | 4 | 42 | 1⅝ | 28.6 | 1⅛ | 170 | 67 | 67.5 | ||
V20-59Y | 20 | 1 | 35.3 | 106.6 | 4 | 42 | 1⅝ | 28.6 | 1⅛ | 174 | 67.2 | - | ||
V15-71E (ECOinside) | 4 | 70.77 | 15 | 3 | 20.2 | 59.5 | 4 | 42 | 1⅝ | 28.6 | 1⅛ | 174 | 67.5 | - |
V15-71Y | 15 | 2 | 32.2 | 74.8 | 4 | 42 | 1⅝ | 28.6 | 1⅛ | 174 | 67.9 | 68.1 | ||
V25-71Y | 20 | 1 | 43.5 | 118.3 | 4 | 54 | 2⅛ | 35 | 1⅜ | 184 | 68 | - | ||
V20-84E (ECOinside) | 4 | 83.81 | 20 | 3 | 27.2 | 89.9 | 4 | 42 | 1⅝ | 28.6 | 1⅛ | 180 | 69.6 | - |
V20-84Y | 20 | 2 | 46.2 | 106.6 | 4 | 54 | 2⅛ | 35 | 1⅜ | 180 | 71 | 71.5 | ||
V30-84Y | 30 | 1 | 49.2 | 132.6 | 4 | 54 | 2⅛ | 35 | 1⅜ | 187 | 71.3 | - | ||
V25-93Y | 4 |
93.05 | 25 | 2 | 52.3 | 118.3 | 4 | 54 | 2⅛ | 35 | 1⅜ | 200 | 71.3 | 71.6 |
V32-93Y | 32 | 1 | 53.1 | 144.5 | 4 | 54 | 2⅛ | 35 | 1⅜ | 192 | 71.5 | - | ||
V25-103E (ECOinside) | 4 | 102.9 | 25 | 3 | 29.9 | 122.7 | 4 | 54 | 2⅛ | 35 | 1⅜ | 204 | 70.5 | - |
V25-103Y | 25 | 2 | 52.3 | 118.3 | 4 | 54 | 2⅛ | 35 | 1⅜ | 204 | 71.3 | 71.6 | ||
V35-103Y | 35 | 1 | 61 | 144.5 | 4 | 54 | 2⅛ | 35 | 1⅜ | 207 | 71.5 | - | ||
Z25-106E (ECOinside) | 6 | 106.16 | 25 | 3 | 30.2 | 122.7 | 3.7 | 54 | 2⅛ | 35 | 1⅜ | 220 | 71.5 | - |
Z25-106Y | 25 | 2 | 53.6 | 118.3 | 3.7 | 54 | 2⅛ | 35 | 1⅜ | 220 | 72 | 72 | ||
Z35-106Y | 35 | 1 | 60.2 | 144.5 | 3.7 | 54 | 2⅛ | 35 | 1⅜ | 223 | 71.5 | - | ||
Z30-126E (ECOinside) | 6 | 125.72 | 30 | 3 | 33.8 | 122.7 | 7.2 | 54 | 2⅛ | 35 | 1⅜ | 229 | 72 | - |
Z30-126Y | 30 | 2 | 55.7 | 132.6 | 7.2 | 54 | 2⅛ | 35 | 1⅜ | 229 | 73 | 73.5 | ||
Z40-126Y | 40 | 1 | 71.9 | 159.2 | 7.2 | 67 | 2⅝ | 42 | 1⅝ | 240 | 73.2 | - | ||
Z40-154E (ECOinside) | 6 |
154.38 | 40 | 3 | 41.1 | 144.5 | 7.2 | 67 | 2⅝ | 42 | 1⅝ | 240 | 73 | - |
Z40-154Y | 40 | 2 | 77.9 | 159.2 | 7.2 | 67 | 2⅝ | 42 | 1⅝ | 240 | 73.6 | 73.8 | ||
Z50-154Y | 50 | 1 | 94.4 | 188.8 | 7.2 | 67 | 2⅝ | 42 | 1⅝ | 244 | 73.7 | - | ||
W40-142Y | 141.5 | 40 | 1 | 89.3 | 215 | 7.7 | 67 | 2⅝ | 42 | 1⅝ | 295 | 76.5 | 77.2 | |
W40-168Y | 8 | 167.6 | 40 | 2 | 71.4 | 215 | 7.7 | 67 | 2⅝ | 42 | 1⅝ | 299 | 76.6 | 77.4 |
W50-168Y | 50 | 1 | 94.8 | 258 | 7.7 | 79.4 | 3⅛ | 42 | 1⅝ | 305 | 76.7 | - | ||
W50-187Y | 8 | 186.1 | 50 | 2 | 89.1 | 258 | 7.7 | 79.4 | 3⅛ | 42 | 1⅝ | 311 | 77.5 | 78 |
W60-187Y | 60 | 1 | 103.5 | 326 | 7.7 | 79.4 | 3⅛ | 42 | 1⅝ | 315 | 78 | - | ||
W60-206Y | 8 | 205.8 | 60 | 2 | 98.8 | 326 | 7.7 | 79.4 | 3⅛ | 54 | 2⅛ | 320 | 79.4 | 80.2 |
W70-206Y | 70 | 1 | 116.8 | 390 | 7.7 | 79.4 | 3⅛ | 54 | 2⅛ | 328 | 79.4 | - | ||
W70-228Y | 8 | 227.77 | 70 | 2 | 109.5 | 390 | 7.7 | 79.4 | 3⅛ | 54 | 2⅛ | 328 | 81 | - |
W75-228Y | 75 | 1 | 128.4 | 417 | 7.7 | 79.4 | 3⅛ | 54 | 2⅛ | 328 | 81 | - | ||
W75-240Y | 8 | 238.02 | 75 | 2 | 115.3 | 417 | 7.7 | 79.4 | 3⅛ | 54 | 2⅛ | 328 | 81 | - |
W80-240Y | 80 | 1 | 135.7 | 417 | 7.7 | 79.4 | 3⅛ | 54 | 2⅛ | 328 | 81 | - |
1) Average sound pressure level in application MT (-10°C / 45°C)
2) Average sound pressure level in application LT (-35°C / 40°C)
COMPRESSOR MODEL |
Cylinders | Displacement m3/h 50Hz |
Nominal power (HP) |
Motor version |
Cooling capacity 50 Hz (data based on EN12900) | |||||||
R404A / R507A | R407F | R407A | R134a | |||||||||
MT (1) Kw |
LT (2) kW |
MT (1) kW |
LT (2) kW |
MT (1) kW |
LT (2) kW |
HT (3) kW |
MT (1) kW |
|||||
V15-59E (ECOinside) | 4 | 58.48 | 15 | 3 | - | - | - | - | - | - | - | 18.14 |
V15-59Y | 15 | 2 | 29.76 | 10.33 | 28.98 | 7.32 | 26.9 | 6.43 | 32.29 | 18.25 | ||
V20-59Y | 20 | 1 | 28.93 | 8.51 | 28.62 | 6.7 | 26.27 | 5.81 | 32.72 | 18.19 | ||
V15-71E (ECOinside) | 4 | 70.77 | 15 | 3 | - | - | - | - | - | - | - | 21.22 |
V15-71Y | 15 | 2 | 35.31 | 12.26 | 35.99 | 9.55 | 33.3 | 8.4 | 38.11 | 21.69 | ||
V25-71Y | 20 | 1 | 34.78 | 10.51 | 36 | 8.75 | 31.88 | 7 | 37.47 | 20.35 | ||
V20-84E (ECOinside) | 4 | 83.81 | 20 | 3 | - | - | - | - | - | - | - | 25.27 |
V20-84Y | 20 | 2 | 40.69 | 13.5 | 43.88 | 12.03 | 40.88 | 11.02 | 42.85 | 23.39 | ||
V30-84Y | 30 | 1 | 42.17 | 13.16 | 42.96 | 10.92 | 39.34 | 9.54 | 42.68 | 23.61 | ||
V25-93Y | 4 | 93.05 | 25 | 2 | 44.66 | 13.68 | 46.05 | 11.65 | 42.78 | 10.23 | 49.57 | 27.8 |
V32-93Y | 32 | 1 | 45.11 | 12.46 | 45.53 | 10.69 | 41.83 | 9.31 | 48.42 | 25.29 | ||
V25-103E (ECOinside) | 4 | 102.9 | 25 | 3 | - | - | - | - | - | - | - | 31.06 |
V25-103Y | 25 | 2 | 51.6 | 16.05 | 53.28 | 14.51 | 48.53 | 12.66 | 50.4 | 28.01 | ||
V35-103Y | 35 | 1 | 50.43 | 15.96 | 51.93 | 13.18 | 47.24 | 11.44 | 53.93 | 30.46 | ||
Z25-106E (ECOinside) | 6 | 106.16 | 25 | 3 | - | - | - | - | - | - | - | 32.21 |
Z25-106Y | 25 | 2 | 53.91 | 16.53 | 54.34 | 14.36 | 49.97 | 12.61 | 52.88 | 29.21 | ||
Z35-106Y | 35 | 1 | 53.29 | 17.15 | 53.3 | 13.23 | 48.98 | 11.6 | 56.7 | 32 | ||
Z30-126E (ECOinside) | 6 | 125.72 | 30 | 3 | - | - | - | - | - | - | - | 37.2 |
Z30-126Y | 30 | 2 | 61.7 | 19.49 | 64.56 | 17.45 | 59.2 | 15.25 | 65.34 | 35.89 | ||
Z40-126Y | 40 | 1 | 62.14 | 19.2 | 64.15 | 16.29 | 58.81 | 14.21 | 67.1 | 37.63 | ||
Z40-154E (ECOinside) | 6 | 154.38 | 40 | 3 | - | - | - | - | - | - | - | 44.72 |
Z40-154Y | 40 | 2 | 77.73 | 27.44 | 80.36 | 22.2 | 73.42 | 19.33 | 78.72 | 43.52 | ||
Z50-154Y | 50 | 1 | 76.07 | 23 | 79.07 | 20.21 | 72.15 | 17.49 | 80.76 | 44.39 |
(1) MT = Evaporation temperature -10°C, Condensing temperature 45°C, suction gas temperature 20°C, without liquid subcooling
(2) LT = Evaporation temperature -35°C, Condensing temperature 40°C, suction gas temperature 20°C, without liquid subcooling
(3) HT = Evaporation temperature 5°C, Condensing temperature 50°C, suction gas temperature 20°C, without liquid subcooling
notes:
(1) Conversion coefficient 60Hz = 1.2 times
(2) Maximum operating current of PWS wiring of S, V, Z and W models [400V]
(3) Shaft locking current of PWS wiring of S, V, Z and W models
(4) When selecting contactors, cables and fuses, please consider the maximum operating current
(5) Filling Poe synthetic oil
(6) Stop valve with welded joint
(7) Net weight including stop valve, refrigerant oil and rubber damping pad
In some applications, it is necessary to limit the range of frequencies. In particular, the higher frequency depends on the maximum operating current (MRA) calculated by the following formula. For the performance of the compressor under every possible condition of each frequency and upper limit, please check frascold / Fuji Howe selection software.
