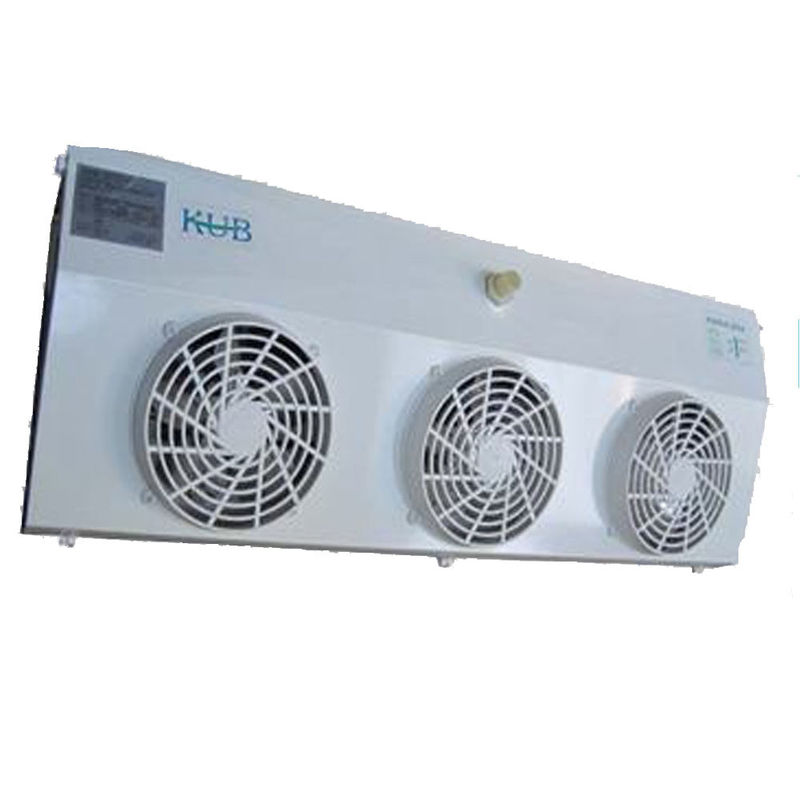

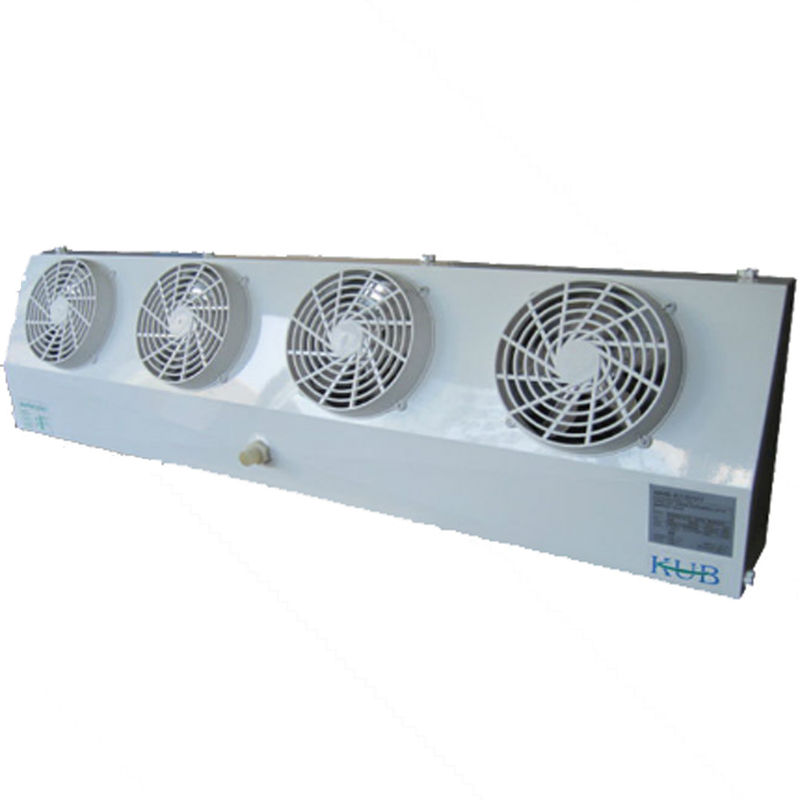

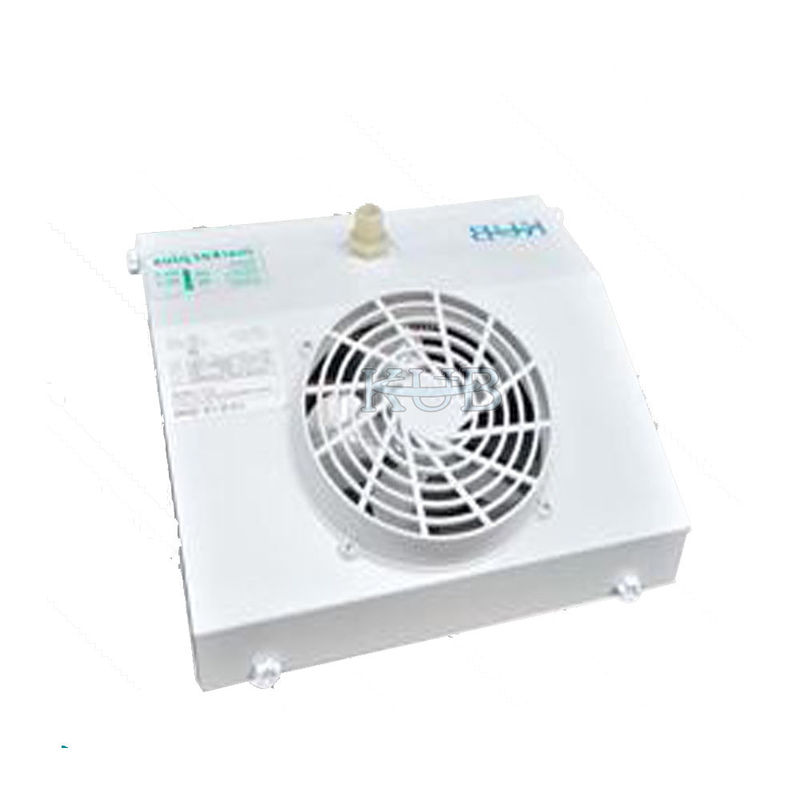

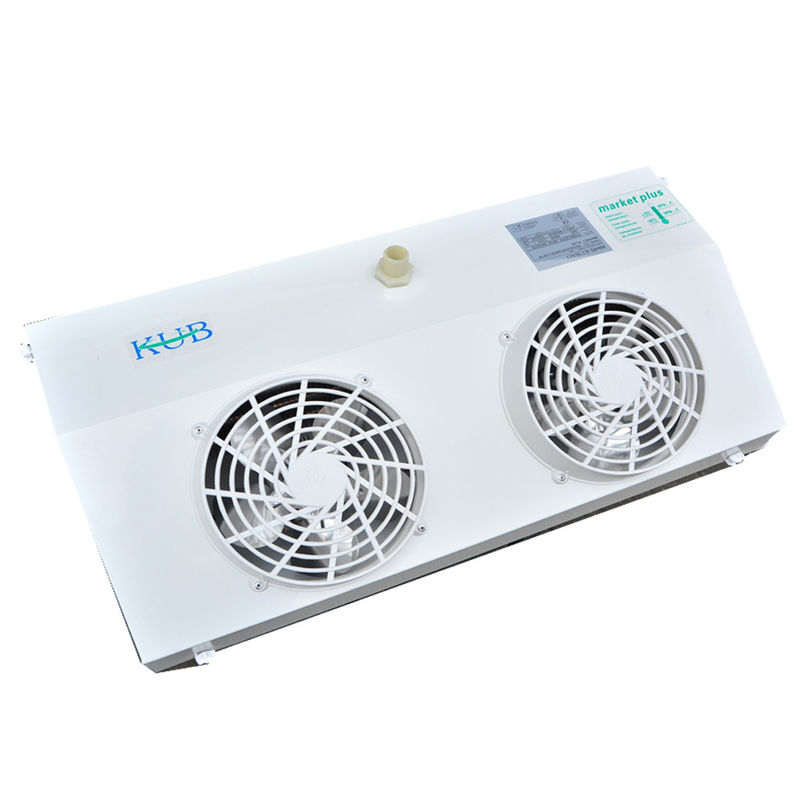

1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater For Small Cold Room

1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater For Small Cold Room

    • 1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater  For Small Cold Room
    • 1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater  For Small Cold Room
    • 1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater  For Small Cold Room
    • 1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater  For Small Cold Room
  • 1HP 220V Air Flow Evaporative Cooler High Corrosion Strength Stainless Steel Heater  For Small Cold Room

    Product Details:

    Place of Origin: Shanghai, China (Mainland)
    Brand Name: KUB
    Certification: CE
    Model Number: KUBD-2D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: carton
    Supply Ability: 45 units per month
    Contact Now
    Detailed Product Description
    Temperature: -5 To 5℃ Name: Ceiling Evaporator
    Product: Air Cooler Material: High Quality Aluminum Coating
    Warranty: One Year Air Flow: 960
    Dimensions: 735*160*365mm Voltage: 220v

    1HP 220v fan ceiling refrigerator evaporator Ceiling Evaporator for Small Cold Room,Cold Storage



    Model KUBD-2D Original Made in china
    Voltage 220v/1p/50hz Fan 2*200mm



    General Futures:

    The high efferent coils are made from high quality cooper tube 9.52mm and special profile aluminum fins, Heat exchanges are sup-plied clean and tested under a pressure of 30 bars.



    The Casing:

    White power coated aluminum, high corrosion strength, impact resistance and does not produce polluting debris.



    Defrost heating:

    Provided stainless steel heater elements



    The fan motors:

    All with high quality shaded-pole fan motors with high safety standards fitted well to the unit casing with an anti-vibration system.



    Electrical parts and wiring:

    Are connected to earth terminal, carried out in junction box with access holes equipped with water-proof cable grand. All material are selected carefully for long-term reliability.



    Model KUBD-1D KUBD-2D KUBD-3D KUBD-4D
    Capacity Kcal/h 650 1300 1950 2590
    (C2)DT=8K(R22) W 760 1510 2270 3010
    Surface 3.3 6.5 9.8 13
    Voi.int. dm³ 0.95 1.75 2.5 3.4
    heded-pole Fans Air Flow m³/h 480 960 1440 1920
    Air Throw m 4 4 4 4
    N°*φmm 1*200 2*200 3*220 4*200
    Total Current A 0.23 0.46 0.69 0.92
    Total Input W 35 70 105 140
    Heater tube N°*W 1*500 1*800 1*1200 1*1500
    Total W 500 800 1200 1500
    Dimension A mm 410 735 1060 1385
    B mm 160 160 160 160
    C mm 365 365 365 365
    Connection Inlet φ” 3/8” 1/2” 1/2” 1/2”
    Outlet φ” 3/8” 1/2” 1/2” 5/8”
    Drain Unionφ” 3/4” 3/4” 3/4” 3/4”
    Mounting 2 2 3 3
    H mm 340 340 340 340
    P-N mm     450 612
    K mm 250 575 450 612



    Refrigeration Evaporators Cool Room Evaporators Ceiling Evaporator DE Factory produced small type air cooler

    KUBD D.png



    Packaging & Shipping

    The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
