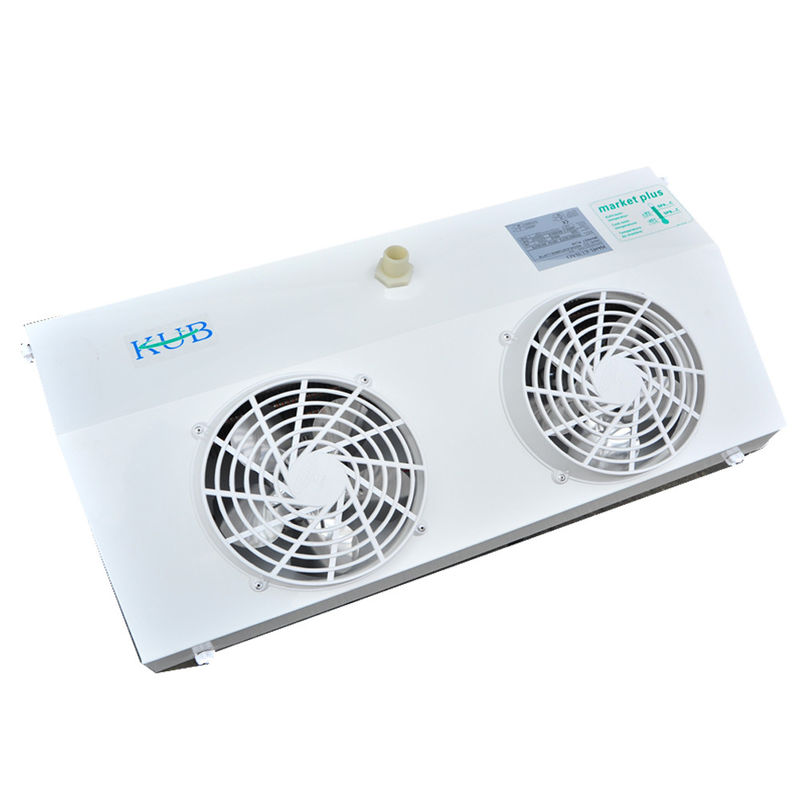

KUBD-3D Cool Room Evaporators 1.5HP Heat Exchanger 735*160*365mm High Air Flow

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number KUBD-3D
Minimum Order Quantity 1
Price negotiable
Packaging Details carton
Supply Ability 45 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Evaporative Air Cooler Power 1.5HP
Name Ceiling Evaporator Material High Quality Aluminum Coating
Warranty One Year Air Flow 1440
Dimensions 735*160*365mm Voltage 220v
High Light

cold room cooler

,

air flow evaporative cooler

Leave a Message
Product Description

KUBD-3D 1.5HP Refrigeration Parts Application Cold Room Evaporator Heat exchanger Ceiling Evaporator



General Futures:

The high efferent coils are made from high quality cooper tube 9.52mm and special profile aluminum fins, Heat exchanges are sup-plied clean and tested under a pressure of 30 bars.



The Casing:

White power coated aluminum, high corrosion strength, impact resistance and does not produce polluting debris.



Defrost heating:

Provided stainless steel heater elements



The fan motors:

All with high quality shaded-pole fan motors with high safety standards fitted well to the unit casing with an anti-vibration system.



Electrical parts and wiring:

Are connected to earth terminal, carried out in junction box with access holes equipped with water-proof cable grand. All material are selected carefully for long-term reliability.

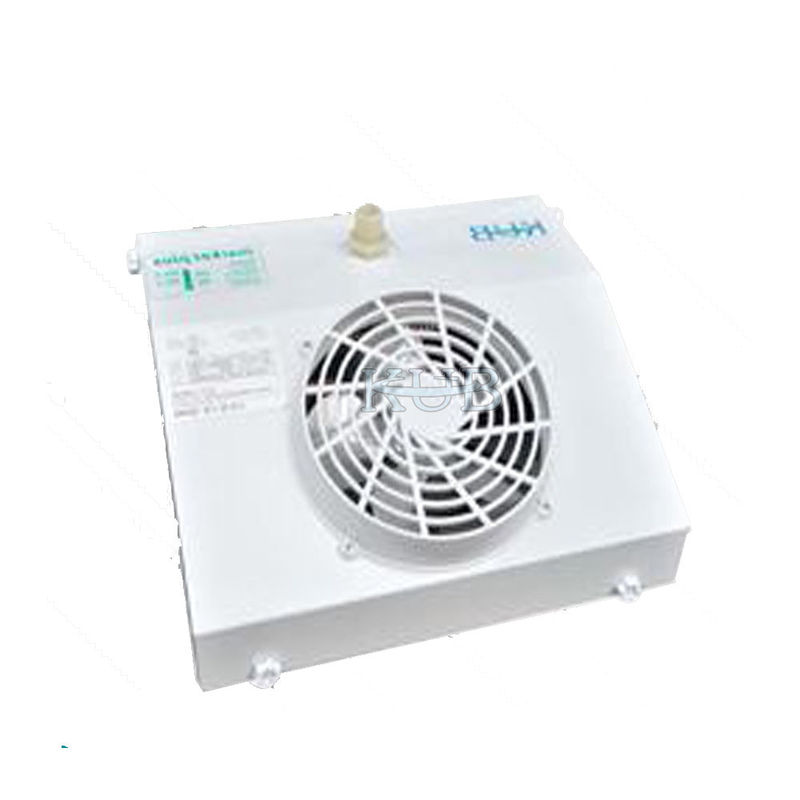

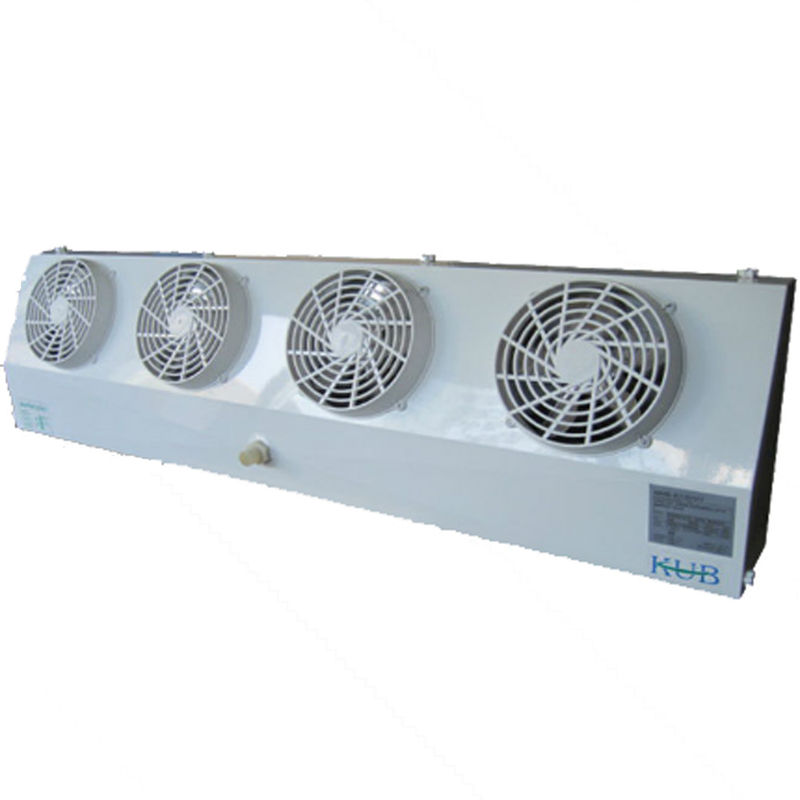

Model KUBD-1D KUBD-2D KUBD-3D KUBD-4D
Capacity Kcal/h 650 1300 1950 2590
(C2)DT=8K(R22) W 760 1510 2270 3010
Surface 3.3 6.5 9.8 13
Voi.int. dm³ 0.95 1.75 2.5 3.4
heded-pole Fans Air Flow m³/h 480 960 1440 1920
Air Throw m 4 4 4 4
N°*φmm 1*200 2*200 3*220 4*200
Total Current A 0.23 0.46 0.69 0.92
Total Input W 35 70 105 140
Heater tube N°*W 1*500 1*800 1*1200 1*1500
Total W 500 800 1200 1500
Dimension A mm 410 735 1060 1385
B mm 160 160 160 160
C mm 365 365 365 365
Connection Inlet φ” 3/8” 1/2” 1/2” 1/2”
Outlet φ” 3/8” 1/2” 1/2” 5/8”
Drain Unionφ” 3/4” 3/4” 3/4” 3/4”
Mounting 2 2 3 3
H mm 340 340 340 340
P-N mm     450 612
K mm 250 575 450 612

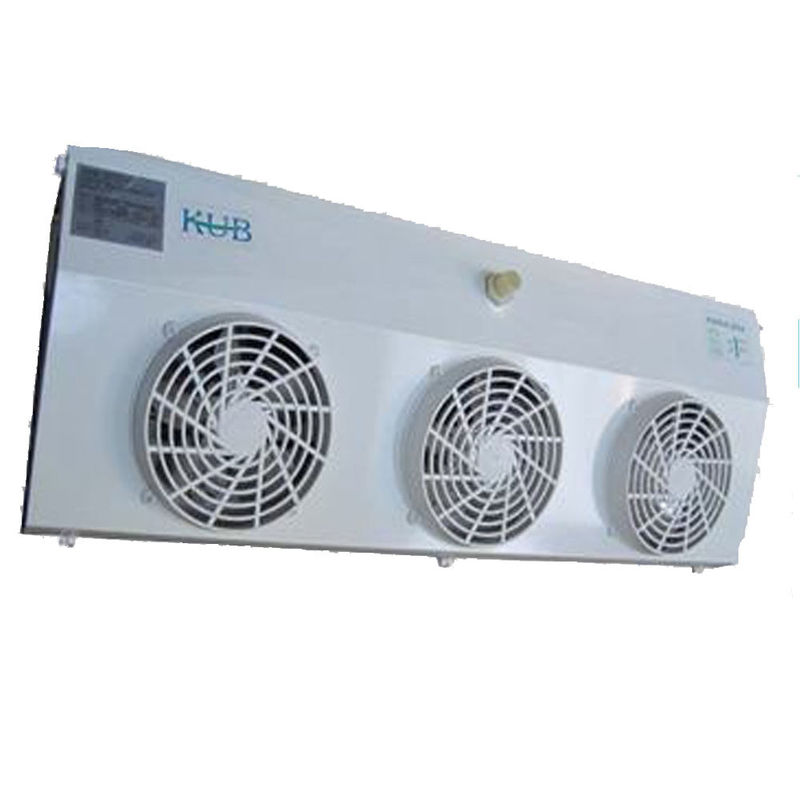

Refrigeration Evaporators Cool Room Evaporators Ceiling Evaporator DE Factory produced small type air cooler



Model KUBD-3D Original Made in china
Voltage 220v/1p/50hz Fan quantity 3

KUBD D.png
