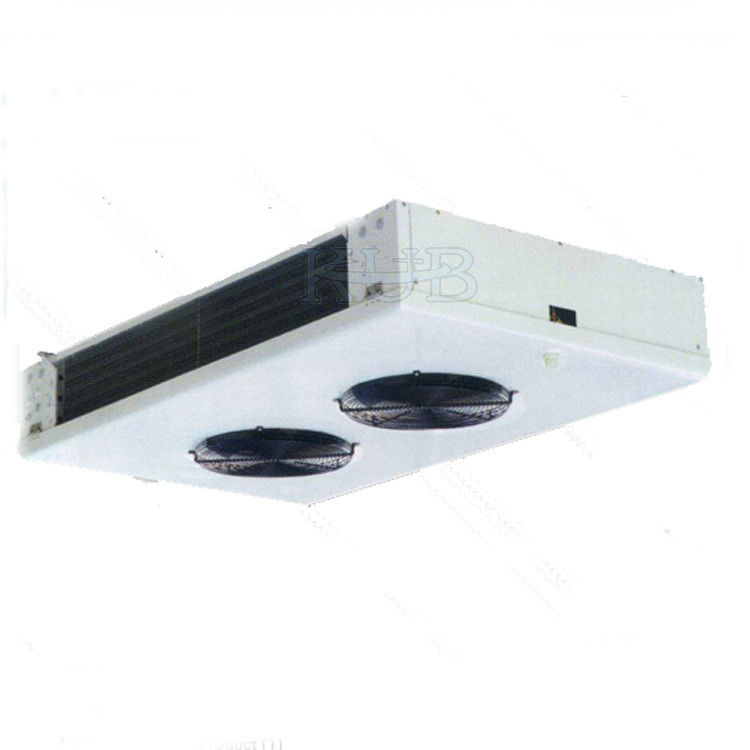

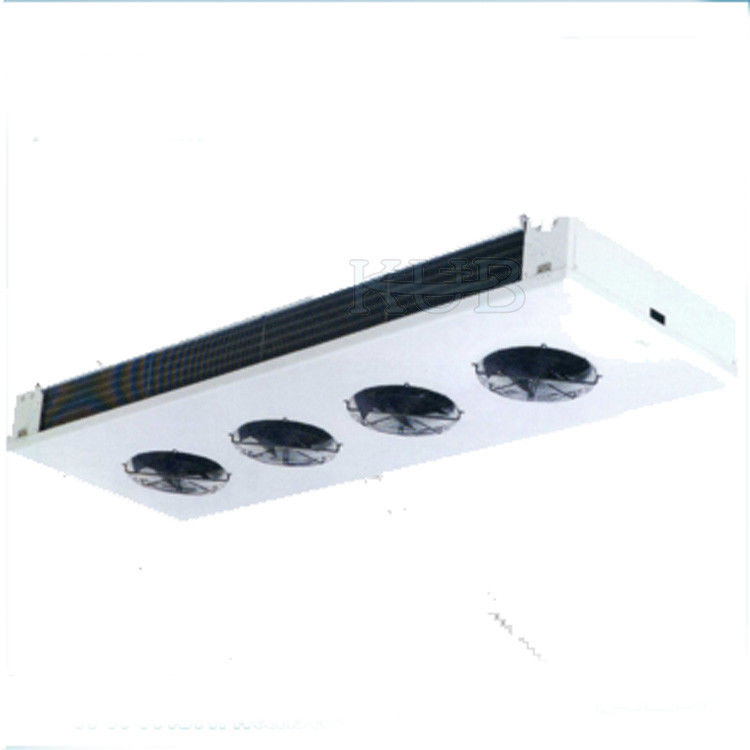

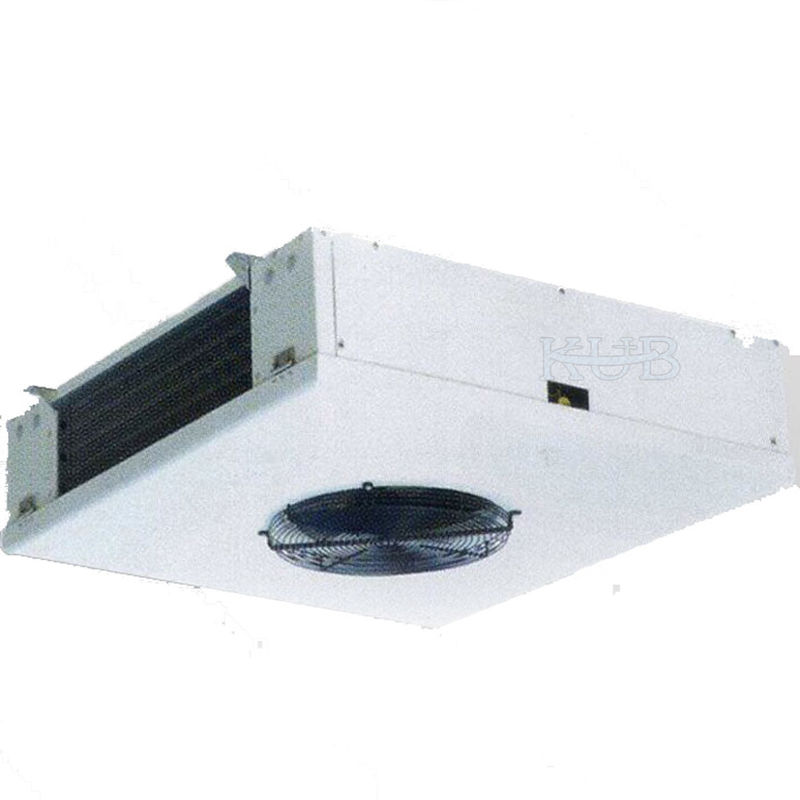

8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet

8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet

    • 8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet
    • 8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet
    • 8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet
    • 8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet
  • 8HP Cold Storage Cool Room Evaporators Ceiling Mounting Air Cooled White Color Ginning Aluminum Sheet

    Product Details:

    Place of Origin: Shanghai, China (Mainland)
    Brand Name: KUB
    Certification: CE
    Model Number: KUBD-3504

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Price: negotiable
    Packaging Details: Plywood pallet+carton
    Supply Ability: 50 units per month
    Contact Now
    Detailed Product Description
    Type: Cooler Colur: White
    Temperature: 0--5C

    8HP Cold storage Cool Room Evaporators ceiling mounting air cooled refrigerator evaporator for unit cooler

    Cold storage evaporator



    1.its crust is made up of ginning aluminum sheet;

    2.its frost is well-distributed, and defrost with high-efficiency





    Model (Without Heater) Capacity (R404A) (Kw)



    Surface(㎡)

    Tube Volume(dm3) Dimensions (mm) Fin Spacing(mm) N.W (Kg) Connection (Φmm)

    Te=-8℃

    DT1=8K

    Te=-25℃

    DT1=7K

    L W H Inlet Outlet
    KUBD3501 16 4L 4.13 2.75 16 3.4 963 1013 260 4 35 12 22
    KUBD3501 16 4N 5.06 3.37 16 3.4 963 1013 260 4 35 12 22
    KUBD3502 31 4L 8.27 5.50 31 6.4 1565 1013 260 4 60 12 22
    KUBD3502 31 4N 10.10 6.74 31 6.4 1565 1013 260 4 60 12 22
    KUBD3503 47 4L 12.40 8.25 47 9.3 2167 1013 260 4 85 15 28
    KUBD3503 47 4N 15.20 10.10 47 9.3 2167 1013 260 4 85 15 28
    KUBD3504 62 4L 16.50 11.00 62 12.3 2769 1013 260 4 110 15 28
    KUBD3504 62 4N 19.80 13.20 62 12.3 2769 1013 260 4 110 15 28
    KUBD3501 11 6L 3.47 2.31 11 3.4 963 1013 260 6 33 12 22
    KUBD3501 11 6N 4.25 2.83 11 3.4 963 1013 260 6 33 12 22
    KUBD3502 22 6L 6.95 4.62 22 6.4 1565 1013 260 6 57 12 22
    KUBD3502 22 6N 8.51 5.66 22 6.4 1565 1013 260 6 57 12 22
    KUBD3503 32 6L 10.40 6.93 32 9.3 2167 1013 260 6 78 15 28
    KUBD3503 32 6N 12.80 8.49 32 9.3 2167 1013 260 6 78 15 28
    KUBD3504 43 6L 13.90 8.25 43 12.3 2769 1013 260 6 102 15 28
    KUBD3504 43 6N 16.70 11.10 43 12.3 2769 1013 260 6 102 15 28

    Mark:KUBD series-fan diameter and quantity-heat transfer area-fin distance L 6motor(N 4 motor)
