Wall Mount Cool Room Evaporators High Impact Resistance Non Polluting Debris

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Minimum Order Quantity 10 Piece/Pieces
Price negotiable
Packaging Details carton
Supply Ability 45 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Evaporative Air Cooler
Operating Voltage 380/400 VAC Mounting Wall / Window Mount
After-sales Service Provided Overseas Third-party Support Available Power 5HP
Temperature -18℃ Name SPBE043D For Cold Room
Product For Cold Room Brand KUB For Cold Room
Material High Quality Aluminum Coating
High Light

cold room cooler

,

air flow evaporative cooler

Leave a Message
Product Description

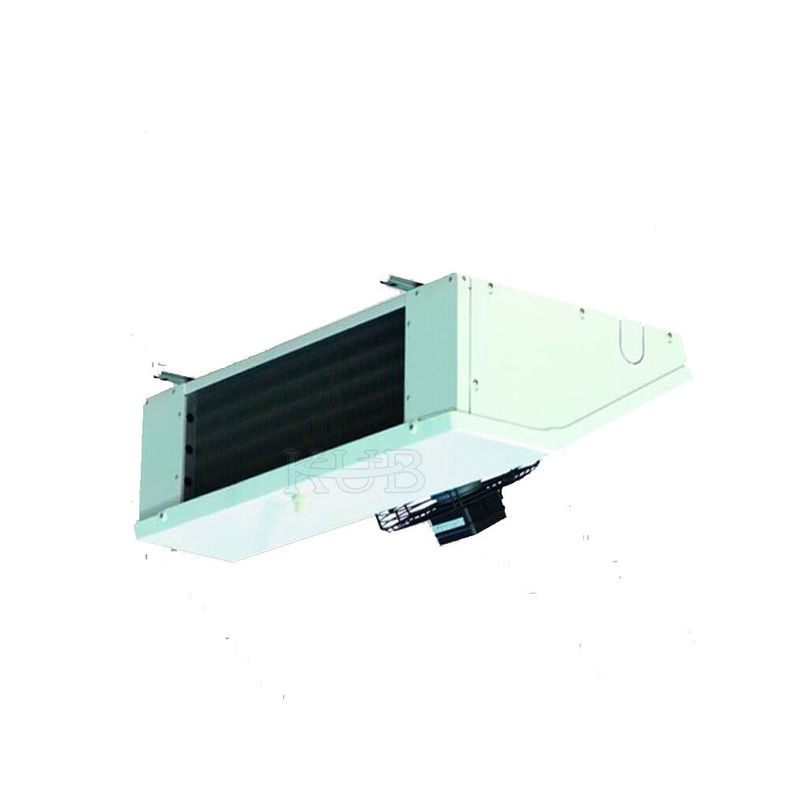

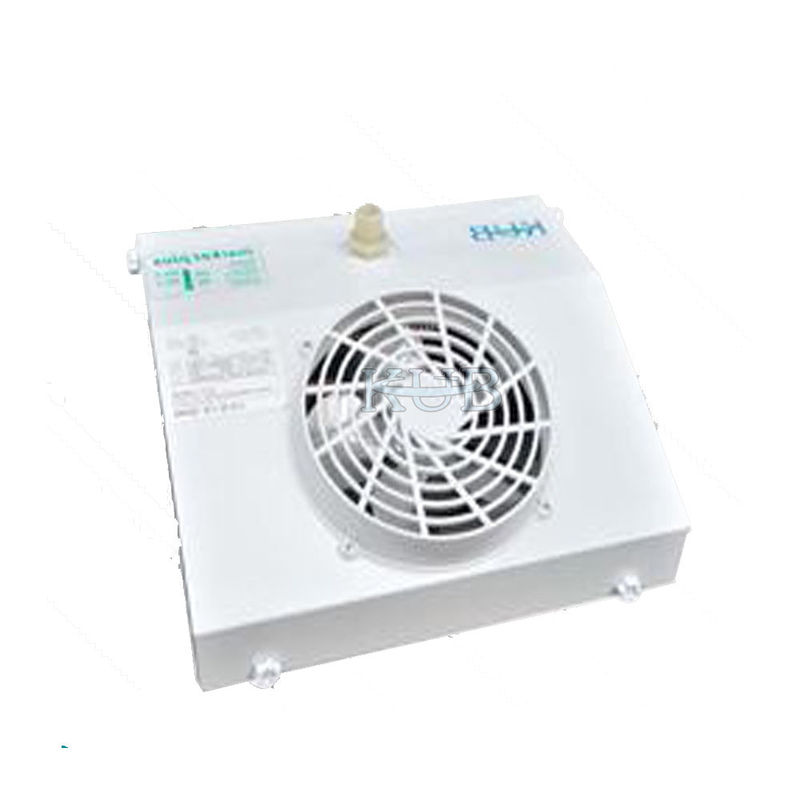

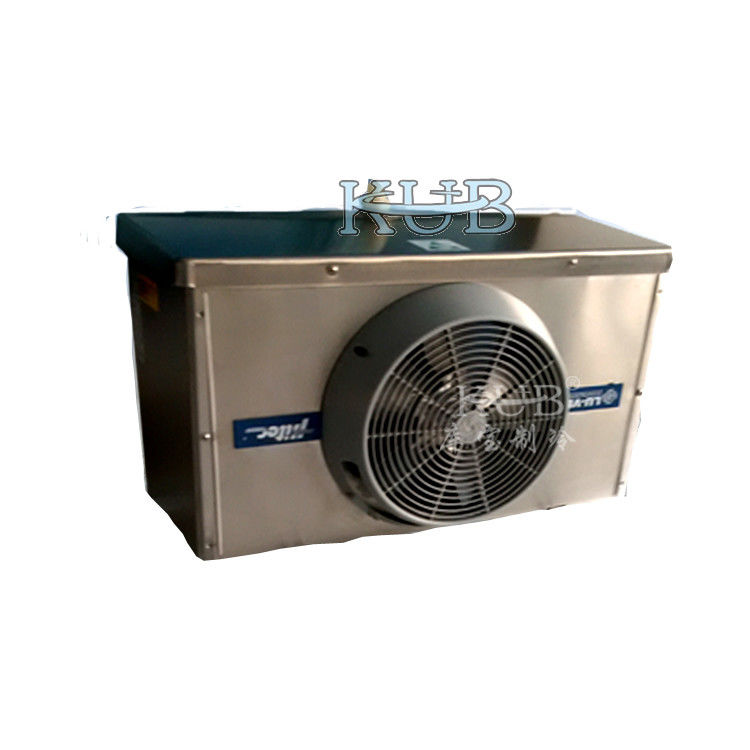

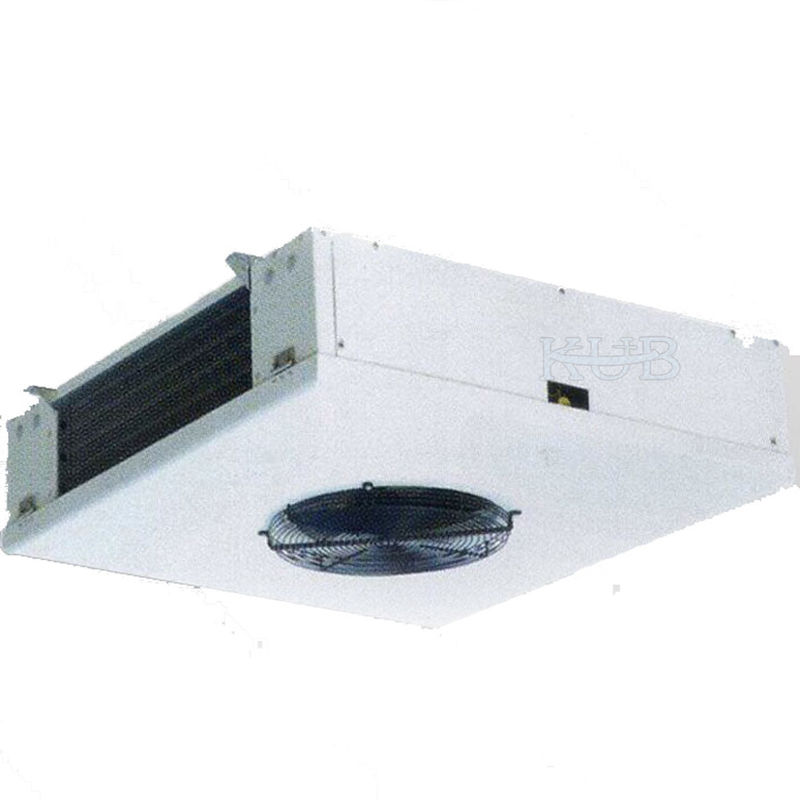

Refrigeration Evaporators Cool Room Evaporators Ceiling Evaporator DE Factory produced small type air cooler

Product Description



air cooler

1.its crust is made up of ginning aluminum sheet;

2.its frost is well-distributed, and defrost with high-efficiency



General Futures:

The high efferent coils are made from high quality cooper tube 9.52mm and special profile aluminum fins, Heat exchanges are sup-plied clean and tested under a pressure of 30 bars.



The Casing:

White power coated aluminum, high corrosion strength, impact resistance and does not produce polluting debris.



Defrost heating:

Provided stainless steel heater elements



The fan motors:

All with high quality shaded-pole fan motors with high safety standards fitted well to the unit casing with an anti-vibration system.



Electrical parts and wiring:

Are connected to earth terminal, carried out in junction box with access holes equipped with water-proof cable grand. All material are selected carefully for long-term reliability.



Model KUBD-1D KUBD-2D KUBD-3D KUBD-4D
Capacity Kcal/h 650 1300 1950 2590
(C2)DT=8K(R22) W 760 1510 2270 3010
Surface 3.3 6.5 9.8 13
Voi.int. dm³ 0.95 1.75 2.5 3.4
heded-pole Fans Air Flow m³/h 480 960 1440 1920
Air Throw m 4 4 4 4
N°*φmm 1*200 2*200 3*220 4*200
Total Current A 0.23 0.46 0.69 0.92
Total Input W 35 70 105 140
Heater tube N°*W 1*500 1*800 1*1200 1*1500
Total W 500 800 1200 1500
Dimension A mm 410 735 1060 1385
B mm 160 160 160 160
C mm 365 365 365 365
Connection Inlet φ” 3/8” 1/2” 1/2” 1/2”
Outlet φ” 3/8” 1/2” 1/2” 5/8”
Drain Unionφ” 3/4” 3/4” 3/4” 3/4”
Mounting 2 2 3 3
H mm 340 340 340 340
P-N mm     450 612
K mm 250 575 450 612
