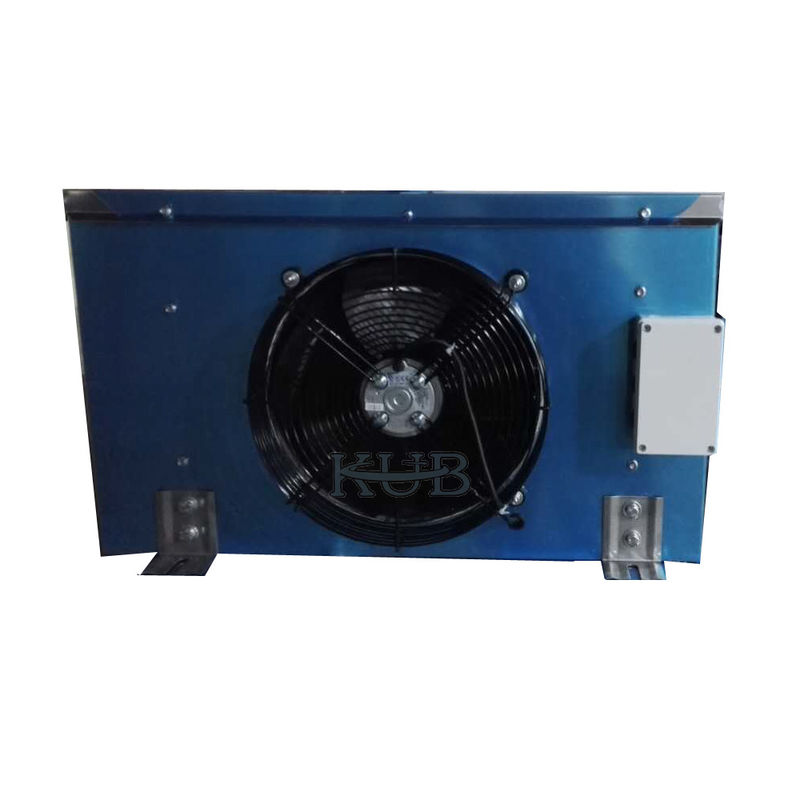

Industrial Air Cooled Evaporator Cooling Systems Low Power Consumption Long Lifespan

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number DL-38.7/185
Minimum Order Quantity 10 Piece/Pieces
Price negotiable
Packaging Details Plywood pallet+carton
Supply Ability 45 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Source Electrical Capacity (btu) 38700
Voltage (V) 380 Warranty 1 Year
Highlight

air fan cooler heat exchanger

,

low temperature evaporator

Leave a Message
Product Description

Industrial evaporative cooling systems low power consumption air coolers Cold Room Evaporator/ Air Cooled Evaporator



Model W   Nominal refrigeration volume

Area of cooling

(380V)Air cooler Defrosting electric heating tube mm Inlet mm Outlet
      W Power m³/h Air volume mm Diameter m Range kw Coll kw Drip Pan

DL-2.1/10 2100 10 80 1563 300 7 0.6 0.6 12 19
DD-1.4/7 1400 7         1×0.6 0.6
DJ-0.8/5 800 5         1×0.6 0.6
DL-3.1/15 3100 15 2×80 2×1563 300 7 0.9 0.9 12 19
DD-2.4/12 2400 12         1×0.9 0.9
DJ-1.3/8 1300 8         1×0.9 0.9
DL-4.1/20 4100 20 2×80 2×1563 300 7 1.3 1.3 12 19
DD-3/15 3000 15         1.3 1.3
DJ-1.8/10 1800 10         1.3 1.3
DL-5.2/25 5200 25 2×140 2×2290 350 7 2×1.2 1.2 12 22
DD-4.4/22 4400 22         2×1.2 1.2
DJ-2.1/15 2100 15         2×1.2 1.2
DL-8.3/40 8300 40 2×180 2×3400 400 9 2×1.4 1.4 16 25
DD-6/30 6000 30         2×1.4 1.4
DJ-4/20 4000 20         2×1.4 1.4
DL-11.5/55 11500 55 2×180 2×3400 400 9 2×1.4 1.4 16 25
DD-8/40 8000 40         2×1.4 1.4
DJ-6/30 6000 30         2×1.4 1.4
DL-16.7/80 16700 80 2×250 2×4800 450 9 2×1.5 1.5 19 38
DD-12/60 12000 60         5×1.5 1.5
DJ-8/40 8000 40         5×1.5 1.5
DL-22/105 22000 105 2×250 2×4800 450 9 2×1.5 1.5 19 38
DD-16/80 16000 80         5×1.5 1.5
DJ-11/15 11000 55         5×1.5 1.5
DL-25.8/125 25800 125 3×250 3×4800 450 9 2×2.1 2.1 19 38
DD-20/100 20000 100         5×2.1 2.1
DJ-14/70 14000 70         5×2.1 2.1
DL-33.6/160 33600 160 3×250 3×4800 450 9 2×2.4 2.4 19 38
DD-24/120 24000 120         5×2.4 2.4
DJ-17/85 17000 85         5×2.4 2.4
DL-38.7/185 38700 185 4×250 4×4800 450 9 2×3 3 25 50
DD-28/140 28000 140         5×3 3
DJ-20/100 20000 100         5×3 3
DL-44/210 44000 210 4×250 4×4800 450 9 2×3.2 3.2 25 50
DD-32/160 32000 160         5×3.2 3.2
DJ-23/115 23000 115         5×3.2 3.2
DL-52.9/260 52900 260 2×780 2×10820 600 12 5×2.7 2.7 25 50
DD-40/200 40000 200         8×2.7 2.7
DJ-28/140 28000 140         8×2.7 2.7
DL-67.2/330 67200 330 3×780 3×10820 600 12 5×3.3 3.3 25 50
DD-50/250 50000 250         8×3.3 3.3
DJ-34/170 34000 170         8×3.3 3.3
DL-85.6/450 85600 450 3×780 3×10820 600 12 5×3.5 3.5 25 50
DD-60/300 60000 300         8×3.5 3.5
DJ-42/210 42000 210         8×3.5 3.5
DL Type cooling fan nominal cooling capacity means:t=0℃,△T=T-T.=7℃,Fin spacing4.5mm.
DD Type cooling fan nominal cooling capacity means:t=-18℃,△T=T-T.=7℃,Fin spacing6mm.
DJ Type cooling fan nominal cooling capacity means:t=-25℃,△T=T-T.=7℃,Fin spacing9mm.

  D .jpg

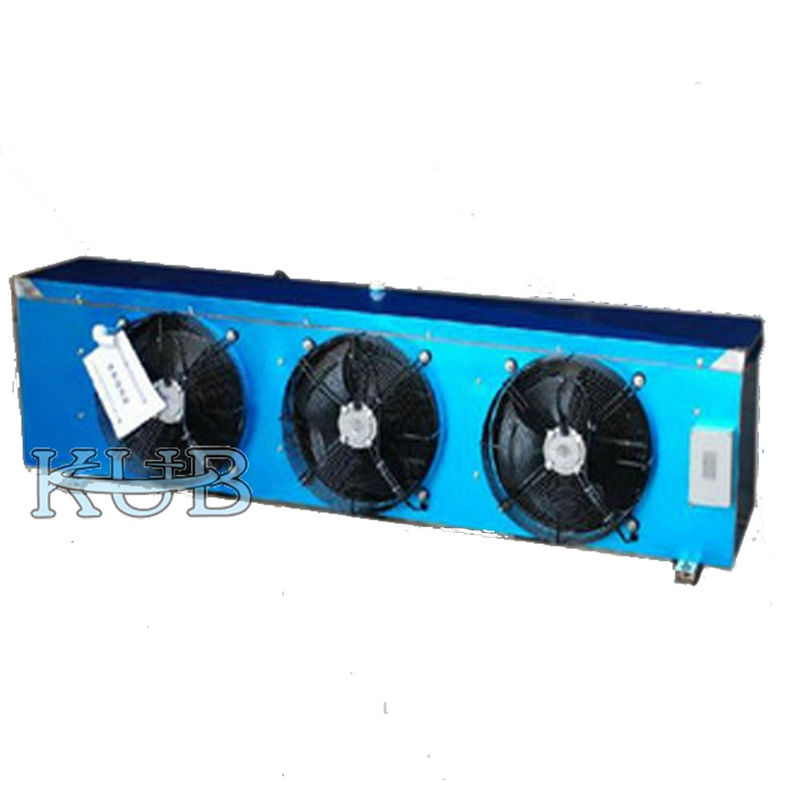

D Series Water Deforesting Air Cooler

big size best selling air cooler









D Series Water Deforesting Air Cooler





Our Services

1. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



2. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.

Packaging & Shipping

The air cooler packing and shipping

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.







-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
