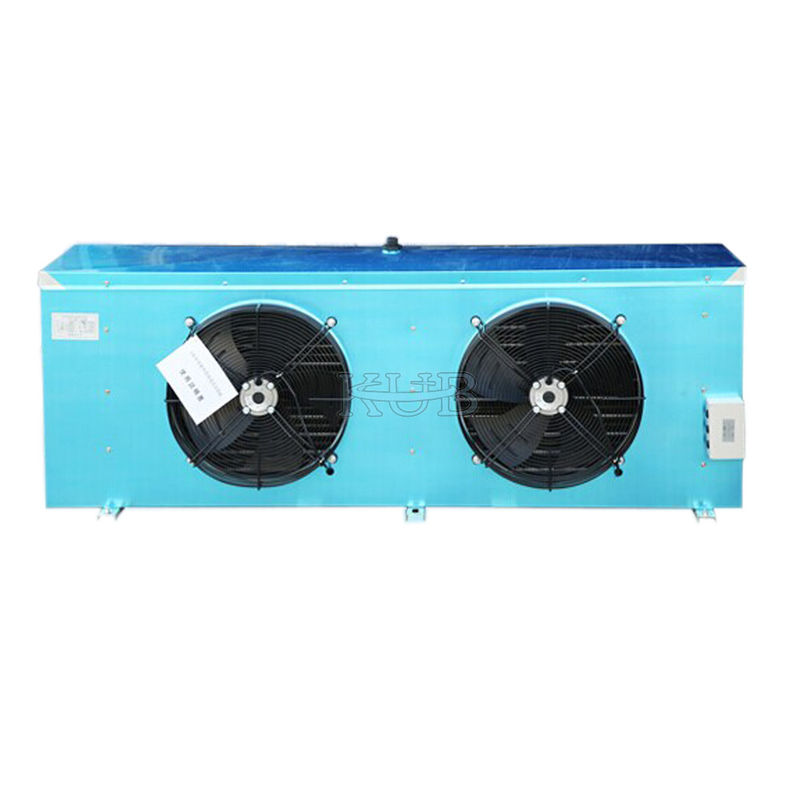

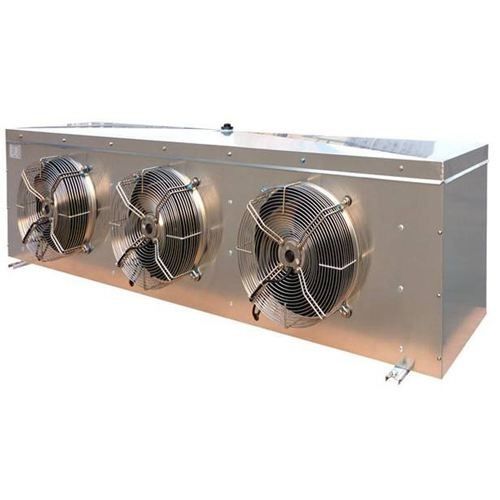

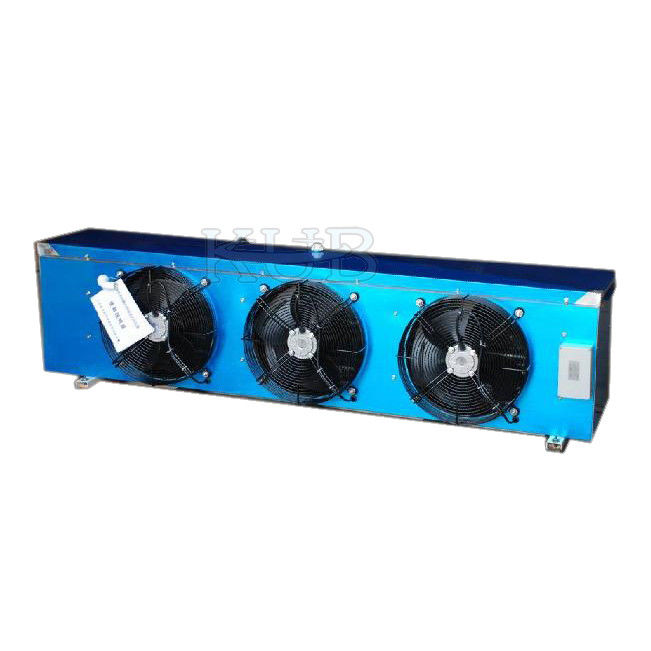

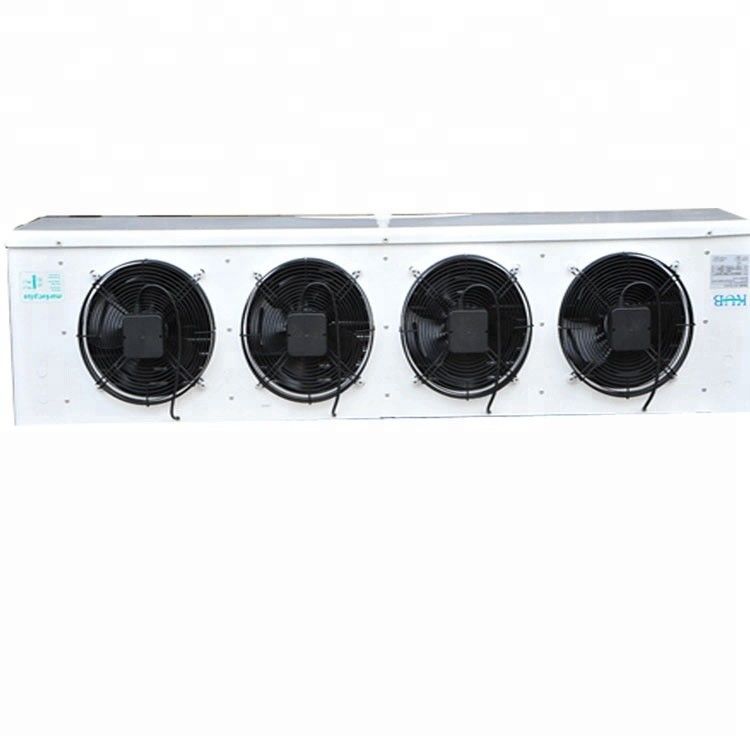

304L Stainless steel air cooler housing with SS mesh cover, the blades are not stainless steel

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number DL40㎡/DD30㎡/DJ20㎡
Minimum Order Quantity 1 Piece/Pieces
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Evaporative Air Cooler
Operating Voltage 380/220V Mounting Wall / Window Mount
Temperature -23℃ Name Evaporator With Heater
Product Air Cooler Material High Quality Aluminum Coating
High Light

cold room cooler

,

air flow evaporative cooler

Leave a Message
Product Description
304L Stainless steel air cooler housing with SS mesh cover, the blades are not stainless steel
Product Description

D series air cooler is a kind of cooling and cooling equipment which is used in the freon refrigeration unit. It is divided into DL, DD and DJ according to applicable temperature. It can be applied to different room temperature and DL type cold air The machine is mainly suitable for fresh storage around 0 ℃; DD-type air cooler is mainly applied to -18 ℃ cold storage, DJ-type air cooler is mainly applied to -25 ℃ below the freezing room.



● Designed for fresh, frozen, cold storage and design;
● High-quality Stainless steel shell, corrosion-resistant, beautiful appearance;
● coil using the wrong way, the use of mechanical expansion, so that copper and aluminum closely integrated, heat transfer effect is good;
● High-quality stainless steel electric heating pipe evenly distributed in the coil. Defrost effect is good; electric heat pipe defrost with electric aluminum tube and fin hole close, easy to heat, long life;
● The design of the chiller is reasonable in width, and the distance between the blades and the aluminum fins is greater than 1/3. The diameter of the blades ensures that there is enough effective air volume;
● According to customer requirements using long-distance air supply hairdryer;
● Special-purpose products, please contact the salesman KUB.

  Nominal cooling capacity Cooling Fans(380V) Defrost heater
(220V)
Entering fluid return-air Weight
Model W Area
    (㎡) Power Coil Water plate
DL-2.1/10 2100 10 90 0.6 0.6 12 16 26
DD-1.4/7 1400 7 1*0.6 0.6
DJ-0.8/5 800 5 1*0.6 0.6
DL-3.1/15 3100 15 2*90 0.9 0.9 12 16 33
DD2.4/12 2400 12 1*0.9 0.9
DJ-1.3/8 1300 8 1*0.9 0.9
DL-4.1/20 4100 20 2*90 1.3 1.3 12 16 48
DD-3/15 3000 15 1.3 1.3
DJ-1.8/10 1800 10 1.3 1.3
DL-5.2/25 5200 25 2*120 2*1.2 1.2 12 16 53
DD-4.4/22 4400 22 2*1.2 1.2
DJ-2.1/15 2100 15 2*1.2 1.2
DL-8.3/40 8000 40 2*250 2*1.3 1.3 16 25 65
DD-6/30 6000 30 2*1.3 1.3
DJ-4/20 4000 20 2*1.3 1.3
DL-11.5/55 11500 55 2*250 2*1.8 1.8 16 25 85
DD-8/40 8000 40 2*1.8 1.8
DJ-6/30 6000 30 2*1.8 1.8
DL-16.7/80 16700 80 2*550 2*1.3 1.3 19 38 147
DD-12/60 12000 60 51.3 1.3
DJ-8/40 8000 40 51.3 1.3
DL-22/105 22000 105 2*550 2*1.7 1.7 19 38 167
DD-16/80 16000 80 5*1.7 1.7
DJ-11/55 11000 55 5*1.7 1.7
DL-25.8/125 25800 125 3*550 2*2.1 2.1 19 38 210
DD-20/100 20000 100 5*2.1 2.1
DJ-14/70 14000 70 5*2.1 2.1
DL-33.6/160 33000 160 3*550 2*2.4 2.4 19 38 240
DD-24/120 24000 120 5*2.4 2.4
DJ-17/85 17000 85 5*2.4 2.4
DL-38.7/185 38700 185 4*550 2*3 3 25 50 270
DD-28/140 28200 140 5*3 3
DJ-20/100 20000 100 5*3 3
DL-44/210 44000 210 4*550 2*3.2 3.2 25 50
DD-32/160 32000 160 5*3.2 3.2 290
DJ-23/115 23000 115 5*3.2 3.2
DL-62.9/260 52900 260 2*1500 5*2.7 2.7 25 50 320
DD-40/200 40000 200 8*2.7 2.7
DJ28/140 28000 140 8*2.7 2.7
DL-67/330 67200 330 3*1500 5*3.3 3.3 25 50 360
DD-50/250 50000 250 8*3.3 3.3
DJ-34/170 34000 170 8*3.3 3.3



Standard type air cooler size parameter
MODEL       Suspension mounting hole position size

Drain connection

Pipe outer diameter

FAN
  L B H D E E1 E2 E3 F   W
DL-2/10 730 420 475 340 510       105 G1” 300
DD-1.2/7
DL-3/15 1280 420 475 340 1060       105 G1” 300
DD-2.1/12
DJ-1.2/8
DL-4.3/20 1280 420 475 340 1060       105 G1” 300
DD-2.6/15
DJ-1.9/12
DL-5.3/25 1580 420 475 340 1360       105 G1” 300
DD-3.9/22
DJ-2.3/15
DL-8.4/40 1380 490 600 380 1110       95 G1” 350
DD-5.3/30
DJ-3.1/20
DL-12/55 1750 490 600 380 1480       95 G1” 350
DD-8.0/40
DJ-4.7/30
DL-17/80 1920 580 680 510 1650 840     95 G1” 400
DD-11/60
DJ-6.2/40
DL-23/105 1920 580 680 510 1650 840     95 G1” 450
DD-14/80
DJ-8.5/55
DL-28/125 2420 580 680 510 2150 740 700   95 G1” 450
DL-18/100
DL-11/70
DL-35/160 2720 580 680 510 2450 840 800   95 G1” 500
DD-21/120
DJ-13/85
DL-40/185 3120 580 680 510 2850 740 700 700 95 G1” 500
DD-25/140
DJ-16/100
DL-46/210 3520 580 680 510 3250 840 800 800 95 G1.5” 500
DD-28/160
DJ-18/115
DL-52/260 3520 680 680 580 3250 840 800 800 95 G1.5” 500
