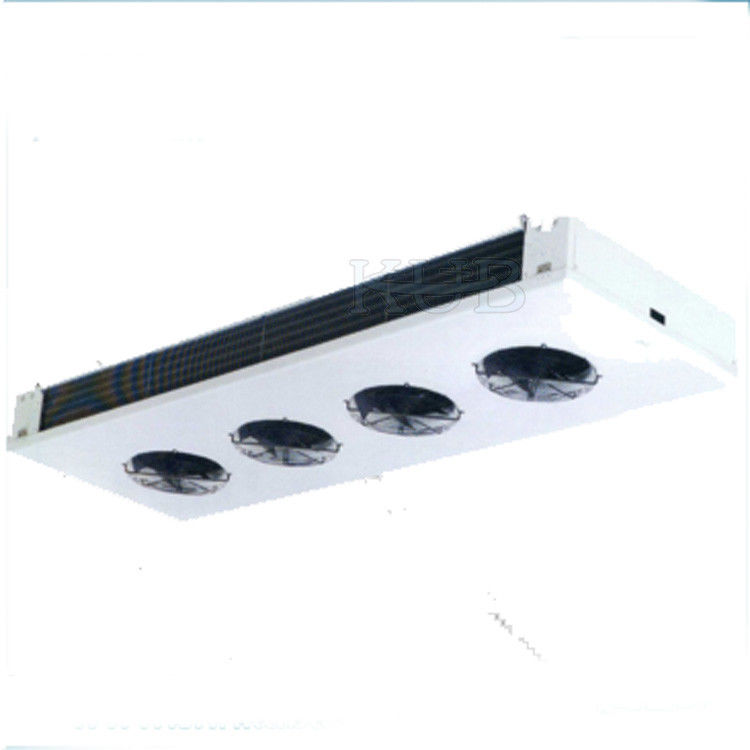

Industrial Standard Universal Cool Room Evaporators 4HP One Fan Aluminum Coating High Efficiency

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number KUBD-3502
Minimum Order Quantity 1 Piece/Pieces
Price negotiable
Packaging Details carton
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Operating Voltage 220v
After-sales Service Provided Overseas Third-party Support Available Power 4HP
Temperature 5℃ Material High Quality Aluminum Coating
High Light

cold room cooler

,

cold room freezer units

Leave a Message
Product Description

4HP one fan air cooler ceiling Cool Room Evaporator Dual Discharge Unit Coolers Industrial Standard Universal



Product Description


KUBD series Double Side Air Outlet Evaporator



refrigeration evaporators are able to meet the needs of a wide range of industrial chillers can respond to demand. Our evaporator 9,8kw / 122kw includes such a wide range of capacities. Capacities are given for R404a gas.
Features :

High-efficiency aluminum fins
6-8-10-12 mm fin spacing
3/4 "diameter stainless steel pipe
Work with gas
High test pressure of 35 bar
high operating pressure up to 20 bar



Model (Without Heater) Capacity (R404A) (Kw)



Surface(㎡)

Tube Volume(dm3) Dimensions (mm) Fin Spacing(mm) N.W (Kg) Connection (Φmm)

Te=-8℃

DT1=8K

Te=-25℃

DT1=7K

L W H Inlet Outlet
KUBD3501 16 4L 4.13 2.75 16 3.4 963 1013 260 4 35 12 22
KUBD3501 16 4N 5.06 3.37 16 3.4 963 1013 260 4 35 12 22
KUBD3502 31 4L 8.27 5.50 31 6.4 1565 1013 260 4 60 12 22
KUBD3502 31 4N 10.10 6.74 31 6.4 1565 1013 260 4 60 12 22
KUBD3503 47 4L 12.40 8.25 47 9.3 2167 1013 260 4 85 15 28
KUBD3503 47 4N 15.20 10.10 47 9.3 2167 1013 260 4 85 15 28
KUBD3504 62 4L 16.50 11.00 62 12.3 2769 1013 260 4 110 15 28
KUBD3504 62 4N 19.80 13.20 62 12.3 2769 1013 260 4 110 15 28
KUBD3501 11 6L 3.47 2.31 11 3.4 963 1013 260 6 33 12 22
KUBD3501 11 6N 4.25 2.83 11 3.4 963 1013 260 6 33 12 22
KUBD3502 22 6L 6.95 4.62 22 6.4 1565 1013 260 6 57 12 22
KUBD3502 22 6N 8.51 5.66 22 6.4 1565 1013 260 6 57 12 22
KUBD3503 32 6L 10.40 6.93 32 9.3 2167 1013 260 6 78 15 28
KUBD3503 32 6N 12.80 8.49 32 9.3 2167 1013 260 6 78 15 28
KUBD3504 43 6L 13.90 8.25 43 12.3 2769 1013 260 6 102 15 28
KUBD3504 43 6N 16.70 11.10 43 12.3 2769 1013 260 6 102 15 28

Mark:KUBD series-fan diameter and quantity-heat transfer area-fin distance L 6motor(N 4 motor)
