High Profile Cold Room Cooler 3hp Window Mount 380/400 Vac Operating Voltag For Cold Storage Engineering
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Evaporative Air Cooler |
|---|---|---|---|
| Operating Voltage | 380/400 VAC | Mounting | Wall / Window Mount |
| After-sales Service Provided | Overseas Third-party Support Available | Power | 3HP |
| Temperature | -10℃ | Material | High Quality Aluminum Coating |
| High Light | cold room cooler,air flow evaporative cooler |
||
Product Description

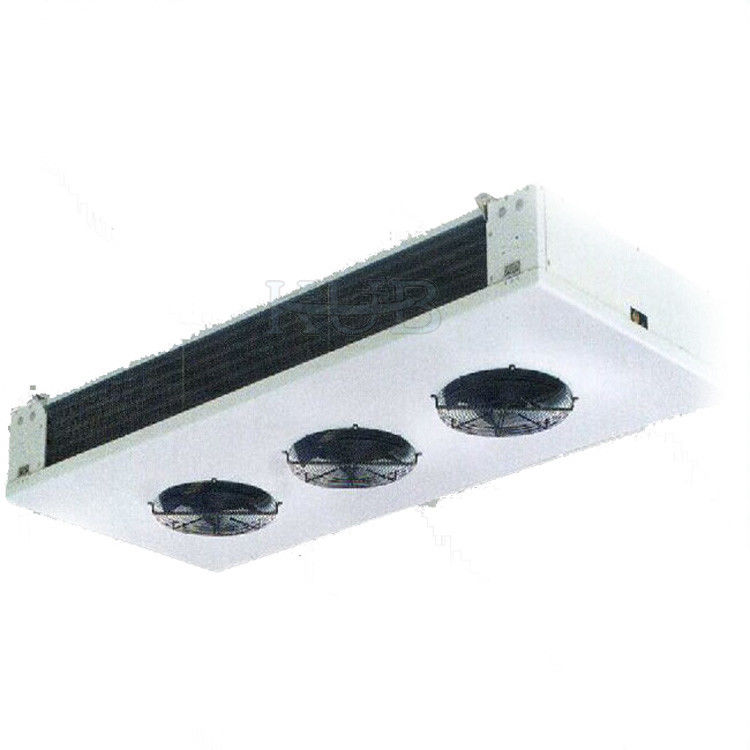

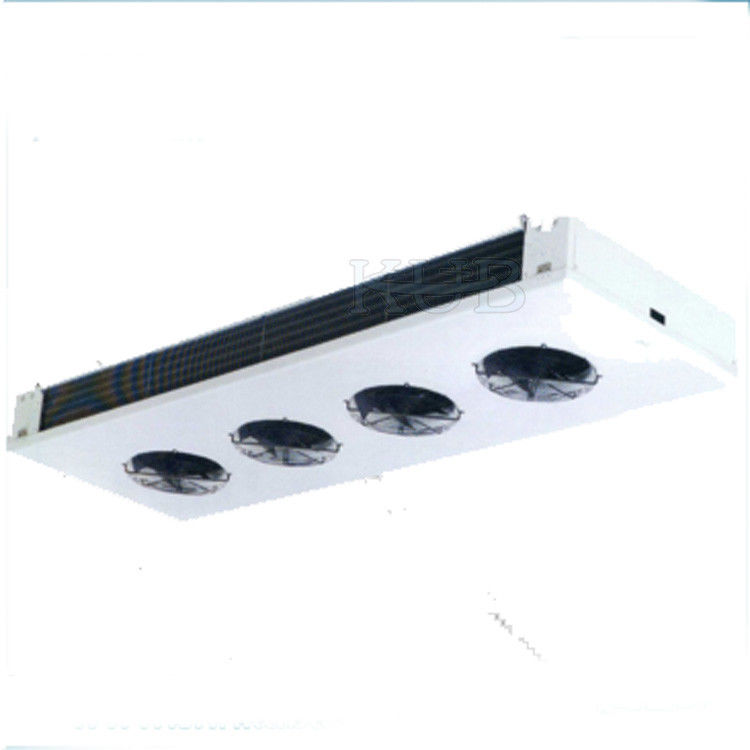

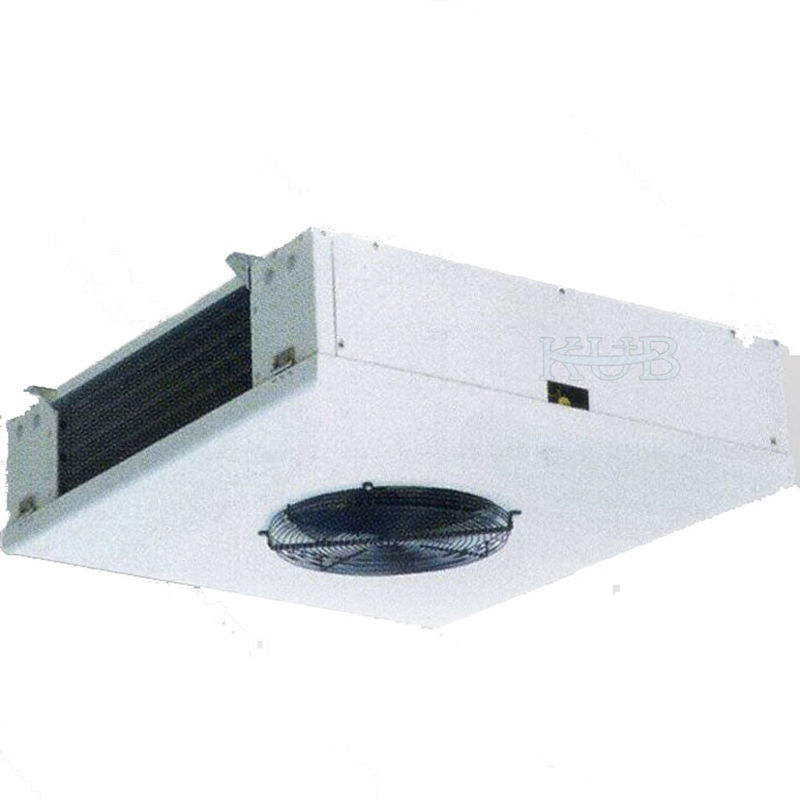

3hp High Profile power Cold Room Air Cooled Unit Cooler Evaporator for Industrial Refrigeration Unit
Product Description
forced circulation evaporator
Main use: Used in freezer, refrigerator.
Good quality and competitive price among the same area.
Powerful production ability, quick delivery!
KUBD series Double Side Air Outlet Evaporator
| Model (Without Heater) | Capacity (R404A) (Kw) |
|
Tube Volume(dm3) | Dimensions (mm) | Fin Spacing(mm) | N.W (Kg) | Connection (Φmm) | ||||
|
Te=-8℃ |
Te=-25℃ |
L | W | H | Inlet | Outlet | |||||
| KUBD3501 16 4L | 4.13 | 2.75 | 16 | 3.4 | 963 | 1013 | 260 | 4 | 35 | 12 | 22 |
| KUBD3501 16 4N | 5.06 | 3.37 | 16 | 3.4 | 963 | 1013 | 260 | 4 | 35 | 12 | 22 |
| KUBD3502 31 4L | 8.27 | 5.50 | 31 | 6.4 | 1565 | 1013 | 260 | 4 | 60 | 12 | 22 |
| KUBD3502 31 4N | 10.10 | 6.74 | 31 | 6.4 | 1565 | 1013 | 260 | 4 | 60 | 12 | 22 |
| KUBD3503 47 4L | 12.40 | 8.25 | 47 | 9.3 | 2167 | 1013 | 260 | 4 | 85 | 15 | 28 |
| KUBD3503 47 4N | 15.20 | 10.10 | 47 | 9.3 | 2167 | 1013 | 260 | 4 | 85 | 15 | 28 |
| KUBD3504 62 4L | 16.50 | 11.00 | 62 | 12.3 | 2769 | 1013 | 260 | 4 | 110 | 15 | 28 |
| KUBD3504 62 4N | 19.80 | 13.20 | 62 | 12.3 | 2769 | 1013 | 260 | 4 | 110 | 15 | 28 |
| KUBD3501 11 6L | 3.47 | 2.31 | 11 | 3.4 | 963 | 1013 | 260 | 6 | 33 | 12 | 22 |
| KUBD3501 11 6N | 4.25 | 2.83 | 11 | 3.4 | 963 | 1013 | 260 | 6 | 33 | 12 | 22 |
| KUBD3502 22 6L | 6.95 | 4.62 | 22 | 6.4 | 1565 | 1013 | 260 | 6 | 57 | 12 | 22 |
| KUBD3502 22 6N | 8.51 | 5.66 | 22 | 6.4 | 1565 | 1013 | 260 | 6 | 57 | 12 | 22 |
| KUBD3503 32 6L | 10.40 | 6.93 | 32 | 9.3 | 2167 | 1013 | 260 | 6 | 78 | 15 | 28 |
| KUBD3503 32 6N | 12.80 | 8.49 | 32 | 9.3 | 2167 | 1013 | 260 | 6 | 78 | 15 | 28 |
| KUBD3504 43 6L | 13.90 | 8.25 | 43 | 12.3 | 2769 | 1013 | 260 | 6 | 102 | 15 | 28 |
| KUBD3504 43 6N | 16.70 | 11.10 | 43 | 12.3 | 2769 | 1013 | 260 | 6 | 102 | 15 | 28 |
Mark:KUBD series-fan diameter and quantity-heat transfer area-fin distance L 6motor(N 4 motor)
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
