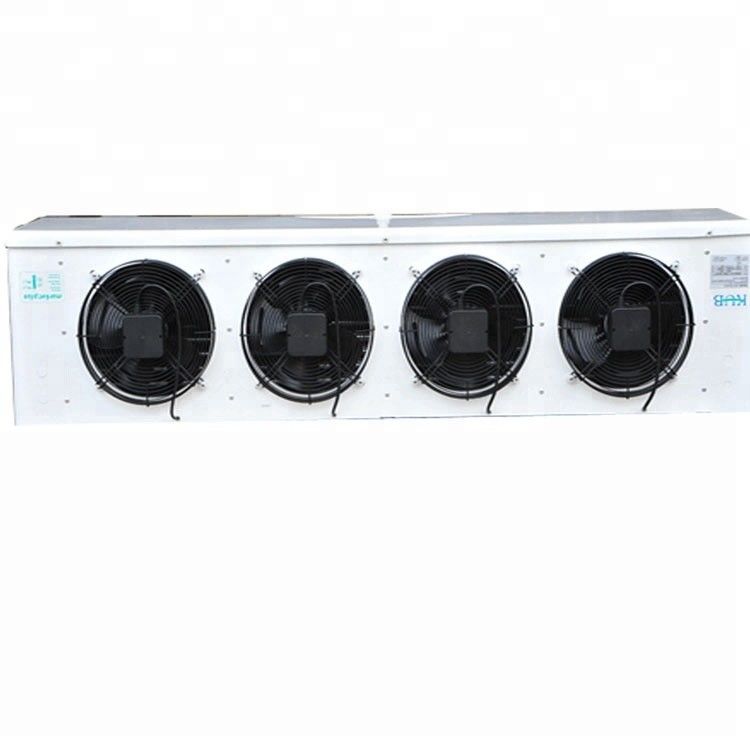

Kub SPBE044D industrial air cooler low temperature evaporator air cooled evaporator for cold room freezer units
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Food Processing | Voltage | 220V/380V |
|---|---|---|---|
| Power(W) | 55/57 | Dimension(L*W*H) | 1878*430*495mm |
| Weight | 58KG | Warranty | One Year |
| Material | Aluminum | Capacity (L) | 3090w |
| Heat Power | 1030w | ||
| High Light | cold room cooler,cold room freezer units |
||
Product Description
KUB SPBE044D Cool Room air cooler cooling coil evaporator Industrial air cooler Air cooled Evaporator For Cold Room
Product Description

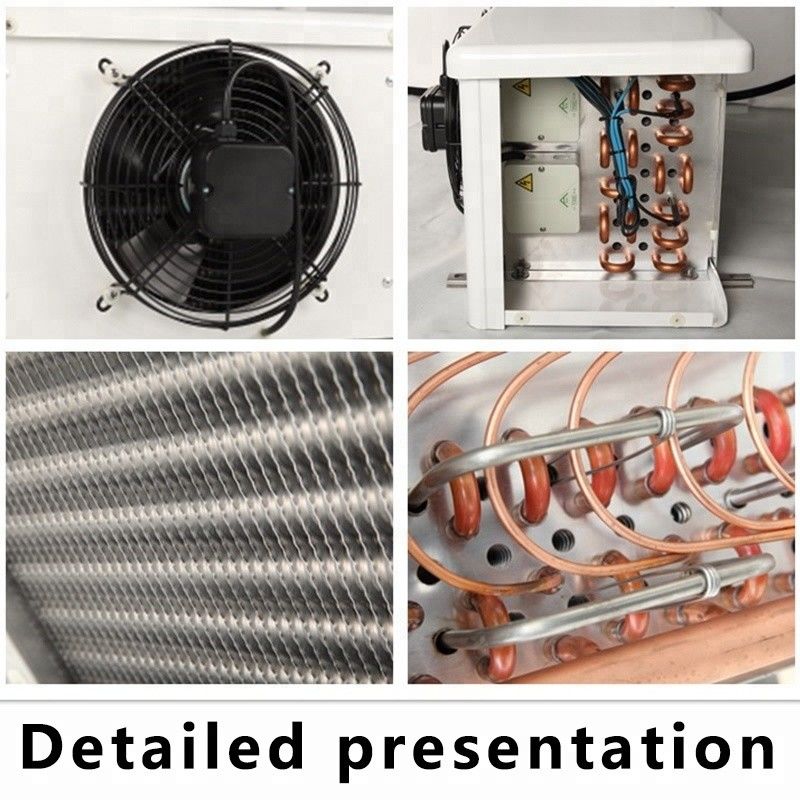

General features:
The high efficient coils are made from high quality copper tube φ15mm and special profile aluminium fins.Heat exchangers are supplied clean and tested under a pressure of 30 bars.
The casing:
White powder coated aluminium,high corrosion strength,impact resistance,and does not produce polluting debris.From φ630mm galvanized steel.

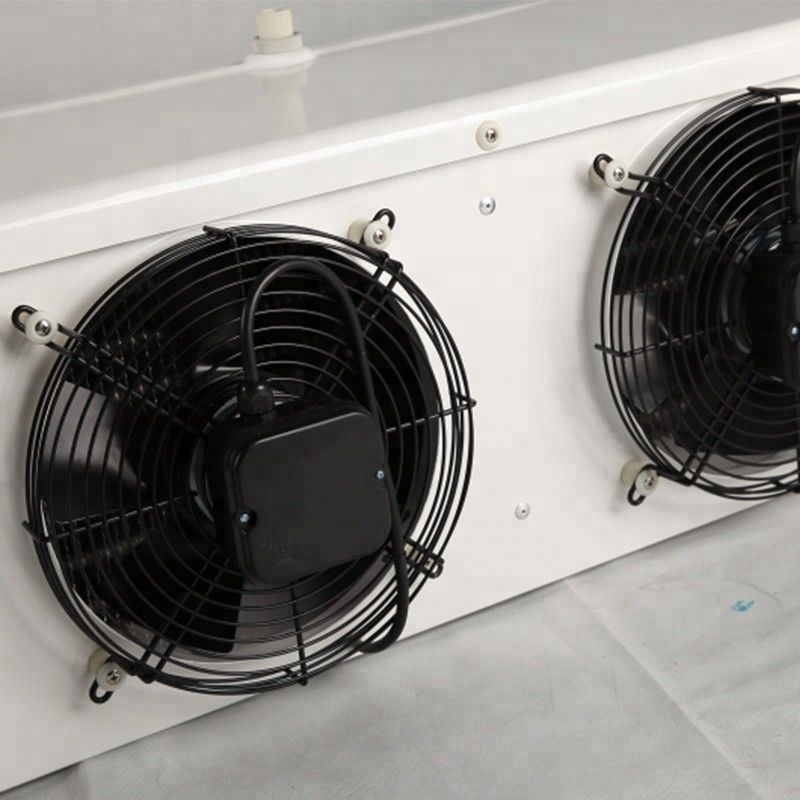

The fan motors:
All with high quality axial fan motors with high safety standards fitted well to the unit casing with an anti-vibration system.
Defrost heating:
Provided by stainless steel heater elements covered by the aluminium tubes.located in the finned pack and in the drain pan.
Electrical parts and wining:
Are connected to an earth terminal,carried out in junction box with access holes equipped with water-proof cable grands.All materials are selected carefully for long-term reliability.
Fin spacing 6 mm,with heater, Rt≥-18°C:
| model | (R404A/R507A)(Kw) |
Area | Tube volume (dm³) |
size (mm) |
N.W (Kg) |
Connection (Φmm) |
||||
| te=-8 C DT1=8K | Te=-25 C DT1=7K | L | W | H | IN | OUT | ||||
| SPBE021D SPBE031D SPBE022D SPBE032D SPBE051D SPBE043D SPBE044D SPBE062D(SPBE052D) SPBE063D |
1.46 2.03 2.81 4.11 5.67 6.23 8.19 11.30 16.00 |
1.06 1.48 2.05 3.00 4.13 4.54 5.98 8.27 11.70 |
06 08 11 15 20 23 31 41 61 |
1.8 2.4 3.2 4.3 5.5 6.2 8.2 10.5 15.5 |
702 702 1094 1094 1094 1486 1878 1878 2662 |
430 430 430 430 460 430 430 460 460 |
385 495 385 495 635 495 495 635 635 |
13 18 23 30 38 43 56 75 115 |
12 12 12 12 12 12 15 15 15 |
16 19 19 22 22 22 28 28 35 |
Fin spacing 9 mm,with heater, Rt≥-25°C:
| model | (R404A/R507A)(Kw) |
Area | Tube volume (dm³) |
SIZE (mm) |
N.W (Kg) |
Connection (Φmm) |
||||
| te=-8 C DT1=8K | Te=-25 C DT1=7K | L | W | H | IN | OUT | ||||
| SPJE021D SPJE031D SPJE022D SPJE032D SPJE051D SPJE043D SPJE044D SPJE062D(SPJE052D) SPJE063D |
1.23 1.71 2.37 3.46 4.77 5.24 6.89 9.50 13.45 |
0.90 1.25 1.73 2.53 3.48 3.82 5.03 6.95 9.84 |
04 06 08 10 14 16 21 28 41 |
1.8 2.4 3.2 4.3 5.5 6.2 8.2 10.5 15.5 |
702 702 1094 1094 1094 1486 1878 1878 2662 |
430 430 430 430 460 430 430 460 460 |
385 495 385 495 635 495 495 635 635 |
12 17 21 28 35 40 52 68 108 |
12 12 12 12 12 12 15 15 15 |
15 19 19 22 12 22 28 28 35 |
Electric data:
| Model | External rotor fan | Electric defrost | ||||||||
| Diameter Φ(mm) |
Quantity N |
mains |
power(W) | Electric current A) | Airflow (m³/h) | Range (m) | fin (W) | Water tray W |
power |
|
| SP021D SP031D SP022D SP032D SP051D SP043D SP044D SP062D(SP052D) SP063D |
250 300 250 300 450 300 300 450 450 |
1 1 2 2 1 3 4 2 3 |
~220 ~220 ~220 ~220 ~220 ~220 ~220 3~380 3~380 |
55/57 90/96 55/57 90/96 380/480 90/96 90/96 380/470 380/470 |
0.24/0.24 0.43/0.44 0.24/0.24 0.43/0.44 1.70/2.10 0.43/0.44 0.43/0.44 0.82/0.84 0.82/0.84 |
1100 2050 2200 4100 5600 6150 8200 11200 16800 |
4 5 6 7 9 10 11 11 13 |
2*440
3*440
2*730
3*730
4*730
3*1030
3*1030
4*1310
4*1890
|
440 440 730 730 730 1030 1310 1310 1890 |
1320 1760 2190 2920 3650 4120 5240 6550 9450 |
