25℃ Cold Storage Subsidy Servicer Uk India 150m³ Cold Food Storage Room
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 150m3 Cold Food Storage Room,Cold Food Storage Room with light |
||
|---|---|---|---|
Product Description

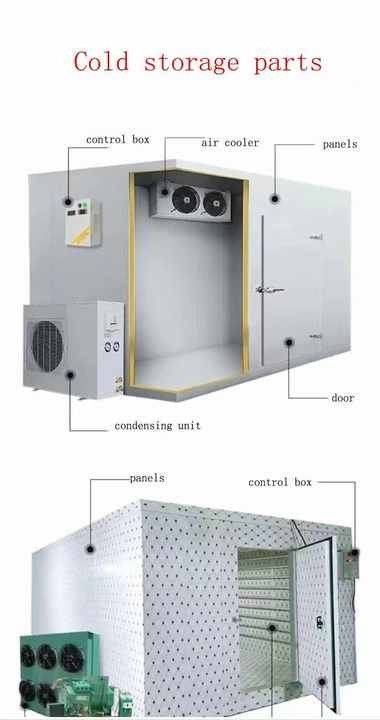

| Cold storage outer dimensions:10*5*3m=150m3 for meat use temperature -25to -10 ℃ | ||
| Number | Name | Parameters |
| 1 | panels | Thickness: 150mm/0.5mm, Polyurethane double-sided color steel plate |
| 2 | door | Hinged door 800*1800*150mm Electric heating wire Polyurethane double-sided color steel plate right door |
| 3 | Light | 20W 220v 50hz |
| 4 | Condensing unit | 6HE-28Y/25HP/R404A/380V 50HZ condenser 240m² with four fan |
| 5 | Air cooler | DD250/380volts/ 50 Hz /3Ph electric defrost+Boom screws +sewer heating line 4M |
| 6 | Expansion valve | TGE13 |
| 7 | Control box | NAK230/20KW |
| 8 | PVC water pipe | 4m/pcs |
| 9 | copper pip | Φ54 |
| 10 | copper pipe | Φ22 |
| 11 | elbow | Φ54 |
| 12 | elbow | Φ22 |
| 13 | Insulation tube | Φ54mm |
| 14 | Ties | |
| 15 | P type elbow | Φ54 |
| 16 | slap | Φ54 |
|
17 |
slap | Φ22 |
| 18 | Wires | |
