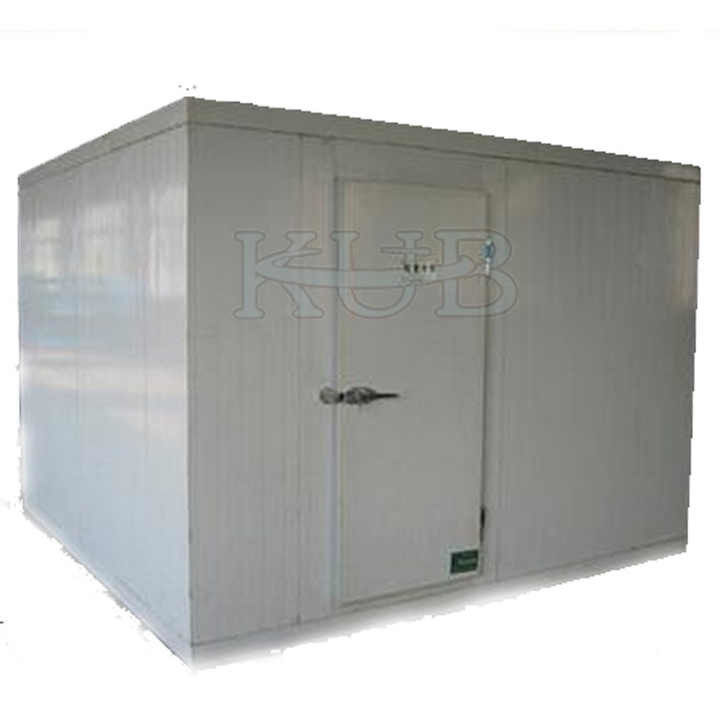

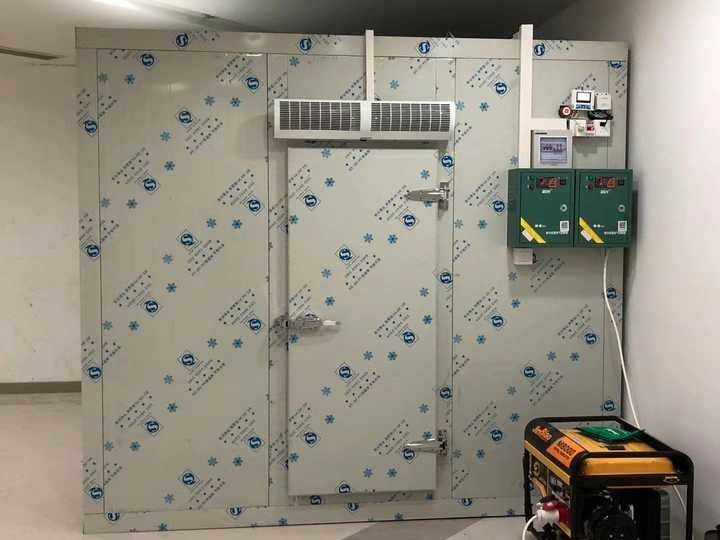

R404A Cold Storage Plant 81m³ Temperature 0 To 12℃ For Vegetable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | R404A Cold Storage Plant,Vegetable Cold Storage Plant |
||
|---|---|---|---|
Product Description
| Cold storage outer dimensions: 6*4.5*3m=81m3 for use temperature 0 to +12 ℃ | ||
| Number | Name | Parameters |
| 1 | panels | Thickness: 100mm/0.426mm, Polyurethane double-sided color steel plate |
| 2 | door | Hinged door 800*1800*100mm Electric heating wire Polyurethane double-sided color steel plate right door |
| 3 | Light | 20W 220v 50hz |
| 4 | Condensing unit | ZB38/5HP/R404A /380V 50HZ |
| 5 | Air cooler | DD40/380volts/ 50 Hz /3Ph electric defrost+Boom screws +sewer heating line 4M |
| 6 | Expansion valve | TE2 |
| 7 | Control box | NAK121/5.5KW |
| 8 | PVC water pipe | 4m/pcs |
| 9 | copper pip | Φ19 |
| 10 | copper pipe | Φ12 |
| 11 | elbow | Φ19 |
| 12 | elbow | Φ12 |
| 13 | Insulation tube | Φ19mm |
| 14 | Ties | |
| 15 | P type elbow | Φ19 |
| 16 | slap | Φ19 |
|
17 |
slap | Φ12 |
| 18 | Wires | |
