SV Series SV20-98 Series Hydraulic Solenoid Valve Coil 220V
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Hydraulic Solenoid Valve Coil,Hydraulic Solenoid Valve Coil 220V |
||
|---|---|---|---|
Product Description
Product descriptions from the supplier
SV Series SV20-98 Series Hydraulic Solenoid Valve Coil 220V Solenoid Valve Price
| Applicable Refrigerants | HCFC,HFC and related medium viscosity ≤2°E lubricant oil |
| Applicable Medium Temperature | -30°C~+105℃ |
| Application Ambient Temperature of Solenoid | -40°C~+65℃C |
| Standard Voltage of Solenoid | AC380V,220V,110V,24V/50,60Hz,DC12V |
| Allowable Voltage Fluctuation for Solenoid | +10%~-15% |
| Connection of Solenoid | Standard 3-wire insert connector |
Product Description:

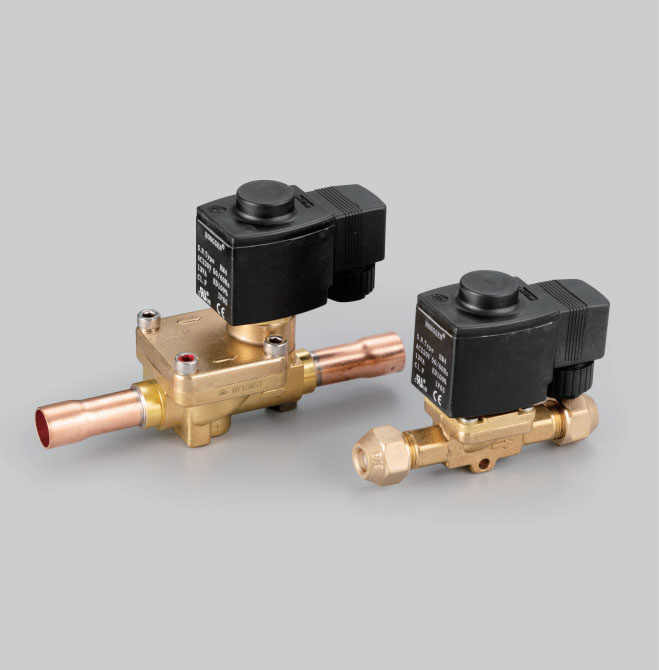

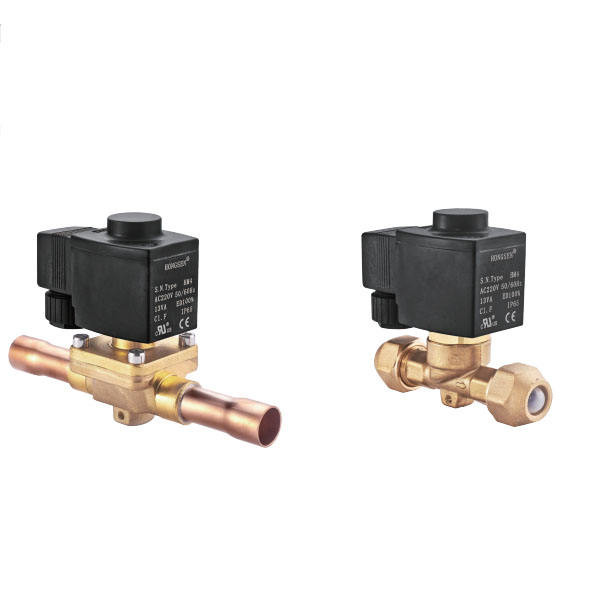

Model SV solenoid valve is a once open-type or twice open-type solenoid valve to be suitable to one-way flow.
Model SV solenoid valve is used on the liquid, air suction and hot vapor pipes of the refrigeration, coldstorage and air conditioning facilities,
Model SV solenoid valve has perfect sealing on its valve seat and sealing part.
The coil of varies voltages is available for Model SV solenoid valve with a universal valve body
Model SV solenoid valve could be supplied in whole or in split, that means the valve body and coil could besupplied separately.
Features
The proprietary coil is an entirely sealed design with an effective waterproof performance and a long service life(lP65).
The solenoidcoil could be operated propery even under unstable voltage
Various AC and DC solenoid coils are available for choice.
Clip type solenoid coil is convenlent in assembly and disassembly.
lt is applicable to various compressors in the refrigertion,cold storage and air conditioning facilities.
