KB-KT050-CJ Warehouse Air Conditioner Energy Saving Refrigeration Equipment 5HP Workshop Air Conditioner
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | KB-KT050-CJ workshop air conditioner,5HP workshop air conditioner,Energy saving workshop air conditioner |
||
|---|---|---|---|
Product Description
CL-KTJ6-S Made in China warehouse air conditioner refrigeration equipment 5HP workshop air conditioner refrigeration system
| Evaporative cold water source heat pump single cooled jet air conditioning product parameters | |||||
| Product model | KB-KT050-CJ | Compressor power(KW) | 3.8KW | Refrigerating capacity(KW) | 24KW |
| Cooling area(m²) | 180-230m² | Voltage/frequency | 380V/50HZ | Rated current(A) | 7.5A |
| Rated power(KW) | 4.8KW | evaporator | Copper triple row U-type evaporator | Pump parameter | 370W/380V |
| Flow/head | 4M3/32M | Centrifugal fan parameter | 380V/750W | ||
| Refrigerant/fluorine heavy | R22/3.0KG | Air supply distance (m) | Centrifugal air supply 24 meters | ||
| Air volume(M3) | 4000M3/H | Unit noise(dB) | ≤68dB | weight(KG) | 165KG/75KG |
| Evaporator size(mm) | 770*580*1805 | Condensing unit size(mm) | 800*800*1250 | Body material | galvanized sheet |
| Waterproof class | IPX4 | Energy efficiency ratio(COP) | 5.45 | Heat exchanger | Casing heat exchanger |

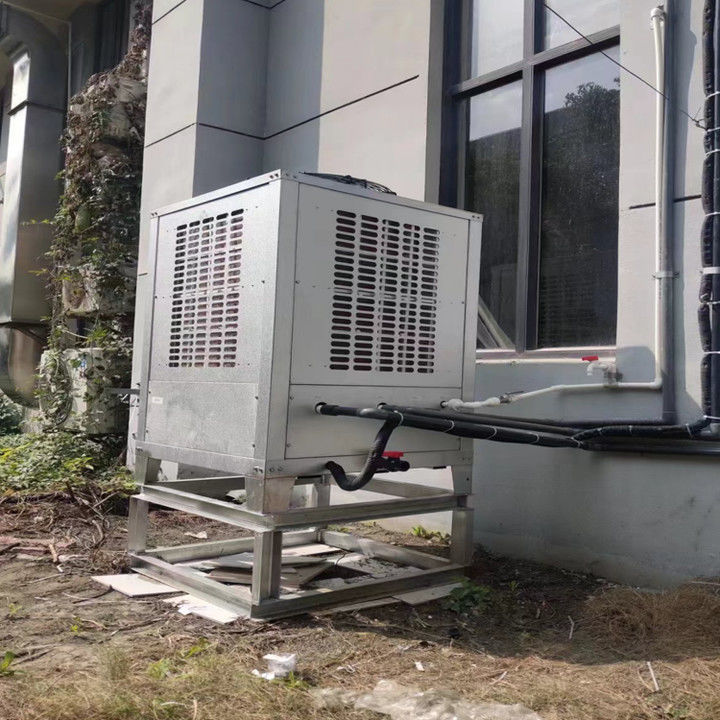

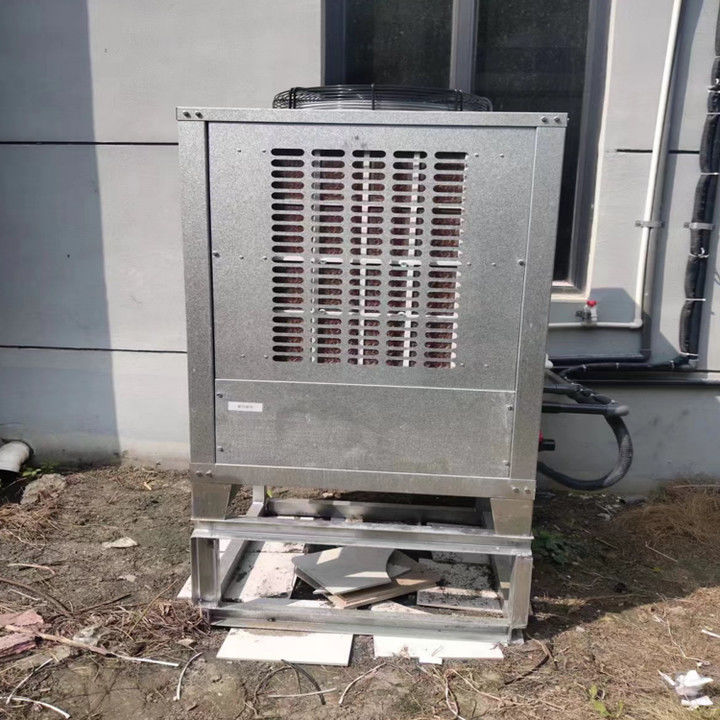

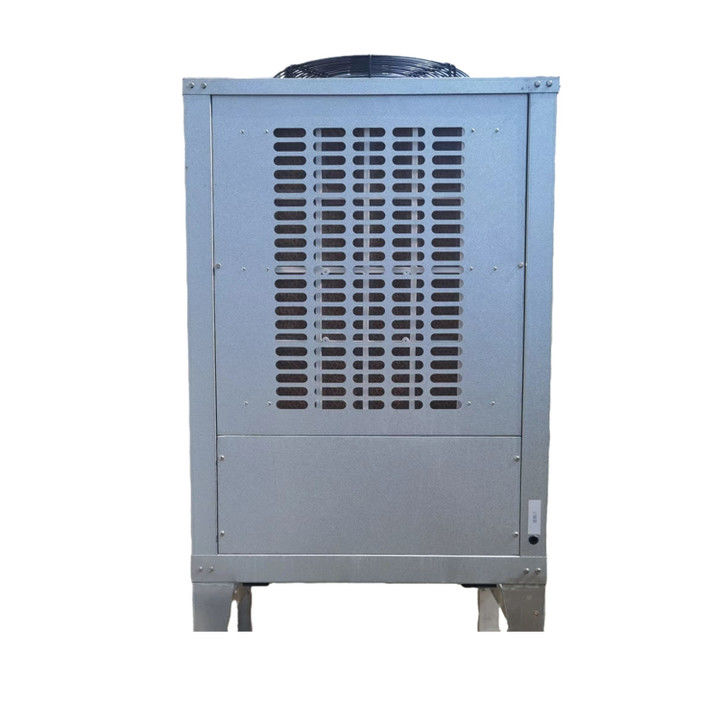

Condensing unit picture and drawing

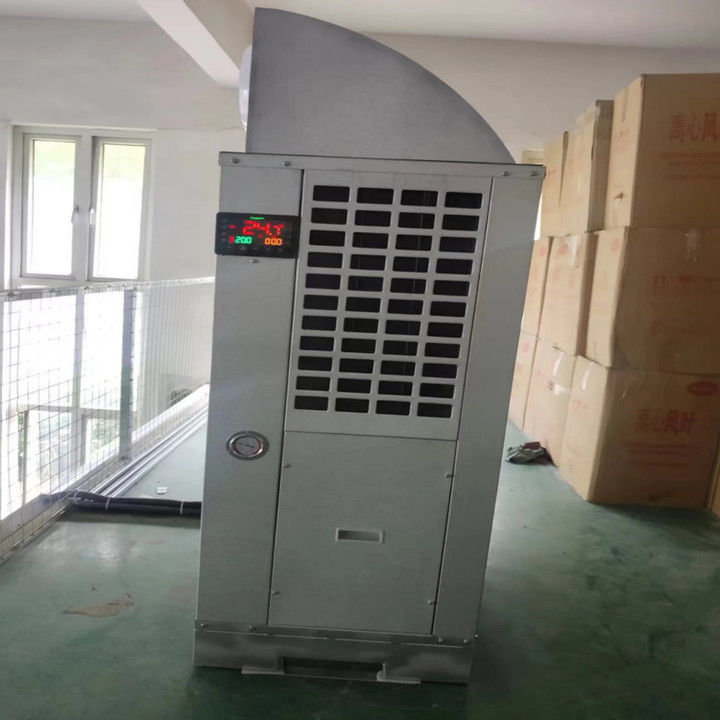

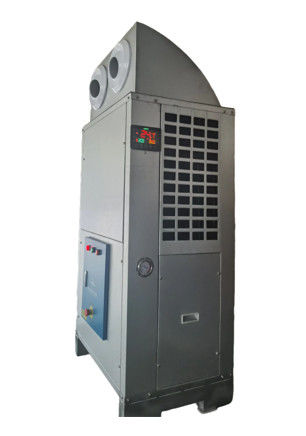

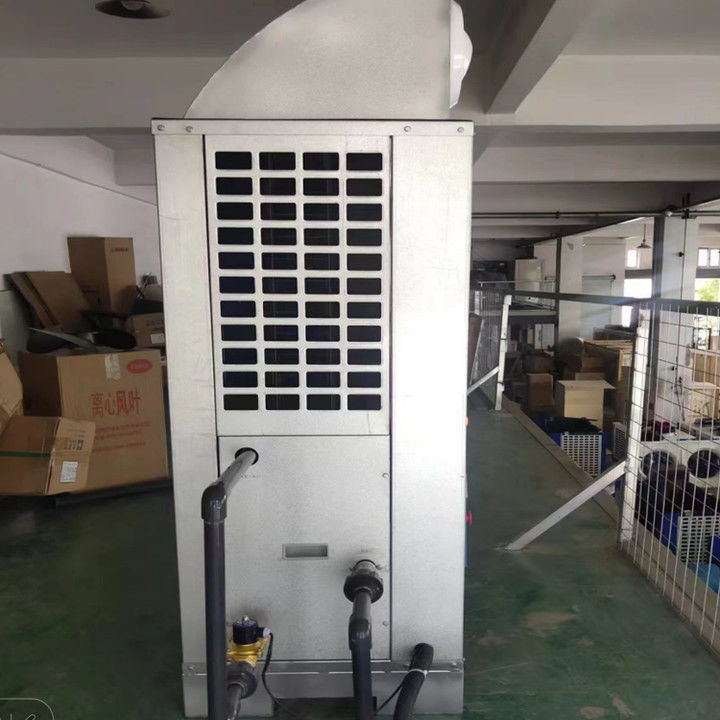

Evaporator picture and drawing
The indoor unit compressor cools, and the outdoor unit evaporates, condenses, and dissipates heat. Only water pipes are needed to connect the indoor unit and outdoor unit
This air conditioner is suitable for overall cooling of factory buildings with a floor height of more than 5 meters. The indoor unit is placed against the wall, and the outdoor unit is installed on the roof or the exterior wall of the ground floor.
