Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number SDAF-2TR4
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 25days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Condition New Weight (KG) 400
Video Outgoing-inspection Provided Marketing Type Ordinary Product
Core Components Bearing, Motor Brand Name KUB
Product Name Flake Ice Machine Voltage 380V 50HZ
After Warranty Service 12 Months Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location None Machinery Test Report Provided
Warranty Of Core Components 1 Year Place Of Origin Shanghai, China
Warranty 1 Year Temperature Low Temperature
Refrigerant R404A Original Made In China
Application Cold Storage
High Light

Full Automatic Industrial Flake Ice Maker

,

Seafood Supermarket Industrial Flake Ice Maker

,

Commercial Industrial Flake Ice Machine

Leave a Message
Product Description

SDAF-2TR4 Commercial full-automatic 300-2000kg large output seafood supermarket hotpot shop industrial flake ice maker



Product Specifications:
Standard power supply: 380V/3Phase/50Hz Power electric refrigerant: R404A Flake ice temperature is -5℃
Remarks: 1. Quality Assurance: The ice-making machine has a one-and-a-half-year (12-month) warranty period from the date of delivery of the ice-making machine and lifetime maintenance.
2. Payment method: 30% prepayment, the contract takes effect, and the full amount is paid before delivery.

Ice-making SDAF-2TR4 configuration parameters (daily output 2000kg)
1. Main parts of flake ice machine

Serial number Name Brand Place of origin Quantity Remark
1 Compressor Copeland America 1
2 Evaporator KUB Ice Shanghai 1 Spiral groove structure
3 Air-cooled condenser KUB Ice Shanghai 1 Internal thread copper tube fin condenser
4 Expansion valve Danfoss/Emerson Denmark/America 1
5 Reservoir Fask Tianjin 1
6 Filter drier Danfoss Denmark 1
7 Water pump Hongjian Guangzhou 1
8 Reducer Zhongyan Ziguang Zhejiang 1
9 Electric box control Send Ice Shenzhen 1 PLC automatic control
10 Electrical accessories LG(LS) Korea 1 Electrical accessories are LS brand
11 Water level switch FAST     1
12 Upper and lower body of ice bucket     1 All cast aluminum
13 Packing plate / water divider     1 All made of 304 stainless steel
14 Tank/Fender     1 All made of 304 stainless steel
2. Main technical parameters of flake ice machine
Serial number Name Parameter Remark
1 Design standard ambient temperature/water supply temperature 25℃/16℃
2 Evaporating temperature/Condensing temperature -20℃/40℃
3 Use refrigerant R404a
4 power supply 3 P/380 V/50 Hz
5 Cooling capacity/total power 11.6 KW/8.49 kW
6 Flake Ice Thickness 1.5~2.2 mm
7 Noise (within 2m) 70 dBA
8 Dimensions of the ice maker (L*W*H) 1530*1000*1050 mm Net size
9 Total Weight 400 kg

Suggestion: When installing the ice machine, the customer needs to provide water and electricity, and install the water and electricity within 1 meter near the flake ice machine, and the water and electricity should be controlled separately.
1. Customer power supply requirements: reserve a 32A four-level circuit breaker;

2. Customer water supply requirements: Reserve a 4-point PVC outer tooth joint to ensure that the water pressure of the water supply is 0.1Mpa-0.5Mpa.

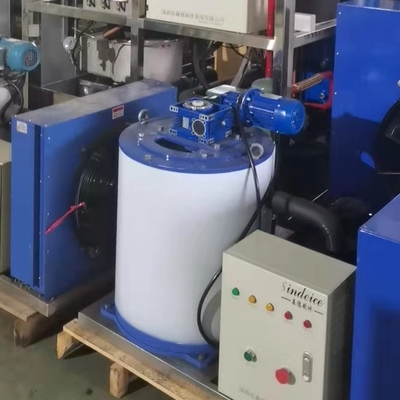

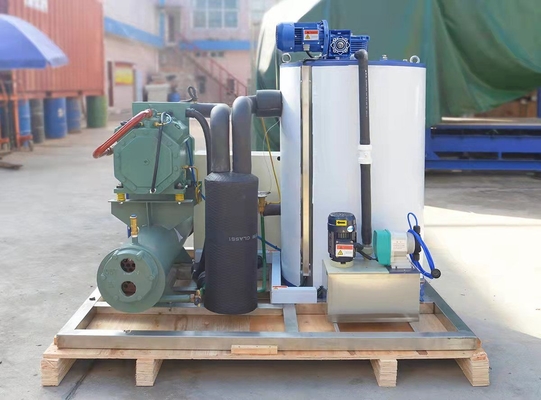

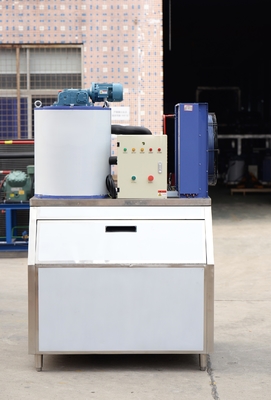

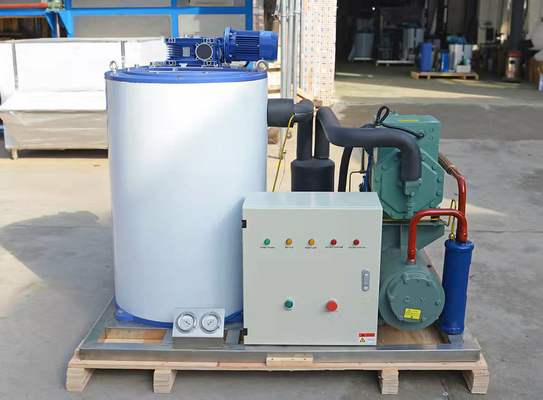

3. The host picture

Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 0Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 1Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 2Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 3Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 4Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 5Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 6Commercial Full Automatic Industrial Flake Ice Maker For Seafood Supermarket Hotpot Shop 7
