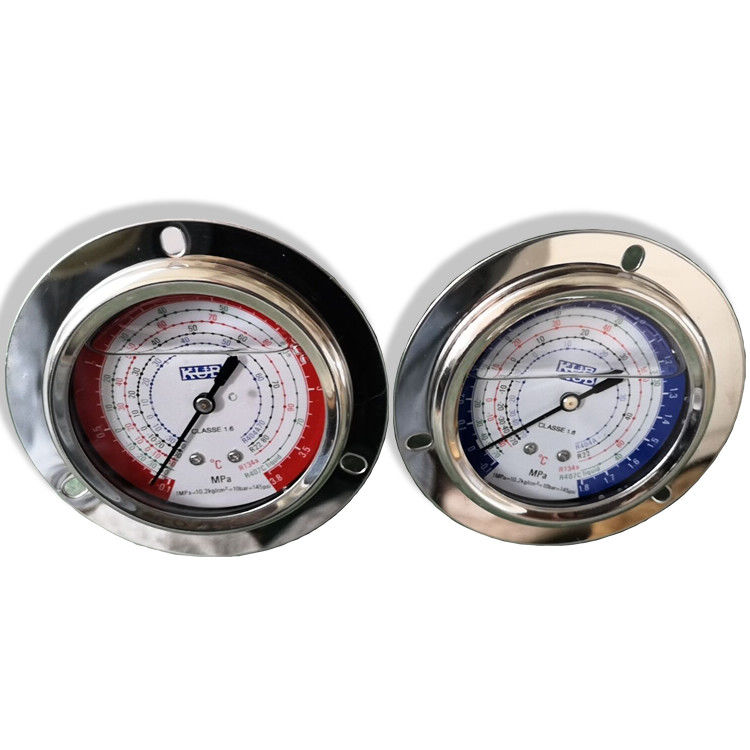

condensing unit fuel meter High and low pressure oil meter

condensing unit fuel meter High and low pressure oil meter

●The pressure gauge is a vibration- proof pressure gauge with oil fledl inside for rfrigeratin use only.
●The i-illdl pressure gauge is used on freezer, cold store and air -conditioning unit.
●The aililledi pressure gauge is convenient in aplication as it features one gauge for muliple retrigerants.
●The oil fldl pressure gauge has full stainless stel casin and wider bryllum bonze spring tube.
●The oililled pressure gauge is an axial pressure gauge with edges for flange joint.
Features
●The Inslde fl oll functions damping to the high frequency vibration of machinery. .
The damping oil oup prevents geuge pointer rom quick jumping.
●The flanged edge is ftor convenient mounting.
●Over- pressure limit stop is equlpped.
●Zero error is ensured with strengthening overpressure measures.
●Rational oil seal design and no oil leakage worry.
●Pressure versus Temperature readings for easy use.
●Extra long service life.
Technical Parameters
Applicable Retrigerant
HCFC and HFC
Applicable Medium Temperature
- 5C~+120C (-40C-+120C )
Connection Size
1/4 SAE
Structure
Axial concentically- embedded
Casing Nominal Diameter
2.5in ( φ63.5)
Accuracy Class
(Class 1.6 )

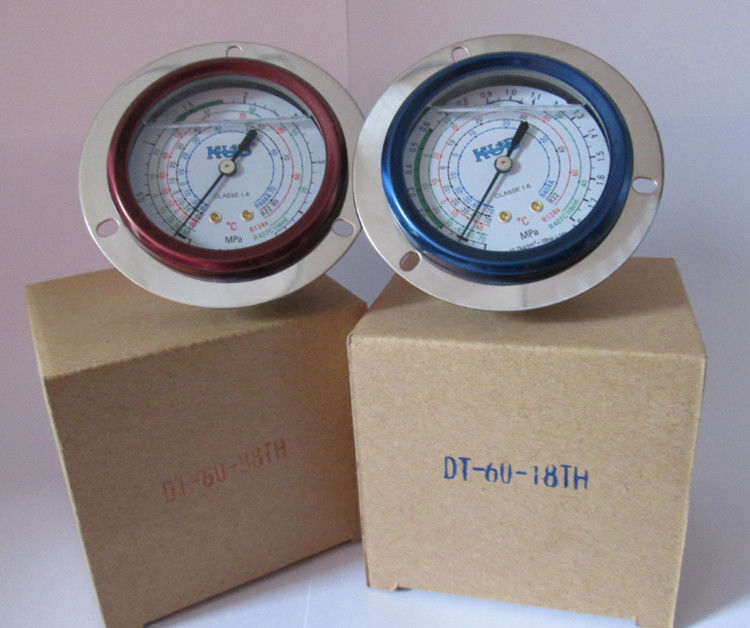

Packaging & Delivery
