R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line

  • R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line
  • R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line
  • R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line
Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Motor 380V/3/50Hz-460/3/60Hz Refrigerant R22
Quality Assurance A Year Nominal HP Describe
High Light

Screw Cold Storage Compressor

,

R22 Refrigerant Cold Storage Compressor

,

45mm Discharge Line Cold Storage Compressor
Leave a Message
Product Description

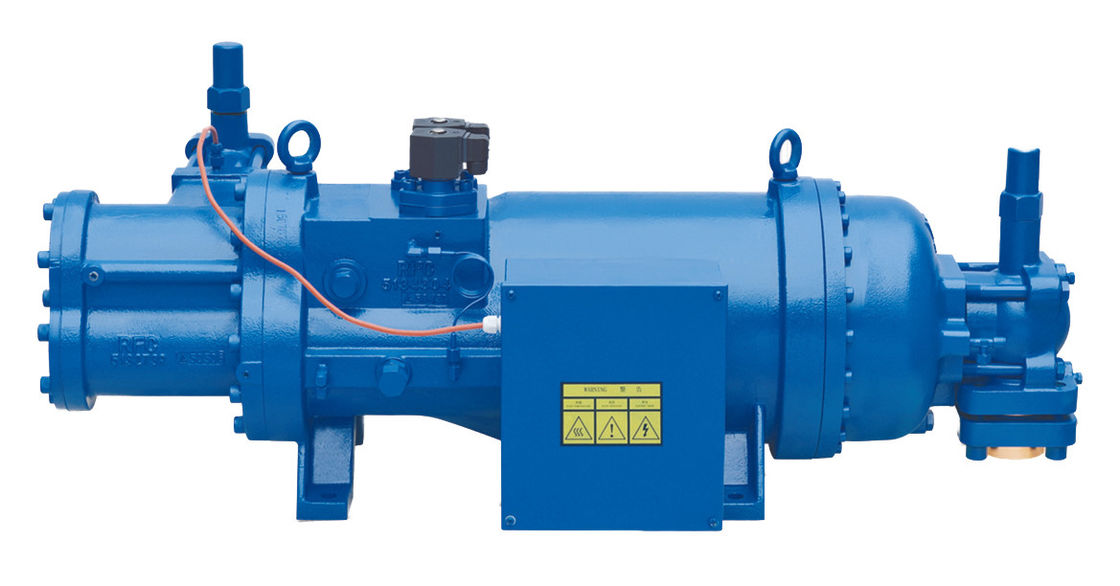

R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line

Model SLD

100-

25

120-

30

140-

40

190-

50

 210-60

230-

70

290-

80

 320-90 350-100

370-

110

420-

120

470-

140

520-

160

570-

175

640-

190
Displacement 50Hz m3/h 102 128 145 188 205 235 293 322 354 368 416 469 520 572 641
Nominal Motor Power Hp/kW 30/22 30/22 40/30 60/45 60/45 70/53 80/60 90/68 100/75 110/83 120/89 140/105 160/120 175/131 200/143
Weight Kg 245 245 255 405 410 420 535 540 545 665 675 710 1030 1050 1050
Discharge line, internal mm 45 45 45 57 57 57 57 57 57 76 76 76 76 76 76
Suction line, internal mm 57 57 57 76 76 76 89 89 89 89 89 89 108 108 108
Energy regulation 40%, 70%, 100% production, regulation or stepless 100…40%
Protection module INT 69 RCY
Standard motor 380V/3/50Hz-460/3/60Hz
Starting current A 131 131 134 182 182 193 298 318 338 416 416 453 543 595 678
A 131 131 134 182 182 193 298 318 338 416 416 453 543 595 678
Maximum working current A 42 46 63 90 95 112 126 144 157 175 187 221 251 275 301



R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 0R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 1







PERFORMANCES  SLD R22

SLD 100-25 (R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 10.2 10.1 8.9 12.7 — — — — — — — —
-40 18.3 10.6 16.4 12.8 13.6 14.5 11.7 15.6 9.9 17.0 8.9 17.8
-35 23.5 11.3 21.2 13.4 18.1 15.4 15.8 16.7 13.5 18.1 14.0 19.0
-30 29.7 12.0 27.0 14.1 23.2 16.2 21.4 17.5 18.1 18.9 18.4 20.0
-25 37.0 12.9 33.7 15.0 30.0 17.7 27.1 18.6 24.6 19.8 23.6 21.2
-20 45.6 14.0 41.7 15.9 37.3 18.8 34.3 19.4 30.6 20.6 29.8 22.0
10 — — — — — — — — — — 45.7 23.7



SLD 100-25 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 13.3 11.4 12.3 14.2 — — — — — — — —
-40 22.4 11.5 21.4 14.6 19.1 16.6 17.0 19.5 15.1 21.9 14.2 23.9
-35 28.1 11.9 27.0 14.9 24.7 17.3 22.3 20.2 19.9 22.7 21.4 24.6
-30 34.6 12.4 33.3 15.3 30.7 17.9 29.3 20.6 25.7 23.1 27.3 25.1
-25 42.0 13.0 40.5 15.8 38.5 18.9 36.0 21.5 34.0 23.5 33.9 25.9
-20 50.3 13.7 48.7 16.5 46.5 20.0 44.3 21.8 41.0 23.8 41.5 26.3
10 — — — — — — — — — — 59.8 26.7



SLD 120-30 (R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 12.3 12.1 10.8 15.2 — — — — — — — —
-40 22.0 12.8 19.8 15.4 16.4 17.4 14.0 18.8 12.0 20.5 10.7 21.4
-35 28.3 13.5 25.5 16.1 21.8 18.5 19.0 20.2 16.3 21.8 16.8 22.9
-30 35.8 14.4 32.5 17.0 27.9 19.5 25.8 21.0 21.7 22.8 22.1 24.1
-25 44.6 15.6 40.6 18.0 36.2 21.3 32.7 22.5 29.6 23.9 28.5 25.5
-20 54.9 16.9 50.2 19.2 44.9 22.6 41.4 23.4 36.8 24.7 35.9 26.5
10 — — — — — — — — — — 55.1 28.5



SLD 120-30 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 16.0 13.7 14.9 17.1 — — — — — — — —
-40 27.0 13.8 25.8 17.6 23.0 20.0 20.4 23.5 18.2 26.4 17.0 28.7
-35 33.8 14.3 32.5 17.9 29.7 20.9 26.9 24.3 24.0 27.3 25.8 29.7
-30 41.7 14.9 40.1 18.4 37.0 21.5 35.3 24.8 31.0 27.8 32.9 30.2
-25 50.6 15.6 48.8 19.1 46.3 22.8 43.4 25.8 40.9 28.3 40.9 31.2
-20 60.6 16.5 58.7 19.8 55.9 24.0 53.4 26.2 49.3 28.6 50.0 31.6
10 — — — — — — — — — — 72.0 32.2



SLD 140-40 (R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 14.1 13.9 12.3 17.4 — — — — — — — —
-40 25.2 14.6 22.6 17.6 18.8 20.0 16.1 21.5 13.7 23.4 12.2 24.5
-35 32.3 15.5 29.2 18.4 24.9 21.2 21.8 23.1 18.6 25.0 19.2 26.1
-30 40.9 16.5 37.1 19.4 32.0 22.4 29.5 24.1 24.9 26.1 25.3 27.5
-25 51.0 17.8 46.4 20.6 41.4 24.3 37.4 25.7 33.9 27.3 32.6 29.2
-20 62.8 19.3 57.4 21.9 51.3 25.9 47.3 26.8 42.1 28.3 41.1 30.4
10 — — — — — — — — — — 63.0 32.6



SLD 140-40 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 18.3 15.7 17.0 19.5 — — — — — — — —
-40 30.9 15.8 29.5 20.1 26.3 22.9 23.4 26.9 20.8 30.2 19.5 32.9
-35 38.7 16.4 37.1 20.5 34.0 23.9 30.8 27.9 27.5 31.3 29.5 33.9
-30 47.7 17.0 45.9 21.1 42.3 24.6 40.4 28.4 35.4 31.8 37.6 34.6
-25 57.8 17.9 55.8 21.8 53.0 26.1 49.6 29.6 46.8 32.4 46.8 35.7
-20 69.4 18.9 67.1 22.7 64.0 27.5 61.1 30.0 56.4 32.7 57.2 36.2
10 — — — — — — — — — — 82.3 36.8



SLD 190-50 (R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 19.8 19.5 17.3 24.5 — — — — — — — —
-40 35.4 20.6 31.8 24.7 26.4 28.1 22.6 30.3 19.3 32.9 17.2 34.5
-35 45.5 21.8 41.1 26.0 35.1 29.8 30.7 32.4 26.2 35.2 27.1 36.8
-30 57.6 23.2 52.3 27.3 45.0 31.5 41.5 33.9 35.0 36.7 35.6 38.8
-25 71.8 25.0 65.3 29.0 58.3 34.2 52.6 36.1 47.7 38.4 45.8 41.0
-20 88.3 27.2 80.8 30.9 72.3 36.4 66.6 37.7 59.2 39.9 57.8 42.7
10 — — — — — — — — — — 88.6 45.9



SLD 190-50 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 25.8 22.1 23.9 27.5 — — — — — — — —
-40 43.5 22.3 41.6 28.3 37.0 32.3 32.9 37.8 29.3 42.5 27.4 46.3
-35 54.5 23.0 52.3 28.9 47.8 33.6 43.3 39.2 38.7 44.0 41.6 47.8
-30 67.1 24.0 64.6 29.7 59.5 34.6 56.9 39.9 49.8 44.8 52.9 48.7
-25 81.4 25.2 78.6 30.7 74.6 36.7 69.8 41.6 65.8 45.6 65.8 50.3
-20 97.6 26.6 94.5 32.0 90.1 38.7 85.9 42.2 79.4 46.1 80.5 51.0
10 — — — — — — — — — — 115.9 51.8



SLD 210-60(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 21.9 21.6 19.1 27.1 — — — — — — — —
-40 39.2 22.8 35.2 27.3 29.2 31.0 25.0 33.5 21.3 36.4 19.0 38.1
-35 50.3 24.1 45.4 28.7 38.8 33.0 33.9 35.9 29.0 38.9 29.9 40.7
-30 63.7 25.6 57.8 30.2 49.7 34.8 45.9 37.4 38.7 40.6 39.3 42.8
-25 79.4 27.7 72.2 32.1 64.4 37.8 58.1 40.0 52.7 42.5 50.6 45.4
-20 97.6 30.1 89.3 34.1 79.9 40.3 73.6 41.6 65.5 44.0 63.9 47.2
10 — — — — — — — — — — 98.0 50.7



SLD 210-60 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 28.5 24.5 26.5 30.4 — — — — — — — —
-40 48.0 24.6 45.9 31.2 40.9 35.7 36.4 41.8 32.4 46.9 30.3 51.2
-35 60.2 25.5 57.8 31.9 52.9 37.1 47.8 43.3 42.7 48.7 45.9 52.8
-30 74.1 26.5 71.3 32.8 65.8 38.3 62.9 44.1 55.1 49.5 58.5 53.8
-25 90.0 27.8 86.8 34.0 82.5 40.5 77.2 46.0 72.8 50.4 72.7 55.5
-20 107.9 29.4 104.4 35.3 99.5 42.8 95.0 46.7 87.8 50.9 88.9 56.3
10 — — — — — — — — — — 128.1 57.3



SLD 230-70(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 24.5 24.1 21.4 30.4 — — — — — — — —
-40 43.8 25.5 39.3 30.6 32.7 34.7 27.9 37.4 23.8 40.7 21.3 42.7
-35 56.3 27.0 50.8 32.1 43.4 36.9 37.9 40.1 32.5 43.5 33.5 45.5
-30 71.3 28.7 64.7 33.8 55.6 38.9 51.3 41.9 43.3 45.4 44.0 47.9
-25 88.8 31.0 80.8 35.9 72.1 42.4 65.0 44.7 59.0 47.5 56.7 50.8
-20 109.2 33.6 99.9 38.2 89.4 45.1 82.4 46.6 73.3 49.3 71.5 52.9
10 — — — — — — — — — — 109.6 56.8



SLD230-70 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 31.9 27.4 29.6 34.0 — — — — — — — —
-40 53.7 27.6 51.4 35.0 45.7 39.9 40.7 46.8 36.3 52.5 33.9 57.3
-35 67.4 28.5 64.7 35.7 59.2 41.5 53.5 48.5 47.8 54.5 51.4 59.1
-30 83.0 29.6 79.8 36.7 73.7 42.8 70.4 49.4 61.7 55.4 65.4 60.2
-25 100.7 31.2 97.2 38.0 92.3 45.4 86.4 51.5 81.4 56.4 81.4 62.2
-20 120.7 32.9 116.8 39.5 111.4 47.9 106.3 52.2 98.2 57.0 99.5 63.0
10 — — — — — — — — — — 143.3 64.1



SLD 420-120(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 42.5 41.8 37.1 52.6 — — — — — — — —
-40 75.9 44.1 68.1 53.0 56.5 60.2 48.4 64.8 41.3 70.5 36.8 73.9
-35 97.4 46.7 88.0 55.6 75.2 63.9 65.6 69.5 56.2 75.3 58.0 78.8
-30 123.4 49.7 111.9 58.6 96.3 67.4 88.8 72.5 75.0 78.6 76.2 83.0
-25 153.7 53.6 139.9 62.2 124.7 73.3 112.6 77.4 102.1 82.3 98.1 87.9
-20 189.1 58.2 172.9 66.1 154.7 78.0 142.6 80.7 126.8 85.3 123.7 91.5
10 — — — — — — — — — — 189.8 98.3



SLD 420-120(R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 55.3 47.4 51.2 58.9 — — — — — — — —
-40 93.0 47.7 89.0 60.5 79.2 69.1 70.4 80.9 62.8 90.9 58.8 99.1
-35 116.6 49.3 111.9 61.8 102.4 71.9 92.7 83.9 82.8 94.3 89.0 102.3
-30 143.6 51.3 138.2 63.5 127.5 74.1 121.8 85.5 106.7 95.9 113.3 104.3
-25 174.3 54.0 168.2 65.8 159.8 78.5 149.5 89.1 141.0 97.6 140.9 107.6
-20 209.0 56.9 202.3 68.4 192.8 82.9 184.0 90.4 170.1 98.7 172.3 109.1
10 — — — — — — — — — — 248.1 110.9



SLD 290-80(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 30.4 29.9 26.5 37.6 — — — — — — — —
-40 54.3 31.5 48.7 37.9 40.4 43.0 34.6 46.4 29.5 50.4 26.3 52.9
-35 69.7 33.4 62.9 39.8 53.8 45.7 46.9 49.7 40.2 53.9 41.5 56.4
-30 88.3 35.5 80.1 41.9 68.9 48.2 63.5 51.9 53.6 56.2 54.5 59.4
-25 110.0 38.4 100.1 44.5 89.2 52.4 80.5 55.4 73.0 58.9 70.2 62.9
-20 135.3 41.7 123.7 47.3 110.7 55.8 102.0 57.7 90.7 61.0 88.5 65.5
10 — — — — — — — — — — 135.8 70.3



SLD290-80 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 39.5 33.9 36.7 42.1 — — — — — — — —
-40 66.6 34.1 63.7 43.3 56.6 49.4 50.4 57.9 44.9 65.0 42.0 70.9
-35 83.4 35.3 80.1 44.2 73.3 51.4 66.3 60.0 59.2 67.4 63.7 73.2
-30 102.7 36.7 98.9 45.4 91.2 53.0 87.1 61.1 76.3 68.6 81.0 74.6
-25 124.7 38.6 120.3 47.1 114.3 56.2 106.9 63.7 100.8 69.8 100.8 77.0
-20 149.5 40.7 144.7 48.9 137.9 59.3 131.6 64.7 121.6 70.6 123.2 78.1
10 — — — — — — — — — — 177.5 79.4



SLD 470-140(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 48.0 47.2 41.9 59.4 — — — — — — — —
-40 85.7 49.8 76.9 59.8 63.9 68.0 54.7 73.2 46.6 79.7 41.6 83.5
-35 110.1 52.8 99.4 62.8 85.0 72.2 74.2 78.5 63.5 85.1 65.5 89.0
-30 139.4 56.1 126.5 66.2 108.8 76.1 100.4 81.9 84.7 88.8 86.1 93.8
-25 173.7 60.6 158.1 70.3 140.9 82.8 127.2 87.5 115.4 93.0 110.8 99.3
-20 213.7 65.8 195.4 74.7 174.8 88.2 161.1 91.1 143.3 96.4 139.8 103.4
10 — — — — — — — — — — 214.5 111.0



SLD 470-140(R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 62.5 53.5 57.9 66.5 — — — — — — — —
-40 105.1 53.9 100.6 68.4 89.4 78.1 79.6 91.5 70.9 102.7 66.4 112.0
-35 131.8 55.8 126.5 69.9 115.7 81.2 104.7 94.8 93.6 106.5 100.6 115.6
-30 162.3 58.0 156.2 71.7 144.1 83.8 137.6 96.6 120.6 108.4 128.0 117.8
-25 196.9 61.0 190.1 74.3 180.6 88.7 168.9 100.7 159.3 110.3 159.2 121.6
-20 236.2 64.3 228.5 77.3 217.9 93.7 207.9 102.1 192.2 111.5 194.6 123.3
10 — — — — — — — — — — 280.4 125.4



SLD 320-90(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 33.0 32.5 28.8 40.8 — — — — — — — —
-40 58.9 34.2 52.9 41.1 43.9 46.7 37.6 50.3 32.1 54.8 28.6 57.4
-35 75.7 36.3 68.3 43.2 58.4 49.6 51.0 54.0 43.6 58.5 45.0 61.2
-30 95.8 38.6 86.9 45.5 74.8 52.3 69.0 56.3 58.2 61.0 59.2 64.5
-25 119.4 41.7 108.7 48.3 96.9 57.0 87.5 60.1 79.3 63.9 76.2 68.3
-20 146.9 45.2 134.3 51.4 120.2 60.6 110.7 62.7 98.5 66.3 96.1 71.1
10 — — — — — — — — — — 147.4 76.3



SLD 320-90 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 42.9 36.8 39.8 45.7 — — — — — — — —
-40 72.3 37.1 69.1 47.0 61.5 53.7 54.7 62.9 48.7 70.6 45.6 77.0
-35 90.6 38.3 86.9 48.0 79.6 55.8 72.0 65.2 64.3 73.2 69.1 79.5
-30 111.5 39.9 107.4 49.3 99.0 57.6 94.6 66.4 82.9 74.5 88.0 81.0
-25 135.4 41.9 130.7 51.1 124.1 61.0 116.1 69.2 109.5 75.8 109.5 83.6
-20 162.3 44.2 157.1 53.2 149.8 64.4 142.9 70.2 132.1 76.6 133.8 84.8
10 — — — — — — — — — — 192.7 86.2



SLD 520-160(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 53.1 52.3 46.4 65.7 — — — — — — — —
-40 94.8 55.1 85.1 66.2 70.7 75.2 60.5 81.0 51.6 88.2 46.0 92.4
-35 121.8 58.4 110.0 69.5 94.0 79.9 82.0 86.8 70.2 94.1 72.5 98.5
-30 154.2 62.1 139.9 73.2 120.4 84.2 111.0 90.6 93.7 98.2 95.2 103.7
-25 192.2 67.0 174.9 77.7 155.9 91.7 140.8 96.8 127.6 102.9 122.6 109.9
-20 236.4 72.8 216.2 82.7 193.4 97.5 178.2 100.8 158.5 106.7 154.7 114.4
10 — — — — — — — — — — 237.2 122.8



SLD 520-160(R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 69.1 59.2 64.1 73.6 — — — — — — — —
-40 116.3 59.6 111.2 75.7 98.9 86.4 88.1 101.2 78.4 113.7 73.5 123.9
-35 145.8 61.7 139.9 77.3 128.1 89.9 115.9 104.9 103.5 117.9 111.2 127.9
-30 179.5 64.2 172.8 79.4 159.4 92.7 152.3 106.9 133.4 119.9 141.6 130.4
-25 217.9 67.4 210.3 82.2 199.7 98.2 186.9 111.4 176.2 122.0 176.1 134.5
-20 261.3 71.1 252.8 85.5 241.0 103.6 230.0 113.0 212.6 123.3 215.3 136.4
10 — — — — — — — — — — 310.2 138.7



SLD 350-100(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 36.4 35.9 31.8 45.1 — — — — — — — —
-40 65.1 37.8 58.4 45.4 48.5 51.6 41.5 55.6 35.4 60.5 31.6 63.4
-35 83.6 40.1 75.5 47.7 64.5 54.8 56.3 59.6 48.2 64.6 49.7 67.6
-30 105.8 42.6 96.0 50.2 82.6 57.8 76.2 62.2 64.3 67.4 65.4 71.2
-25 131.9 46.0 120.0 53.3 107.0 62.9 96.6 66.4 87.6 70.6 84.2 75.4
-20 162.2 50.0 148.4 56.7 132.7 66.9 122.3 69.2 108.8 73.2 106.1 78.5
10 — — — — — — — — — — 162.8 84.3



SLD 350-100 (R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 47.4 40.6 44.0 50.5 — — — — — — — —
-40 79.8 40.9 76.3 51.9 67.9 59.3 60.4 69.4 53.8 78.0 50.4 85.0
-35 100.1 42.3 96.0 53.1 87.9 61.7 79.5 72.0 71.0 80.9 76.3 87.8
-30 123.2 44.0 118.6 54.5 109.4 63.6 104.5 73.3 91.6 82.3 97.2 89.5
-25 149.5 46.3 144.3 56.4 137.1 67.4 128.2 76.4 120.9 83.7 120.9 92.3
-20 179.3 48.8 173.5 58.7 165.4 71.1 157.9 77.5 145.9 84.6 147.8 93.6
10 — — — — — — — — — — 212.8 95.2



SLD 570-175(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 58.8 57.9 51.4 72.8 — — — — — — — —
-40 105.0 61.0 94.3 73.3 78.3 83.3 67.0 89.8 57.1 97.7 51.0 102.3
-35 134.9 64.7 121.8 77.0 104.1 88.5 90.9 96.2 77.8 104.3 80.3 109.1
-30 170.9 68.8 155.0 81.1 133.3 93.3 123.0 100.4 103.8 108.8 105.5 114.9
-25 212.9 74.3 193.7 86.1 172.7 101.5 155.9 107.2 141.4 114.0 135.9 121.7
-20 261.9 80.6 239.5 91.6 214.3 108.1 197.4 111.7 175.6 118.2 171.3 126.7
10 — — — — — — — — — — 262.8 136.1



SLD 570-175(R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 76.6 65.6 71.0 81.5 — — — — — — — —
-40 128.8 66.1 123.2 83.8 109.6 95.7 97.6 112.1 86.9 125.9 81.4 137.3
-35 161.5 68.3 155.0 85.6 141.9 99.6 128.4 116.2 114.7 130.6 123.2 141.7
-30 198.9 71.1 191.4 87.9 176.6 102.7 168.7 118.4 147.8 132.8 156.9 144.4
-25 241.4 74.7 233.0 91.1 221.3 108.8 207.0 123.4 195.2 135.2 195.1 149.0
-20 289.4 78.8 280.1 94.8 267.0 114.8 254.8 125.2 235.5 136.6 238.6 151.1
10 — — — — — — — — — — 343.6 153.6



SLD 370 -110(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 37.7 37.1 32.9 46.6 — — — — — — — —
-40 67.3 39.1 60.4 47.0 50.2 53.4 42.9 57.5 36.6 62.6 32.7 65.6
-35 86.4 41.4 78.1 49.3 66.7 56.7 58.2 61.6 49.9 66.8 51.4 69.9
-30 109.5 44.1 99.3 52.0 85.4 59.8 78.8 64.3 66.5 69.7 67.6 73.6
-25 136.4 47.6 124.1 55.2 110.7 65.1 99.9 68.7 90.6 73.0 87.0 78.0
-20 167.8 51.7 153.4 58.7 137.3 69.2 126.5 71.6 112.5 75.7 109.8 81.2
10 — — — — — — — — — — 168.4 87.2



SLD 370 -110(R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 49.1 42.0 45.5 52.2 — — — — — — — —
-40 82.6 42.3 79.0 53.7 70.2 61.3 62.5 71.8 55.7 80.7 52.1 87.9
-35 103.5 43.8 99.3 54.9 90.9 63.8 82.2 74.5 73.5 83.7 79.0 90.8
-30 127.4 45.5 122.6 56.3 113.1 65.8 108.1 75.9 94.7 85.1 100.5 92.5
-25 154.6 47.9 149.3 58.4 141.8 69.7 132.6 79.1 125.1 86.6 125.0 95.5
-20 185.4 50.5 179.5 60.7 171.1 73.6 163.3 80.2 150.9 87.5 152.8 96.8
10 — — — — — — — — — — 220.1 98.4



SLD 640-190(R22)
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 66.6 65.6 58.2 82.4 — — — — — — — —
-40 119.0 69.2 106.8 83.1 88.7 94.4 75.9 101.7 64.7 110.6 57.8 115.9
-35 152.8 73.3 138.0 87.2 117.9 100.2 102.9 109.0 88.1 118.1 91.0 123.6
-30 193.5 77.9 175.6 91.9 151.0 105.7 139.3 113.7 117.6 123.2 119.5 130.2
-25 241.1 84.1 219.5 97.5 195.7 115.0 176.6 121.4 160.2 129.1 153.9 137.9
-20 296.7 91.3 271.3 103.7 242.7 122.4 223.6 126.5 198.9 133.9 194.1 143.5
10 — — — — — — — — — — 297.7 154.1



SLD 640-190(R22) with ECO
Tc 20 30 40 45 50 55
Te Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa Qo Pa
-50 86.7 74.3 80.4 92.4 — — — — — — — —
-40 146.0 74.8 139.6 95.0 124.2 108.4 110.5 127.0 98.4 142.6 92.2 155.5
-35 183.0 77.4 175.6 97.0 160.7 112.8 145.4 131.7 129.9 147.9 139.6 160.5
-30 225.3 80.5 216.8 99.6 200.0 116.3 191.1 134.1 167.4 150.5 177.7 163.6
-25 273.4 84.6 263.9 103.2 250.7 123.2 234.5 139.8 221.1 153.1 221.0 168.8
-20 327.9 89.3 317.3 107.3 302.5 130.0 288.6 141.8 266.8 154.8 270.2 171.2
10 — — — — — — — — — — 389.2 174.0





R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 2R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 3R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 4R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 5R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 6R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 7R22 Refrigerant Screw Cold Storage Compressor 45mm Discharge Line 8

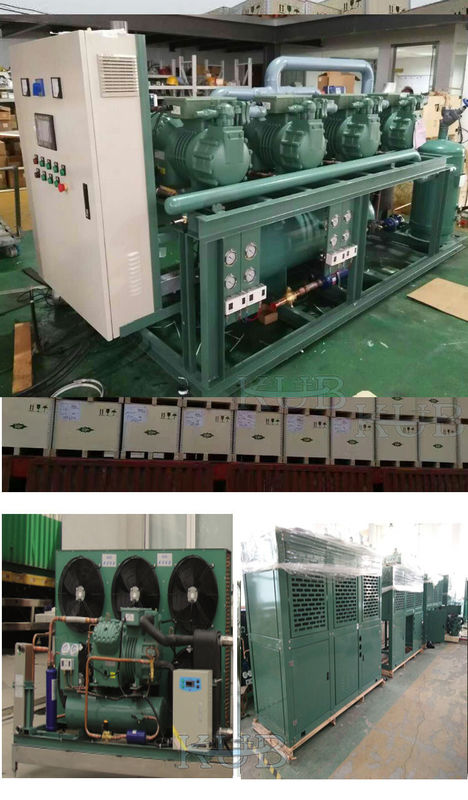

Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

_09

_15

A. Individuation & Customization

Refrigeration industry, cold storage engineering;

Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period.

If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.

_11



Q1: Are you a manufacturer or trading company?

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.



Q2: What about the shipping methods?

A2: By express/By air/By sea.



Q3: What about the payment methods &payment terms

A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.



Q4: What's your delivery time?Where is the loading port?

A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.



Q5:Can I have a sample first ?

A5:You have to pay sample cost.



Q6: How do you ship the goods and how long does it take arrive?

A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.

The delivery time is according to the way of shipping.

_17

Tags:

screw type compressor

cool room refrigeration compressor

refrigeration compressor for cold room
