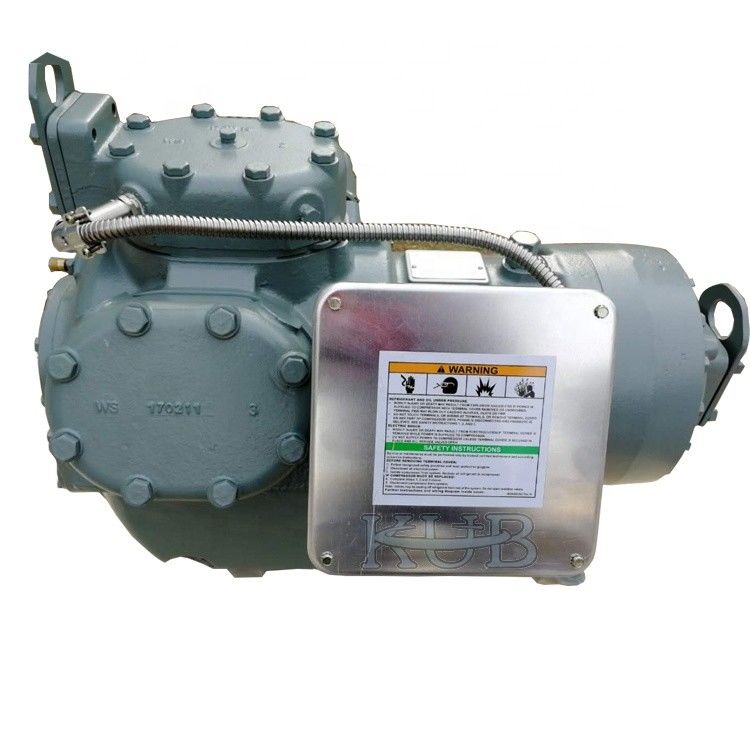

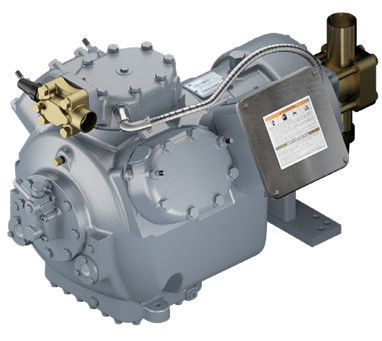

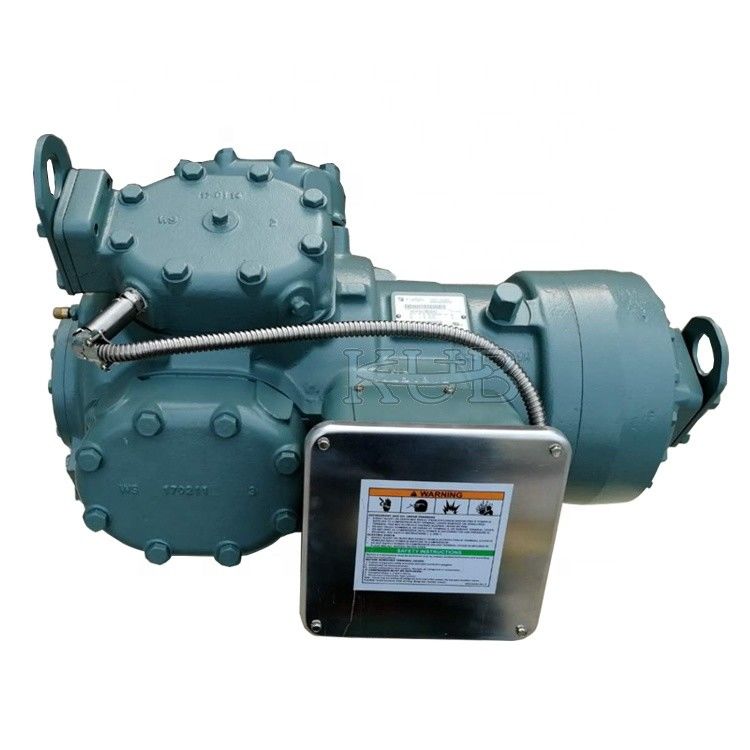

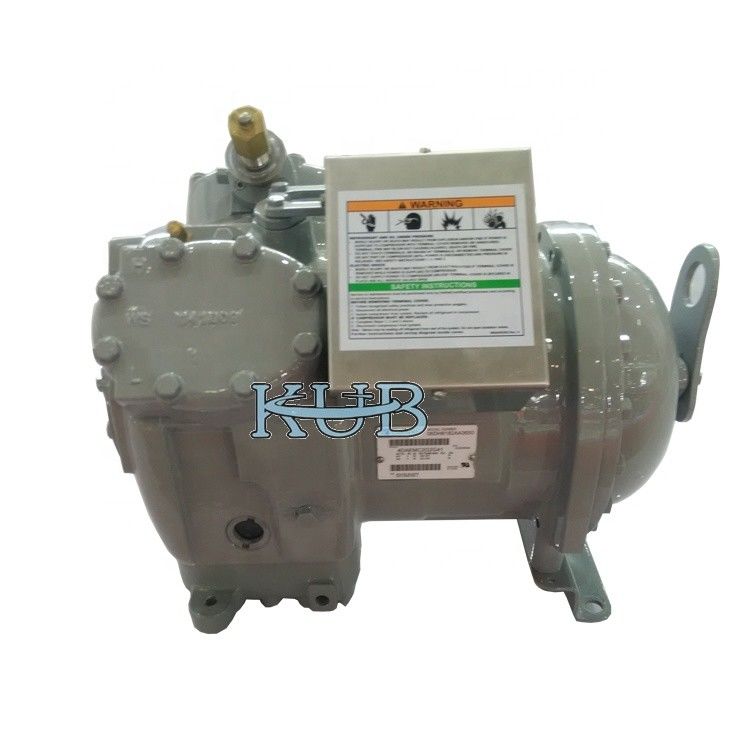

380v Power Supply Reciprocating Compressor R134a 15HP

Place of Origin Shanghai, China
Brand Name Carlyle
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Refrigerant R134A Power Supply 220V380V460V575V-3PH/50HZ/60HZ
Nominal HP Describe Quality Assurance A Year
High Light

380v Power Supply Reciprocating Compressor

,

Reciprocating Compressor R134a

,

15HP Reciprocating Compressor

Leave a Message
Product Description

06EM450 R134a Refrigerant

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06EM450 15 50.3 4 2 1/8 1 1/8 430 14



Available Voltages
208/230-3-60
460-3-60
575-3-60
208/230/460-3-60



380v Power Supply Reciprocating Compressor R134a 15HP 0



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25 30 35 40 45 50 55
90 Capacity (Btu/hr) 38972 46799 55615 65518 76605 88971 102715 117932 134720 153176 173397 195479 219519 245615
Power (kW) 5.79 6.31 6.84 7.35 7.85 8.33 8.78 9.19 9.56 9.87 10.12 10.31 10.42 10.44
EER (BTU/WATT-HR) 6.73 7.41 8.14 8.91 9.76 10.68 11.7 12.83 14.1 15.52 17.13 18.97 21.08 23.53
Current (AMPS) 12.31 13.2 14.06 14.87 15.63 16.34 16.98 17.55 18.04 18.46 18.79 19.03 19.17 19.21
110 Capacity (Btu/hr) 29044 36176 44089 52878 62640 73473 85474 98739 113365 129449 147088 166378 187418 210303
Power (kW) 5.68 6.28 6.9 7.53 8.18 8.82 9.45 10.07 10.66 11.22 11.75 12.22 12.64 13
EER (BTU/WATT-HR) 5.11 5.76 6.39 7.02 7.66 8.33 9.04 9.81 10.63 11.53 12.52 13.61 14.82 16.17
Current (AMPS) 11.76 12.95 14.07 15.14 16.15 17.09 17.95 18.73 19.42 20.02 20.52 20.92 21.21 21.38
130 Capacity (Btu/hr) 19657 25718 32349 39647 47709 56632 66513 77448 89535 102870 117550 133673 151334 170632
Power (kW) 5.06 5.74 6.47 7.24 8.03 8.85 9.67 10.51 11.34 12.16 12.96 13.74 14.49 15.19
EER (BTU/WATT-HR) 3.89 4.48 5 5.48 5.94 6.4 6.88 7.37 7.9 8.46 9.07 9.73 10.44 11.23
Current (AMPS) 10.47 11.95 13.36 14.69 15.96 17.14 18.23 19.23 20.12 20.92 21.6 22.17 22.61 22.93



380v Power Supply Reciprocating Compressor R134a 15HP 1







06EM499   R134a Refrigerant

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06EM499 35 99 6 2 1/8 1 5/8 505 19



Available Voltages
208/230-3-60
460-3-60
575-3-60
208/230/460-3-60



380v Power Supply Reciprocating Compressor R134a 15HP 2



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25 30 35 40 45 50 55
90 Capacity (Btu/hr) 38972 46799 55615 65518 76605 88971 102715 117932 134720 153176 173397 195479 219519 245615
Power (kW) 5.79 6.31 6.84 7.35 7.85 8.33 8.78 9.19 9.56 9.87 10.12 10.31 10.42 10.44
EER (BTU/WATT-HR) 6.73 7.41 8.14 8.91 9.76 10.68 11.7 12.83 14.1 15.52 17.13 18.97 21.08 23.53
Current (AMPS) 12.31 13.2 14.06 14.87 15.63 16.34 16.98 17.55 18.04 18.46 18.79 19.03 19.17 19.21
110 Capacity (Btu/hr) 29044 36176 44089 52878 62640 73473 85474 98739 113365 129449 147088 166378 187418 210303
Power (kW) 5.68 6.28 6.9 7.53 8.18 8.82 9.45 10.07 10.66 11.22 11.75 12.22 12.64 13
EER (BTU/WATT-HR) 5.11 5.76 6.39 7.02 7.66 8.33 9.04 9.81 10.63 11.53 12.52 13.61 14.82 16.17
Current (AMPS) 11.76 12.95 14.07 15.14 16.15 17.09 17.95 18.73 19.42 20.02 20.52 20.92 21.21 21.38
130 Capacity (Btu/hr) 19657 25718 32349 39647 47709 56632 66513 77448 89535 102870 117550 133673 151334 170632
Power (kW) 5.06 5.74 6.47 7.24 8.03 8.85 9.67 10.51 11.34 12.16 12.96 13.74 14.49 15.19
EER (BTU/WATT-HR) 3.89 4.48 5 5.48 5.94 6.4 6.88 7.37 7.9 8.46 9.07 9.73 10.44 11.23
Current (AMPS) 10.47 11.95 13.36 14.69 15.96 17.14 18.23 19.23 20.12 20.92 21.6 22.17 22.61 22.93



380v Power Supply Reciprocating Compressor R134a 15HP 3380v Power Supply Reciprocating Compressor R134a 15HP 4380v Power Supply Reciprocating Compressor R134a 15HP 5380v Power Supply Reciprocating Compressor R134a 15HP 6380v Power Supply Reciprocating Compressor R134a 15HP 7380v Power Supply Reciprocating Compressor R134a 15HP 8380v Power Supply Reciprocating Compressor R134a 15HP 9
