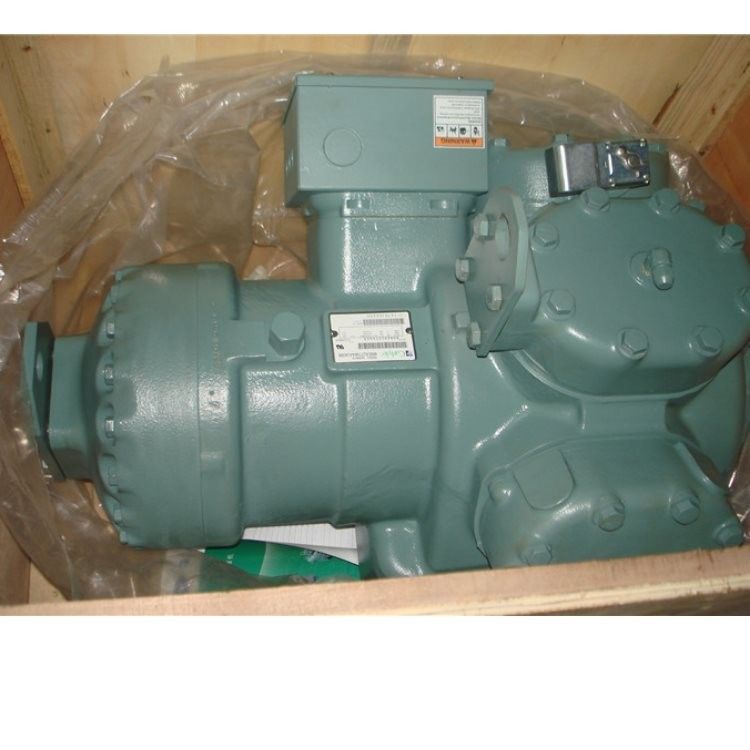

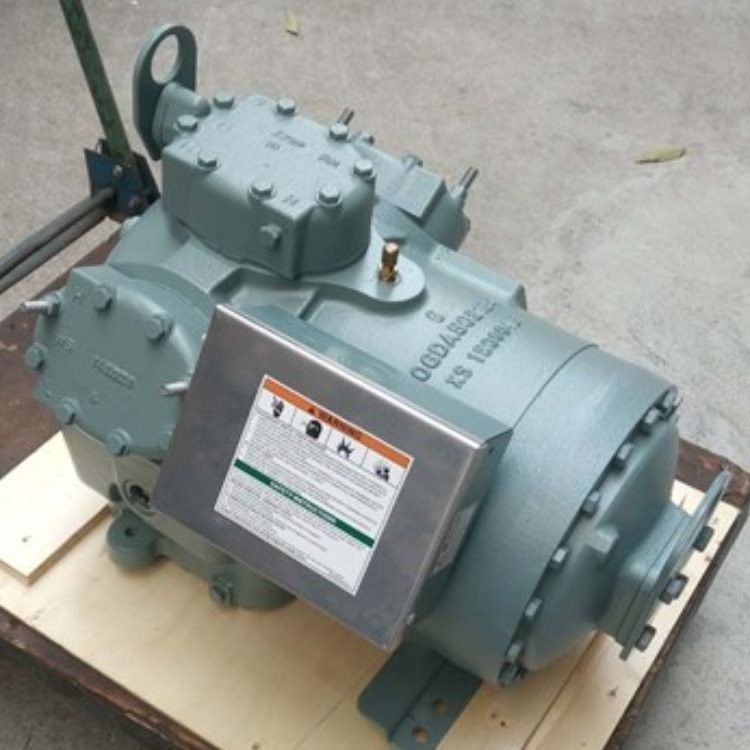

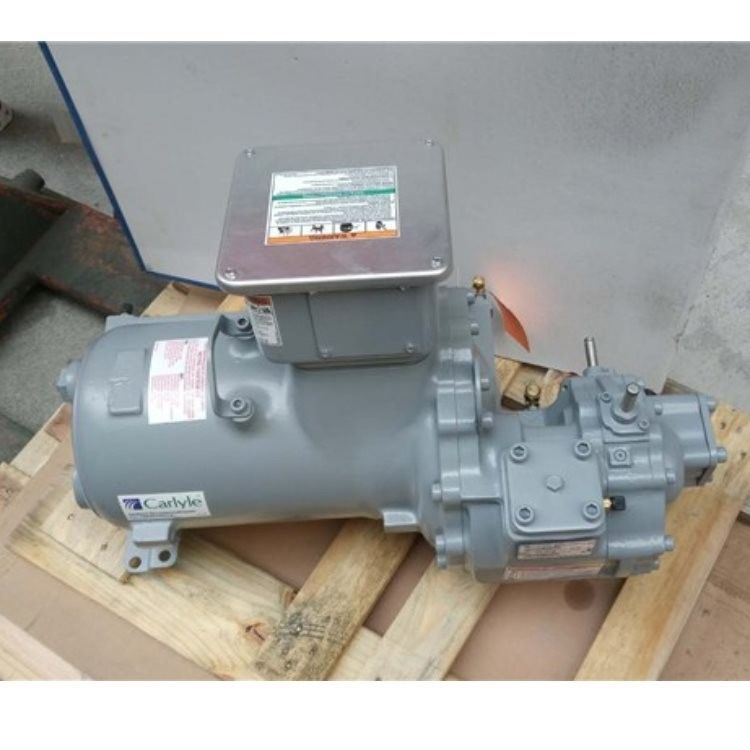

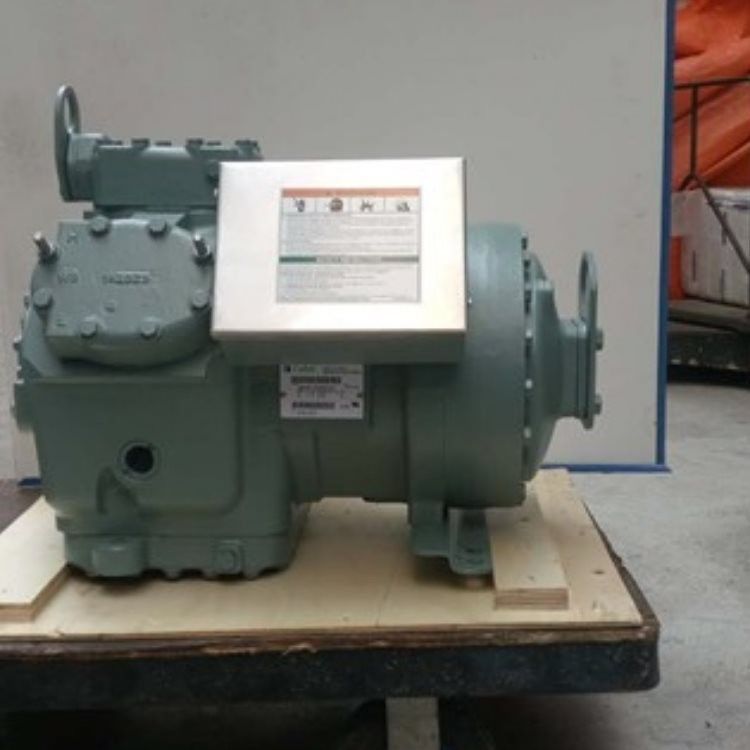

220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge

  • 220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge
  • 220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge
  • 220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge
  • 220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge
  • 220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge
Place of Origin Shanghai, China
Brand Name Carlyle
Certification CE
Model Number Describe
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Refrigerant R404A Power Supply 220V380V460V575V-3PH/50HZ/60HZ
Nominal HP Describe Quality Assurance A Year
High Light

R404A Cold Storage Compressor

,

5HP Cold Storage Compressor

,

5/8 Inch Discharge Cold Storage Compressor
Leave a Message
Product Description

06DR03136   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR316 5 15.9 4 1 1/8 5/8 235 4 1/2



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 0



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25
90 Capacity (Btu/hr) 31813 36341 41270 46619 52407 58656 65384 72611
Power (kW) 4 4.21 4.41 4.61 4.78 4.95 5.1 5.23
EER (BTU/WATT-HR) 7.96 8.63 9.35 10.12 10.96 11.86 12.83 13.88
Current (AMPS) 6.39 6.64 6.86 7.07 7.25 7.41 7.54 7.65
110 Capacity (Btu/hr) 26084 30002 34276 38925 43969 49428 55320 61668
Power (kW) 4.4 4.68 4.96 5.23 5.48 5.72 5.95 6.16
EER (BTU/WATT-HR) 5.93 6.4 6.91 7.45 8.02 8.64 9.3 10.02
Current (AMPS) 6.86 7.18 7.49 7.77 8.03 8.27 8.48 8.66
130 Capacity (Btu/hr) 19953 23206 26767 30656 34894 39498 44490 49889
Power (kW) 4.69 5.06 5.42 5.77 6.11 6.43 6.74 7.04
EER (BTU/WATT-HR) 4.26 4.59 4.94 5.31 5.71 6.14 6.6 7.09
Current (AMPS) 7.19 7.6 8 8.37 8.72 9.04 9.33 9.6





06DR820   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR820 6.5 20 4 1 3/8 7/8 260 5 1/2



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 1



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25 30 35
90 Capacity (Btu/hr) 42781 48728 55194 61996 69658 77968 86974 96722 107261 118638
Power (kW) 5.24 5.52 5.79 6.08 6.28 6.46 6.61 6.73 6.83 6.91
EER (BTU/WATT-HR) 8.16 8.82 9.54 10.2 11.09 12.07 13.16 14.37 15.7 17.17
Current (AMPS) 8.47 8.78 9.09 9.5 9.73 9.94 10.14 10.3 10.41 10.46
110 Capacity (Btu/hr) 35383 40544 46168 52151 58790 65960 73709 82084 91133 100903
Power (kW) 5.75 6.13 6.49 6.89 7.22 7.52 7.8 8.04 8.26 8.46
EER (BTU/WATT-HR) 6.15 6.62 7.12 7.57 8.14 8.77 9.45 10.2 11.03 11.93
Current (AMPS) 9.03 9.46 9.9 10.4 10.76 11.12 11.48 11.81 12.11 12.36
130 Capacity (Btu/hr) 27398 31694 36392 41215 46669 52536 58861 65692 73077 81063
Power (kW) 6.11 6.58 7.04 7.47 7.95 8.41 8.84 9.23 9.6 9.94
EER (BTU/WATT-HR) 4.49 4.82 5.17 5.52 5.87 6.25 6.66 7.11 7.61 8.16
Current (AMPS) 9.45 10.01 10.58 11.09 11.64 12.2 12.77 13.33 13.87 14.37



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 2







06DR071235 R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR725 6.5 23.9 6 1 3/8 7/8 310 8



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 1



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25
90 Capacity (Btu/hr) 47056 53796 61116 70355 79696 89905 101045 113177
Power (kW) 5.93 6.31 6.68 7.05 7.32 7.57 7.79 7.97
EER (BTU/WATT-HR) 7.94 8.53 9.15 9.98 10.88 11.87 12.97 14.19
Current (AMPS) 9.2 9.64 10.09 11.4 11.81 12.14 12.42 12.63
110 Capacity (Btu/hr) 38397 44261 50643 57819 65728 74347 83738 93963
Power (kW) 6.33 6.81 7.29 7.84 8.29 8.7 9.08 9.41
EER (BTU/WATT-HR) 6.07 6.5 6.95 7.38 7.93 8.54 9.22 9.98
Current (AMPS) 9.66 10.24 10.83 12.43 13.02 13.51 13.93 14.27
130 Capacity (Btu/hr) 29132 34026 39371 44629 50977 57874 65381 73560
Power (kW) 6.53 7.13 7.72 8.25 8.91 9.53 10.11 10.63
EER (BTU/WATT-HR) 4.46 4.77 5.1 5.41 5.72 6.07 6.47 6.92
Current (AMPS) 9.92 10.64 11.39 12.98 13.69 14.31 14.82 15.26





06DR228 R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR228 7.5 28 6 1 5/8 7/8 315 8



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 4



Tabular Data Summary
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25 30
90 Capacity (Btu/hr) 58164 65789 74010 85607 96399 108150 120932 134818 149878
Power (kW) 7.2 7.54 7.83 8.62 8.93 9.21 9.45 9.65 9.81
EER (BTU/WATT-HR) 8.07 8.73 9.46 9.93 10.79 11.75 12.8 13.97 15.28
Current (AMPS) 12.42 12.83 13.18 13.61 14.1 14.61 15.11 15.56 15.93
110 Capacity (Btu/hr) 48876 55680 63005 71637 80883 90910 101789 113592 126391
Power (kW) 7.97 8.49 8.96 9.65 10.16 10.63 11.06 11.44 11.79
EER (BTU/WATT-HR) 6.13 6.56 7.03 7.42 7.96 8.56 9.21 9.93 10.72
Current (AMPS) 13.37 13.96 14.49 15.65 16.73 17.87 19.05 20.22 21.34
130 Capacity (Btu/hr) 38215 44084 50399 56420 63940 72058 80845 90372 100712
Power (kW) 8.41 9.12 9.8 10.32 11.06 11.75 12.4 13.01 13.57
EER (BTU/WATT-HR) 4.54 4.83 5.14 5.47 5.78 6.13 6.52 6.95 7.42
Current (AMPS) 13.87 14.67 15.4 17.06 19.15 21.34 23.6 25.89 28.19



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 5





06DR337   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR337 10 37.1 6 1 5/8 1 1/8 325 8



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 6



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25
90 Capacity (Btu/hr) 77514 87951 99448 113438 127721 143270 160182 178554
Power (kW) 9.85 10.47 11.07 11.42 11.83 12.2 12.52 12.78
EER (BTU/WATT-HR) 7.87 8.4 8.98 9.93 10.79 11.74 12.8 13.97
Current (AMPS) 14.55 15.33 16.14 17.03 17.76 18.41 18.97 19.44
110 Capacity (Btu/hr) 63193 71823 81363 94900 107100 120361 134779 150451
Power (kW) 10.71 11.47 12.24 12.79 13.46 14.08 14.65 15.16
EER (BTU/WATT-HR) 5.9 6.26 6.65 7.42 7.96 8.55 9.2 9.92
Current (AMPS) 15.64 16.65 17.73 18.41 19.43 20.41 21.32 22.16
130 Capacity (Btu/hr) 49029 55833 63393 74787 84733 95527 107267 120049
Power (kW) 11.38 12.28 13.19 13.68 14.65 15.57 16.42 17.22
EER (BTU/WATT-HR) 4.31 4.55 4.81 5.47 5.78 6.14 6.53 6.97
Current (AMPS) 16.54 17.78 19.11 19.4 20.65 21.88 23.08 24.24



06DR541   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DR541 15 41 6 1 5/8 1 1/8 325 8



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 7



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) -10 -5 0 5 10 15 20 25 30
90 Capacity (Btu/hr) 86072 97732 110583 124705 140175 157071 175471 195454 217097
Power (kW) 11.13 11.75 12.35 12.94 13.51 14.06 14.57 15.05 15.48
EER (BTU/WATT-HR) 7.74 8.32 8.95 9.63 10.37 11.17 12.04 12.99 14.02
Current (AMPS) 17.9 18.49 19.05 19.6 20.14 20.65 21.14 21.61 22.06
110 Capacity (Btu/hr) 70070 79724 90368 102080 114938 129021 144407 161174 179399
Power (kW) 12.07 12.84 13.61 14.38 15.14 15.88 16.61 17.3 17.97
EER (BTU/WATT-HR) 5.81 6.21 6.64 7.1 7.59 8.12 8.7 9.31 9.98
Current (AMPS) 18.79 19.51 20.23 20.95 21.67 22.38 23.09 23.78 24.47
130 Capacity (Btu/hr) 54141 61708 70058 79269 89419 100586 112847 126280 140963
Power (kW) 12.82 13.74 14.67 15.6 16.54 17.47 18.4 19.31 20.21
EER (BTU/WATT-HR) 4.22 4.49 4.78 5.08 5.41 5.76 6.13 6.54 6.98
Current (AMPS) 19.49 20.36 21.24 22.13 23.03 23.94 24.85 25.78 26.71



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 8







06DM808   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DM808 3 8 2 7/8 5/8 160 3



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 9



Tabular Data Summary - Fixed RGT=65°FSubcooling= 0°F Voltago:460-3-60Hz
Saturated condensing
Temperature (F)		 5 10 15 20 25 30 35 40 45 50
90 Capacity (Btu/hr) 21727 24869 28315 32088 36208 40699 45581 50877 56610 62800
Power (kW) 2.48 2.59 2.68 2.75 2.82 2.88 2.93 2.96 2.99 3.01
EER (BTU/WATT-HR) 8.74 9.62 10.59 11.65 12.83 14.14 15.58 17.17 18.93 20.87
Current (AMPS) 5.61 5.86 6.09 6.29 6.46 6.6 6.71 6.78 6.82 6.82
110 Capacity (Btu/hr) 17244 19875 22754 25903 29344 33098 37189 41637 46466 51696
Power (kW) 2.64 2.79 2.93 3.06 3.18 3.3 3.4 3.49 3.58 3.66
EER (BTU/WATT-HR) 6.54 7.13 7.76 8.46 9.22 10.04 10.94 11.92 12.98 14.14
Current (AMPS) 5.99 6.36 6.71 7.03 7.31 7.56 7.78 7.95 8.09 8.18
130 Capacity (Btu/hr) 12716 14802 17078 19566 22289 25267 28524 32080 35959 40180
Power (kW) 2.66 2.87 3.07 3.26 3.44 3.62 3.78 3.94 4.09 4.23
EER (BTU/WATT-HR) 4.78 5.16 5.56 6 6.47 6.99 7.55 8.15 8.8 9.5
Current (AMPS) 6.07 6.57 7.03 7.46 7.86 8.22 8.54 8.82 9.05 9.24





06DM313   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DM313 5 13 4 7/8 5/8 235 4 1/2



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 10



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) 5 10 15 20 25 30 35 40 45 50
90 Capacity (Btu/hr) 33740 38970 44659 50841 57548 64814 72671 81152 90290 100118
Power (kW) 3.36 3.54 3.7 3.85 3.99 4.12 4.23 4.32 4.41 4.49
EER (BTU/WATT-HR) 10.03 11.01 12.05 13.19 14.42 15.75 17.2 18.77 20.47 22.32
Current (AMPS) 5.37 5.57 5.76 5.94 6.11 6.27 6.42 6.56 6.69 6.82
110 Capacity (Btu/hr) 25668 30154 35017 40291 46008 52201 58904 66149 73970 82399
Power (kW) 3.57 3.84 4.08 4.31 4.53 4.73 4.91 5.08 5.24 5.38
EER (BTU/WATT-HR) 7.18 7.86 8.58 9.34 10.16 11.04 11.99 13.02 14.13 15.33
Current (AMPS) 5.61 5.92 6.22 6.52 6.82 7.12 7.41 7.71 8 8.29
130 Capacity (Btu/hr) 17435 21076 25012 29273 33893 38905 44342 50236 56620 63527
Power (kW) 3.56 3.93 4.28 4.61 4.92 5.21 5.49 5.75 5.99 6.21
EER (BTU/WATT-HR) 4.89 5.36 5.85 6.35 6.89 7.46 8.08 8.74 9.45 10.22
Current (AMPS) 5.59 6.05 6.51 6.98 7.45 7.93 8.41 8.9 9.4 9.9







06DRM316   R404A/R507 Refrigerants

Physical Data
Model Nominal HP Displ. CFM No. of Cylinders Suction Line Size (in) Discharge Line Size (in) Shipping Weight (lbs) Oil Charge (pints)
06DM316 5 15.9 4 1 1/8 5/8 235 4 1/2



Available Voltages
208/230-3-60
460-3-60
575-3-60



220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 11



Tabular Data Summary – Fixed RGT = 65°F Subcooling = 0°F Voltage: 460-3-60Hz
Saturated Condensing Temperature (F) 5 10 15 20 25
90 Capacity (Btu/hr) 43564 50217 57564 65662 74568
Power (kW) 4.58 4.78 4.95 5.1 5.23
EER (BTU/WATT-HR) 9.51 10.51 11.62 12.86 14.26
Current (AMPS) 6.91 7.16 7.39 7.58 7.75
110 Capacity (Btu/hr) 33855 39329 45353 51982 59272
Power (kW) 4.89 5.21 5.5 5.75 5.98
EER (BTU/WATT-HR) 6.93 7.56 8.25 9.03 9.91
Current (AMPS) 7.35 7.76 8.14 8.51 8.85
130 Capacity (Btu/hr) 24418 28694 33372 38505 44152
Power (kW) 4.88 5.33 5.75 6.13 6.46
EER (BTU/WATT-HR) 5 5.38 5.81 6.29 6.83
Current (AMPS) 7.26 7.89 8.51 9.11 9.69





220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 12220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 13220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 14220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 15220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 16220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 17220V 5HP R404A Cold Storage Compressor 5/8 Inch Discharge 18











Tags:

screw type compressor

cool room refrigeration compressor

refrigeration compressor for cold room
