KUB800 Water Cooled Condensing Units 8HP Display Chiller

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number KUB800
Minimum Order Quantity 1
Packaging Details Pallet packaging
Delivery Time 7
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Condition New After Warranty Service Online Support
Showroom Location None Machinery Test Report Provided
Warranty Of Core Components 1 Year Type Chiller
Brand Name KUB Warranty 1 Year
Product Name Air Cooled Chiller Compressor Cold Room Compressor
Voltage 380V/3Ph/50Hz Key Words Chiller
Original Shanghai.China Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Local Service Location None Video Outgoing-inspection Provided
Marketing Type Ordinary Product Core Components Compressor
Place Of Origin Shanghai, China After-sales Service Provided Online Support
Refrigerant R22/R404A Application Industrial Chiller
Brand KUB Packing Wooden Case
Condenser Type Air Cooler Condenser
High Light

KUB800 Water Cooled Condensing Units

,

Water Cooled Condensing Units 8HP

,

3Ph Water Cooled Condensing Units

Leave a Message
Product Description
Supply Ability
Supply Ability
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details

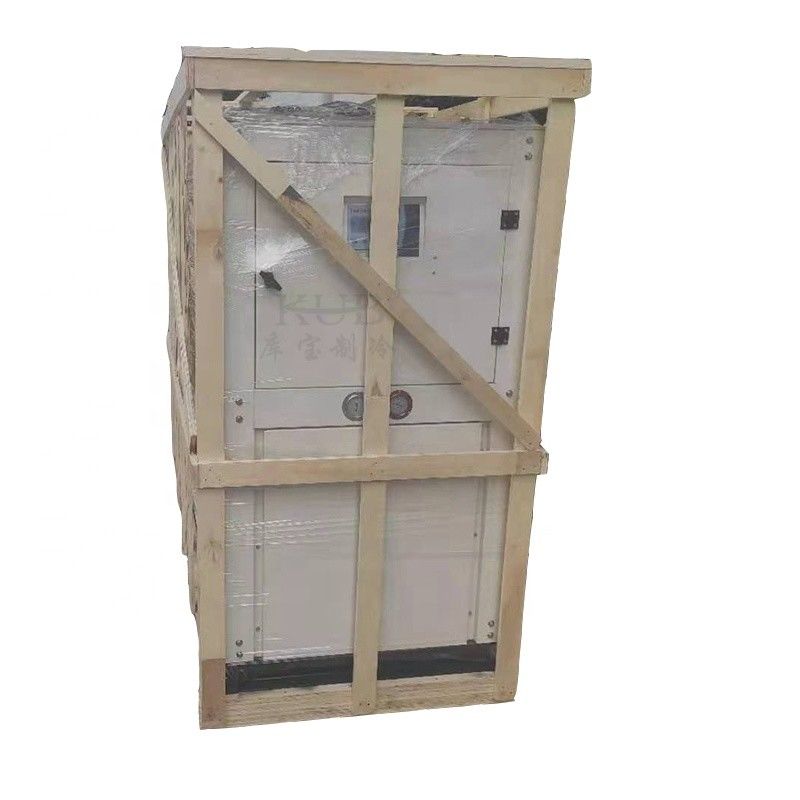

The wooden packaging
Port
Shanghai
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 20 25 To be negotiated

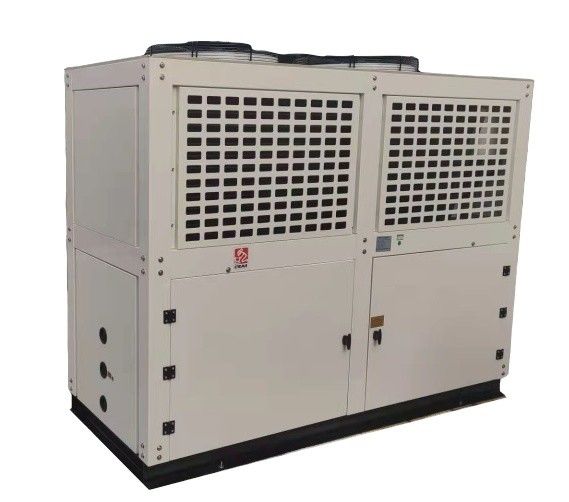

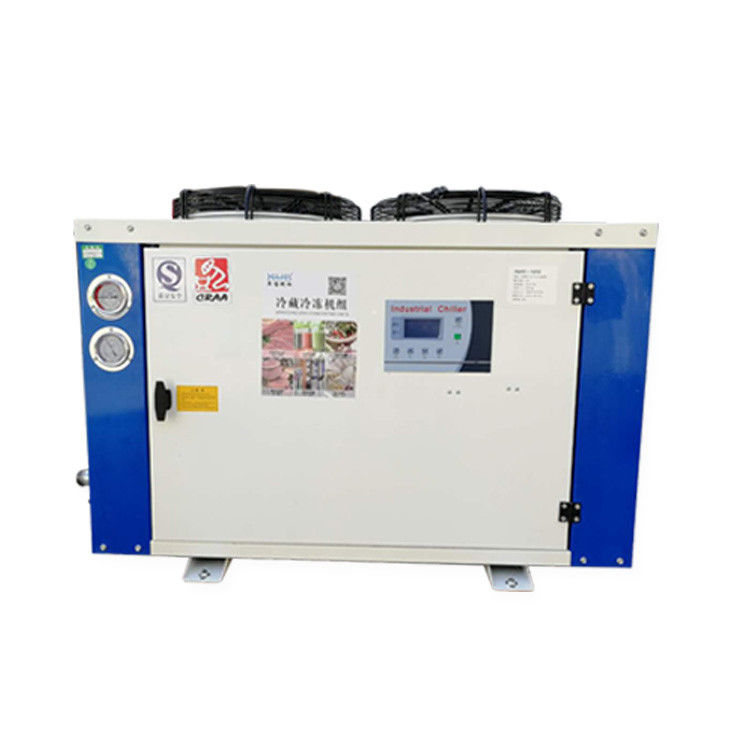

KUB800 Made in China chiller compressors 8HP display chiller price

Product name Air cooled chiller Horsepower 8HP Original Made in China Brand KUB

KUB800 Water Cooled Condensing Units 8HP Display Chiller 0KUB800 Water Cooled Condensing Units 8HP Display Chiller 1KUB800 Water Cooled Condensing Units 8HP Display Chiller 2KUB800 Water Cooled Condensing Units 8HP Display Chiller 3KUB800 Water Cooled Condensing Units 8HP Display Chiller 4KUB800 Water Cooled Condensing Units 8HP Display Chiller 5KUB800 Water Cooled Condensing Units 8HP Display Chiller 6KUB800 Water Cooled Condensing Units 8HP Display Chiller 7



Specifications

No. Specification Parameter Description   No. Specification Parameter Description
1 Rated input voltage 220-250VAC 50/60HZ 6 Switch Output 5 relays 250VAC 2A
2 Temperature Range -40~100℃ 7 Relay load type

D01:annunciator

D02-D05: contactor or valve

3 Measurement Accuracy 0.1℃@25℃ 8 Switch Input 12 passive signal inputs
4 Working Environment -10℃~60℃,≤85%RH non-condensation 9 Analog Input 1 NTC temperature sensor
5 Storage Environment -20℃~70℃,≤85%RH non-condensation 10 Current Input 4 ways of current (0.3~35A)




Panel Diagram

KUB800 Water Cooled Condensing Units 8HP Display Chiller 8

First Power-on

The controller needs to be configured when powered on for the first time. Please refer to 10.4 Configuration guide for specific operation.



Function Menu

Press the button on the main screen to enter the Function Menu, which includes five items as the table below:

No. Menu Item Funtion Remark
1 User Settings To display user parameters For number of user parameters and their implications, please refer to: 9 User Parameters Table.
2 Unit Status To display the current operating status of the unit Current value is not displayed when current module is not used.
3 History List Allowing the query of the last 10 faults Press for 2s to clear the fault history.
4 Comp run time To display the cumulative operation time of the compressor
5 Version To check the current software version



User Parameters Table



No. Parameter Name Factory Default Setting Range Remark
1 Lock T.set No Yes ~ No

when locked.

No: the set temperature can be modified on the main screen.

2 T.setpoint 12.0℃

[T.setpoint min]

~[ T.setpoint max]

Setting range is limited by the manufacturer parameters [T.setpoint max], [T.setpoint min].

(When the [TEMP Unit] is set “Fahrenheit”, the parameter is not displayed.)

3 T.setpoint 53.6 ℉

[T.setpoint min]

~[ T.setpoint max]

Setting range is limited by the manufacturer parameters [T.setpoint max], [T.setpoint min].

(When the [TEMP Unit] is set “Celsius”, the parameter is not displayed.)

4 TEMP Unit Celsius Celsius;Fahrenheit
5 Contrast 32 20~44 Adjust the LCD contrast
6 On/Off type Local Local / Local + Remote / Remote

Local: the unit can only start and stop locally.

Local + Remote: the start and stop of the unit can be controlled both locally and remotely.

Remote: the unit can only start and stop remotely.

7 Backlight On 0 0~255 minute(s) 0: backlight is not turned off.
8 Language 中文 中文~English Select the display language.
9 Comp Select Two Comp 1#Comp/2#Comp/Two Comp Select the Comp to run. if select one comp the other does not work. The parameter is not listed for the single comp machine.



Electrical Connection Diagram



KUB800 Water Cooled Condensing Units 8HP Display Chiller 9





Installation Dimensions



KUB800 Water Cooled Condensing Units 8HP Display Chiller 10

KUB800 Water Cooled Condensing Units 8HP Display Chiller 11KUB800 Water Cooled Condensing Units 8HP Display Chiller 12KUB800 Water Cooled Condensing Units 8HP Display Chiller 13KUB800 Water Cooled Condensing Units 8HP Display Chiller 14
