KUB Cold Room Insulation Panels Sandwich Panel Corrosion Resistance Long Lifespan

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Model Number PU 100
Minimum Order Quantity 50
Price negotiable
Packaging Details no packaging
Supply Ability 1000 m2 per month
Product Details
Model Number PU Sandwich Panel Density 38-42 Kg/m3
Thickness 0.4,0.426,0.45, 0.5mm Thickness Of Panel 50mm,75mm,100mm,120mm,150mm, 200mm
High Light

cool room sliding doors

,

commercial freezer doors

Leave a Message
Product Description

KUB cold room manufacturers PU sandwich panel for cold room construction Cold Room Insulation Panels



To build a cold room, and still have some questions as follows:

1. Store for fish, fruit, vegetable,..., but do not know the cold room size.

2. Want to see the design and graphic model of cold room.

3. Don't know how to choose the condensing unit and unit cooler.

4. Don't know how many cargos can be stored in the cold room.

5. How to deliver the goods to my warehouse.

6. .......



USER QUESTIONNAIRE
In order to better provide accurate quotation for you,
please reply to the following questions as much as possible


SN Basic Questions Your answers
1 What's kind of products is gonna store? Meat,vegetables,soft drinks,fruits or other goods
2 The outside size Length *Wideth*Height of your cold room/freezer room.
3 Required temperature inside the room? XX ° C ~ XX ° C
4 How many hours do you expect to pull down temperature?
5 Condenser type, air cooled, water cooled or evaporative condenser?
6 Voltage & Phases & Frequency. The same with China 380V-400V/3/50hz ? 420V-440V 3/60hz
7 What kind of refrigerant ? Freon R22,R404a,R134a or other refrigerant?
8 What's the input temperature of products?
9 Purpose(quick-freezing/Precooling/Storage/Fresh-keeping) storage
10 Project location
11 The thickness of cold storage board ? 75mm,100mm ,120mm ,150mm ,200mm
12 The thickness of the galvanized steel ?0.326mm,0.426mm,0.476mm,0,525mm
13 Door(s) – hinged door, sliding door,single door,double door? Quantity ?
14 Will personnel be working inside the cold room?
15 Will the fork-lift truck get in and out of the room?
16 The room have pillars? Quantity ?
17 What’s the ambient temperature (℃)



Application:

Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical, Flowers,Electronics



Thickness of cold storage panel Application temperature
50mm Temperature 5°C or above
75mm Temperature -5°C or above
100mm Temperature -5'C~-25°C or above
150mm Temperature -18'C~-45°C or above
200mm

Temperature -55°C or above





Features of cold room ( cold storage, freezer room,cooling room ) :



(1) Temperature for chicken and fish: -18ºC for storage, -30ºC for quick freezing

Temperature for vegetable and fruit:0- 5ºC



(2) Size: We can make the cold room by your requirements.

Volume Classification Table:
Classification of cold room Small Middle Large
Volume Range <500m3 500~10000m3 >10000m3



(3)excellent quality ,dependable performance, energy saving design and environmental.

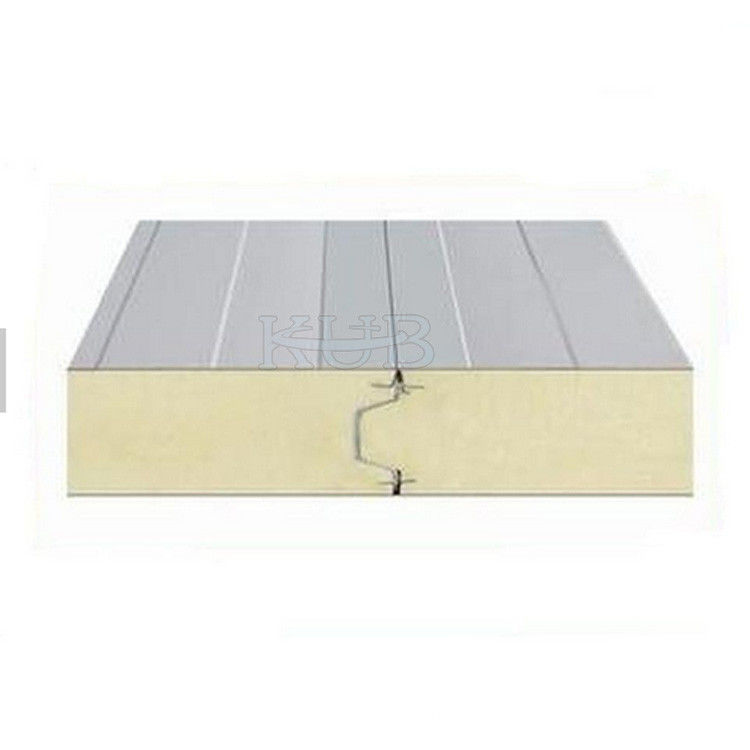

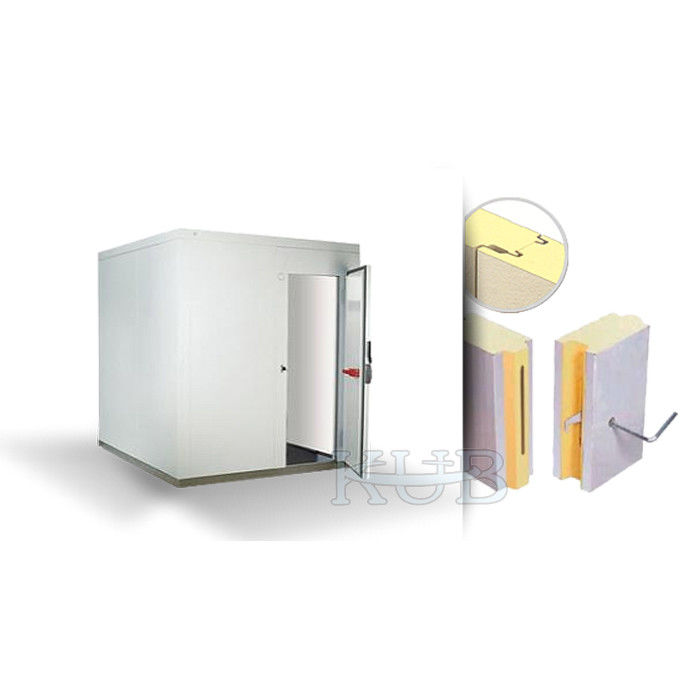

KUB Cold Room Insulation Panels  Sandwich Panel Corrosion Resistance Long Lifespan 0

prodcut-image

-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.





Hermetic FNV Type R407C 48KW Air Cooled Condenser 2



Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
