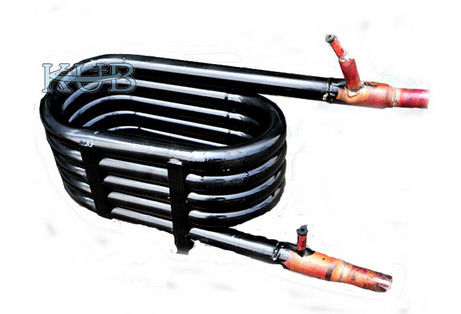

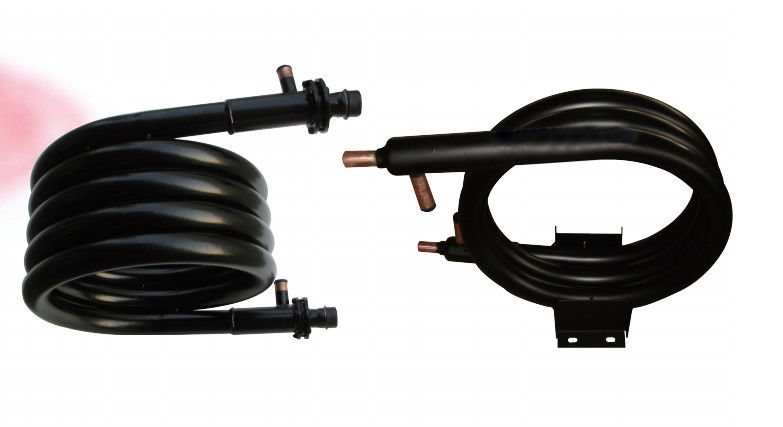

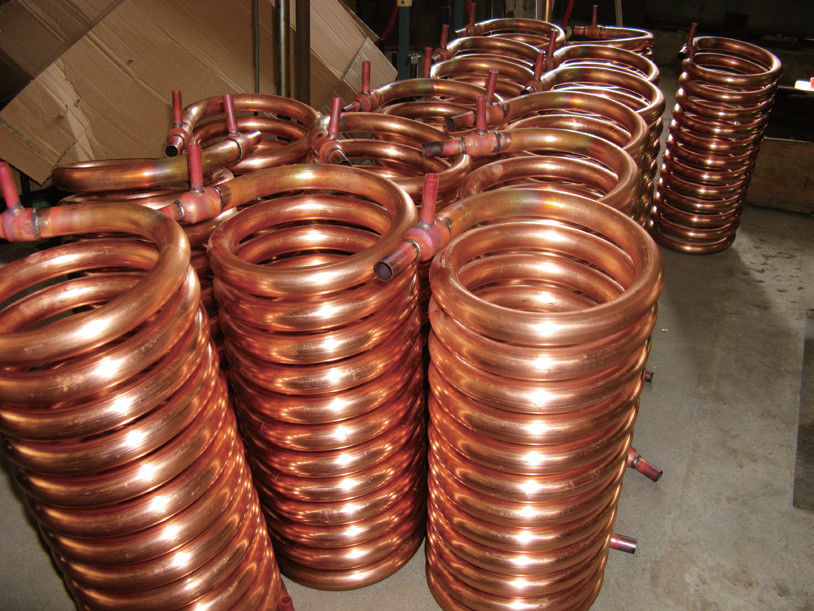

Ice machine, oil cooling copper tube aluminum fin condenser coil the inner tube of the double-pipe heat exchanger

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number TY1222-TY2386
Minimum Order Quantity 65 Piece/Pieces
Price negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Type Condenser Application Heater Parts
Name Copper Tube Aluminum Fin Condenser Coil Product Condenser Coil
High Light

plate shell heat exchanger


high efficiency heat exchanger

Leave a Message
Product Description
Coil Condenser
casing selection parameters (Pipe thread)
Model Heat transfer area Condensation Water flow m3 Water pressure drop
  m2 heat transfer KW / h Kpa
TY1222 0.14 2.2 0.4 S30
TY1223 0.18 3 0.52 S30
TY2253 0.23 3.8 0.65 S40
TY2254 0.33 5.4 0.93 S40
TY2284 0.38 6.2 1.07 S50
TY2285 0.45 7.5 1.29 S50
TY2334 0.48 8.6 1.49 S60
TY2335 0.57 10.3 1.78 S60
TY2385 0.68 16 2.45 S50
TY2386 0.81 20 2.94 S50
The above paramet ers are established in the casing side inlet temperature: 15 °C, the temperature rise 40 °C,
condensing t emperature: under cyclic heat pump water heater working conditions 60 °C to draw such different
conditions, heat transfer, water pressure drop, also result in changes in the above data for reference only,
subject to change without notice


Product Description
copper tube aluminum fin condenser coil
Because the inner tube of the double-pipe heat exchanger adopts a large-pitch threaded tube, the gap between the tube layers is evenly divided.
The turbulent state of the fluid passing through the tube layer`shell layer increases the Reynolds number Re.
The pipe material improves the heat transfer coefficient K in the heat transfer process, thereby increasing its heat transfer value O, and meeting the energy efficiency of the client group
Claim. In addition, this structure also has the characteristics of not easy to scale, not easy to corrode, and low water quality requirements, so it is widely used
Used in air source heat pumps, water source heat pumps, water-cooled cabinets, modules + heat recovery units, and other areas such as swimming pools,
Ice machine, oil cooling, medical treatment, chemical industry, cryogenic unit, etc.
Main use: Used in freezer, refrigerator.

Good quality and competitive price among the same area.

Powerful production ability, quick delivery!








Use and install

1. Before leaving the factory, it has been strictly inspected for tightness and sealed in the nitrogen circuit with 0.05Mpa nitrogen. Please
Cut the refrigerant connection pipe for air venting and sealing:


2 Ensure the integrity of the main structure of the casing, and take protective measures when making connections of various pipelines.
To avoid damaging the welding quality of the original welding circuit,
3 Please ensure that the bracket of the casing and the body of the equipment are well fastened, and the connecting pipes should be fixed.
And necessary insulation measures
4 In order to fully improve the heat exchange performance of the product and the efficient and safe operation of the whole machine, please select the excellent
High-quality peripheral configuration, and provide good-quality cooling water and refrigerant to ensure effective circulation
5. Applicable to refrigerants such as R 1 2. R22. R407C. R41 OA to record high working pressure water side
4 instrument FS |, nitrogen side 500PSl0

-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3


Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.


B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.


Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
