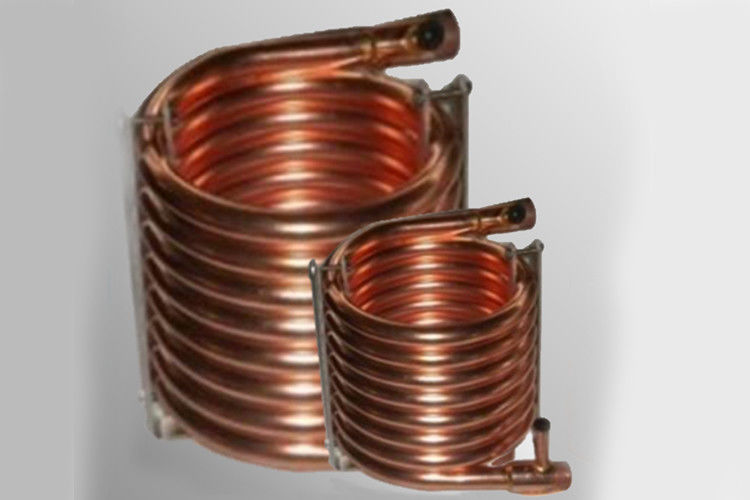

Refrigeration Copper Tube shell and tube water-cooled condenser

Place of Origin: Shanghai, China (Mainland)
Brand Name: KUB
Certification: CE
Model Number: TY1222-TY2386
Minimum Order Quantity: 65 Piece/Pieces
Price: negotiable
Packaging Details: negotiable
Delivery Time: 5-8work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/month
Product Details
Type: Condenser Application: Heater Parts
Name: Shell And Tube Water-cooled Condenser Product: Condenser Coil
High Light:

heat transfer exchanger

,

high efficiency heat exchanger

Leave a Message
Product Description
copper tube aluminum fin condenser coil

Casing selection parameters



Casing selection parameters (High efficiency tube)
Model Area m2 Heat exchange KW Water flow m3/h Water pressure drop Kpa
TY1222TT 0.16 2.6 0.45 ≤20
TY1223TT 0.24 3.9 0.68 ≤20
TY1224TT 0.32 5.3 0.91 ≤30
TY1225TT 0.40 6.6 1.13 ≤50
TY1226TT 0.48 7.9 1.36 ≤60
TY1325TT 0.52 8.6 1.48 ≤30
TY1326TT 0.60 10.0 1.72 ≤30
TY1327TT 0.70 11.6 2.00 ≤40
The above parameters are all obtained under the conditions of the condenser inlet and outlet water temperature: 30 °C / 35 °C, condensing temperature: 40 °C. If the working conditions are different, the heat exchange amount and water pressure drop will also change. The above data is for reference only and subject to change without notice.

Main use: Used in freezer, refrigerator.

Good quality and competitive price among the same area.

Powerful production ability, quick delivery!







Condenser



copper tube aluminum fin condenser coil

1. Before the factory subjected to rigorous testing tightness, and sealed with a fluorine 0.05Mpa nitrogen, please cut refrigerant connecting pipe when assembling the machine, be deflated to detect seal.

2. Ensure the integrity of the casing of the main structure, to make protective measures making every pipe connections to prevent damage to the original way of welding weld quality.

3. Please bushing bracket and body protection equipment to be well fastened, fixed and make the necessary connection pipe insulation measures.

4. To fully enhance the efficient and safe operation of the product and the heat transfer performance of the machine, select high-quality performance peripheral configuration, and provide good quality of cooling water and refrigerant to ensure effective circulation.

5. Suitable for R12, R22, R407C, R410A refrigerant, such as maximum working pressure.

Water side: 400PSI, fluorine side: 500PSI






copper refrigerator freezer condenser coil
copper refrigerator freezer condenser coil

Small Size TY2253 Plate Heat Exchanger Condenser Double Coil Inside Performance Peripheral Configuration



Refrigeration Copper Tube shell and tube water-cooled condenser 6
380V 5hp R404A Semi Hermetic Small Condensing Unit 2





-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle Bitzer, Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
