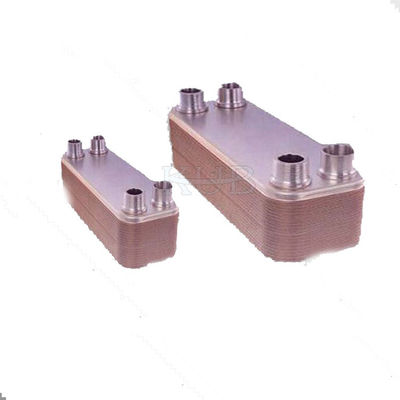

ZL26-40 Air Plate Heat Exchanger , Effective Circulation Plate Shell Heat Exchanger Stainless Steel

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number ZL26-40
Minimum Order Quantity 1
Price negotiable
Packaging Details Plywood
Supply Ability 500 units per month
Product Details
Condition New Structure Plate Heat Exchanger
Liquid Flow Rate 0.2-1.0m/s Weight 5-500KG
Dimension(L*W*H) Customiz Plate Heat Exchanger Warranty One Year
Product Name Plate Heat Exchanger Material Stainless Steel 316L
Specific Use Condenser Evaporator Packing Wooden Box
High Light

heat transfer exchanger

,

plate shell heat exchanger

Leave a Message
Product Description

ZL26-40  design pressure 3 MPa  plate number 40 Material 316L stainless steel plate heat exchanger price list

Production plant, custom production



Brazed Heat Exchangers are specially-designed corrugated brazed plates that are used to increase the heat tranfer coefficient and lower potential fouling. Standard plate arrangement forms two independent circuits running in alternate layers. The two fluids will flow in opposite directions (counter flow) to further enhance the exchange of heat. Brazed heat exchangers are bonded in a vacuum furnace and helium pressure tested to insure leak-free performance. The models we provide can replace the world famous manufacturers.





Product name stainless steel plate heat exchanger
Model ZL26-40
Brand KUB


Model Dimensions mm (L*W*H) Connection size mm kg
    flare soldering
ZL14-14 210*80*70 28 12 1
ZL14-20 210*80*80 28 12 1.5
ZL14-30 210*80*110 28 16 2
ZL14-40 210*80*140 28 16 2.5
ZL26-22 310*120*110 32 32-25 3.5
ZL26-26 310*120*120 32 19-16 4.6
ZL26-34 310*120*130 32 19-16 5.6
ZL26-44 310*120*190 32 22-19 7
ZL50-18 530*120*80 32   5
ZL50-26 530*120*110 32 22-16 7.5
ZL50-34 530*120*140 32   9.5
ZL50-40 530*120*150 42 22-28 11
ZL50-48 530*120*200 42   13.5
ZL50-60 530*120*250 42   17
ZL50-80 530*120*240 42 38-22 22.5
ZL95-40 630*200*160     21
ZL95-60 630*200*250 60 42-25 31
ZL95-80D 630*200*300 60 42-25 41




-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
