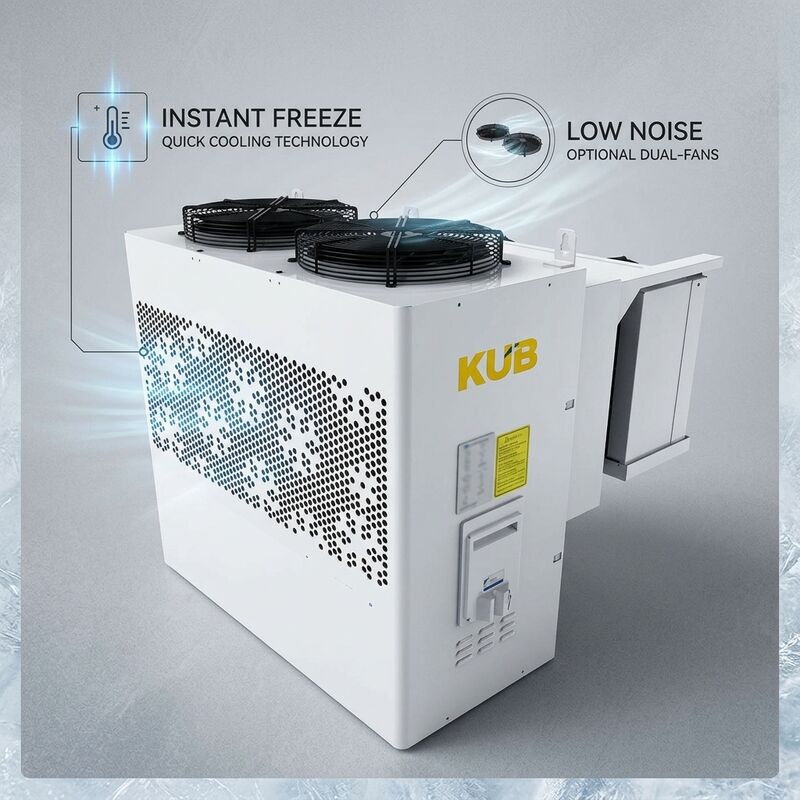

High COP 3.2 Energy Saving Small Condensing Unit 3HP Scroll DC Inverter R404A Variable Speed Cold Room Freezer

High COP 3.2 Energy Saving Small Condensing Unit - 3HP DC Inverter Scroll

Equipped with DC inverter variable speed technology, this high-efficiency condensing unit achieves a COP of 3.2 at standard rating conditions (-10°C/45°C). The scroll compressor speed adjusts continuously from 30Hz to 90Hz based on actual cooling load, reducing power consumption by up to 30% compared to traditional fixed-speed units while maintaining precise temperature control.

Key Features

• COP 3.2 at -10°C/45°C rating condition
• DC inverter scroll compressor with 30Hz - 90Hz variable speed
• Up to 30% energy savings vs. fixed-speed condensing units
• 3HP nominal capacity, 6.8 kW at -10°C/45°C
• Smart PID temperature controller for precise regulation
• Compatible with R404A and R449A refrigerants
• Comprehensive protection: phase loss, overload, high pressure
• 220V 1PH 50Hz power supply with built-in inverter drive

Applications

Cold rooms, freezers, and commercial refrigeration systems where energy efficiency and precise temperature control directly impact operating costs.
