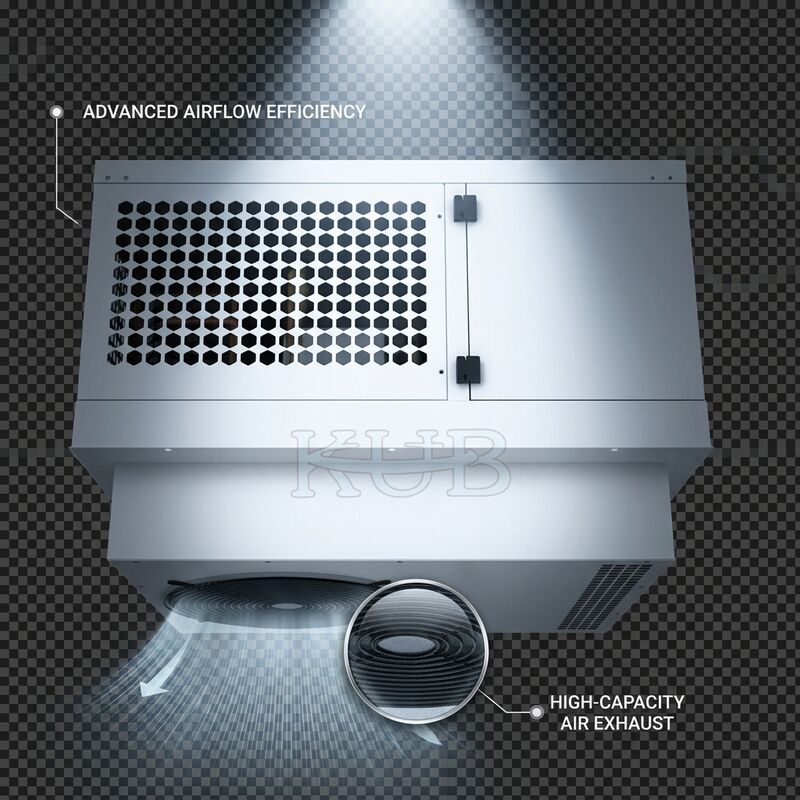

Copper Tube Aluminum Fin Condenser Small Condensing Unit 3HP Hermetic R404A High Heat Exchange Cold Room Freezer

Copper Tube Aluminum Fin Condenser Small Condensing Unit - 3HP High Efficiency

Built with a premium copper tube and aluminum fin condenser featuring inner grooved copper tubes (9.52mm) and hydrophilic coated aluminum fins, this condensing unit achieves superior heat exchange efficiency. The hydrophilic coating on the aluminum fins (1050 grade) provides excellent corrosion resistance in humid environments, extending the condenser service life.

Key Features

• Inner grooved copper tubes (9.52mm) for enhanced refrigerant heat transfer
• Aluminum 1050 fins with hydrophilic coating for corrosion resistance
• 2.1mm fin spacing optimized for efficiency vs. airflow balance
• 3HP hermetic reciprocating compressor, 6.5 kW at -10°C/45°C
• Compatible with R404A and R507 refrigerants
• 400W 1400RPM axial fan motor
• 380V 3PH 50Hz power supply

Applications

Cold rooms, freezers, and commercial refrigeration in humid or coastal environments where condenser corrosion resistance is essential.
