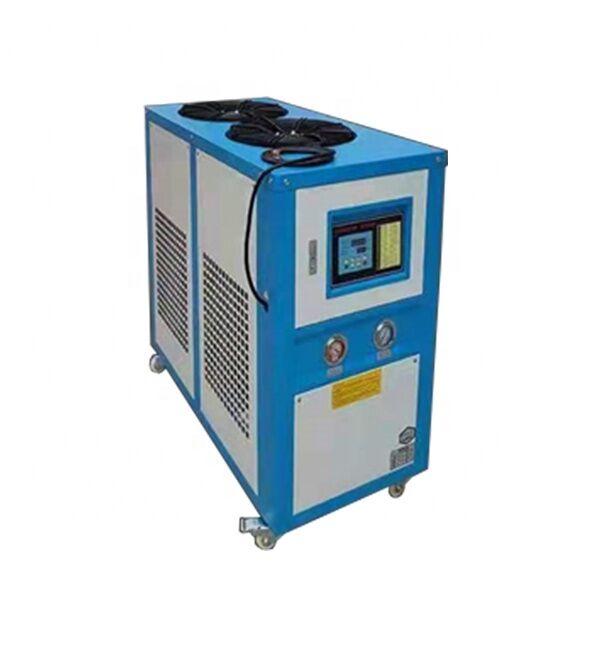

10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling

10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling

10HP Air Cooled Chiller

Scroll Compressor Condensing Unit

R22 Refrigerant Refrigeration Compressor

Place of Origin:

Shanghai, China

Brand Name:

KUB

Contact Us
Request A Quote
Product Details
Video Outgoing-inspection:
Provided
Machinery Test Report:
Not Available
Core Components:
COMPRESSSOR
Voltage:
380 V
Warranty:
1 Year
Power:
10HP
Weight (KG):
350
Refrigerant:
R22
Product Name:
Chiller
Application:
Machine
Compressor:
10HP Compressor
Color:
Blue
Voltage:
380V 50HZ
Horse Power:
10HP
Condenser Type:
Air Cooler Condenser
Original:
Shanghai.China
After Warranty Service:
Online Support
Highlight:

10HP Air Cooled Chiller

,

Scroll Compressor Condensing Unit

,

R22 Refrigerant Refrigeration Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
CN¥17,427.32-18,672.12
Product Description

Made in China shanghai KUB brand chiller compressor 10HP scroll smart air cooled machine equipment compressor chiller


Parameters
  Configuration
power supply 3AC-380V-50HZ
cooling
capacity
Kcal/h 25000
Kw 30.0
refrigerant types R22
Control
method
capillaries
compressor  types scroll Adjustable
Power(KW) 3.75*2
condenser types Warp type high efficiency radiator Custom production
Fan air volume(M/H) 13500 Adjustable
Motor power KW 0.29*2
evaporator types Tank Coil Type
copper
tube
water pump Charge pipe diameter ((DN) 15 taiwan
Cold water pipe diameter(DN) 40(1.5")
Freezing water(L/MIN) 200
Water tank capacity(L) 142
Power(KW) 0.75
Head(M) 18
security
protection
controller Compressor delayed start protection
pump reversal protection
Overcurrent protection
Phase sequence/phase loss protection
High and low pressure protection
Pump overload protection
Compressor overload protection
Bump
Controller
High and low voltage meters
filter
Phase sequence relay Schneider
AC contactors
main switch
Description
of the whole
machine
Weight(KG) 320 Length without body tube
Surface treatment Electrostatic spraying
Dimension(CM) 145*70*135



Company Information
 10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 0


10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 2
 10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 4



10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 6



10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 8

FAQ

10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 10



Q1: Are you a manufacturer or trading company?

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.



Q2: What about the shipping methods?

A2: By express/By air/By sea.



Q3: What about the payment methods &payment terms

A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.



Q4: What's your delivery time?Where is the loading port?

A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.



Q5:Can I have a sample first ?

A5:You have to pay sample cost.



Q6: How do you ship the goods and how long does it take arrive?

A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.

The delivery time is according to the way of shipping.

Packaging & Shipping

10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 1210HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 14



A. Individuation & Customization

Refrigeration industry, cold storage engineering;

Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period.

If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



10HP Air Cooled Chiller with Scroll Compressor and R22 Refrigerant for Industrial Cooling 16
