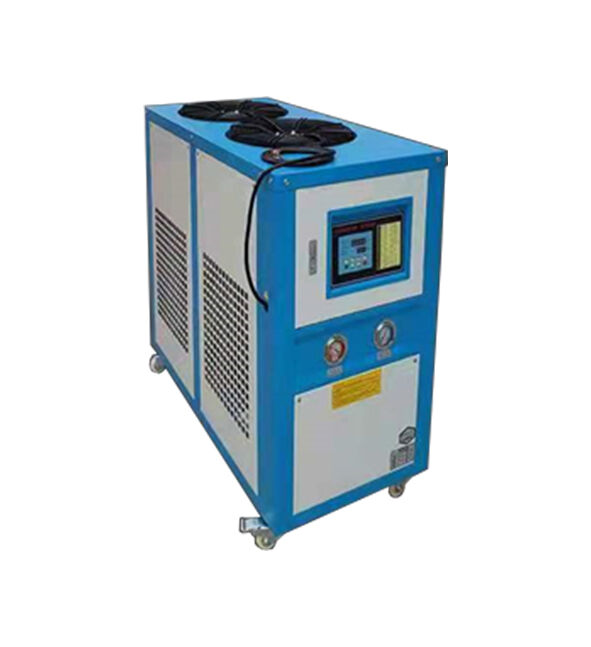

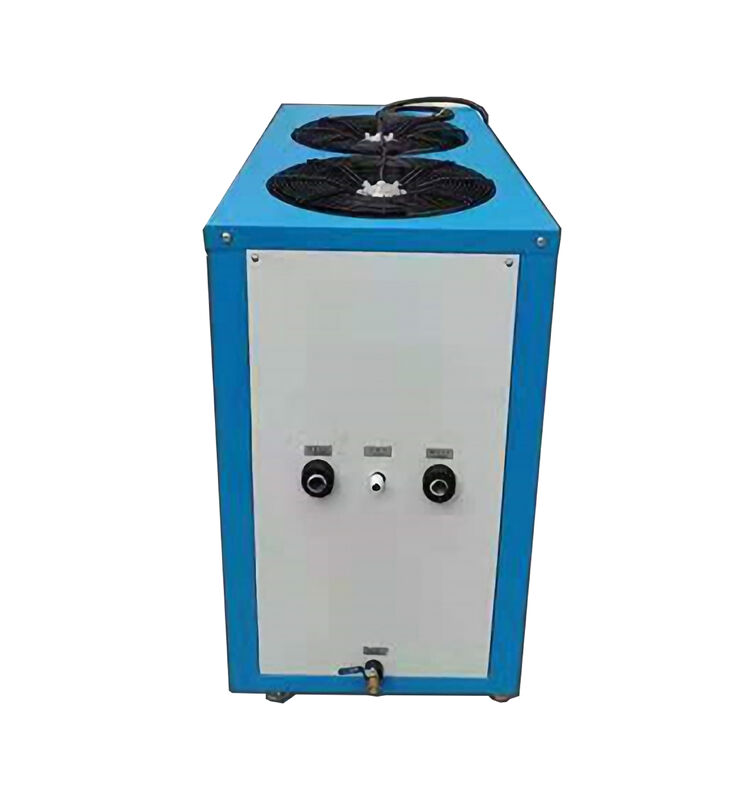

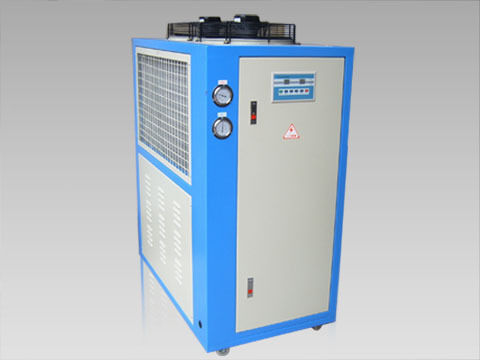

Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant

Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant

3HP Chiller

R22/R404A Refrigerant Air Cooled Condensing Unit

Scroll Compressor Mini Chiller

Place of Origin:

Shanghai, China

Brand Name:

KUB

Contact Us
Request A Quote
Product Details
Weight (KG):
150
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Compressor
Warranty:
1 Year
Refrigerant:
R22/R404A
Product Name:
Chiller
Application:
Machine
Compressor:
3hp Compressor
Color:
Blue
Voltage:
380V 50HZ
Horse Power:
3HP
Condenser Type:
Air Cooler Condenser
Original:
Shanghai.China
After Warranty Service:
Online Support
Highlight:

3HP Chiller

,

R22/R404A Refrigerant Air Cooled Condensing Unit

,

Scroll Compressor Mini Chiller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
CN¥9,681.84-10,373.40
Product Description

 mini chiller air-cooled chiller 3HP chiller prices


Parameters
  Configuration
power supply 3AC-380V-50HZ
cooling
capacity
Kcal/h 7146
Kw 8.1
refrigerant types R22
Control
method
capillaries
compressor  types scroll Adjustable
Power(KW) 2.2*1
condenser types Warp type high efficiency radiator Custom production
Fan air volume(M/H) 3100 Adjustable
Motor power KW 0.164*2
evaporator types Tank Coil Type
copper
tube
water pump Charge pipe diameter ((DN) 15(4 points) taiwan
Cold water pipe diameter(DN) 25(1")
Freezing water(L/MIN) 100
Water tank capacity(L) 52
Power(KW) 0.375
Head(M) 18
security
protection
controller Compressor delayed start protection
pump reversal protection
Overcurrent protection
Phase sequence/phase loss protection
High and low pressure protection
Pump overload protection
Compressor overload protection
Bump
Controller
High and low voltage meters
filter
Phase sequence relay Schneider
AC contactors
main switch
Description
of the whole
machine
Weight(KG) 150 Length without body tube
Surface treatment Electrostatic spraying
Dimension(CM) 105*50*99

 Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 0Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 2

Company Information
 Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 4


Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 6
 Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 8



Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 10



Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 12

FAQ

Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 14



Q1: Are you a manufacturer or trading company?

A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.



Q2: What about the shipping methods?

A2: By express/By air/By sea.



Q3: What about the payment methods &payment terms

A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.



Q4: What's your delivery time?Where is the loading port?

A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.



Q5:Can I have a sample first ?

A5:You have to pay sample cost.



Q6: How do you ship the goods and how long does it take arrive?

A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.

The delivery time is according to the way of shipping.

Packaging & Shipping

Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 16Mini Chiller Air Cooled Condensing Unit with 3HP Scroll Compressor and R22/R404A Refrigerant 18



A. Individuation & Customization

Refrigeration industry, cold storage engineering;

Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period.

If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.
