5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ

5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ

220V 3PH 60HZ Water Cooled Condensing Unit

Shell and Tube Seawater Condenser Condensing Unit

Cold Room Water Cooled Condensing Unit

Place of Origin:

Shanghai, China

Brand Name:

KUB

Certification:

CE

Contact Us
Request A Quote
Product Details
Weight:
200 KG
Refrigerant:
R404A
Compressor Type:
Semi-hermetic Piston Compressors
Horse Power:
5HP
Condenser Type:
Water Cooler Condenser
Voltage:
220V 3PH 60HZ
Compressor Model:
4YD-5.2
Compressor Connection:
Triangle Connection
Condenser Material:
Aluminum Brass Tubes
End Cover Material:
Anti-corrosion Paint
Partition Material:
Anti-corrosion Paint
Seawater Resistance:
Resistant To Seawater Corrosion
Maintenance Interval:
Every Other Year
Compressor Oil:
Oil-less
Condenser Application:
Seawater Water-cooled Condenser
Highlight:

220V 3PH 60HZ Water Cooled Condensing Unit

,

Shell and Tube Seawater Condenser Condensing Unit

,

Cold Room Water Cooled Condensing Unit

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2,250-2,350
Product Description
KUB/4YD-5.2 Shell and Tube Seawater Condenser - 5HP Water Cooled Condensing Unit
Product Specifications
Product Name Water Cooled Condensing Unit
Compressor Model 4YD-5.2
Voltage 220V 3PH 60Hz
Refrigerant R404A
Product Description

This 5HP water-cooled marine condensing unit features:

  • Three-phase 220V60HZ compressor with triangle connection
  • Seawater-resistant water-cooled condenser with aluminum brass tubes
  • Anti-corrosion paint on end covers and partitions for enhanced durability
  • Annual maintenance recommended for optimal performance and longevity

Factory direct production - Customized solutions available

Product Images

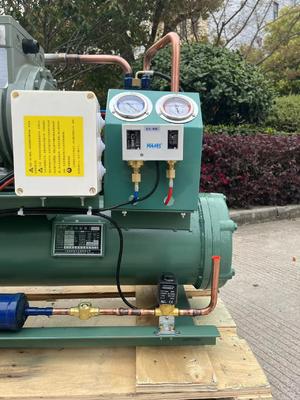

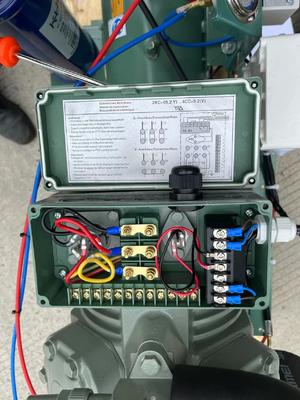

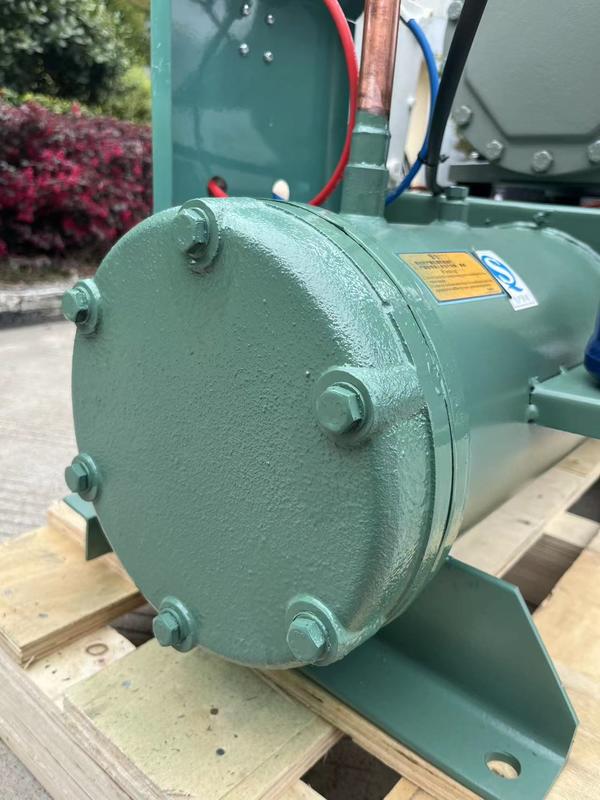

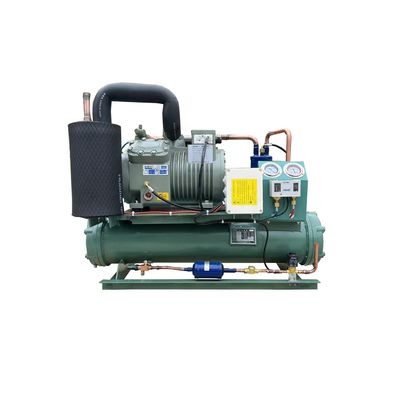

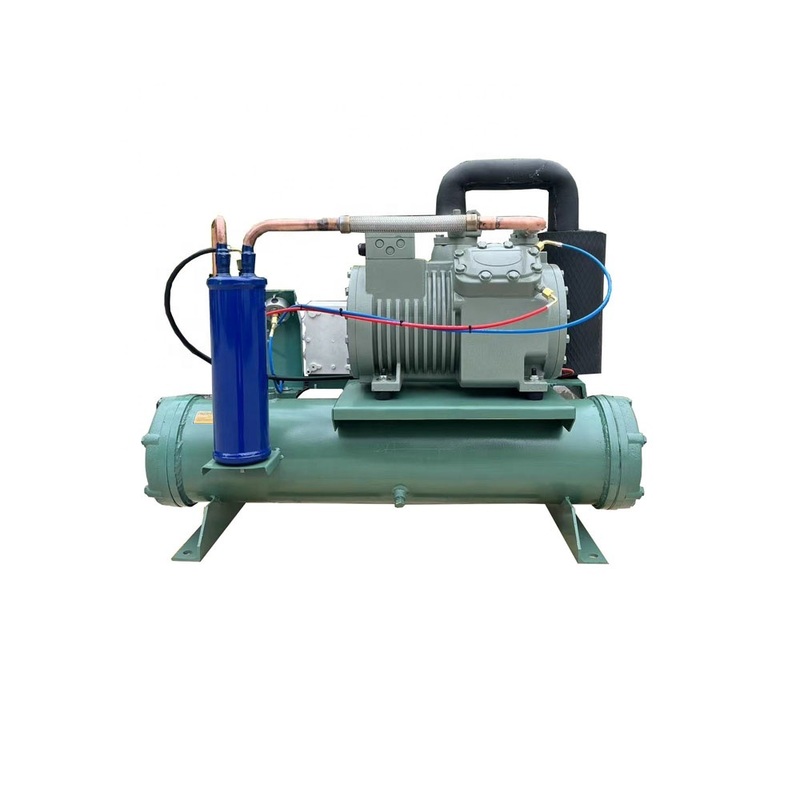

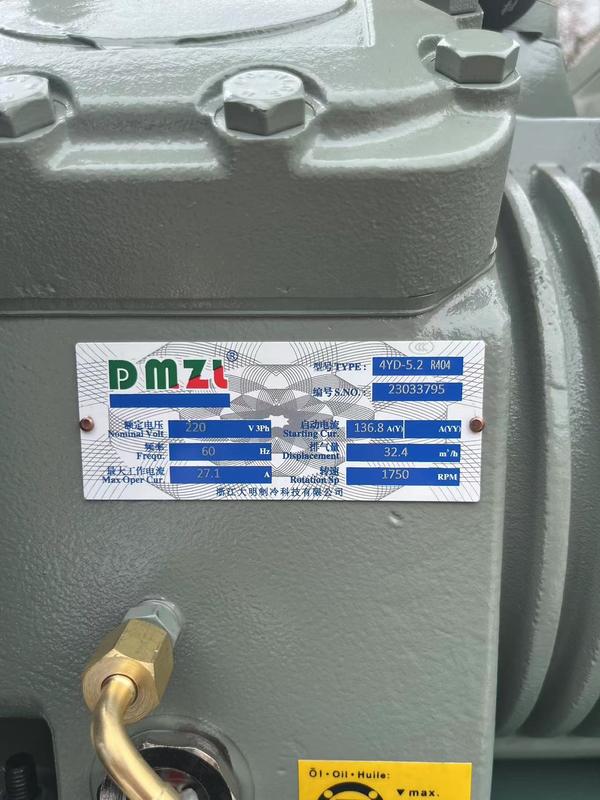

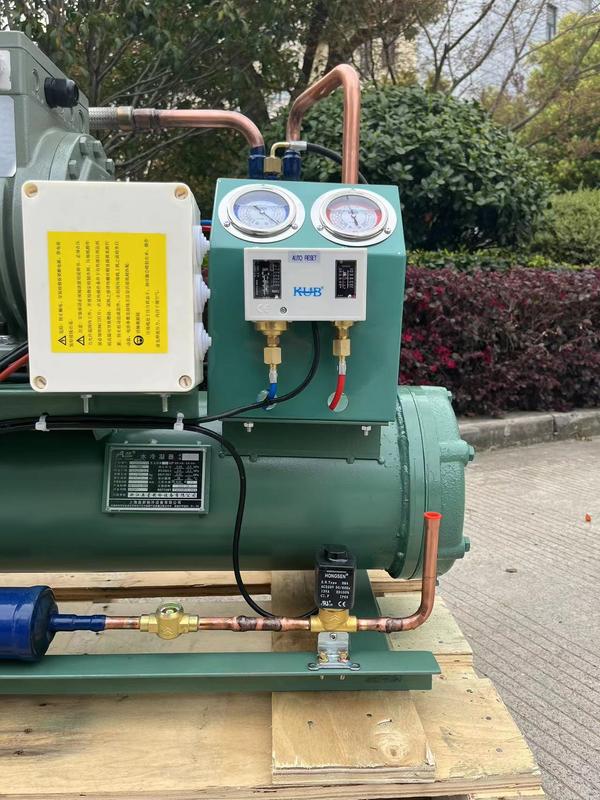

5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 0 5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 1 5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 2 5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 3 5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 4
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?

A1: We are the factory that produces condensing units, chillers, and evaporators (compressor agent).

Q2: What about the shipping methods?

A2: Available shipping methods include express, air, and sea freight.

Q3: What are the payment methods & terms?

A3: We accept T/T, Paypal, Western Union, etc. Terms: 30% deposit, 70% balance before shipment.

Q4: What's your delivery time and loading port?

A4: Standard delivery: 35-60 days after payment. Loading port: Shanghai or other Chinese ports per request.

Product Advantages
  • Custom Solutions: Tailored designs for refrigeration, cold storage, agriculture, food service, and chemical industries
  • Reliable Warranty: 1-year warranty with quality guarantee and after-sales support
  • Durable Construction: Specially designed for marine environments with corrosion-resistant materials
Packaging & Shipping
5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 5 5HP Water Cooled Condensing Unit with Shell and Tube Seawater Condenser for Cold Room 220V 3PH 60HZ 6
