xProduct Details
| Place Of Origin | Shanghai, China | Model Number | KBD1-125 |
|---|---|---|---|
| Voltage | 380V | Dimension(l*w*h) | Customizable |
| Warranty | 1 Year | Key Selling Points | Easy To Operate, Competitive Price, Long Service Life, Energy Saving, Famous Brand PLC, Low Maintenance Cost, Accurate Temperature Control |
| Compressor Brand | International Brand | Cooling Capacity | Low Temperature |
| Video Outgoing-inspection | Provided | Core Components | Compressor |
| Refrigerant | R507, R22, R-404A, R404A/R22 | Temperature | 0 To-35 |
| Weight (KG) | 5000 | Compressor Type | Screw, Screw |
| After-sales Service Provided | Online Support | Compressor | Screw Compressor |
| Product Name | Cold Room Condensing Unit | Voltage | 380V 50HZ |
| Application | Quick-freezing | Horse Power | 125HP |
| Key Words | Refrigeration Unit | Usage | Refrigeration Freezer Cold Room |
| Highlight | cold room refrigeration unit,HSN8571-125 screw compressor,refrigeration condensing unit |
||
Product Description

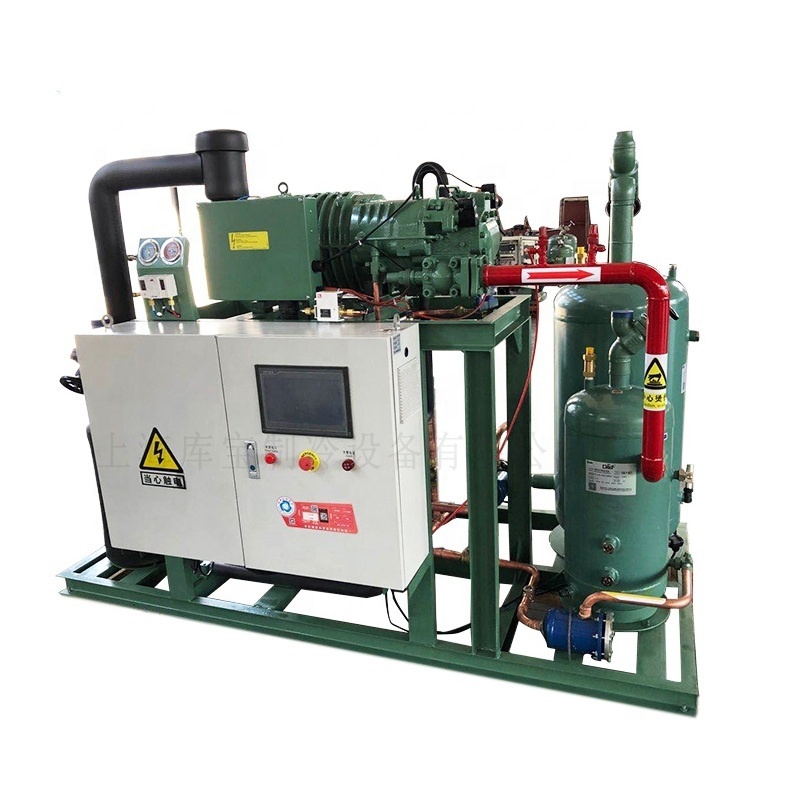

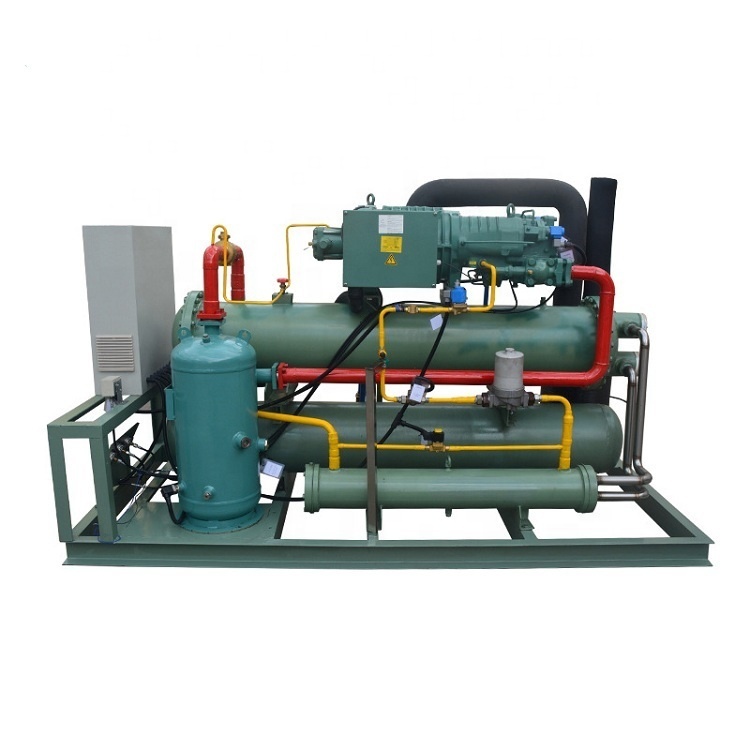

KBD1-125 Cold Room Refrigeration Unit Cool Room Condensing Unit HSN8571-125 Screw Compressor Condensing Unit Prices
Condensing Unit configuration list
| screw compressor KUB brand Air cooled condensing unit module | |||||
| KBD1-125 | |||||
| Number | Name | Specification model or image | Quantity | unit | |

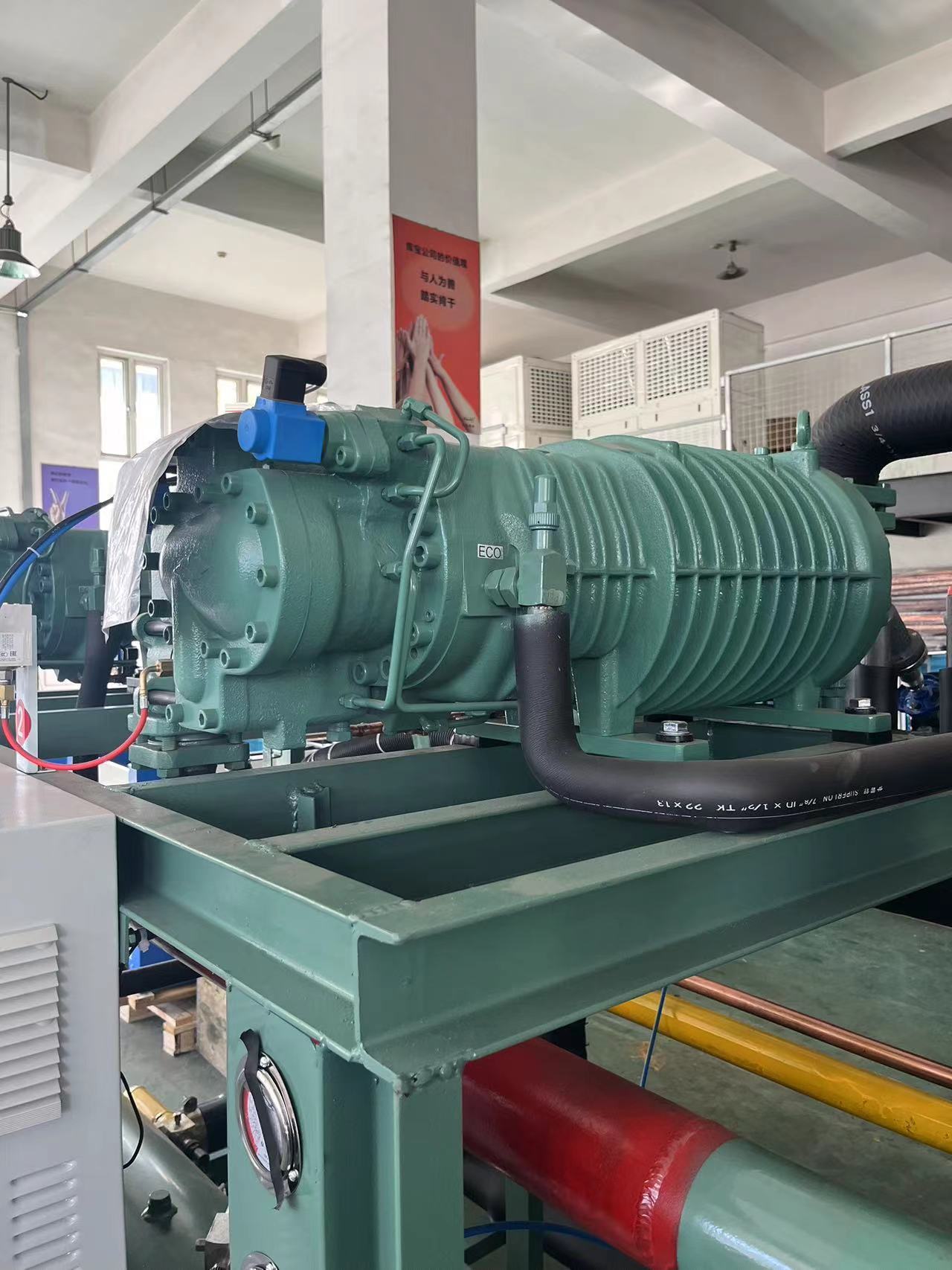

| 1.1 | semi hermetic screw compressor | HSN8571-125 | 1 | piece | |
| 1.2 | Exhaust valve | 3-1/8 | 1 | piece | |
| 1.3 | Dual pressure control | KP15 | 1 | piece | |
| 1.4 | CEOjoint valve | 1 | piece | ||
| 1.5 | suction valve | DN65 | 1 | piece | |
| 2.1 | exhaust header | DN65 | 1 | set | |
| 2.2 | High pressure meter | 0-3.6Mpa | 1 | piece | |
| 2.3 | Steel angle valve | F-T1 | 1 | piece | |
| 2.4 | Steel seat | 1/4 | 1 | piece | |
| 2.5 | safety valve | 3/8 NPT | 1 | piece | |
| 2.6 | safety valve ball valve | 3/8 NPT | 1 | piece | |
| 2.7 | hand valve | 1/4 | 2 | piece | |
| 2.8 | High voltage sensor | 1 | piece | ||
| 2.10 | Exhaust stop check valve | DN65 | 1 | piece | |
| 3.1 | Horizontal reservoir | 200L | 1 | piece | |
| 3.2 | Liquid supply pipe | DN40 | 1 | Set | |
| 3.3 | Dry filter barrel | 9613G steel interface | 1 | piece | |
| 3.4 | Liquid supply solenoid valve | 1-5/8"with coil | 1 | piece | |
| 3.5 | filter element | D48 | 2 | piece | |
| 3.6 | Economizer | main in and out 1-5/8,branch in and out 1-1/8” | 1 | piece | |
| 3.7 | Economizer Ball Valve | 5/8" | 1 | piece | |
| 3.8 | Economizer filter | KUB165S 5/8" | 1 | piece | |
| 3.9 | Economizer Solenoid Valve | SV78-5 5/8"with coil | 1 | piece | |
| 3.10 | Economizer Expansion Valve | TGE5(5/8"X7/8") | 1 | piece | |
| 3.11 | Economizer check valve | XFV-18 1 -1/8 | |||
| 3.12 | Liquid line stop valve | DN40 | 2 | piece | |
| 4.1 | Return trachea | DN100 | 1 | set | |
| 4.2 | Suction Gas-liquid separator | DN100 Gas-liquid separator | 1 | set | |
| 4.3 | Suction filter barrel | 10034G steel interface | 1 | piece | |
| 4.4 | Suction filter element | FRE-100 | 1 | piece | |
| 4.5 | Suction filter element 1 | FRE-100W | 1 | piece | |
| 4.6 | Low pressure pressure sensor | PP11 | 1 | piece | |
| 4.7 | Steel angle valve | F-T1 | 1 | piece | |
| 4.8 | Steel seat | 1/4 | 1 | piece | |
| 4.9 | Low pressure meter | 0-1.6Mpa | 1 | piece | |
| 4.10 | Shut-off valve | DN100 | 1 | piece | |
| 5.1 | oil tubing | 1-3/8" | 1 | piece | |
| 5.2 | External oil separator | CXYF180L | 1 | piece | |
| 5.3 | Coarse oil filtration | 9611 copper interface | 1 | piece | |
| 5.4 | filter element | OLX-48W | 1 | piece | |
| 5.5 | oil flow switch | 1 | piece | ||
| 5.6 | Air-cooled oil-cooled | FNH49 | 1 | set | |
| 5.7 | Bypass Solenoid Valve | 1-3/8" with coil | 1 | piece | |
| 5.8 | oil sight glass | 1 | piece | ||
| 5.9 | oil valve | XFP-27207 7/8" | 2 | piece | |
| 1-3/8" | 1 | piece | |||

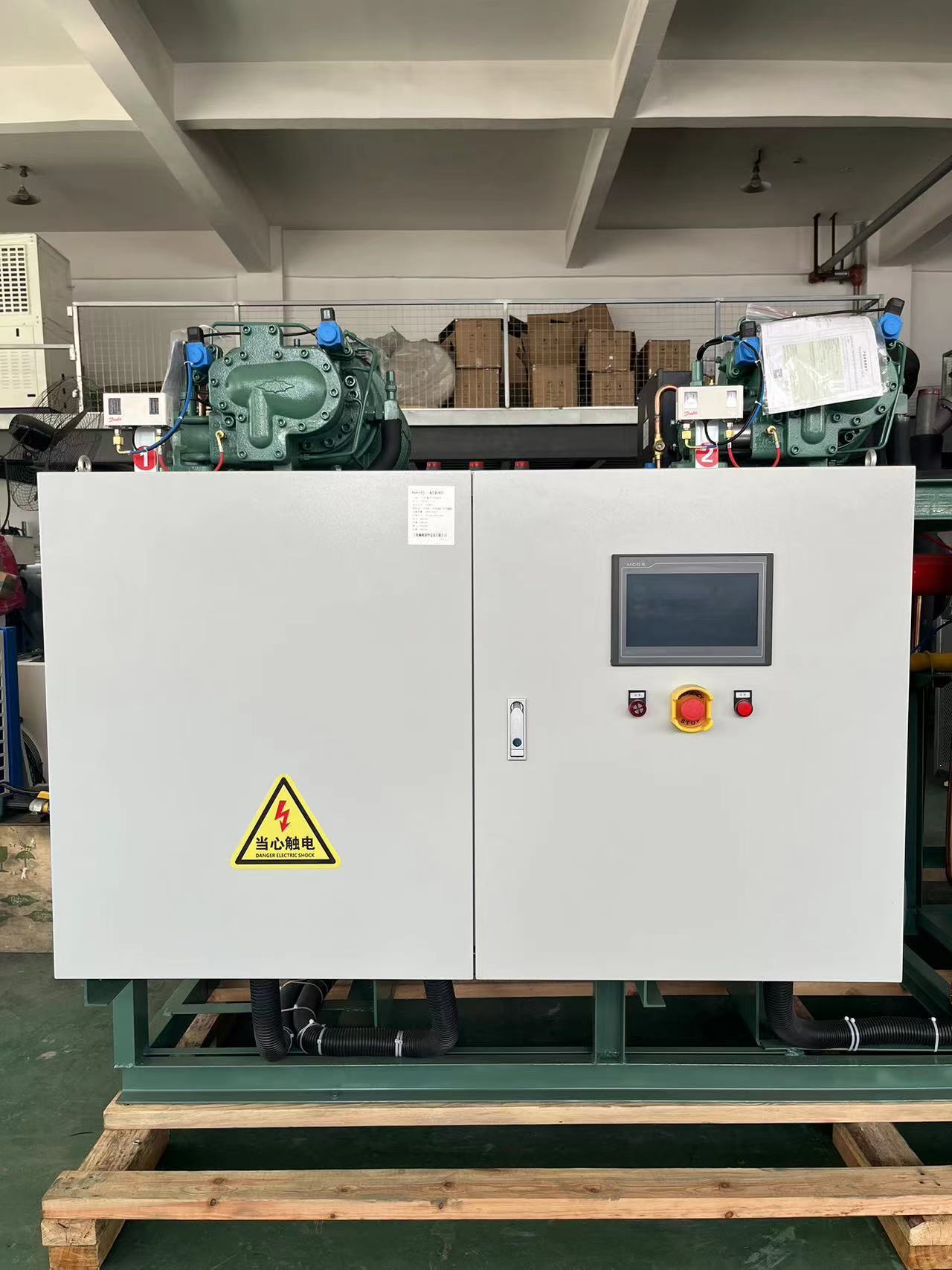

| Electric control box | Chint air switch, Schneider contactor, PLC, Kunlun on-state touch screen | 1 | |||
| Unit model | compressor model | compressor quantity | Condensing temperature (℃) | Evaporation temperature(℃) | |||||||
| -45 | -40 | -35 | -30 | ||||||||
| Cooling capacity/input power(KW) | |||||||||||
| KBD1-50 | HSN6461-50 | 1 | 35 | 26.7 | 27.3 | 34.6 | 28.5 | 43.7 | 29.6 | 54.1 | 30.8 |
| 40 | 25.5 | 30.2 | 33.3 | 31.5 | 42.3 | 32.8 | 52.5 | 34 | |||
| 45 | 24 | 33.4 | 31.7 | 34.9 | 40.5 | 36.3 | 50.6 | 37.6 | |||
| KBD1-60 | HSN7451-60 | 1 | 35 | 31.4 | 33.6 | 41.2 | 34.8 | 52.7 | 36 | 65.9 | 37.3 |
| 40 | 29.8 | 37.8 | 39.5 | 39 | 50.7 | 40.3 | 63.6 | 41.7 | |||
| 45 | 27.9 | 42 | 37.4 | 43.5 | 48.4 | 45 | 61 | 46.6 | |||
| KBD1-75 | HSN7471-75 | 1 | 35 | 40.1 | 39.8 | 51.8 | 41.5 | 65.3 | 43.1 | 80.8 | 44.8 |
| 40 | 38.3 | 44.1 | 49.8 | 45.9 | 63.1 | 47.6 | 78.3 | 49.4 | |||
| 45 | 36.1 | 48.8 | 47.4 | 50.8 | 60.4 | 52.7 | 75.3 | 54.5 | |||
| KBD1-125 | HSN8571-125 | 1 | 35 | 69.3 | 61.4 | 88.5 | 64.7 | 110.7 | 67.9 | 136.3 | 71.1 |
| 40 | 65.7 | 66.9 | 84.7 | 70.9 | 106.6 | 74.6 | 131.9 | 78.3 | |||
| 45 | 61.4 | 72.9 | 80.2 | 77.8 | 101.8 | 82.3 | 126.6 | 86.5 | |||
| KBD-160 | HSN8591-160 | 1 | 35 | 86.4 | 84.1 | 111 | 88.1 | 139 | 91.7 | 172.3 | 95.3 |
| 40 | 82.7 | 92.7 | 106.9 | 97.3 | 134.8 | 101.5 | 167.5 | 105.4 | |||
| 45 | 78.2 | 101.9 | 102 | 107.4 | 129.5 | 112.3 | 161.2 | 116.8 | |||
| Unit model | Reservoir(L) | Liquid supply pipe interface | Suction pipe interface | exhaust pipe interface | Liquid return pipe interface | Dimensions(mm) |
| KBD1-50 | 80 | Φ28 | Φ54 | Φ42 | Φ28 | 1750×1250×1640 |
| KBD1-60 | 100 | Φ35 | Φ76 | Φ54 | Φ35 | 1750×1250×1640 |
| KBD1-75 | 120 | Φ35 | Φ76 | Φ54 | Φ35 | 1750×1250×1640 |
| KBD1-125 | 200 | Φ42 | Φ108 | Φ76 | Φ42 | 2150×1400×1870 |
| KBD1-160 | 250 | Φ42 | Φ108 | Φ76 | Φ42 | 2150×1400×1870 |
